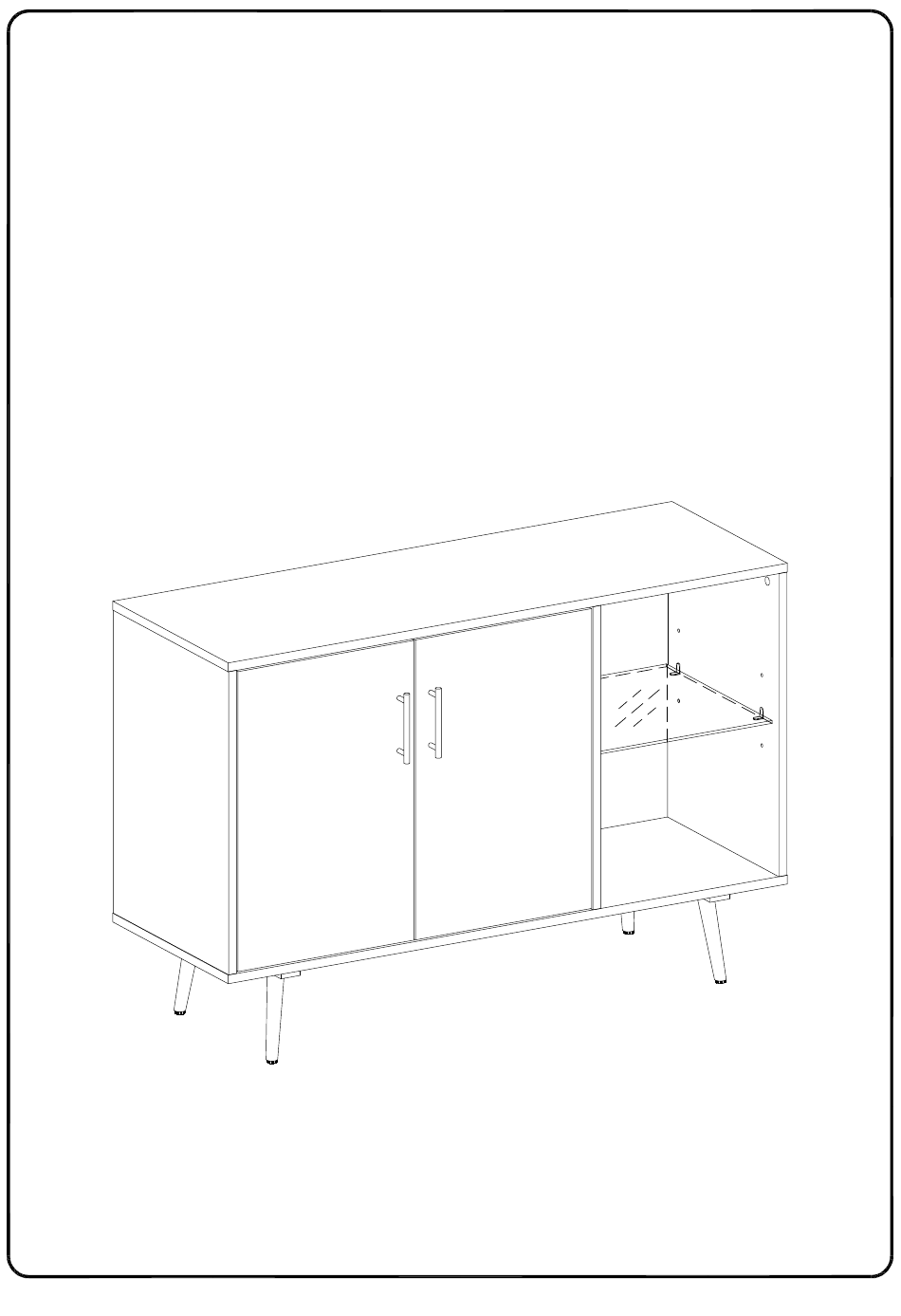

Item # : BU44MCA

Assembly Instructions

Please visit our website for the most current instructions, assembly tips, report damage,

or request parts. www.walkeredison.com

Revised 04/16/2018

P.1

Need help?

Do you have a question about the Theo AZU44MCADW and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison Theo AZU44MCADW

Page 1 Item # : BU44MCA Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 04/16/2018 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 2 . Wipe away excess glue immediately. A Phillips head screwdriver is required for the assembly of this product . VII. Power tools should not be used to assemble this product . Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 4 Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 6 Step 3 Attach part (3,4,5,6) to part (2) using bolt (E) with hex key (W). Step 4 Slide back panel (9,10) into grooves as per diagram. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 7 Insert part (1) into part (3,4,5,6), then insert and secure cam lock (C) to part (3,4,5,6) to lock it. Step 6 Attach part (12) to part (11) using bolt (V) with hex key (W). Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 8 Step 7 Attach part (11,12) to part (2) using bolt (U) with hex key (W). Step 8 Attach plastic wedge (T) to part (9,10) using screw (S) with screwdriver. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 9 Step 9 Place sticker (D) over holes as per diagram. Step 10 Attach door stopper (J) to part (1) using screw (K) with screwdriver. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 11 Attach handle (Q) to part (13,14) using handle bolt (R) with screwdriver. Attach door hinge (L,M) to part (13,14) using screw (P) with screwdriver. Secure bolt (H) to part (13,14). Step 14 Place plastic pivot (N) over holes as per diagram. P.11 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
Page 12 (N) on part (1), then slide the door (13) into the bottom hinge (M). Secure door by tightening door hinge (M) using screws (P) with equal pressure. P.12 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
