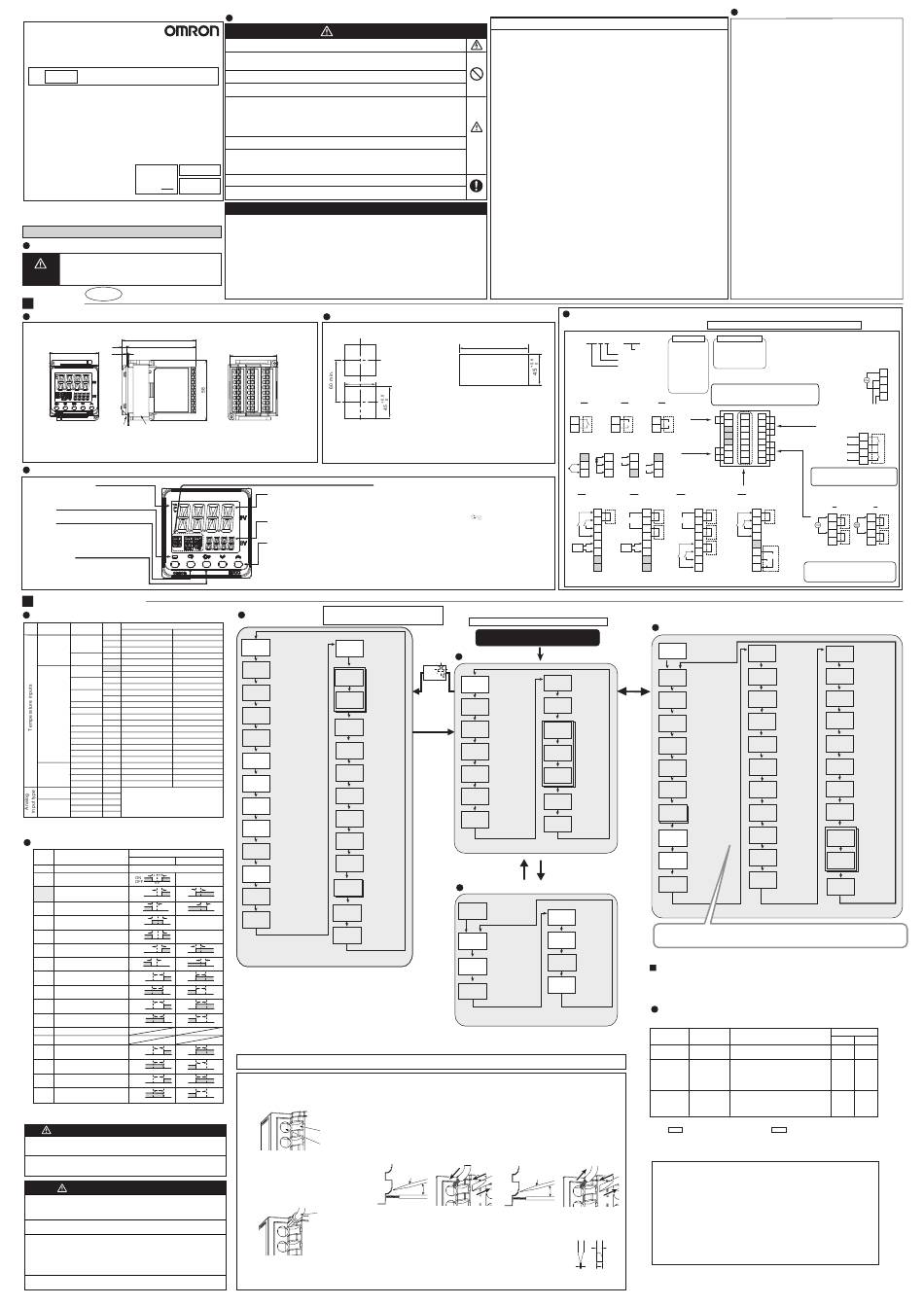

Omron E5CC-B Instruction Manual

E5CC-B
Digital Controller
EN
INSTRUCTION MANUAL
Thank you for purchasing the OMRON E5CC Digital Controller.
This manual describes the functions, performance, and
application methods needed for optimum use of the product.
Please observe the following items when using the product.
• This product is designed for use by qualified personnel with
a knowledge of electrical systems.
• Before using the product, thoroughly read and understand
this manual to ensure correct use.
• Keep this manual in a safe location so that it is available for
reference whenever required.
裏面は日本語です
检验合格
OMRON Corporation
뒷면은 한국어로
©All Rights Reserved
检验员 ： 01
작성되어 있습니다.
Refer to the E5 @ C Digital Controllers User's Manual (Cat. No. H174)
for detailed application procedures.
Safety Precautions
Key to Warning Symbols
Indicates a potentially hazardous situation which, if
not avoided, is likely to result in minor or moderate
injury or property damage. Read this manual
CAUTION
carefully before using the product.
3686268-2A (Side-A)
CC-B24
Wiring
Dimensions
Dimensions (mm)
(71.4)
4 67.4
48×48 1
 
* Do not remove the terminal block. Doing so may result in failure or malfunction.
* A Setup Tool port is provided on the upper of the product. Use this port to connect a personal computer to the product when using
the Setup Tool. E58-CIFQ2 USB-Serial Conversion Cable is required to connect the personal computer to the product. (Do not use
the product with the USB-Serial Conversion Cable left permanently connected.)
Refer to the instruction manual provided with the USB-Serial Conversion Cable for details on connection methods.
Names of Parts on Front Panel
• °C / °F : temperature unit
The temperature unit is displayed when the displayed value
is a temperature. Either C or F is displayed according to
the set value of the temperature unit.
• Level key
Use this key to change levels:
• Mode key
Press this key to change the contents of the display.
Press this button for 1 s or longer for reverse scroll.
• Press the O key and the M key together for at
least 3 seconds to switch to protect level.
• Shift key (PF key)
The default PF Setting parameter is for shifting the digit.
This is a function key. When it is pressed, the function
set for the PF Setting parameter will operate.
Operation Menu
Input Type
Input type Input Setting Setting range
°C °F
0 -200 to 850 -300 to 1500
Platinum
Pt100 1 -199.9 to 500.0 -199.9 to 900.0
resistance
thermometer 2 0.0 to 100.0 0.0 to 210.0
3 -199.9 to 500.0 -199.9 to 900.0
JPt100
4 0.0 to 100.0 0.0 to 210.0
K 5 -200 to 1300 -300 to 2300
Thermocouple
6 -20.0 to 500.0 0.0 to 900.0
7 -100 to 850 -100 to 1500
J
8 -20.0 to 400.0 0.0 to 750.0
T 9 -200 to 400 -300 to 700
10 -199.9 to 400.0 -199.9 to 700.0
11 -200 to 600 -300 to 1100
E
L 12 -100 to 850 -100 to 1500
U 13 -200 to 400 -300 to 700
14 -199.9 to 400.0 -199.9 to 700.0
15
N -200 to 1300 -300 to 2300
R 16 0 to 1700 0 to 3000
S 17 0 to 1700 0 to 3000
B 18 100 to 1800 300 to 3200
19
W 0 to 2300 0 to 3200
PL II
20 0 to 1300 0 to 2300
10 to 70°C 21 0 to 90 0 to 190
Infrared
22 0 to 120 0 to 240
Thermosensor 60 to 120°C
ES1B 115 to 165°C 23 0 to 165 0 to 320
140 to 260°C 24 0 to 260 0 to 500
4 to 20mA 25
Current input
Use the following ranges for scaling: -1999
0 to 20mA 26
1 to 5V 27 to 9999, -199.9 to 999.9, -19.99 to 99.99,
Voltage input
0 to 5V 28 -1.999 to 9.999
0 to 10V 29
*The default is"5".
*s.err will be displayed when a platinum resistance thermometer is mistakenly connected while
input type is not set for it. To clear the s.err display, correct the wiring and cycle the power supply.
Alarms
(Alarms are output from auxiliary outputs.)
Alarm output function
Alarm type
Setting
Positive alarm value (X) Negative alarm value (X)
0
No alarm function Output off
Vary with
*1 Deviation upper/lower limit
1
"L", "H" values
X X
ON ON
2 Deviation upper limit
OFF OFF
SP
X
ON ON
3 Deviation lower limit
OFF
OFF
SP
L H
Vary with
Deviation upper/lower range ON
*1 4
"L", "H" values
OFF
SP
Deviation upper/lower limit L H Vary with
*1 5 ON
"L", "H" values
standby sequence ON
OFF
SP
X X
Deviation upper limit
ON
6 ON
OFF
standby sequence ON OFF
SP
X
Deviation lower limit
7 ON ON
standby sequence ON OFF OFF
SP SP
X
8 Absolute value upper limit ON ON
OFF OFF
0
X
9 Absolute value lower limit ON ON
OFF OFF
0
X
Absolute value upper limit
ON ON
10
standby sequence ON OFF OFF
0
X
Absolute value lower limit
11 ON
ON
standby sequence ON
OFF OFF
0
12 LBA (only for alarm 1)
13 PV Change Rate Alarm
X
14 SP absolute value upper limit ON ON
OFF OFF
0
X
15 SP absolute value lower limit ON ON
OFF OFF
0
X
16 MV absolute value upper limit ON ON
OFF OFF
0
X
ON ON
17 MV absolute value lower limit
OFF
OFF
0
*1: Upper and lower limits can be set for parameters 1, 4 and 5 to provide for different
types of alarm. These are indicated by the letter "L" and "H".
• The default alarm type is "2"
Conformance to EN/IEC Standards
This is a class A product.
In residential areas it may cause radio interference, in which case the user may be
required to take adequate measures to reduce interference.
A 급 기기 (업무용 방송통신기자재)
이 기기는 업무용(A 급) 전자파적합기기로서 판매자또는 사용자는 이 점을
주의하시기 바라며, 가정외의지역에서 사용하는 것을 목적으로 합니다.
Conformance to Safety Standard
Due to UL Listing requirements, use the E54-CT1L or E54-CT3L current transformer
with the factory wiring (internal wiring).
Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field
wiring (external wiring) and not the factory wiring (internal wiring).
Always externally connect the recommended fuse that is specified in the Instruction
Manual before you use the Digital Controller.
Analog Input
• If you input an analog voltage or current, set the Input Type parameter to the correct
input type.
• Do not use the Digital Controller to measure a circuit with Measurement Category II,
III, or IV.
• Do not use the Digital Controller to measure an energized circuit to which a voltage
that exceeds 30 Vrms or 60 VDC is applied.
The protection provided by the Digital Controller may be impaired if the Digital Controller
is used in a manner that is not specified by the manufacturer.
Warning Symbols
CAUTION
Minor injury due to electric shock may occasionally occur.
Do not touch the terminals while power is being supplied.
Electric shock, fire, or malfunction may occasionally occur. Do not allow metal objects, conductors,
cuttings from installation work, or moisture to enter the Digital Controller, the Setup Tool ports, or
between the pins on the connectors on the Setup Tool cable.
Do not use the product where subject to flammable or explosive gas. Otherwise, minor injury from
explosion may occasionally occur.
Never disassemble, modify, or repair the product or touch any of the internal parts. Minor electric
shock, fire, or malfunction may occasionally occur.
CAUTION - Risk of Fire and Electric Shock
a) This is the product UL listed as Open Type Process Control Equipment. It must be mounted in an enclosure
that does not allow fire to escape externally.
b) More than one disconnect switch may be required to de-energize the equipment before servicing.
c) Signal inputs are SELV, limited energy.
d) Caution: To reduce the risk of fire or electric shock, do not interconnect the outputs of different Class 2 circuits.
The maximum terminal temperature is 75°C. Use wires with a heat resistance of 75°C min to wire
the terminals.
If the output relays are used past their life expectancy, contact fusing or burning may occasionally
occur. Always consider the application conditions and use the output relays within their rated load
and electrical life expectancy. The life expectancy of output relays varies considerably with the
output load and switching conditions.
Set the parameters of the product so that they are suitable for the system being controlled. If they
are not suitable, unexpected operation may occasionally result in property damage or accidents.
A malfunction in the Digital Controller may occasionally make control operations impossible or
Suitability for Use
Omron Companies shall not be responsible for conformity with any standards, codes or regulations which
apply to the combination of the Product in the Buyer's application or use of the Product.
At Buyer's request, Omron will provide applicable third party certification documents identifying ratings and
limitations of use which apply to the Product. This information by itself is not sufficient for a complete
determination of the suitability of the Product in combination with the end product, machine, system, or
other application or use. Buyer shall be solely responsible for determining appropriateness of the particular
Product with respect to Buyer's application, product or system. Buyer shall take application responsibility in
all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED
FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
Installation
In the pack:
Individual mounting (mm)
*Main unit *Instruction manual

*Watertight packing (Y92S-P8):
*Adapter (Y92F-49): 
44.8×44.8
+0.6
45
0
• Insert the main unit through the mounting hole in the panel (1 to 5 mm thickness). Insert the
Sold Separately
mounting brackets (supplied) into the fixing slots located on the top and bottom of the rear case.
*USB-Serial Conversion Cable (E58-CIFQ2)
• Tighten the two mounting screws on the top and bottom of the adapter to keep them
balanced, and finally tighten them to a torque of between 0.29 and 0.39 N·m.
• When more than one machine is installed, make sure that the ambient temperature does
not exceed the specified limit.
•
No.1 display
Process value or set data type
• No.2 display
Set point, set data read-out value or
changed input value
•
Up and Down keys
Each press of U key increments or advances
the values displayed on the No.2 display.
Each press of D key decrements or returns
the values displayed on the No.2 display.
Operation stopped.
Initial Setting Level
(Both control and auxiliary outputs are stopped.)
Direct/Reverse Operation
In Reverse operation
in-t orev
Input Type *3
(Heating) =
5
or-r In Direct operation
(Cooling) =
M
Scaling Upper Limit
M
in-h
(only when setting
Alarm 1 to 2
analog input) alt1
100
Type
M
2
Scaling Lower Limit
in-l
M
(only when setting
Alarm 1 to 2
alh1
0 analog input)
Hysteresis
M
0.2
Decimal Point
dp
(only when setting
M
0 analog input)
o1st
Control Output
M
1 Signal
4-20
°C=
Temperature c
d-u
Unit °F= f M
c
trst
Transfer
M
Output Signal
4-20
sl-h
SP Upper Limit
M
1300
tr-t Transfer
M
Output Type
off
sl-l
SP Lower Limit
M
-200
tr-h
Transfer Output
M
PID•ON/OFF Upper Limit
100.0
cntl
In ON/OFF control = onof
M
onof In 2-PID control =
pid
tr-l
Transfer Output
M
Lower Limit
Standard or Heating/Cooling
0.0
s-hc
Standard control = stnd
M
stnd
Heating and cooling control
ev-1
Event Input
= h-c
M
Assignment 1
msp0
st ST (Self-Tuning)
ST ON = on M
on
ST OFF =
off ev-2
Event Input
M
Assignment 2
stop
ptrn
Program Pattern
M
off
ev-3 ev-3
Event Input
M
Control Period (Heating)
Assignment 3 to 4
cp none none
(Unit: Seconds)
SP *Voltage output
20 M
X (for driving SSR): 2
Extraction of Square
M sqr
Root Enable
Control Period (Cooling)
SP
(Only when analog
c-cp
(Unit: Seconds)
off
input is set)
*Voltage output
20 M
(for driving SSR): 2
Move to Advanced
amov
M
Function Setting
0
Level
M
SP Initial setting level enables users to specify their preferred operating
X conditions (input type, alarm type, control method, etc.)
X
*3: Refer to the adjoining tables for details of input types and alarm types.
*4: Operation is stopped when moved to the initial setting level.
0
(Both control and auxiliary outputs are stopped.)
X
*5: The grayed-out setting items are not displayed for some models and some settings of other
0 setting items.
X
Typical example: The parameters are not displayed under the following conditions.
• AT Execute/Cancel: Not displayed if PID ON/OFF is set to ON/OFF.
0
• SP Ramp Set Value: Not displayed if ST is set to ON.
X
• Alarm 1 Type: The default settings of the models that equipped with HB/HS alarms. Can be
0
displayed for a Controller with heater burnout and SSR failure detection if alarm 1 (default
setting) is set for the Auxiliary Output 1 Assignment (Advanced Function Setting Level).
Refer to the E5@C Digital Controllers User's Manual (Cat. No. H174) for the setting method.
*6: The four numeric digits of the product code are displayed in the No. 2 display. The setting
X
cannot be changed and there is nothing that you need to set.
0 Precautions for Correct Use
X
0
X
1. Connecting Wires to Push-In Plus
● Connecting Stranded Wires
0
Terminal Block
X
● Part Names of the Terminal Block
0
Release hole
Terminal
(Insertion) hole
● Connecting Wires with Ferrules and Solid
Wires
Insert the solid wire or ferrule straight into the
terminal block until the end strikes the terminal
block.
● Checking Connections
Ferrules and
Solid Wires
If a wire is difficult to connect because it is too
thin, use a flat-blade screwdriver in the same
way as when connecting stranded wire.
Be sure to observe the following precautions to prevent operation failure, malfunction, or adverse affects on the
performance and functions of the product. Not doing so may occasionally result in unexpected events.
Use the product within specifications.
(1) The product is designed for indoor use only. Do not use the product outdoors. Do not use or store the product
in any of the following locations.
• Places directly subject to heat radiated from heating equipment. • Places subject to intense temperature change.
• Places subject to splashing liquid or oil atmosphere.
• Places subject to direct sunlight.
• Places subject to dust or corrosive gas (in particular, sulfide gas and ammonia gas).
(2) Use and store the Digital Controller within the rated ambient temperature and humidity. Provide forced-cooling
if required.
(3) To allow heat to escape, do not block the area around the product. Do not block the ventilation holes on the product.
(4) Be sure to wire properly with correct signal name and polarity of terminals.
(5) For the wiring materials for the E5@C-B, use stranded or solid copper wires with a cross-sectional area of 0.25
2
to 1.5 mm (equivalent to AWG24 to AWG16). The stripping length is 10 mm if ferrules are used and 8 mm if
ferrules are not used. Please use Ferrules with UL certification (R/C). Connect only one wire to each terminal.
(6) Do not wire the terminals which are not used.
(7) Allow as much space as possible between the controller and devices that generate a powerful high- frequency
or surge. Separate the high-voltage or large-current power lines from other lines, and avoid parallel or
common wiring with the power lines when you are wiring to the terminals.
(8) Use the Digital Controller within the rated load and power supply.
(9) Make sure that the rated voltage is attained within two seconds of turning ON the power using a switch or relay
contact. If the voltage is applied gradually, the power may not be reset or output malfunctions may occur.
(10) Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before
starting actual control operations to ensure the correct temperature display.
(11) When executing self-tuning, turn the load and the unit ON simultaneously, or turn the load ON before you turn
the controller ON.
(12) A switch or circuit breaker should be provided close to this unit. The switch or circuit breaker should be within
easy reach of the operator, and must be marked as a disconnecting means for this unit.
(13) Wipe off any dirt from the Digital Controller with a soft dry cloth. Never use thinners, benzine, alcohol, or any
cleaners that contain these or other organic solvents. Deformation or discoloration may occur.
(14) Design system (control panel, etc) considering the 2 second of delay that the controller's output to be set after power ON.
(15) The output will turn OFF when you move to the Initial Setting Level. Take this into consideration when performing control.
(16) The number of non-volatile memory write operations is limited. Therefore, use RAM write mode when
frequently overwriting data during communications or other operations.
(17) When disassembling the Digital Controller for disposal, use suitable tools.
(18) Do not exceed the communications distance that is given in the specifications and use the specified
communications cable. Refer to the E5
communications distance and cable specifications.
(19) Do not turn the power supply to the Digital Controller ON or OFF while the USB-Serial Conversion Cable is
connected. The Digital Controller may malfunction.
(20) Observe the following precautions when you wire the Digital Controller.
• Do not wire anything to the release holes.
• When you insert a flat-blade screwdriver into a release hole on the terminal block, do not tilt or twist the
screwdriver. The terminal block may be damaged.
• Insert a flat-blade screwdriver into the release holes at an angle. The terminal block may be damaged if
you insert the screwdriver straight in.
• Do not allow the flat-blade screwdriver to fall out while it is inserted into a release hole.
• Do not bend a wire past its natural bending radius or pull on it with excessive force. Doing so may cause
the wire to break.
• Do not use crossover wiring except for the input power supply and communications.
Side-by-side mounting (mm)
+1.0
(48 x number of units - 2.5)
0
Waterproofing is impossible
with side-by-side
installation. When
waterproofing is required, fit
watertight packing on the
backside of front panel.
Operation indicators
•
CMW: Communications writing
• SUB1: Auxiliary output 1 indicator
enabled/disabled indicator
• SUB2: Auxiliary output 2 indicator
Lit when communications writing is
• OUT1: Control output 1 indicator
enabled and not lit when it is disabled.
• TUNE:
• :Protection indicator
Flashing during self-tuning.
Lit when Setting Change Protect is
Lit during auto-tuning.
ON (disables the Up and Down Keys).
•
STOP: Control stopped indicator
•
Lit when "Run/Stop" is stopped during MANU: Manual output indicator
operation.
Lit when the Auto/Manual Mode is set
During control stop, functions other than
to Manual Mode.
control output are valid.
Check the wiring before turning ON the power supply.
*4
POWER ON
or-r
Operation Level
or-d
Process Value/Set Point
*3
25
s.err is displayed when
connected sensor is
0
different from input type.
M
Hold O down
a-m
for at least Auto/Manual Switch
PID control only.
3 seconds
M
(No.1 display flashes,
then the control stops.) m-sp
Multi-SP
Set Point Selection
0
Hold O down M
sp-m
for at least Set Point During
SP Ramp
0
1 second
M
Heater Current 1
ct1
Value Monitor
0.0
(Unit: A)
M
Leakage Current 1
lcr1
Value Monitor
0.0
(Unit: A)
M
prst
Program Start
rset
M
Operation level should normally be used during operations.
Hold O and M keys
down for at least
1 second
Protect Level
Move to Protect Level
pmov
Displayed only when a
password is set. Restricts
0
moving to Protect Level.
M
Operation / Adjustment Protect
oapt Restricts displaying and
modifying menu items in
Operation, Adjustment,
0
and Manual Control Levels.
M
Initial Setting / Communication Protect
Restricts movement to the
icpt
Initial Setting, Communications
Setting, and Advanced Function
1
Setting Levels.
M
Setting Change Protect
wtpt
Restricts changes to settings
off by operating the front panel keys.
M
Restricts which settings can be displayed or changed, and
restricts change by key operation.
2. Removing Wires from Push-In
Use the following procedure to connect the Plus Terminal Block
wires to the terminal block.
Use the following procedure to remove wires
1. Hold a flat-blade screwdriver at an angle and
from the terminal block.
insert it into the release hole.
The same method is used to remove stranded
The angle should be between 10° and 15°. If
wires, solid wires, and ferrules.
the flat-blade screwdriver is inserted correctly,
1. Hold a flat-blade screwdriver at an angle and
you will feel the spring in the release hole.
insert it into the release hole.
2. With the screwdriver still inserted into the
2. With the screwdriver still inserted into the release hole,
release hole, insert the wire into the terminal
remove the wire from the terminal insertion hole.
hole until it strikes the terminal block.
3. Remove the flat-blade screwdriver from the 3. Remove the flat-blade screwdriver from the
release hole. release hole.
2 1
Flat-blade
Flat-blade
screwdriver
screwdriver
10 to 15°
10 to 15°
3
• After the insertion, pull gently on the wire to make
sure that it will not come off and the wire is securely
3. Recommended Tools
fastened to the terminal block.
• If you use a ferrule with a conductor length of 10
● Recommended Flat-blade
mm, part of the conductor may be visible after the
Screwdriver
ferrule is inserted into the terminal block, but the
product insulation distance will still be satisfied.
Use a flat-blade screwdriver
to connect and remove wires.
Use the flat-blade
screwdriver on the right.
Precautions for Safe Use
• Places subject to icing and condensation.
• Places subject to vibration and large shocks.
@
C Digital Controllers User's Manual (Cat. No.H174) for the
Connections
(The applicability of the electric terminals varies with the type of machine.)
Do not connect anything to the terminals that are shaded gray.
E5CC-@ @ @ @ BM - @ @ @ Control output 1 Auxiliary outputs 1and 2
Relay output
Options
250 VAC, 3 A
Input Power Supply
(resistive load)
Auxiliary Outputs Voltage output
Control Output 1 (for driving SSR)
12 VDC, 21 mA
Linear current output
4 to 20 mA DC,
0 to 20 mA DC
Load: 500 Ω max. The E5CC is set for a K thermocouple (input type of 5)
Control Output 1
by default.
If a different sensor is used, an input error (s.err) will occur.
RX QX CX
Check the setting of the Input Type parameter.
One relay output One voltage output One linear
(for driving SSR) current output
1 1 1
OUT1 OUT1 OUT1
+ +
R Q C
- -
2 2 2
Sensor Temperature/Analog Input
TC Pt I V
A +
6 6 6 6
mA
- B -
7 7 7 7
-
V
B
8 8 8 8
+
+
Options
001 002 004
Event inputs 1 and 2, Communications Communications (RS-485)
and event inputs 3 and 4
and CT1 (RS-485) and CT1
(-) B(+) B(+)
17 17 17
* * *
(-)
18 RS-485 18 RS-485 18
19 19 19
EV1
A(-) A(-)
* *
20 20 20
EV2
(-)
21 21 21
CT1 CT1 (-) *
22 22 22
23 23 23
EV3
24 24 24
EV4
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable length exceeds 30 m, compliance with EMC standards will not be possible.
Adjustment Level
Adjustment Level
l.adj
Displayed only once when
entering Adjustment Level.
M
AT Execute / Cancel
at
at-2
100%AT Execute
sktr
Soak Time Remain off
at-1
40%AT Execute
0
M
M
RUN/STOP cmwt
Communications Writing
When control start
r-s Press O
off
= run
(less than
run
When control stop
M
1 second)
= stop
M
ct1
Heater Current 1 Value
Monitor (Unit: A)
al-1 Alarm Value
0.0
1 to 4
M
0
M hb1 Heater Burnout Detection 1
Alarm Value (Unit: A)
al1h
0.0
Upper Limit 1 to 4
M
0
lcr1 Leakage Current 1 Value
M
Monitor (Unit: A)
al1l Alarm Value
0.0
Lower Limit 1 to 4
M
0
hs1 HS Alarm 1
M
(Unit: A)
50.0
o
MV Monitor
M
(Heating)
0.0
sp-0
SP 0 to 7
M
0
c-o
MV Monitor
(Cooling) M
0.0
ins
M PV
Input Shift
0.0
M
inrt PV input
Hold O and M keys
Slope Coefficient
1.000
down for at least
M
3 seconds
p
Proportional
Band
8.0
M
Adjustment level is for entering set values and shift values for control.
PF Key Protect
pfpt
Restricts PF key
off operation.
M
Only the value set to the ins: Temperature Input Shift parameter is applied to the entire temperature input range.
chgp Changed When the process value is 200°C, the process value is treated as 201.2°C after input shift if the input shift value is
Parameters Only set to 1.2°C. The process value is treated as 198.8°C after input shift if the input shift value is set to -1.2°C.
off
M
Parameter Mask
pmsk
Enable
Displayed only
Other functions
on
when a parameter
mask is set.
M
Refer to the E5@C Digital Controllers User's Manual (Cat. No. H174) for information on the Advanced
Password to Move
prlp
Function Setting Level, Manual Control Level, and other functions.
to Protect Level
0 Refer to the E5@C Digital Controllers Communications Manual (Cat. No. H175) for information on
M communications.
Error Display (troubleshooting)
When an error has occurred, the No.1 display shows the error code. Take necessary measure
according to the error code, referring the table below.
No.1 display Meaning
s.err Input error
(S. Err)
*2
A/D converter error
e333
(E333)
*2
Memory error
e111
(E111)
If the input value exceeds the display limit (-1999 to 9999), though it is within the control
range, [[[[ will be displayed under -1999 and ]]]] above 9999.
Under these conditions, control outputs and alarms will operate normally.
Refer to the E5@C Digital Controllers User's Manual (Cat. No. H174) for the controllable ranges.
*2: Error shown only for "Process value / Set point". Not shown for other status.
OMRON ELECTRIOICS B.V.
2 1
Wegalaan 67-69, NL-2132 JD Hoofddorp The Netherlands
Phone 31-23-568-1400
FAX 31-2356-81-388
OMRON ELECTRONICS LLC
3
2895 Greenspoint Parkway, Suite 200 Hoffman Estates, IL 60169 U.S.A.
Phone 1-847-843-7900
FAX 1-847-843-8568/7787
OMRON ELECTRONICS Pte. Ltd. (OEP-SG)
Side Front 438A Alexandra Road # 05-05/08,
Alexandra Technopark, Singapore 119967
2.5 mm dia. Phone 65-6547-6789
FAX 65-6547-6789
OMRON Corporation (Manufacturer)
0.4 mm 2.5 mm
Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN
Specifications
Power supply voltage 100 to 240 VAC, 50/60 Hz or
24 VAC, 50/60 Hz / 24 VDC
Operating voltage range 85 to 110% of the rated voltage
Power consumption
Option 000: 5.2 VA max. (100 to 240 VAC)
3.1 VA max. (24 VAC)/1.6 W max. (24 VDC)
All other specifications: 6.5 VA max. (100 to 240 VAC)
4.1 VA max. (24 VAC)/2.3 W max. (24 VDC)
Indication accuracy Thermocouple:
(Ambient temperature: 23°C) (±0.3 % of indication value or ±1°C,
whichever is greater) ±1 digit max.
Platinum resistance thermometer:
(±0.2 % of indication value or ±0.8°C,
whichever is greater) ±1 digit max.
Analog input:
±0.2 % FS ±1 digit max.
Event input Output current: approx. 7 mA per contact.
Contact input ON:1 kΩ max., OFF: 100 kΩ min.
No-contact input ON: residual voltage 1.5 V max.,
OFF: leakage current 0.1 mA max.
Control output 1 Relay output :SPST-NO
250VAC, 3A(resistive load)
Electrical life of relay: 100,000 operations
Voltage output (for driving SSR):
12 VDC ±20%, 21 mA
Linear current output: 4 to 20 mA DC,
0 to 20 mA DC Load: 500 Ω max.
Control method ON/OFF or 2-PID control
Auxiliary outputs Relay outputs:SPST-NO, 250 VAC,
2 A (resistive load),
Electrical life of relay: 100,000 operations
Transfer output 4 to 20 mA DC with load of 500 Ω max.
1 to 5 VDC with load of 1 kΩ min.
Ambient temperature -10 to 55°C
(Avoid freezing or condensation)
Ambient humidity 25 to 85%
Storage temperature -25 to 65°C
(Avoid freezing or condensation)
Altitude Max. 2,000m
Recommended fuse T2A, 250 VAC, time-lag, low-breaking capacity
Weight Approx. 120 g (Digital Controller only)
Degree of protection Front panel: IP66
Rear case: IP20, Terminal section: IP00
Installation environment Overvoltage category II, pollution
degree 2 (as per IEC61010-1)
Memory protection Non-volatile memory
(Number of write operations: 1,000,000)
Temporary overvoltage Short term: 1200 V+ (power supply voltage)
Long term: 250 V+ (power supply voltage)
Common terminals are indicated with asterisks (*).
You can use the input power supply and
Relay outputs communications common terminals for crossover wiring.
250 VAC: 2 A
Do not exceed the maximum number of Digital
(resistive load)
Controllers given below if you use crossover wiring
for the input power supply.
100 to 240 VAC Controllers: 16 max.
13
24 VAC/VDC Controllers: 8 max.
14
15
Wiring Example:
16
To another E5@C
1 17 9
Auxiliary Outputs
2 18 10
Auxiliary outputs 1 and 2
3 19 11
4 20 12
9
5 21 13 Auxiliary output 2
10
6 22 14 *
11
7 23 15
Auxiliary output 1
8 24 16 12
Check for a single-fault condition of the COM
terminal before use if auxiliary outputs will be
connected to different electrical potentials.
006
Input Power Supply
Event inputs 1 and 2, and
transfer output
A D
(-)
100 to 240 VAC 24 VAC/DC
17
*
(-) 13 13
18
* *
14 14
19
EV1
15 15
20
* *
EV2
16 16
21
+
(no polarity)
22
Transfer
V
+
23
Output
I
24 Use no-voltage inputs for the event inputs.
-
The polarity for non-contact inputs is given
in parentheses.
*6
i mv-s
Integral Time
MV at Stop
(Unit: Seconds)
233 0.0
M M
d mv-e
Derivative Time
MV at PV Error
(Unit: Seconds)
40 0.0
M M
c-p Proportional Band sprt
SP Ramp Set Value
(Cooling)
8.0 off
M M
Integral Time
sprl
c-i SP Ramp Set Value
(Cooling)
(SP Ramp Fall Value)
233 same
(Unit: Seconds)
M
M
Derivative Time
ol-h
c-d
MV Upper Limit
(Cooling)
100.0
40 (Unit: Seconds)
M M
ol-l
c-db
Dead Band MV Lower Limit
0.0
0.0
M
M
Manual Reset Value
orl
of-r MV Change
Clears the offset
Rate Limit
during P or PD control. 0.0
50.0
M
M
sqrp Extraction of Square
hys
Hysteresis (Heating)
Root Low-cut Point
0.0
1.0
M
M
chys
Hysteresis (Cooling) Work Bits 1 to 8
w1on
ON Delay
1.0
0
M
M
soak
w1of Work Bits 1 to 8
Soak Time
OFF Delay
1
0
M
wt-b M
Wait Band
plcm Communications
off
Monitor
M 0
M
Status at error
Action
Control
Alarm
output
Check the setting of the Input Type parameter, Operates
OFF
check the input wiring, and check for broken or as above the
shorts in the temperature sensor. upper limit.
After the check of input error, turn the power OFF
then back ON again. If the display remains the
same, the controller must be repaired. If the OFF OFF
display is restored to normal, then a probable
cause can be external noise affecting the control
system. Check for external noise.
Turn the power OFF then back ON again. If the
display remains the same, the controller must be
repaired. If the display is restored to normal, then
OFF OFF
a probable cause can be external noise affecting
the control system. Check for external noise.
