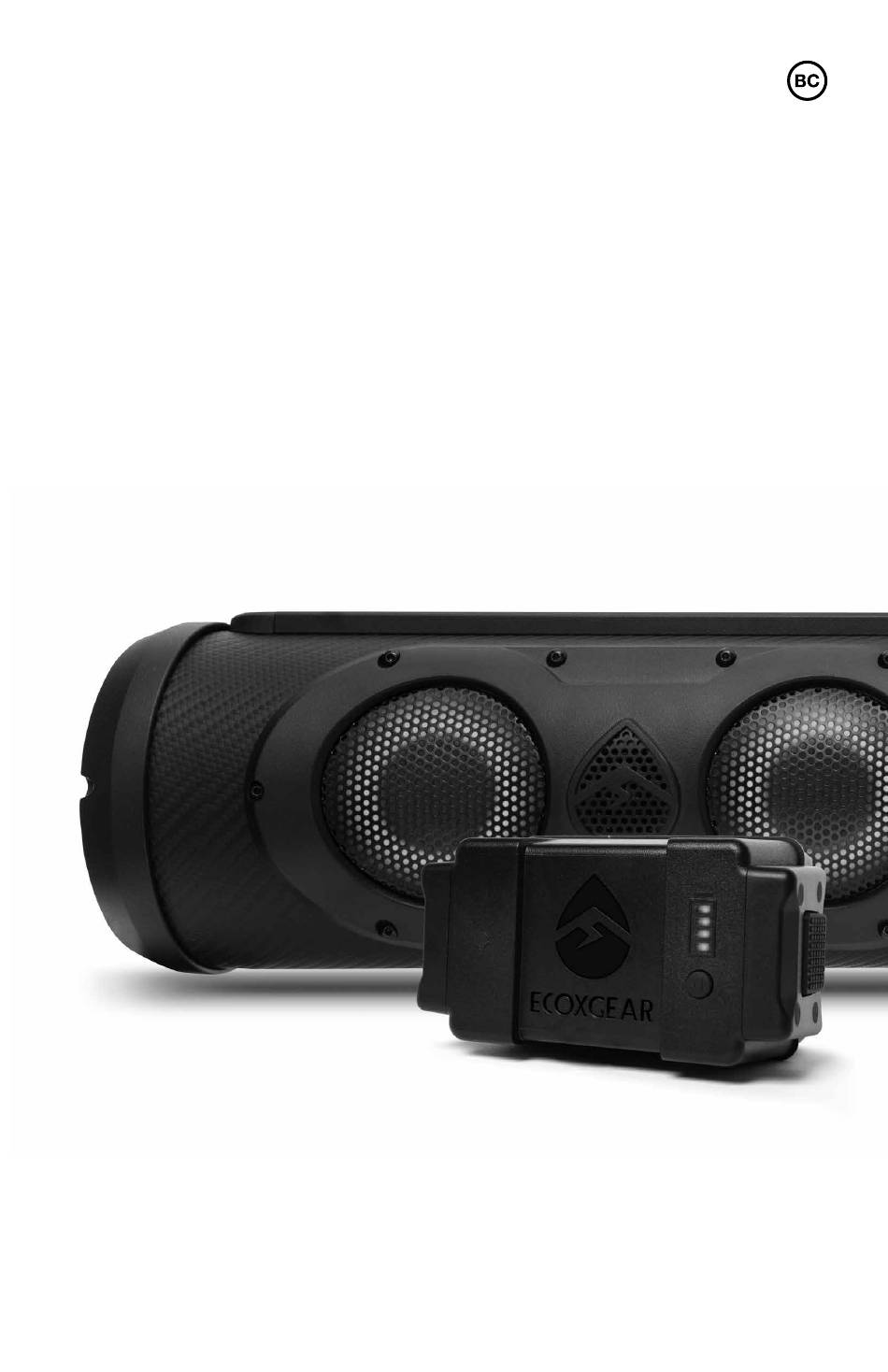

- Page 1 SoundExtreme SEB26 Rechargeable Powersports Amplified Soundbar Models: GDI-EXSEB2600...20 User Guide...
- Page 2 SEB26 SoundExtreme Overview SEB26 Layout Backlit Speakers Control Panel FRONT Backlit Woofer Backlit Woofer LEFT SIDE RIGHT SIDE Rechargeable Light Bar Battery Pack BACK...
- Page 3 SEB26 SoundExtreme Overview Input and Output Connections USB Charging Aux-In Aux-Out Port Port (Black) Port (Gray) Do NOT use these connections if the connections are wet. Aux-In Port: 3.5mm audio jack. This input can be used to connect an additional soundbar, CD player, MP3 player, etc. Aux-Out Port: 3.5mm audio jack.
- Page 4 SEB26 SoundExtreme Overview Buttons and LED Status Indicators iii iv 1. LED Indicators: From left to right, the 4 LED Indicators correspond to Power, Bluetooth, Mode, and Status. i. Power · Solid Green: Power On · No Light: Power Off ii.
- Page 5 SEB26 SoundExtreme Overview 2. Power Button: · Short-press to turn the soundbar on. The speaker will announce, “Speaker on, ready to connect.” · Short-press again to turn the soundbar off. 3. Mode Button: · Short-press to cycle through the following Modes: Bluetooth, EcoCast Transmitting, EcoCast Receiving, FM, and Aux-In.
- Page 6 SEB26 SoundExtreme Overview 8. Bluetooth Button: · When in Bluetooth Mode, if the Bluetooth LED Indicator is not flashing Blue, short-press this Button to enter Bluetooth Pairing. If your device is connected (solid Blue LED), short-press the Button to disconnect and re-enable pairing. ·...
- Page 7 Installation and Charging Mounting Your Soundbar Check out the seperate, mount-specific spec sheet included with this package and www.ecoxgear.com for additional mounting accessories. Rechargeable Battery Battery Release LED Battery Button Level Indicator Battery Level Battery Release Status Button Button The SEB28 has a removable, 12V Rechargeable Battery Pack.
- Page 8 Installation and Charging Loosen Strap 2. Loosen the strap that is fastened over the Battery Pack. Press Battery Release Buttons Battery Port 3. Remove Battery Pack by pressing the Battery Release Buttons on both sides of the battery and pulling it out of the back of the speaker.
- Page 9 Installation and Charging Insert the Battery Port Cap 4. Insert the Battery Port Cap to create a waterproof seal while the Battery Pack is being charged. 5. Insert the Battery Pack into the Battery Charger. 6. Plug the Battery Charger into a wall power outlet.
- Page 10 Installation and Charging 10. Remove Battery Pack from the Battery Charger. 11. Remove the Battery Port Cap from the Battery Port. Fasten Strap 12. Insert the Battery Pack into the back of the speaker. You should hear an audible click, indicating that the Battery Pack is secure. Fasten the strap over the battery.
- Page 11 3. Navigate to your Bluetooth device’s setup screen. Find and select 'ECOXGEAR' to connect. If you don’t see the speaker name, turn your phone’s Bluetooth off and back on again to refresh the list, or short-press on the speaker to enable Bluetooth Pairing again.
- Page 12 Audio Functions · Short-press to increase one volume level. · Short-press to decrease one volume level. Press and hold to adjust the volume continuously. · Press and hold to keep increasing the volume until maximum volume level is reached. · Press and hold to keep decreasing the volume until minimum volume level is reached.
- Page 13 Notes: · When set to Speaker Mode, the soundbar turns the EcoCast capability off. · When you have two or more soundbars or other ECOXGEAR or SoundExtreme speakers bearing the EcoCast symbol , you can build a broadcast system by initiating EcoCast Transmitting...
- Page 14 Audio Functions Mode in one soundbar and broadcasting your music to one or more EcoCast-enabled speakers in EcoCast Receiving Mode. EcoCast: First Two Speakers Follow the steps below to pair two SEB26 speakers: 1. Follow the Connecting and Playing Bluetooth Audio instructions to connect one soundbar (Speaker A) to your Bluetooth device.
- Page 15 Audio Functions EcoCast: Additional Receiving Speakers 1. Turn on the additional EcoCast-enabled speakers (Speaker C and Speaker D) and press the Mode Button to cycle through to and initiate EcoCast Receiving Mode. The Mode LED Status Indicator will flash Green, and the speaker will announce, “EcoCast receiving.”...
- Page 16 Station Presets When you tune and listen to a station, you can save it as a Preset. The SoundExtreme SEB26 can store up to two radio stations. · Press and hold to assign the current station to Preset 1.
- Page 17 Remote Control Pairing Your Remote Control Before you use your Remote Control for the first time, pull and remove the plastic tab at the bottom of the Remote Control. Your Remote Control should be paired to your unit. IF NOT paired, please follow the steps below: 1.
- Page 18 Remote Control After the SoundExtreme is connected to your Bluetooth device: · Short-press to play. · Short-press again to pause. · Short-press to play the previous song. · Short-press to skip to the next audio track. · Short-press to adjust the speaker volume. LED: Backlit Speakers ·...
- Page 19 The sound is distorted Try lowering the volume control of your connected device. Also, try to reduce the overall volume of the SoundExtreme SEB26 soundbar. Cannot pair with Bluetooth device Make sure that your device is compatible with Bluetooth. Turn off your SoundExtreme and Bluetooth device, then power on and reconnect.
- Page 20 Specifications Unit Dimensions 25.5 in / 648 mm 4.5 in / 114 mm 6.6 in / 167 mm Unit Weight Bluetooth Range 11 lbs Up to 100 ft / 30m Battery Weight Compatibility 2.0 lbs Mobile phone / device supporting Bluetooth V1. 1 Charger Weight (and above) 0.7 lbs...
- Page 21 Specifications Woofer (2x) Power Cable In-Line Blade Fuse 4'' (102 mm) woofer 15A, 32V Mid-Range Speaker (4x) Storage Temperature 2.25'' (57 mm) speaker -40°F to 122°F / -40°C to 50°C Audio Output Power Operating Temperature 500W (peak) 23°F to 95°F / -5°C to 35°C Power Supply Waterproof / Dustproof Rating 12V, 13.4Ah Lithium-Ion...
- Page 22 Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 23 LIMITED MANUFACTURER’S WARRANTY: The SoundExtreme SEB26 is covered by a 1-year limited warranty that covers defects in workmanship and / or materials for a period of 1 year from original purchase date. This warranty does not apply to any products which have been abused, neglected, modified or used for a purpose other than the one for which they were manufactured.
- Page 24 What’s in the Box SoundExtreme Speaker SoundExtreme SEB26 Rechargeable Powersports Amplified Soundbar Battery Port Cap Models: GDI-EXSEB2600...20 User Guide SoundExtreme Remote Rechargeable Battery User Guide Control Battery Pack Charger Check out the separate, mount-specific spec sheet provided in this package for additional...
