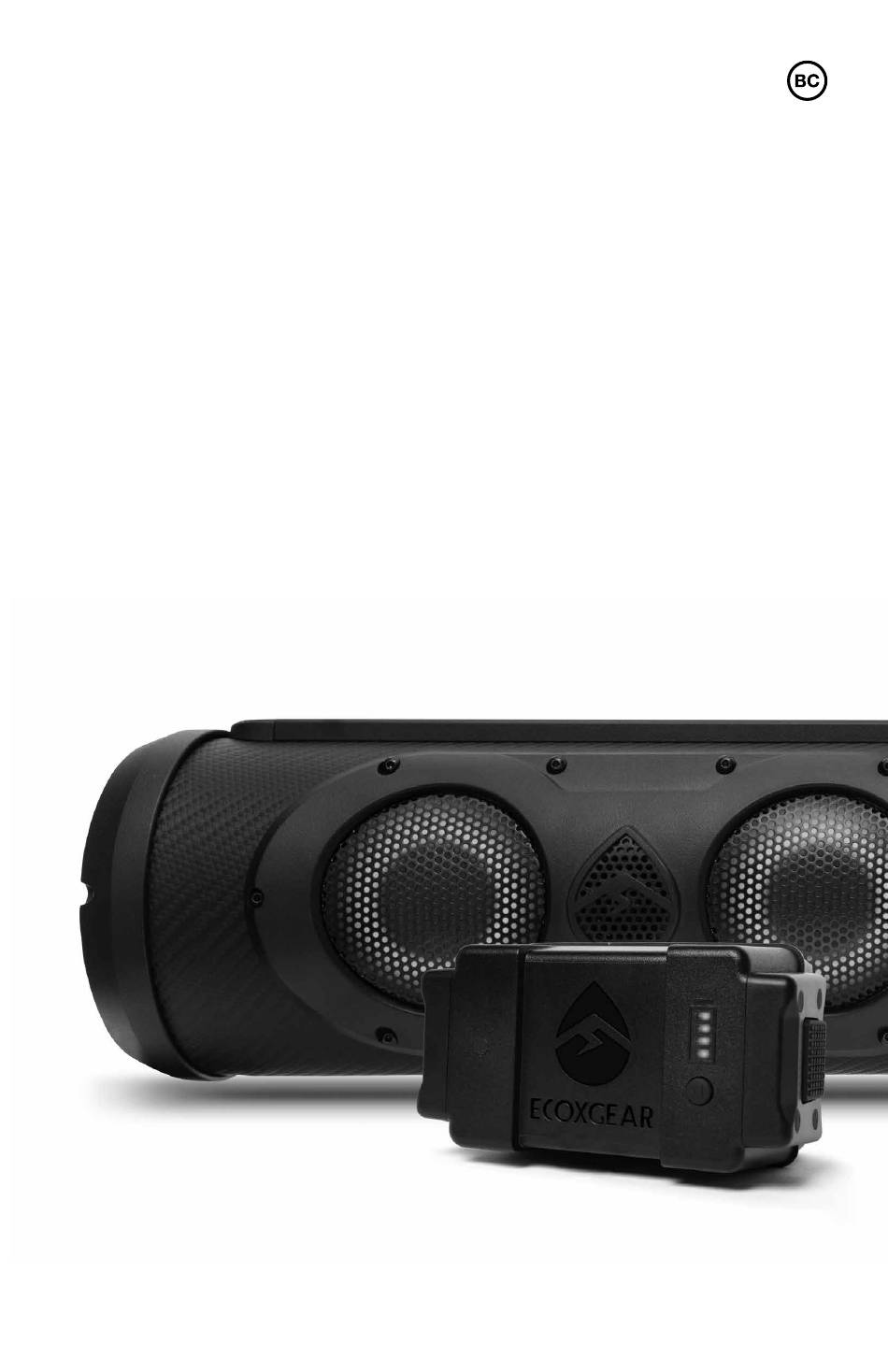

- Page 1 SoundExtreme SEB26R Models: GDI-EXSEB2601R RECHARGEABLE POWERSPORTS AMPLIFIED SOUNDBAR User Guide...
-
Page 2: Left Side
SoundExtreme Layout Backlit Speakers Control Panel FRONT Backlit Woofer Backlit Woofer LEFT SIDE RIGHT SIDE Rechargeable Battery Pack Light Bar BACK... -
Page 3: Usb Charging Port
In/Out Connections USB Charging AUX-IN AUX-OUT Port Jack (Black) Jack (Gray) Do NOT use these connections if they are wet. AUX-IN: This input can be used to connect a CD player, MP3 player, etc. AUX-OUT: This output can be used to connect to an amplifier or to another speaker AUX-IN connection. -
Page 4: Rechargeable Battery
Rechargeable Battery Battery Release Battery Release Button Button LED Battery Level Indicator Battery Level Status Button The SoundExtreme has a removable, 12V Rechargeable Battery Pack. Before using the speaker for the first time, charge the battery. It can take 8 hours to fully recharge the battery from empty. WARNING: Only use the provided Battery Charger. - Page 5 Loosen Strap 2. Loosen the strap that is fastened over the Battery Pack. Press Battery Release Buttons Battery Port 3. Remove Battery Pack by pressing the Battery Release Buttons on both sides of the battery and pulling it out of the back of the speaker.
-
Page 6: Battery Charging Indicator
Insert the Battery Port Cap 4. Insert the Battery Port Cap to create a waterproof seal while the Battery Pack is being charged. Insert Battery Pack into Battery Charging Indicator Battery Charger 5. Insert the Battery Pack into the Battery Charger. 6. - Page 7 9. Once the battery is fully charged, the Battery Charging Indicator will shine green. It can take 8 hours to fully recharge the battery from empty. 10. Remove Battery Pack from the Battery Charger. 11. Remove the Battery Port Cap from the Battery Port. Fasten Strap 12.
-
Page 8: Control Panel
Controls 1. LED Indicators: Each of the 4 LEDs correspond to different functions: Power, Bluetooth, Mode, and Status. 2. Power Button: Press button to turn the SoundExtreme on / off. 3. Mode Button: Press button to cycle through the following modes: Bluetooth, EcoCast Transmitting, EcoCast Receiving, FM, and AUX-IN. -
Page 9: Led Indicators
Operations LED Indicators From left to right, the 4 LED Indicators correspond to Power, Bluetooth, Mode, and Status. 1. Power Solid Green: Power On No Light: Power Off 2. Bluetooth Flashing Blue: Bluetooth Paring Solid Blue: Bluetooth Connected 3. Mode Solid Blue: Speaker Mode Solid / Flashing Red: EcoCast Transmitting Mode Solid / Flashing Green: EcoCast Receiving Mode... -
Page 10: Pairing A Bluetooth Device
LED Indicator from the left) is not flashing, briefly press start pairing your device. 3. Navigate to your Bluetooth device’s setup screen, find ECOXGEAR and connect. If the connection is successful, the Bluetooth icon will be lit solid and your SoundExtreme will announce “Your phone is connected. ”... - Page 11 Play Music (Bluetooth Mode) After the SoundExtreme is connected to your Bluetooth device, press briefly on the SoundExtreme to play, press again to pause. Press briefly to play previous song. Press briefly to get the next song. Notes: · Pair and connect your Bluetooth device with SoundExtreme before using this feature.
- Page 12 EcoCast – Broadcast Your Music to Multiple Speakers x100 When you have two or more SoundExtreme speakers, you can build a broadcast system by initiating EcoCast Transmitting Mode in one SoundExtreme speaker and broadcasting your music to one or more SoundExtreme speakers in EcoCast Receiving Mode.
- Page 13 Transmitting Mode (Speaker A). If they are not automatically reconnected, please follow the above steps. · You can also pair the SoundExtreme with any other ECOXGEAR speaker bearing the EcoCast symbol · The EcoCast functionality is only available while using Bluetooth as your Audio Source at a maximum range of 30 feet between speakers.
-
Page 14: Accessory Mode
Listening to FM Radio (FM Mode) Press briefly to cycle through to FM Mode. Press briefly to tune in a radio station. To “seek” (jump to the next available station), PRESS AND HOLD either button down for a few seconds until it starts to seek a station. -
Page 15: Pairing Your Remote Control
Remote Control Pairing Your Remote Control Before you use your Remote Control for the first time, pull and remove the plastic tab at the bottom of the Remote Control. Your Remote Control should be paired to your unit. IF NOT paired, please follow the steps below. -
Page 16: Remote Switch
After the SoundExtreme is connected to your Bluetooth device, press briefly to play, press again to pause. Press briefly to play previous song. Press briefly to get the next song. Press briefly to adjust the speaker volume. LED: Backlit Speakers Press briefly to turn on your speaker backlights. - Page 17 Mounting Your Speaker CAUTION: Do NOT install on your own. This installation is a two- person job, to be done safely and to avoid personal injury and / or damage to your vehicle. When mounting the soundbar, it is extremely important to make sure that each mount and the speaker are secure and will not cause any potential issues.
- Page 18 3. Put the appropriate Lower Rubber Inserts onto each of the Bottom Clamps. Then put the matching Upper Rubber Inserts on each of the Top Clamps. Align the rubber groove with the bulge of the Clamps and press firmly to assemble the Clamp and Rubber Inserts.
-
Page 19: Troubleshooting
LED lights on. LED lights are not DOT compliant. Custom ECOXGEAR Battery Pack and Battery Charger Only recharge the Battery Pack with the supplied Battery Charger. Additional ECOXGEAR removable 12V Rechargeable Battery Packs and Battery Chargers sold separately. Please do NOT attempt to fix your SoundExtreme Please contact our Customer Support at support@gracedigital.com or... -
Page 20: Specifications
Specifications Dimensions 6.75 in / 171.45 mm 25.5 in / 647.7 mm 2.1 in / 53 mm 4.6 in / 117 mm 5.25 in / 133 mm Unit Weight Modulation 13 lbs GFSK, π/4-DQPSK, 8DPSK Mount Weight Bluetooth Range 0.75 lbs (each) Up to 100 ft / 30m Replacement Mounts Tweeter (2x) - Page 21 Audio Output Power 500W (peak) USB Output 5V, 2.1A Power Supply 12V, 13.4Ah Lithium-Ion rechargeable battery pack Battery Charger Input: 100 - 240 VAC 50/60Hz, 0.6A Output: 12V, 2.0A Play Time Up to 20hrs play time, 5hrs play time at maximum volume Charging Time Approximately 8 hours EcoCast Range...
- Page 22 Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP66 waterproofing standards, which means the speaker can be exposed to dust and water, but should not be submerged underwater.
- Page 23 5.) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit. 6.) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water.
-
Page 24: What's In The Box
What’s in the Box (4x) 1/4-20 x 0.75” Hex Key for SoundExtreme Speaker Long SHCS Bolts ¼-20 Bolts SoundExtreme SEB26R Models: GDI-EXSEB2601R RECHARGEABLE POWERSPORTS AMPLIFIED SOUNDBAR User Guide (4x) M6-1.0 x 40mm Hex Key for User Guide Remote Control Long BHSC Bolts...
