- Page 1 SoundExtreme Models: GDI-EXSNDXTR00...20 POWERSPORTS AMPLIFIED SOUNDBAR User Guide...
-
Page 2: Left Side

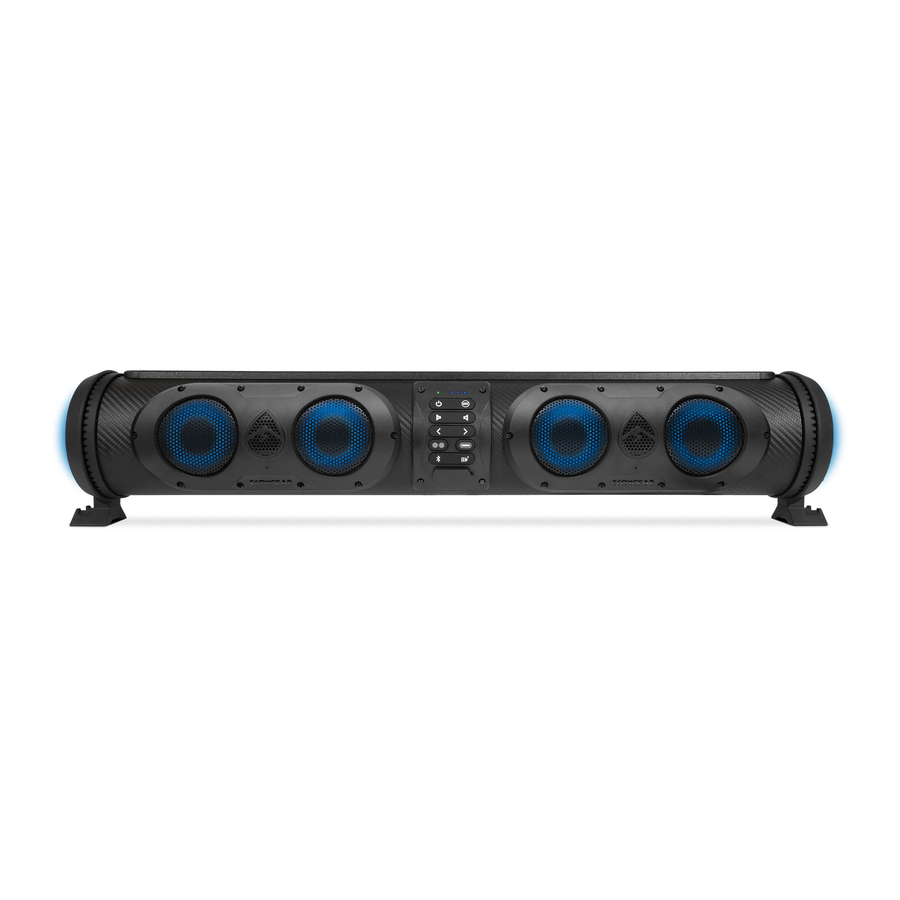

SoundExtreme Layout Backlit Speakers Control Panel FRONT Backlit Woofer Backlit Woofer LEFT SIDE RIGHT SIDE Auxiliary Power Out 12V Power In SAE SAE Connector (Black) Connector (Red) Light Bar BACK... - Page 3 AUX-OUT: This output can be used to connect to an amplifier or to another speaker AUX-IN connection. USB Charging Port: Connect your device’s charge cable here to charge it. USB charging only functions when the SoundExtreme’s power is turned on. USB port rating is 5V, 2.1A. Important: Maintaining Waterproofness If the caps on the control panel, the AUX-IN, and AUX-OUT Ports are not properly closed, the unit is NOT watertight.
- Page 4 12VDC power supply to function. When you install the SoundExtreme to a battery or a voltage regulator on a golf cart, a boat, a quad bike, a UTV, or another vehicle, you need to make sure that your vehicle battery or battery pack terminal voltage is 12VDC.
- Page 5 Installation: Gas Vehicle 1. Loosen the bolts on the battery terminals. Use Caution: Do NOT attempt to loosen bolts if battery is wet. Contact may cause electric shock and injury if wet. 2. Connect the BLACK wire to the Loosen Bolts BLACK, negative terminal, then the RED wire to the RED, positive terminal.
-
Page 6: Control Panel
1. LED Indicators: Each of the 4 LEDs correspond to different functions: Power, Bluetooth, Mode, and Status. 2. Power Button: Press button to turn the SoundExtreme on / off. 3. Mode Button: Press button to cycle through the following modes: Bluetooth, EcoCast Transmitting, EcoCast Receiving, FM, and AUX-IN. -
Page 7: Led Indicators
Solid Green: AUX-IN Solid Red: Accessory Mode Enabled Power On/Off Power On: Press briefly to power on the SoundExtreme. “Speaker on, ready to connect” voice prompt will be heard. Power Off: Press briefly to power off the SoundExtreme. Mode Button... -
Page 8: Pairing A Bluetooth Device
Pairing a Bluetooth Device 1. Turn on your Bluetooth device. 2. Power on SoundExtreme. “Speaker on, ready to connect” voice prompt will be heard. If the Bluetooth LED Indicator (the second LED Indicator from the left) is not flashing, briefly press start pairing your device. - Page 9 PRESS AND HOLD for 3 seconds to activate the voice assistant on your device (Siri, OK Google, etc.). Once activated, the speakerphone mic on your SoundExtreme will hear your voice commands and transfer them to the voice assistant on your device. Notes: ·...
- Page 10 EcoCast – Broadcast Your Music to Multiple Speakers When you have two or more SoundExtreme speakers, you can build a broadcast system by initiating EcoCast Transmitting Mode in one SoundExtreme speaker and broadcasting your music to one or more SoundExtreme speakers in EcoCast Receiving Mode.
- Page 11 Transmitting Mode (Speaker A). If they are not automatically re-connected, please follow the above steps. · You can also pair the SoundExtreme with any other ECOXGEAR speaker bearing the EcoCast symbol · The EcoCast functionality is only available while using Bluetooth as your Audio Source at a maximum range of 30 feet between speakers.
-
Page 12: Accessory Mode
Listening to FM Radio (FM Mode) Press briefly to cycle through to FM Mode. Press briefly to tune in a radio station. To “seek” (jump to the next available station), PRESS AND HOLD either button down for a few seconds until it starts to seek a station. -
Page 13: Remote Control
REMOTE CONTROL Audio Power On: PRESS AND HOLD for 3 seconds to power on the SoundExtreme. “Speaker on, ready to connect” voice prompt will be heard. Power Off: PRESS AND HOLD for 3 seconds to power off the SoundExtreme. Press briefly to cycle through the following modes: Bluetooth, EcoCast Transmitting, EcoCast Receiving, FM, and AUX-IN. - Page 14 LED: Backlit Speakers Press briefly to turn on your speaker backlights. Press briefly to cycle through the 4 Party Light modes. LED: Light Bar Press briefly to turn on your Light Bar. Press briefly to cycle through the 4 Light modes. Remote Switch: First, connect your accessory to the Auxiliary Power Out SAE Connector (12V only).
-
Page 15: Mounting Brackets
Mounting Brackets 1. To mount the SoundExtreme, first slot the M8 bolt through the holes in the mounting bracket and L-bracket. To orient the speaker to the mounting surface, rotate the mounting bracket relative to the L-bracket. Then fasten using the provided M8 flange nut. -
Page 16: Troubleshooting
Can NOT play music from a flash drive The USB ports are only for charging USB devices. Volume level is too low Increase the volume on the SoundExtreme and / or increase the volume on your Bluetooth device. Please do NOT attempt to fix your SoundExtreme Please contact our Customer Support at support@gracedigital.com or... -
Page 17: Specifications
Specifications Dimensions 4.5 in / 114.3 mm 25.5 in / 647.7 mm Bluetooth Compliance EcoCast Bluetooth V 5.0 Using Qualcomm® Broadcast Audio technology Bluetooth Frequency Band EcoCast Range 2.402~2.480GHz ISM Spectrum 30 ft / 9.1 m between Casting Modulation speaker and Receiving speakers GFSK, π/4-DQPSK, 8DPSK Compatibility Bluetooth Range... - Page 18 Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP66 waterproofing standards, which means the speaker can be exposed to dust and water, but should not be submerged underwater.
- Page 19 5.) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit. 6.) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water.
-
Page 20: What's In The Box
What’s in the Box SoundExtreme Speaker 6ft Power Cable SoundExtreme Models: GDI-EXSNDXTR00...20 POWERSPORTS AMPLIFIED Auxiliary Power Out Mating Connector SOUNDBAR User Guide SoundExtreme SoundExtreme (2x) ¼-20 SHCS (2x) ¼-20 SHCS User Guide Remote Control Bolt – 0.5” long Bolt – 1.25” long...
