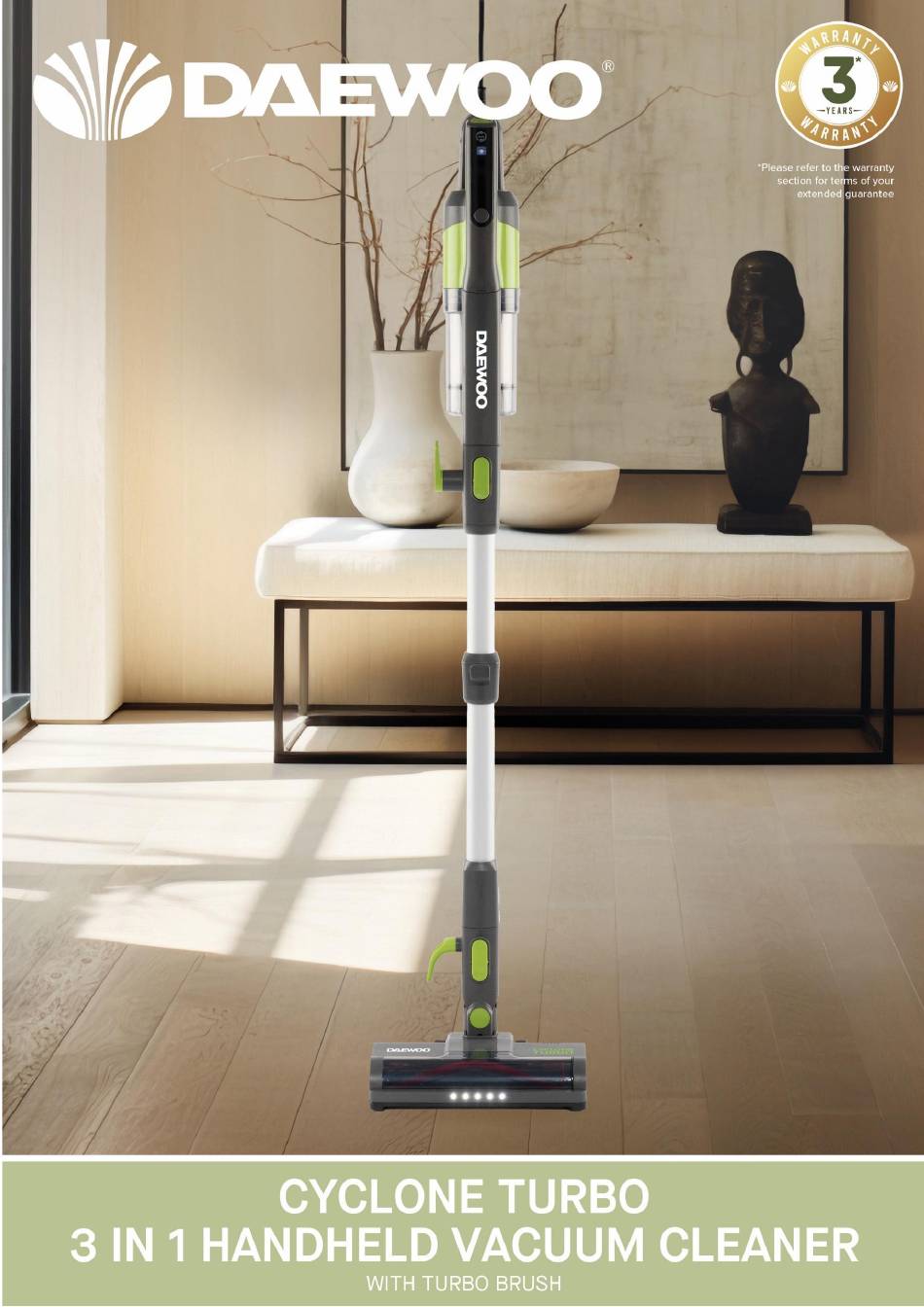

- Page 1 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts & Accessories Assembling Your Vacuum Cleaner Before First Use of Your Vacuum Cleaner...
- Page 3 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 4 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual to the mains supply. DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the • appliance has been used, before it is cleaned and whilst being repaired.
- Page 5 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Ensure fingers and other objects are never placed in any • part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly. Keep hair, loose clothing, jewellery, fingers and all parts of •...
- Page 6 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
- Page 7 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Description of Parts & Accessories 1. On/Off Button 2. Handle 3. Dust Compartment Release Button 4. Motor Unit 5. Dust Compartment 6. Upper Cable Hook 7. Aluminium Tube 8. Lower Cable Hook 9.
- Page 8 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Assembling Your Vacuum Cleaner Assemble your vacuum cleaner as shown below: A. Insert the Aluminium Tube (7) into the Motorised Floor Tool (10) as shown in ‘A’ above. B. Insert the Motor Unit (4) into the top of the Aluminium Tube (7) as shown in ‘B’...
- Page 9 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Using Your Vacuum Cleaner 1. Once you have assembled your vacuum cleaner, fully unravel the Mains Cable (17) and insert the mains plug into the nearest socket. 2&3 2. Grip the vacuum by the...
- Page 10 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Setting the Brush Speed The brush speed of the Motorised Floor Tool (10) can be altered according to the type of floor being cleaned. Press the Mode Button (15) to select from Carpet cleaning mode to Hard Floor...
- Page 11 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual 2. Attach the Upholstery Tool (23) to the Motor Unit (4) to clean Sofas, Chairs, Mattresses, Cushions, etc. as shown in the example right: 3. Attach the Crevice Tool & Brush...
- Page 12 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Emptying and Cleaning Your Vacuum Cleaner WARNING! Always disconnect the cleaner from the mains power supply before cleaning. 1. Once the dust level reaches the ‘MAX’ mark (arrowed left) on the Dust Compartment (5) it will need to be emptied.
- Page 13 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Cleaning, Removing and Refitting the Filter Assembly (19) 1. Remove the Motor Unit (4) Press the Dust Compartment Release Button (3 – arrowed below) to separate the Dust Compartment (5) from the Motor Unit (4) as shown right: 2.
- Page 14 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual 1. Remove the Filter Assembly (19) from the Dust Compartment (5) as follows: a. Push the retaining catch inwards and lift out the Hepa and Sponge Filters together. b. Pull the Conical Filter out of the Dust Compartment (5).
- Page 15 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Once dry, push the Sponge Filter into the Hepa Filter as shown left: Hook the Sponge and Hepa Filter unit onto the Conical Filter at the rear and then push down until it clicks into place.
- Page 16 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual 6. Reattach the Dust Compartment (5) to the Motor Unit (4) as shown right: Hook the rear of the Dust Compartment (5) onto the Motor Unit (4). Push the two parts together until the release catch clicks home.
- Page 17 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Removing the Floor Brush for Cleaning Remove the floor brush from the Motorised Floor Tool (10) using the guide below: A. Push the retaining catch in the direction of the arrow on the underside of the Motorised Floor Tool (10) and remove the retaining clip.
- Page 18 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Replacing the Floor Brush Follow the reverse of the above procedure to replace the Floor Brush (21): The Floor Brush (21) will require a little rotating back and forth before...
- Page 19 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Finally, once the brush is in, replace the retaining clip and push it down until it clicks into place. Care and Maintenace of Your Vacuum Cleaner • Always disconnect the cleaner from the mains power supply before cleaning.
- Page 20 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Recommended Filter Cleaning Intervals Filter Type Recommended Cleaning Period • Shake out debris when you empty the Hepa Filter dust container. • Rinse under warm water once a month.
- Page 21 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Storing Your Vacuum Cleaner To store Your Vacuum when not in use, press the motor unit release catch (arrowed left) and lift the motor unit off from the Aluminium Tube (7). Place...
- Page 22 Cyclone Turbo 3 in 1 Vacuum Model No. FLR00198 User Manual Technical Specification Model Number FLR00198 Supply Voltage AC 220-240V ~ 50-60Hz Rated Power 500W (max.) Protection Class IP Class IPX0 Unpacked Weight 4.6 Kgs (approx.) Filtration (Dust Compartment) Hepa & Cyclonic Filter...
- Page 23 • Replacement parts and accessories are guaranteed for 1 year from the date of purchase. • It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance. IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 24 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
