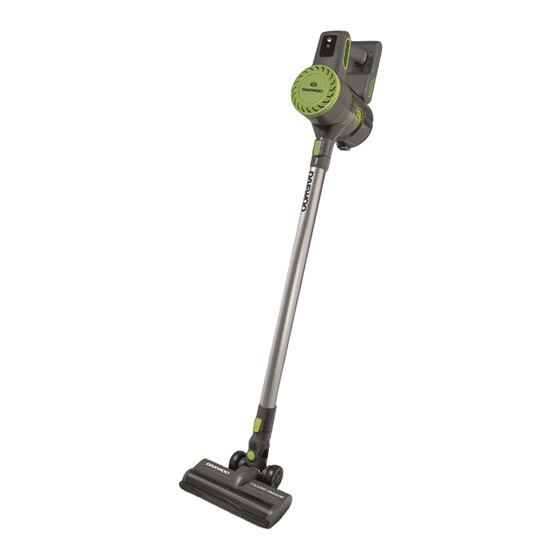

Daewoo CYCLONE FREEDOM FLR00185 User Manual

22.2v cordless vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYCLONE FREEDOM FLR00185 and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo CYCLONE FREEDOM FLR00185

Summary of Contents for Daewoo CYCLONE FREEDOM FLR00185

  • Page 1 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts Before first use of Your Cordless Vacuum Cleaner Charging the Internal Battery Attaching the Accessories - Fitting the Motorised Floor Tool Changing the Floor Brush...

  • Page 3: Reading And Storing The User Manual

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 4 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual DO NOT leave the appliance unattended whilst connected • to the mains supply. DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the •...
  • Page 5 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual cord, use the handle provided. Ensure fingers and other objects are never placed in any • part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly. Keep hair, loose clothing, jewellery, fingers and all parts of •...

  • Page 6: Explanation Of Symbols

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.

  • Page 7: Description Of Parts

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Description of Parts & Accessories 1. Handle 2. Charging Port 3. Dust Compartment 4. Dust Release Catch 5. Hepa Filter 6. Air Inlet 7. Motor Unit 8. Air Outlet & Filter 9.

  • Page 8: Charging The Internal Battery

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Charging the Internal Battery Ensure that the internal rechargeable battery is fully charged as follows: 1. Insert the Small Power Plug (15) of the Mains Charger (16) into the Charging Port (2).

  • Page 9: Changing The Floor Brush

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Changing the Floor Brush 1. Before using the Motorised Floor Tool (14) the first choose the appropriate brush type for the floor type being cleaned: Select the Carpet Brush for vacuum cleaning carpets, rugs, etc.

  • Page 10: Using Your Cordless Vacuum Cleaner

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Using Your Cordless Vacuum Cleaner 1. Grasp the vacuum cleaner firmly by the Handle (1). 2. Press the On/Off button on the Control Panel (9 - arrowed right) to power up the cleaner.

  • Page 11: Attaching The Accessories - Using The Crevice Tool

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual 3. Place your foot gently on the Motorised Floor Tool (14) and pull the cleaner back by the Handle (1) and start vacuum cleaning. Attaching the Accessories - Using the Crevice Tool (10) 1.

  • Page 12: Emptying And Cleaning Your Cordless Vacuum Cleaner

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual 2. If the Aluminium Tube (17) is not required, attach the Upholstery Tool & Brush (12) directly to the cleaner, this useful for cleaning soft furnishings, car seats, stairs, etc.: Emptying and Cleaning Your Cordless Vacuum Cleaner WARNING! Always disconnect the cleaner from the mains charger before cleaning.
  • Page 13 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual 2. To empty the cleaner, hold the Dust Compartment (3) over a dust bin and press the Dust Release Catch (4) (arrowed right) and the base of the dust compartment will swing open and allow the collected dust to fall out...

  • Page 14: Cleaning And Replacing The Outlet Filter

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Cleaning and Replacing the Outlet Filter 5. Twist off the Air Outlet Filter (8). Remove the sponge filter and wash the filter in warm running water until clean. Allow the filter to dry thoroughly for 24 hours before reuse.

  • Page 15: Fitting The Wall Bracket For Storage Of Your Vacuum Cleaner

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual WARNING! Ensure the filters are cleaned periodically according to the table above, failure to clean the filters regularly will severely impair the performance and permanent damage may occur to the appliance which may invalidate your warranty.
  • Page 16 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual 5. After drilling the holes, push the two supplied Wall Plugs into the holes as shown right: 6. Screw the Wall Bracket to the wall using the supplied screws: 7.

  • Page 17: Technical Specification

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Technical Specification Model Number FLR00185 Mains Charger Input: AC 100-240V ~ 50/60Hz Output: 27V DC 500mA, 13.5W Rated Power 140-160W Battery 22.2V (6x 2000mAh Li-Ion cells) Dimensions (approx.) 21.5cm (l) x 25cm (w) x 125.5cm (h) Vacuum (max) 7-10kpa Noise Level (approx.)
  • Page 18 Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 19: Recycling Information

    Cyclone Freedom 22.2V Cordless Vacuum Cleaner Model No. FLR00185 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service. Disposal of the Product You should now recycle your waste electrical goods and in doing so help the environment.
  • Page 20 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
