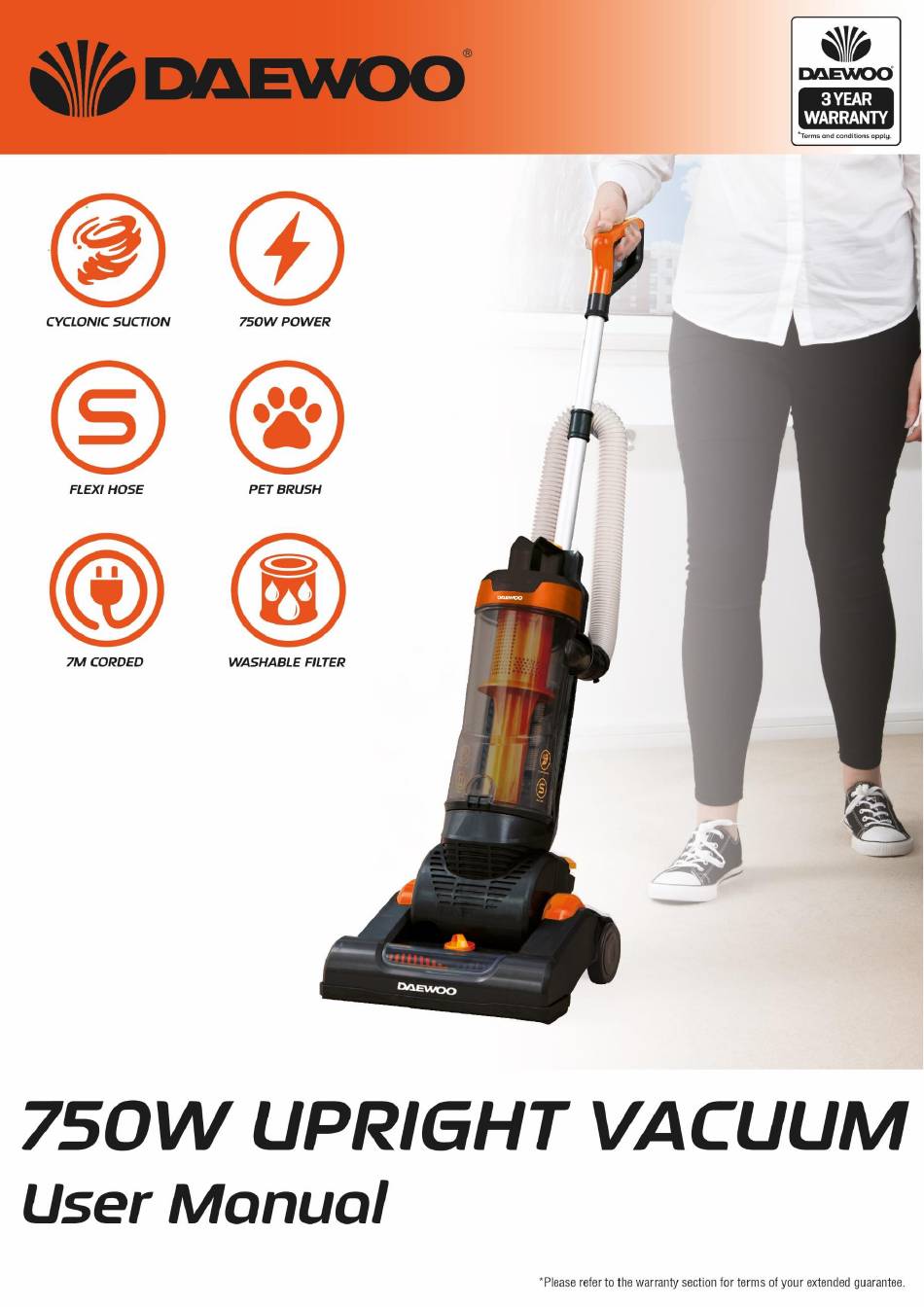

- Page 1 750W Upright Vacuum Model No. FLR00153 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
750W Upright Vacuum Model No. FLR00153 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts Description of Accessories Before First Use of Your Vacuum Cleaner... -
Page 3: Reading And Storing The User Manual
750W Upright Vacuum Model No. FLR00153 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product. - Page 4 750W Upright Vacuum Model No. FLR00153 User Manual to the mains supply. DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the • appliance has been used, before it is cleaned and whilst being repaired.
- Page 5 750W Upright Vacuum Model No. FLR00153 User Manual trapped if the vacuum is used improperly. Keep hair, loose clothing, jewellery, fingers and all parts of • the body away from openings and moving parts. Keep all air vents clear and free of dust, lint, hair and •...
-
Page 6: Explanation Of Symbols
750W Upright Vacuum Model No. FLR00153 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area. -
Page 7: Description Of Parts
750W Upright Vacuum Model No. FLR00153 User Manual Description of Parts 12. Suction Pressure Release Valve 1. Handle 13. Cable Clip 2. Hose 14. Handle Pole 3. Dust Compartment Release Button 15. Hose Hook 4. Filter Assembly Lid 16. Hose Anti Topple Ring 5. -
Page 8: Description Of Accessories
750W Upright Vacuum Model No. FLR00153 User Manual Description of Accessories 6. Crevice & Upholstery Tool (Stored in the base of the vacuum) 24. Pet Brush 25. HEPA Filter 26. Rectangular HEPA Filter 27. Round Sponge Filter Before the first time you use Your Vacuum Cleaner Remove all packing materials including all labels and discard responsibly. -
Page 9: Using Your Vacuum Cleaner
750W Upright Vacuum Model No. FLR00153 User Manual B. Insert the screw supplied into the hole in the body and tighten using a suitable crosshead screwdriver (not supplied), take care not to overtighten. Using Your Vacuum Cleaner 1. Once you have assembled your... - Page 10 750W Upright Vacuum Model No. FLR00153 User Manual 3. Insert the mains plug (with dry hands) into a suitable socket. 3. Place your foot gently on the Floor Head (7) and pull the cleaner back by the Handle (1). Press the On/Off Button (18 - below) with your foot and begin cleaning.
-
Page 11: Using The Pet Brush
750W Upright Vacuum Model No. FLR00153 User Manual Using the Pet Brush (24) 1. Remove the end of the Hose (2) from the Hose Connector (20) from the main body of the vacuum by twisting it anticlockwise and pulling upwards as shown right:... - Page 12 750W Upright Vacuum Model No. FLR00153 User Manual Slide the brush forwards on Crevice & Upholstery Tool (6) until it locks into place to clean the Carpet Edges, Chairs, Mattresses, Cushions, etc. as shown left: To retract the brush, press the button at...
-
Page 13: Emptying And Cleaning Your Vacuum Cleaner
750W Upright Vacuum Model No. FLR00153 User Manual Emptying and Cleaning Your Vacuum Cleaner WARNING! Always disconnect the cleaner from the mains power supply before cleaning. 1. Once the dust level reaches the ‘MAX’ mark on the Dust Compartment (5) it will need emptying and the Filter Assembly (11) cleaned. -
Page 14: Dismantling And Cleaning The Filter Assembly
750W Upright Vacuum Model No. FLR00153 User Manual Dismantling and Cleaning the Filter Assembly (11) 1. Remove the Dust Compartment (5) from the vacuum cleaner as described on the previous page. 2. Whilst holding the Dust Compartment (5) rotate the Filter Assembly Lid (4) anti- clockwise so that the arrow on the lid aligns with the unlock Pad lock symbol –... - Page 15 750W Upright Vacuum Model No. FLR00153 User Manual 5. Tap the Filter Assembly (11) and HEPA Filter (25) over a dustbin to remove excess dust and debris. Rinse the HEPA Filter (25), the Filter Assembly (11) and the Dust Compartment (5) under warm water until thoroughly clean: Leave the parts to dry for at least 24 hours before reassembling.
-
Page 16: Cleaning The Rectangular Hepa Filter
750W Upright Vacuum Model No. FLR00153 User Manual Cleaning the Rectangular HEPA Filter (26) To access the Rectangular HEPA Filter (26), remove the Dust Compartment (5) as described above. The Rectangular HEPA Filter (26) is located in the body of the vacuum cleaner behind the Dust Compartment (5). -
Page 17: Care And Use Of Your Vacuum Cleaner
750W Upright Vacuum Model No. FLR00153 User Manual DO NOT use your vacuum cleaner without any of the filters fitted as this will cause permanent damage to the cleaner and may invalidate your warranty. Care and Use of your Vacuum Cleaner •... -
Page 18: Changing The Belt
750W Upright Vacuum Model No. FLR00153 User Manual WARNING! Ensure the filters are cleaned periodically according to the table above, failure to clean the filters regularly will severely impair the performance and permanent damage may occur to the appliance. Changing the belt NOTE: Before starting any maintenance on the belt, ensure the vacuum is switched off and disconnected from the mains supply. -
Page 19: Troubleshooting Guide
750W Upright Vacuum Model No. FLR00153 User Manual d. Hook the replacement belt over the motor spindle and over the brushbar. Ensure the belt sits in the middle section in between the two grooves on the brushbar. e. Pull the brushbar down and back into the casing. -
Page 20: Technical Specification
750W Upright Vacuum Model No. FLR00153 User Manual Non-Wireable Mains Plug If your appliance is supplied with a non-wireable plug fitted to the mains lead and should the fuse need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating). Never use a plug with the fuse cover missing. - Page 21 750W Upright Vacuum Model No. FLR00153 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 22 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
