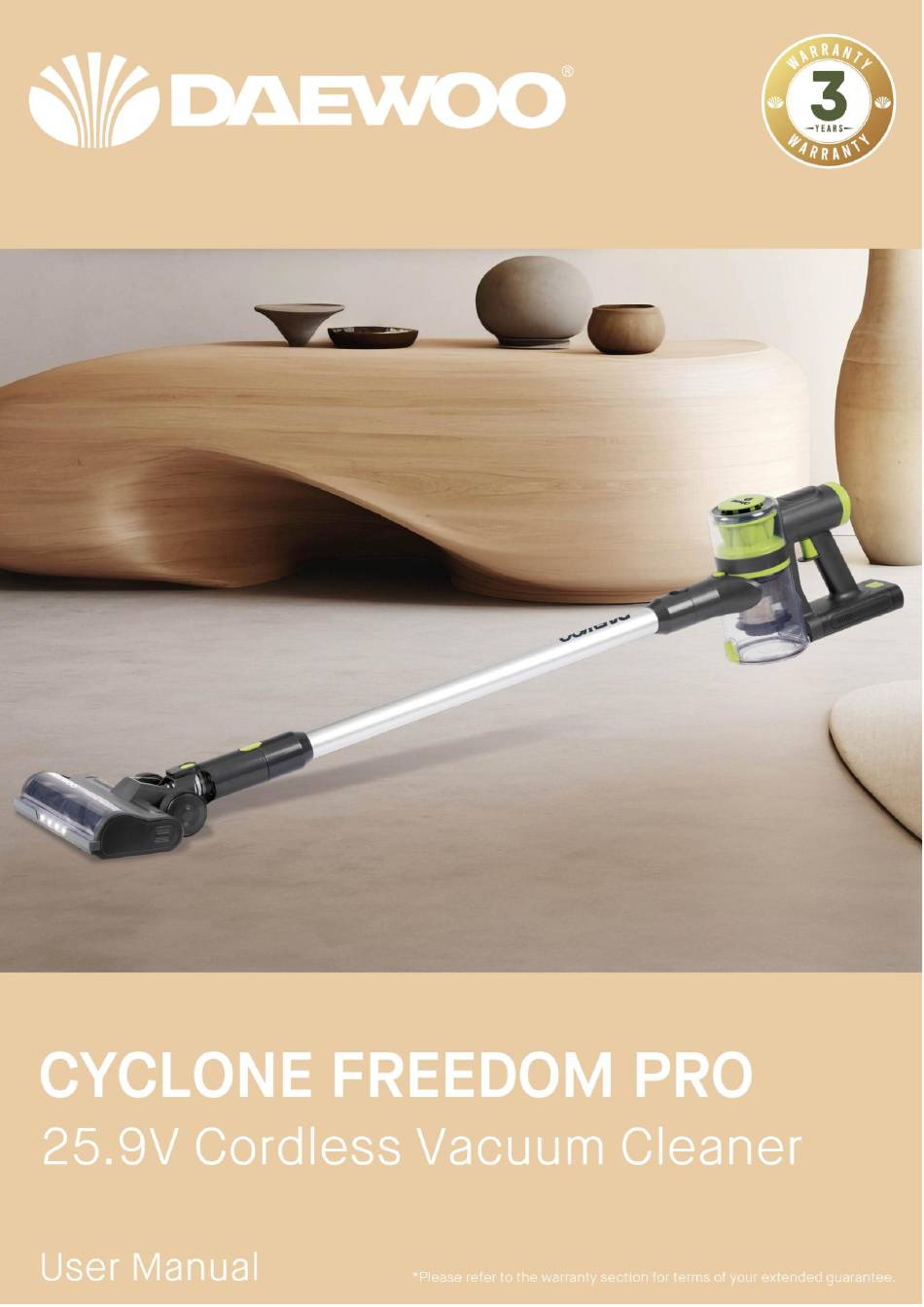

- Page 1 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts & Accessories Before first use of Your Cordless Vacuum Cleaner Fitting the Battery Charging the Internal Battery Using Your Cordless Vacuum Cleaner...
- Page 3 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 4 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual DO NOT leave the appliance unattended whilst connected • to the mains supply. DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the •...
- Page 5 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual cord, use the handle provided. Ensure fingers and other objects are never placed in any • part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly. Keep hair, loose clothing, jewellery, fingers and all parts of •...
- Page 6 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area.
- Page 7 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Description of Parts & Accessories 1. Dust Compartment Removal Catch 2. Air Outlet 3. Digital Display 4. Motor Unit 5. On/Off Trigger 6. Handle 7. Charging Port 8. Battery Release Button 9.
- Page 8 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Fitting the Battery Before using your vacuum cleaner, the Battery (9) must first be fitted as shown below: B. Slide the Battery (9) onto the A. Push the Battery (9) all the way in the direction of the arrow as vacuum in the direction of the arrow as shown above.
- Page 9 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Using Your Cordless Vacuum Cleaner CAUTION Ensure that the vacuum cleaner is not connected to the Battery Charger (19) before use. 1. Push the Dust Inlet (13) onto the end of the Aluminium Tube (23) until it clicks home as shown below: 2.
- Page 10 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Varying the Suction Level Touch the +/- symbol on the Digital Display (3 – arrowed below) to increase and decrease the suction power: Changing the Floor Brush 1. Select the Carpet Brush (18) for vacuum cleaning carpets, rugs, etc.
- Page 11 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual 3. Lift the Carpet Brush (18) out of the Motorised Floor Tool (22) as shown left. 4. Lower the Hard Floor Roller (17) into the Motorised Floor Tool (22) as shown left.
- Page 12 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Attaching the Accessories 1. The Crevice Tool (15) Attach the Crevice Tool (15) onto the end of the Aluminium Tube (23 fig 1) or direct to the cleaner (fig 2), use this tool to clean edges and hard to get to areas: Fig.
- Page 13 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual 3. Turbo Brush (24) Attach the Turbo Brush (24) onto the end of the Aluminium Tube (23 fig 5) or directly to the cleaner (fig 6) as shown below: Fig.
- Page 14 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Cleaning the Hepa and Metal Filter (12) 1. Press the Dust Compartment Removal Catch (1 – arrowed left). 2. Rotate the Dust Compartment (10) so that the mark at the top of the compartment lines up with the unlocked symbol as arrowed right and remove the Dust Compartment (10).
- Page 15 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual 4&5 1. Remove the Hepa Filter and wash in warm running water until clean. Allow the filter to dry thoroughly for 24 hours before reuse. 2. Shake the excess dirt from the metal filter after each use.
- Page 16 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Care and Maintenance of your Cordless Vacuum Cleaner • Always disconnect the cleaner from the mains charger before cleaning. • Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive cleaners.
- Page 17 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Fitting the Wall Bracket for Storage of Your Vacuum Cleaner Fit the Wall Bracket (14) to the wall using supplied Wall Plugs and Screws (or alternative appropriate fixings for the wall) as follows: WARNING! Care must be taken not to damage concealed cables and pipes in the wall whilst drilling the holes.
- Page 18 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual 5. After drilling the holes, push the two supplied Wall Plugs from the Fixing Kit (25) into the holes as shown right: 6. Screw the Wall Bracket to the wall using the supplied screws from the Fixing Kit (25): 7.
- Page 19 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Technical Specification Model Number FLR00177 Mains Charger Input: AC 100-240V ~ 50/60Hz 0.5A (max) Output: 31.0V DC 500mA, 15.5W Rated Power 160W Battery 25.9V (7 x 3.7V 2500mAh Li-Ion cells) Dimensions (approx.) 21.5cm (l) x 25cm (w) x 125.5cm (h) Vacuum (max)
- Page 20 • Replacement parts and accessories are guaranteed for 1 year from the date of purchase. • It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance. IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 21 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Recycling Information Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service. Disposal of the Product You should now recycle your waste electrical goods and in doing so help the environment.
- Page 22 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 23 2 in 1 25.9V Cordless Vacuum Cleaner Model No. FLR00177 User Manual Notes IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 24 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
