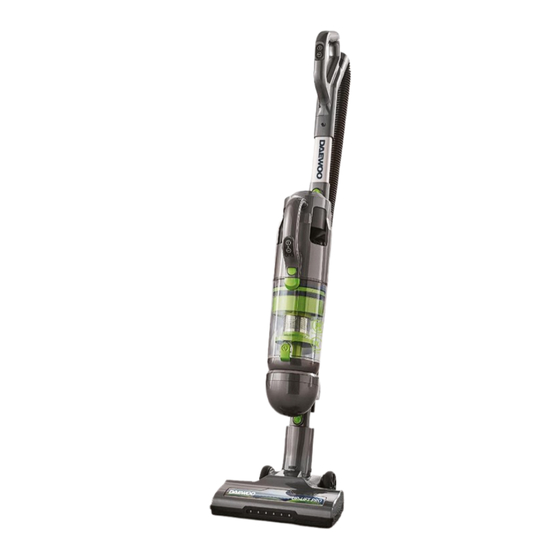

Summary of Contents for Daewoo TORNADO UP-LIFT
- Page 1 Cordless Upright Vacuum Model No. FLR00147 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Cordless Upright Vacuum Model No. FLR00147 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts & Accessories Assembling Your Vacuum Cleaner Before First Use of Your Vacuum Cleaner Charging the Battery Using Your Vacuum Cleaner Changing the Power level of Your Vacuum Cleaner... -
Page 3: Reading And Storing The User Manual
Cordless Upright Vacuum Model No. FLR00147 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product. - Page 4 Cordless Upright Vacuum Model No. FLR00147 User Manual DO NOT use this appliance outdoors. • It is imperative to unplug the power cord after the • appliance has been used, before it is cleaned and whilst being repaired. Repairs to electrical appliances should only be performed •...
- Page 5 Cordless Upright Vacuum Model No. FLR00147 User Manual Keep hair, loose clothing, jewellery, fingers and all parts of • the body away from openings and moving parts. Keep all air vents clear and free of dust, lint, hair and • anything else that may reduce airflow.
-
Page 6: Explanation Of Symbols
Cordless Upright Vacuum Model No. FLR00147 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area. -
Page 7: Description Of Parts & Accessories
Cordless Upright Vacuum Model No. FLR00147 User Manual Description of Parts & Accessories 11. Floor LEDs 1. Handle 12. Motorised Floor Tool 2. On/Off Button 13. Dust Release Catch 3. Power Level Indicator(s) 14. Dust Compartment 4. Power Level Button 15. -
Page 8: Assembling Your Vacuum Cleaner
Cordless Upright Vacuum Model No. FLR00147 User Manual Assembling Your Vacuum Cleaner Assemble your vacuum cleaner using the four steps below: A. Insert the Motor Unit (8) into the Frame (20) as shown in ‘A’ above, push the motor unit against the frame until it clicks home. B. -
Page 9: Charging The Battery
Cordless Upright Vacuum Model No. FLR00147 User Manual Before the first time you use Your Vacuum Cleaner Remove all packing materials and discard responsibly. Ensure that all parts are present – See Description of Parts above and that there is no damage to any component or the Battery Charger (25). Fig 3 Fig 1 Fig 2... -
Page 10: Using Your Vacuum Cleaner
Cordless Upright Vacuum Model No. FLR00147 User Manual 6. Once the battery is fully charged (after approximately 4.5 - 5 hours), the Charging Indicators (17) will have all LEDs fully lit as in ‘c’ above indicating that it is fully charged and the Battery Charger (25) can be removed and the vacuum used. -
Page 11: Changing The Power Level Of Your Vacuum Cleaner
Cordless Upright Vacuum Model No. FLR00147 User Manual Changing the Power level of Your Vacuum Cleaner Right: Your vacuum will power up in low power mode. To change the vacuum power level, press the Power Level Button (4) mounted on the Handle (1). Each press of the button will alternate between low and high power levels. -
Page 12: Attaching The Tools To The Motor Unit
Cordless Upright Vacuum Model No. FLR00147 User Manual Attaching the Tools to the Motor Unit (8) a. 2in1 Multi Tool (21) Insert the Adaptor (23) into the Motor Unit (8) and then attach the Upholstery Tool (21) to the adaptor as shown below: Left: The Upholstery Tool (21) can be used for cleaning stairs and other hard to get at areas. -
Page 13: Changing The Power Level Of The Motor Unit
Cordless Upright Vacuum Model No. FLR00147 User Manual d. The Flexible Hose (28) Right: If a longer reach is required whilst using the tools first attach the Flexible Hose (28) to the Motor Unit (8) and then attach the tools to the end of the hose as described above. - Page 14 Cordless Upright Vacuum Model No. FLR00147 User Manual Emptying the Dust Compartment (14) 2. Right: To empty the cleaner, hold the Motor Unit (8) upright over a waste bin then press the Dust Release Catch (13 – arrowed right) to allow the door in the base to swing open and allow the dust to fall into the bin.
- Page 15 Cordless Upright Vacuum Model No. FLR00147 User Manual 4. Left: Lift the handle up at the top of the Filter Assembly (15) and pull the filter out of the Dust Compartment (14) Dismantling and Cleaning the Filter Assembly (15) Dismantle the Filter Assembly (15) by pulling the Hepa out of the cyclonic filter as shown below: 5.
-
Page 16: Reassembling After Cleaning
Cordless Upright Vacuum Model No. FLR00147 User Manual 6. Right: Wash the cyclonic filter in warm running water until clean. Allow the filter to dry thoroughly for 24 hours before reuse. Reassembling After Cleaning 7. Left: To reassemble the Filter Assembly (15), replace the Hepa filter into the recess in the top of the cyclonic filter. -
Page 17: Recommended Filter Cleaning Intervals
Cordless Upright Vacuum Model No. FLR00147 User Manual 9. Right: Finally, re-attach the Dust Compartment (14) to the Motor Unit (8) by hooking the Dust Compartment (14) onto the rear of the Motor Unit (8) and then bring the front up until the catch clicks locked as shown right: Recommended Filter Cleaning Intervals Filter Type... -
Page 18: Dismantling Your Vacuum Cleaner
Cordless Upright Vacuum Model No. FLR00147 User Manual Dismantling Your Vacuum Cleaner To remove the Handle (1) from the Frame (20) press the Handle Release Button (5) and remove the Handle (1) as shown right: To remove the Motorised Floor Tool (12), press the Floor Tool Release Button (10) and remove. -
Page 19: Cleaning The Brush Bar
Cordless Upright Vacuum Model No. FLR00147 User Manual Cleaning the Brush Bar Left: Use a soft brush to remove dust and use scissors to remove hairs from the Brush bar. Replacing the Brush Bar Below: lower the left hand end in first so that the spindle locates into the end of the Brush Bar. -
Page 20: Using The Carrying Strap
Cordless Upright Vacuum Model No. FLR00147 User Manual Using the Carrying Strap (22) Left: Instead of using the Motor Unit Handle (7), The Motor Unit (8) can be slung over the shoulder during use using the Shoulder Strap (22). Loop the strap through the Motor Unit Handle (7) and place it onto the shoulder as shown. -
Page 21: Troubleshooting Guide
Cordless Upright Vacuum Model No. FLR00147 User Manual Troubleshooting Guide Problem Possible Cause Possible Solution Unit fails to turn on. Internal battery not Charge the internal battery charged. – see Charging the Internal Battery above. The vacuum cleaner has Ensure the vacuum cleaner not been correctly is placed properly onto the placed onto the... -
Page 22: Technical Specification
Cordless Upright Vacuum Model No. FLR00147 User Manual Technical Specification Model Number FLR00147 Battery Charger Input: AC 100-240V ~ 50/60Hz 0.5A (max.) Output: 36V DC 500mA 18W Rated Power 250W Motor Type BLDC Battery 29.6V 2200mAh Li-Ion (8 cells) Charge Time 4.5 - 5 hours Run Time After a Full Charge 35 Minutes (max.) Unpacked Weight... - Page 23 Cordless Upright Vacuum Model No. FLR00147 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 24: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
