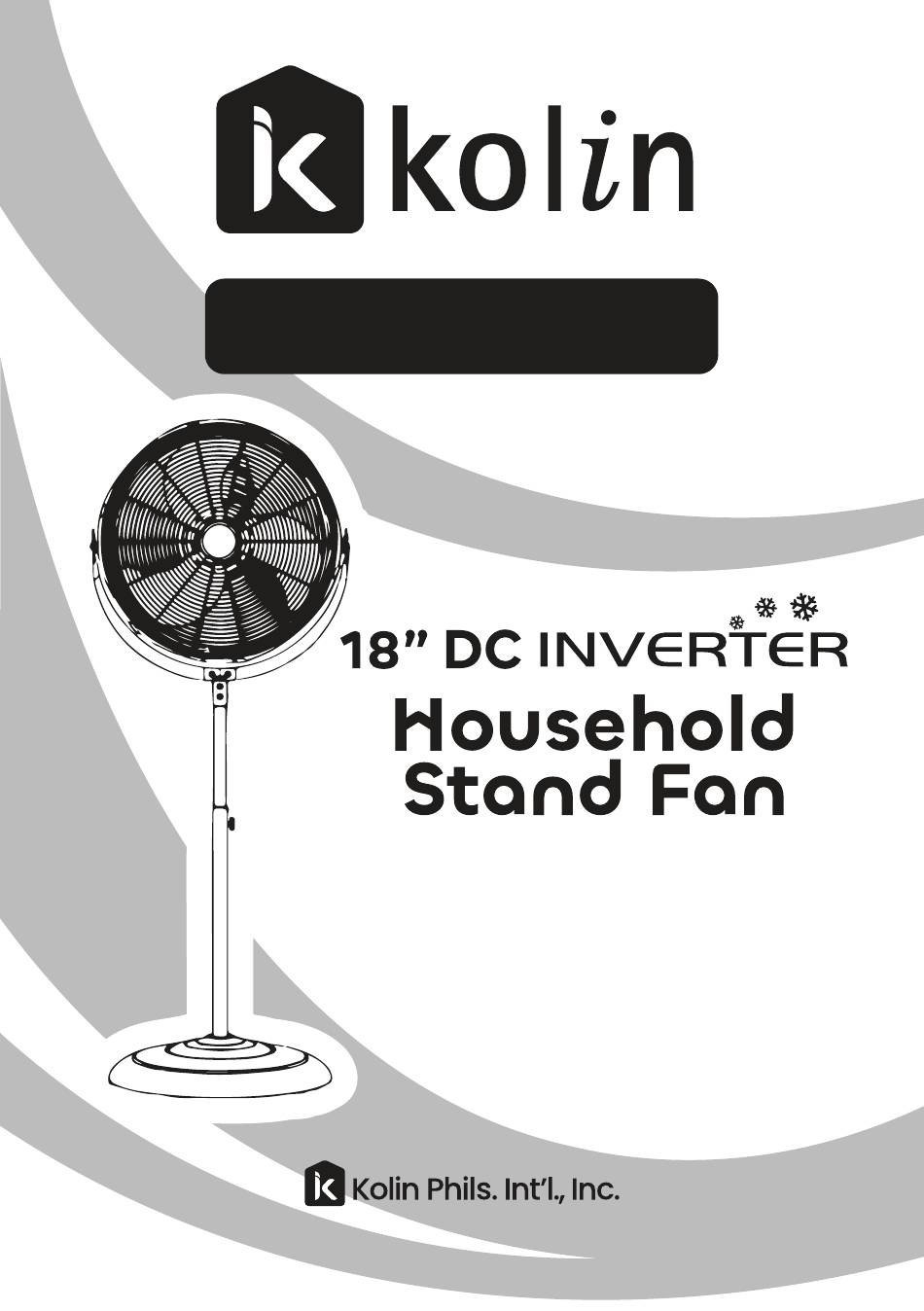

- Page 1 OWNER’S MANUAL MODEL: KF-18SMBDC Please read this owner’s manual before operation and retain it for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction: Overview of the Product Safety Instructions III. Benefits Product Specification Circuit Diagram Structure Diagram VII. Installation VIII. Operating Instructions Maintenance Instructions Troubleshooting... -
Page 3: Introduction: Overview Of The Product
I. INTRODUCTION: OVERVIEW OF THE PRODUCT Electric Fan Inverter Thank you for choosing the Kolin Electric Fan Inverter. Welcome to a new era of home cooling. Designed for efficiency and performance, this fan provides powerful airflow while minimizing energy consumption. Perfect for bedrooms, living rooms, and other spaces, it ensures consistent cooling with whisper-quiet operation and customizable airflow settings. -
Page 4: Benefits
• The fan shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. When operating the fan outdoors, use an extension cord suitable for outdoor use to prevent the risk of electric shock. -
Page 5: Product Specification
IV. PRODUCT SPECIFICATION KF-18SMBDC Rated voltage 230 V~ Rated frequency 60 Hz Rated wattage 44 W Rated current 0.34 A Fan sound power level 64 dB(A) V. CIRCUIT DIAGRAM Model No: KF-18SMBDC Power Control PCB AC 230V 60HZ DC Motor 24V 44W... -
Page 6: Structure Diagram
VI. STRUCTURE DIAGRAM Parts Identification: FAN HEAD PIPE METAL BASE WEIGHT OF BASE NUT OF HOLDER FAN HOLDER SCREW OF HOLDER GASKET SCREW OF THE BASE LOCK... -
Page 7: Installation
VII. INSTALLATION Read Safety Instructions Before Installation Ignoring instructions can cause serious damage or injury. Do not install without adequate support. 1. Unpacking: • Open the package and remove all packing materials. • Take out all the sub-assemblies from the box. Note: Do not operate the fan until it is completely assembled. - Page 8 2. Parts Assembly: Step 1: Assemble the pole, base, and base weight using the M8 hand screw and an 8mm diameter flat washer, as shown in Figure 1. Step 2: Attach the grill bracket to the pole using M6 screws and M6 nuts, as shown in Figure 2.
- Page 9 Step 3: Secure the rear grill bracket to the back grill using M8 screws, M8 nuts, and non-slip stoppers, as shown in Figure 3. Step 4: Attach the motor to the back grill using M5 screws and M5 nuts, as shown in Figure 4.
- Page 10 Step 5: Mount the blades onto the motor using M8 screws, as shown in Figure 5. Step 6: Secure the front grill to the back grill using M3 safety screws, as shown in Figure 6. Step 7: Refer to Figure 7 for the fully assembled ground fan.
-
Page 11: Operating Instructions
VIII. OPERATING INSTRUCTIONS Important: Make sure you read all of the safety warnings above before operating this unit for the first time. • Always operate the fan from a power source that matches the specified voltage, frequency, and rating indicated on the nameplate. - Page 12 Adjusting the Height 1. Loosen the Knob: Turn the height adjustment knob counterclockwise to loosen it. 2. Adjust to Desired Height: Slide the pole up or down to set the fan to your preferred height. 3. Tighten the Knob: Turn the knob clockwise to securely lock the pole in place. Ensure the knob is tightened firmly before operating the fan.
-
Page 13: Maintenance Instructions
IX. MAINTENANCE INSTRUCTIONS WARNING: • When cleaning, the plug must be removed from the power source. • DO NOT handle the plug with wet hands to avoid the risk of electric shock or injury. • DO NOT rotate the height adjustment knob while the fan and grille are detached, as the motor section (slide pipe) may jump out of the stand part, causing injury. -
Page 14: Troubleshooting
X. TROUBLESHOOTING If you experience issues with your Kolin Electric Fan Inverter, use the table below to diagnose and resolve common problems. Problem Possible Cause Solution Plug the power cord into a properly Power cord not plugged in grounded outlet. - Page 15 The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the service website, please check for the latest version. If you have any concerns, please contact us at the following: Customer hotline: (02) 8852-6868 Text hotline: +63 917-881-8982...
- Page 16 Tiktok : kolinphilippines Website : www.kolinphil.com.ph OFFICE PLANT Kolin Bldg.1854 Sta. Rita St., Blk 3 Lot 5, Main Drive First Cavite Guadalupe Nuevo, Makati City, 1212 Industrial Estate, Langkaan 1, Service Hotline: (632) 8852 - 6868 Dasmariñas City, Cavite Tel. No.: (046) 402-0793...
