- Page 1 OWNER’S MANUAL MODEL: KCF-14SRGDC Please read this owner’s manual before operation and retain it for future reference.
- Page 2 TABLE OF CONTENTS I. Introduction: Overview of the Product II. Safety Instructions III. Benefits IV. Circuit Diagram V. Structure Diagram VI. Operating Instructions VII. Maintenance Instructions VIII. Troubleshooting...
- Page 3 I. INTRODUCTION: OVERVIEW OF THE PRODUCT Air Circulator Thank you for choosing Kolin Air Circulator, a versatile device designed to enhance air circulation in any space. Unlike traditional fans, this air circulator creates a continuous, multi-directional flow that ensures even temperature distribution throughout the room.
- Page 4 Do not obstruct the air outlet, and ensure there is at least 1 meter of space in front and behind the fan. By diligently following these safety instructions, you can prevent accidents or hazards while using your Kolin air circulator.
- Page 5 Durability: Built with high-quality materials for long-lasting performance. • Low Maintenance: Fewer moving parts and high-quality components reduce the need for frequent maintenance. • Environmental Impact: Consumes less energy, reducing your carbon footprint. Product Specification KCF-14SRGDC Input Voltage DC24V--- Product Size 370x361x1116 mm (WxDxH)

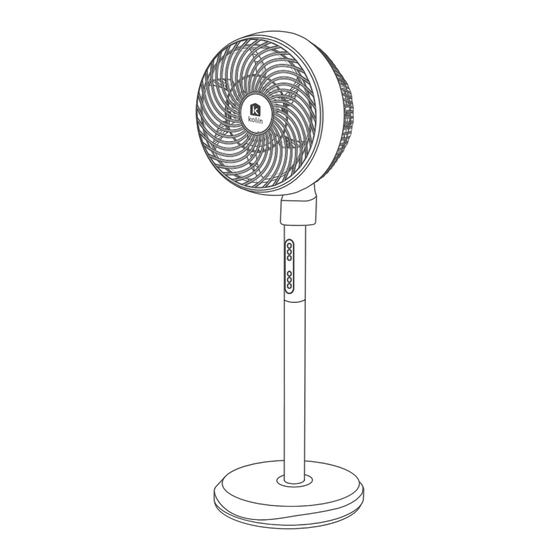

- Page 6 V. STRUCTURE DIAGRAM Main motor body Control panel Strut pipe Base Rear guard Front VI. OPERATING INSTRUCTIONS Important: Ensure that you have read all the safety warnings before operating this unit for the first time. • Always operate the fan from a power source that matches the specified voltage, frequency, and rating indicated on the nameplate.
- Page 7 Control Panel Remote Controller Power On / Off: • Press the power button to start the fan. By default, the fan will start at Gear 1 (with a brief Gear 3 output for the first three seconds). The digital screen will display "1". •...
- Page 8 VII. MAINTENANCE INSTRUCTIONS WARNING: • Always unplug the fan from the power source before cleaning or performing any maintenance. • Avoid handling the plug with wet hands to prevent the risk of electric shock or injury. • Use only a soft, damp cloth to gently wipe the outer surfaces of the fan. •...
- Page 9 VIII. TROUBLESHOOTING If you experience issues with your Kolin Air circulator, use the table below to diagnose and resolve common problems. Problem Possible Cause Solution Ensure the power cord is securely Power cord not plugged in plugged into a functioning outlet.
- Page 10 The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the service website, please check for the latest version. If you have any concerns, please contact us at the following: Customer hotline: (02) 8852-6868 Text hotline: +63 917-881-8982...
- Page 12 Tiktok : kolinphilippines Website : www.kolinphil.com.ph OFFICE PLANT Kolin Bldg.1854 Sta. Rita St., Blk 3 Lot 5, Main Drive First Cavite Guadalupe Nuevo, Makati City, 1212 Industrial Estate, Langkaan 1, Service Hotline: (632) 8852 - 6868 Dasmariñas City, Cavite Tel. No.: (046) 402-0793...
