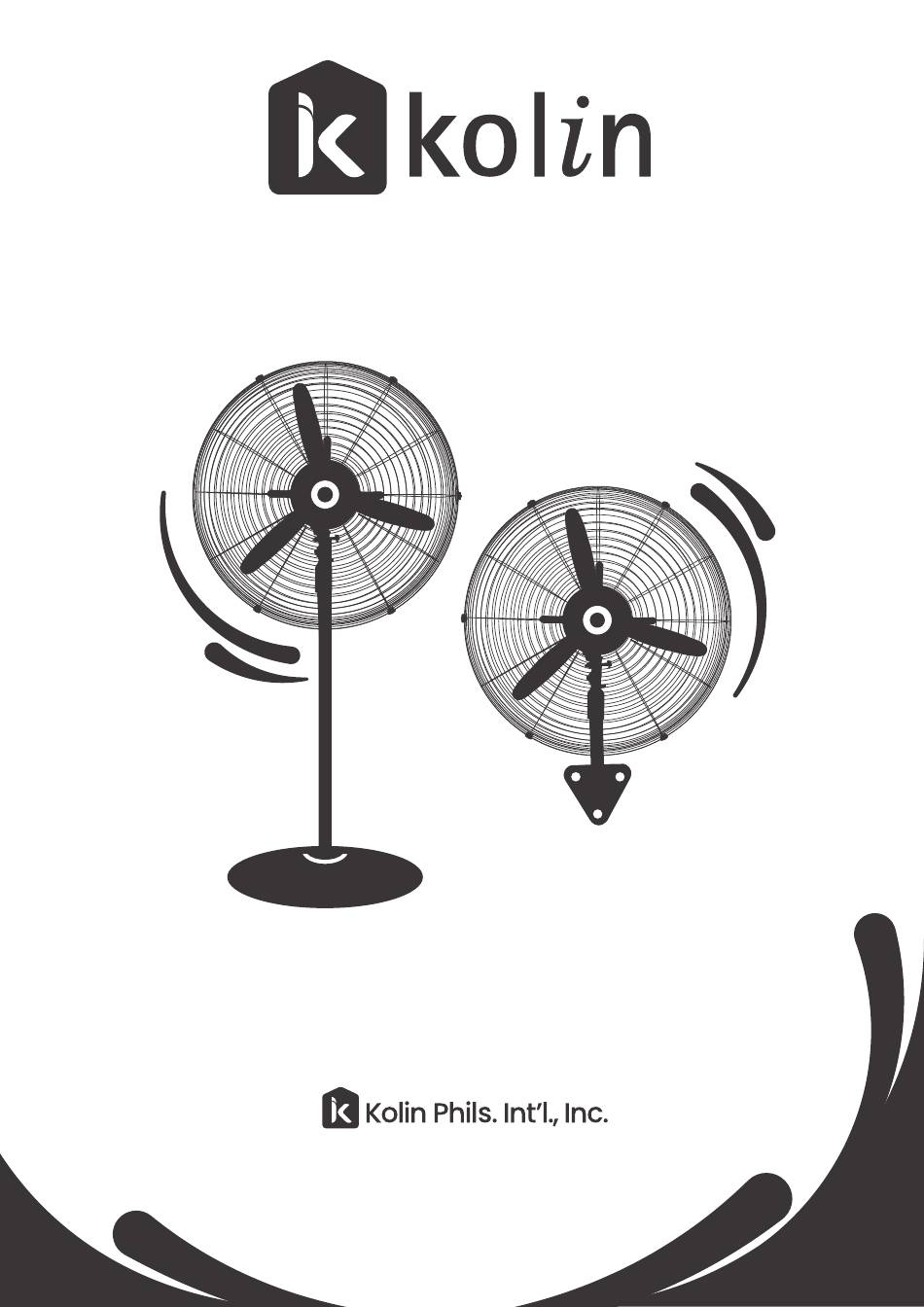

- Page 1 OWNER’S MANUAL MODEL KIF-20SMBBLDC MODEL KIF-26SMBBLDC KIF-20WMBBLDC KIF-26WMBBLDC BLDC INDUSTRIAL FAN Please read this owner’s manual before operation and retain it for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS I. INTRODUCTION: OVERVIEW OF THE PRODUCT II. SAFETY INSTRUCTION III. BENEFITS IV. PRODUCT DESCRIPTION V. STRUCTURE DIAGRAM VI. CIRCUIT DIAGRAM VII. INSTALLATION INSTRUCTIONS VIII. OPERATING INSTRUCTIONS IX. MAINTENANCE INSTRUCTIONS X. TROUBLE SHOOTING... -
Page 3: Introduction: Overview Of The Product
I. Introduction: Overview of the Product Inverter Industrial Fan Thank you for choosing the Kolin Industrial Fan Inverter. Welcome to the future of cooling and ventilation with our state-of-the-art Industrial Fan Inverter. Designed for efficiency and performance, our fan leverages advanced inverter technology to provide powerful air circulation while minimizing energy consumption. -
Page 4: Benefits
• Always place the fan on a stable, level surface when operating, to avoid overturning. Place the cord away from walking paths to avoid being tripped over. The cable should be kept away from heat, sharp edges and oil. • Avoid operating the fan with wet hands to prevent electric shock. -
Page 5: Product Description
If you have any questions or concerns about your industrial fan inverter, please refer to this manual or contact our Kolin customer support team hotline for assistance. IV. Product Description Specifications... - Page 6 Motor Fan Components Motor PCB Board Set Screw Power Cord Clamp Set Screw Straight Shift Swing Arm Adjusting Screw Connecting Bolt Stop Screw Power Cord Stand Type Rear Grille Blade Front Grille Oscillating Switch (On Rear of Fan) 4 Speed Switch (On Rear of Fan) Stand Tube Base...
-
Page 7: Circuit Diagram
Wall Type Rear Grille Front Grille Motor Housing Blade Tilt Head Adjustment Connector Oscillating Switch Mounting Bracket 4 Speed Switch VI. Circuit Diagram... -
Page 8: Installation Instructions
VII. Installation Instructions Read Safety Precautions Before Installation Ignoring instructions can cause serious damage or injury. Do not install without adequate support. Unpacking: • Open the package and remove all packing materials. • Take out all the sub-assemblies from the box. 2.1. - Page 9 2.1.2. Bending Rod Position: • Upside Fan Position: Slide the main post over the wall bracket from the top and secure it with the two fixing screws provided. Long Bolt • Long Bolt Downside Fan Position: Slide the main post over the wall bracket from the bottom and secure it with the two fixing screws provided.
- Page 10 • Prepare the Wall: • Mount the Regulator Board: • Drill 4 holes in the wall where the switch • Align the regulator board with the regulator will be installed. prepared holes. • Insert the 5*25mm expansion tubes into • Secure it using the 4 pcs 3*30mm the drilled holes.
- Page 11 • Loosen all screws on the coupling, • Rescrew all screws on the coupling, including the height adjustment knob. including the height adjustment knob. • Place the base cover ring. Motor Housing Installation: • Unscrew the fixing and stopper screws •...
-
Page 12: Operating Instructions
Front Grille Installation: • Place the front grille cover onto the center and • Open the guard clips outwards on the edge of clip it. the front safety grille. • Align the guard clip on the top of the rear guard and close the guard clips to secure the grille. -
Page 13: Maintenance Instructions
Do not block the oscillation of the fan to avoid damage or dents. By following these instructions, you can ensure safe and efficient operation of your Kolin Industrial Fan Inverter. If you have any questions or concerns, please refer to this manual or contact our Kolin customer support team hotline for assistance. - Page 14 Motor Shaft Maintenance: • Clean the motor shaft and apply oil before reinstalling the fan blade. Storage: • Store all parts in the original box provided at purchase and keep in a dry place. • Follow the instructions under "How to Clean" to clean the fan and guard before storing it. CAUTION...
-
Page 15: Trouble Shooting
X. Troubleshooting Guide If you experience issues with your Kolin Industrial Fan Inverter, use the table below to diagnose and resolve common problems. Problem Possible Cause Solution • Power cord is not plugged in. • Plug the power cord into a •... - Page 16 The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the service website, please check for the latest version. If you have any concerns, please contact us at the following: Customer hotline: (02) 8852-6868 +63 917-881-8982 Text hotline:...
- Page 17 Tiktok : kolinphilippines Website : www.kolinphil.com.ph OFFICE PLANT Kolin Bldg.1854 Sta. Rita St., Blk 3 Lot 5, Main Drive First Cavite Guadalupe Nuevo, Makati City, 1212 Industrial Estate, Langkaan 1, Service Hotline: (632) 8852 - 6868 Dasmariñas City, Cavite Tel. No.: (046) 402-0793...
