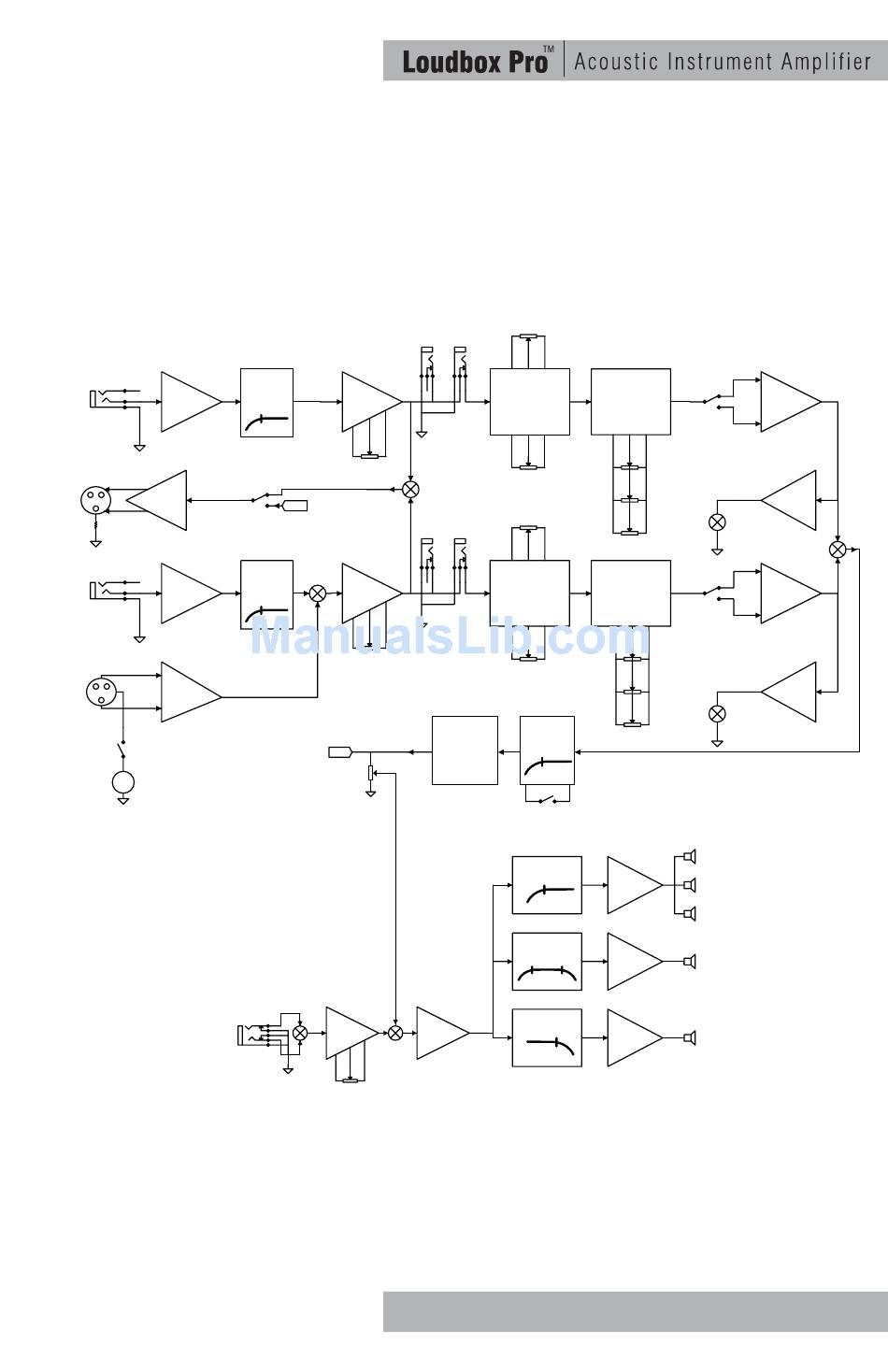

Fishman LOUDBOX PRO Owner's Manual page 11

CH 1 Instrument Input
HI-Z
Input Buffer
Balanced XLR/DI Out
Balanced
DI Amplifier
CH 2 Instrument Input
HI-Z
Input Buffer
CH 2 Microphone Input
Mic Pre
+20dB
Fixed Gain
48V Phantom Power
48V
CH 3 Aux Input
(Stereo Compatible)
Gain Stage
20Hz HPF
Gain
Pre/Post EQ
Pre Eq
Switch
Post Eq
Post Eq
Mixer
Gain Stage
20Hz HPF
Gain
Post Eq
Master Volume
Mixer
Gain Stage
Mixer
Gain
11
Treble
CH 1 CH 1
Effects Send Effects Return
Tone Control Section
Bass
Mixer
Treble
CH 2 CH 2
Effects Send Effects Return
Tone Control Section
Bass
120Hz
Switchable
HPF
Digital Reverb
HPF Bypass Switch
Crossover
Tweeter
Midrange
Woofer
Buffer
Feedback and Tone
CH 1 Phase
Mids
CH 1 Clipping Indicator
Brilliance
Red LED
Anti
Feedback
Feedback and Tone
CH 2 Phase
Mids
CH 2 Clipping Indicator
Brilliance
Red LED
Anti
Feedback
Ferro Fluid Cooled
Tweeter
3 Dome Tweeter Array
Amplifier
Midrange
6" Polypropylene
Amplifier Cone Midrange
Bass 12" Woofer
Amplifier with treated paper cone
+
Phase
Inverter
Stage
_
Comparator
Mixer
+
Phase
Inverter
Stage
_
Comparator
