JETWAY P4X40DAR2A User Manual page 16

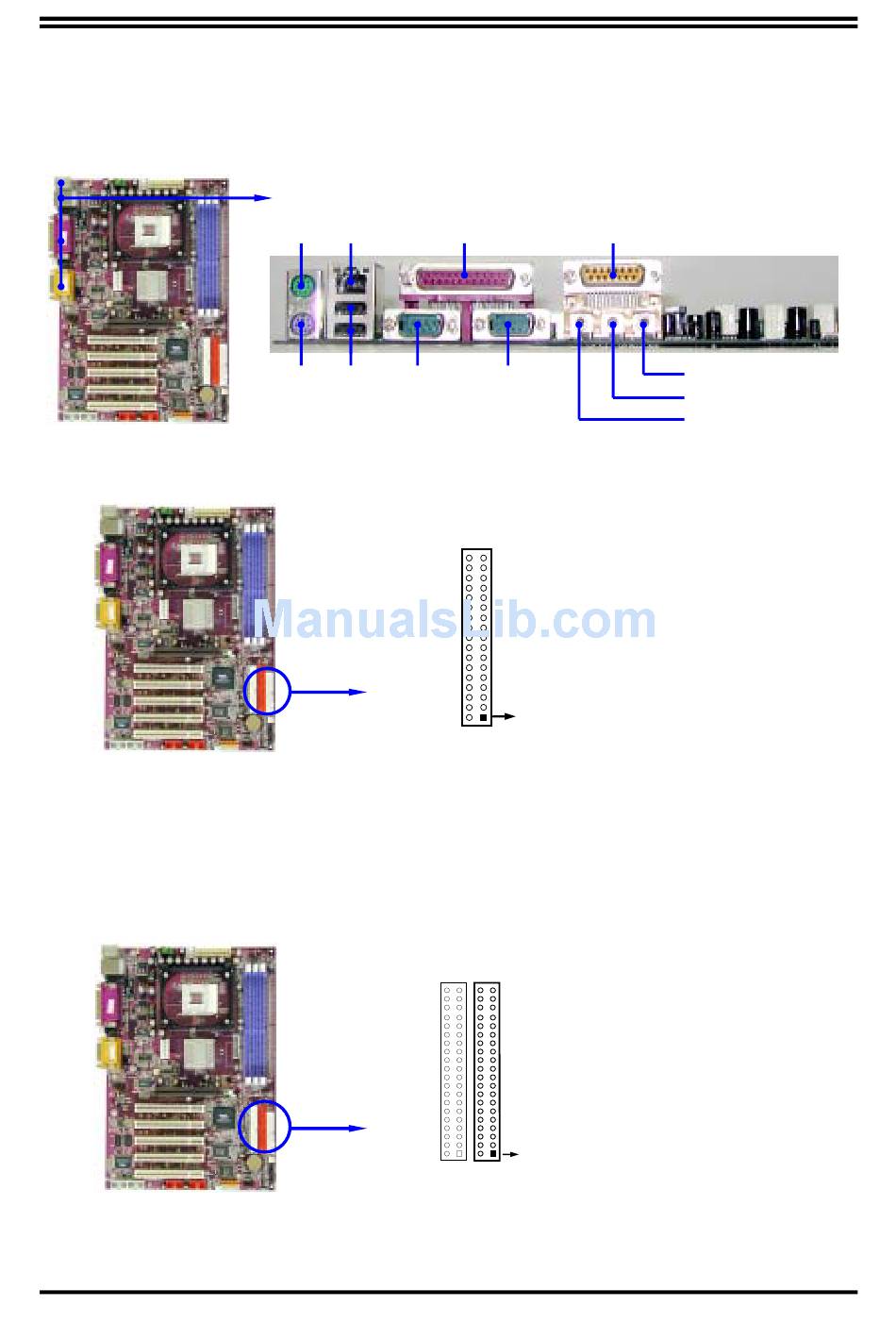

(9) Serial Port COM1/COM2 : COM1/COM2
COM1/COM2 is the 9-pin D-Subminiature male connector. The On-board serial port
can be disabled through BIOS SETUP. Please refer to Chapter 3 "INTEGRATED
PERIPHERALS SETUP" section for more detail information.
(10) Floppy drive Connector (34-pin block): FDD
This connector supports the provided floppy drive ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to the floppy drives.
(11) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard disk(s).
If you install two hard disks, you must configure the second drive to Slave mode by
setting its jumpers accordingly. Please refer to the documentation of your hard disk for
the jumper settings.
(12) Secondary IDE Connector (40-pin block): IDE2
PS/2
Mouse
LAN
PS/2
USB COM1
Keyboard
Floppy Drive Connector
Primary IDE Connector
PRINT GAME/MIDI PORT
COM2
Pin 1
Pin 1
14
MIC
LINE-IN
LINE-OUT
