JETWAY P4X40DAR2A User Manual page 15

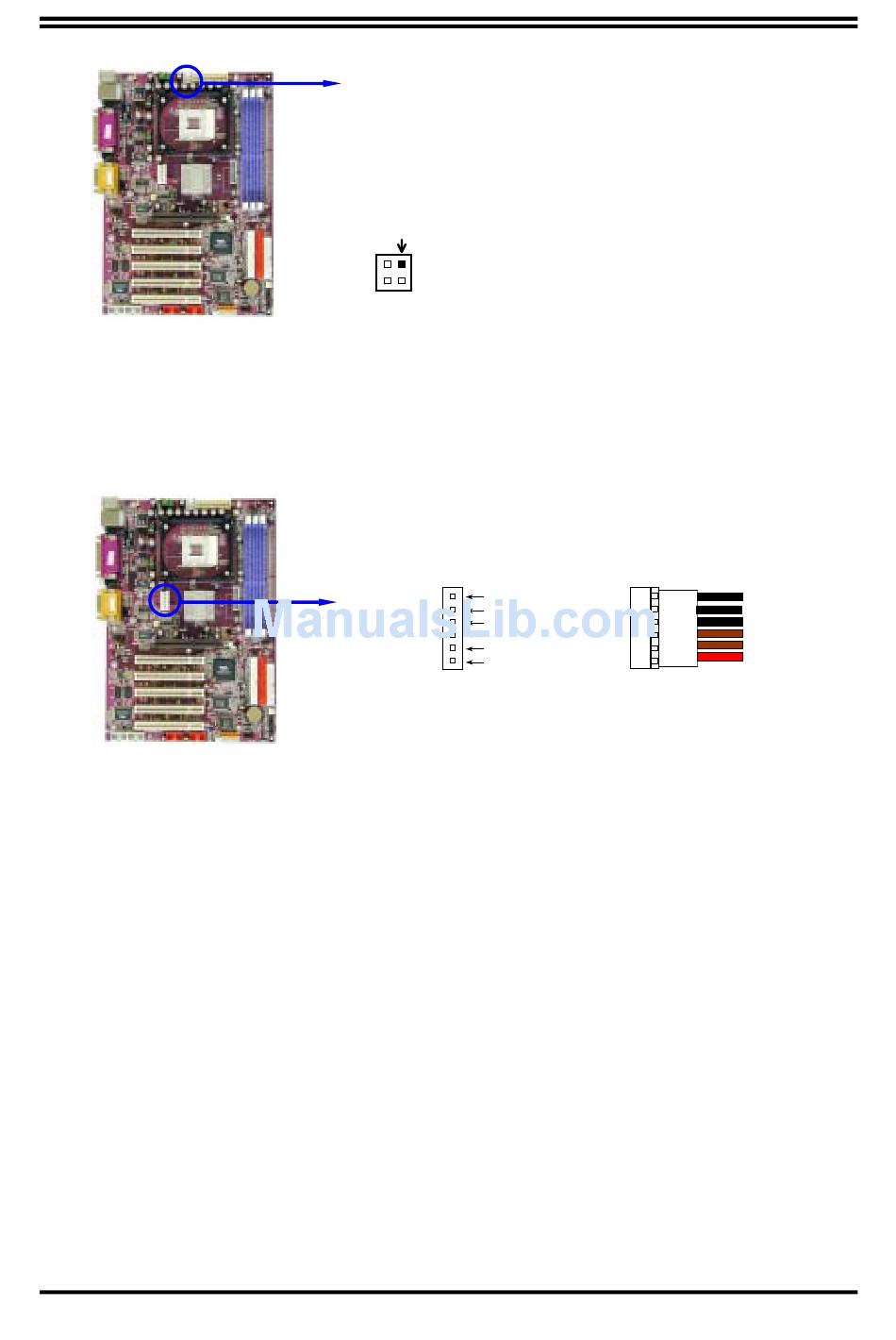

(3) ATX P9 Power Connector (6-pin block) : ATXP9
This is a new defined 6-pins connector that usually comes with ATX Power Supply. The
ATX Power Supply which fully support Pentium 4 processor must including this
connector for support extra 3.3V and 5V voltage to maintain system power consumption.
Without this connector might cause system unstable because the power supply can not
provide sufficient current for system.
(4) PS/2 Mouse & PS/2 Keyboard Connector: PS2KBM
The connectors for PS/2 keyboard and PS/2 Mouse.
(5) USB Port connector: USB
The connectors are 4-pin connector that connect USB devices to the system board.
(6) LAN Port connector: LAN (only for P4X400DAP/P4X400DAZ)
This connector is standard RJ45 connector for Network
(7) Parallel Port Connector (25-pin female): PARALL
Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-
board Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3
"INTEGRATED PERIPHERALS SETUP" section for more detail information.
Audio and Game Connector : AUDIO _ GAME
(8)
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin
D-Subminiature Receptacle Connector for joystick/MIDI Device.
Line-out :
Line-in :
MIC :
Game/MIDI :
Pin 1
Power Connector on Motherboard
Audio output to speaker
Audio input to sound chip
Microphone Connector
For joystick or MIDI Device
GND
GND
GND
3.3V
3.3V
5V
13
BLK
BLK
BLK
ORG
ORG
RED
Power Plugs from Power Supply
