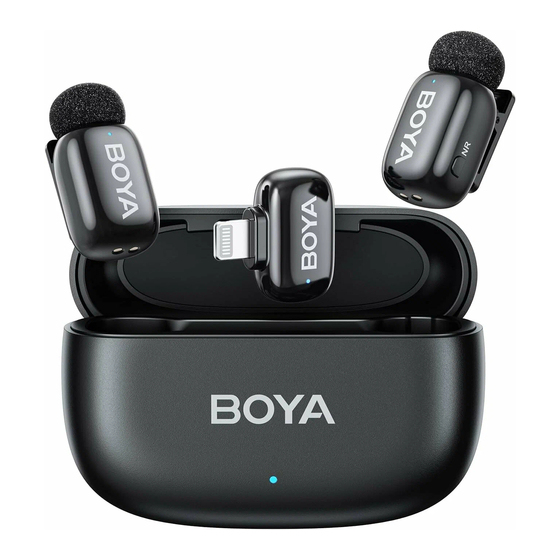

Boya mini User Manual

2.4 ghz ultra-mini wireless microphone
Hide thumbs Also See for mini:

Advertisement

Table of Contents

2.4 GHz Ultra-Mini
Wireless Microphone
BOYA mini

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini and is the answer not in the manual?

Questions and answers

Related Manuals for Boya mini

Summary of Contents for Boya mini

  • Page 1 2.4 GHz Ultra-Mini Wireless Microphone BOYA mini...
  • Page 2 Please save the manual for future reference. If you need further assistance than the user manual, please consult your retailer for help or email us at: support@boya-mic.com Cautions 1. Non-professionals are strictly prohibited from disassembling this unit on their own.

  • Page 3: General Introduction

    General Introduction The BOYA mini, a 2.4 GHz Ultra-Mini Wireless Microphone system, features automatic re-connection and selectable noise reduction that offer remarkable exibility for recording. It adopts speci c AI algorithms for changing your voice in real time to provide a highly pleasurable listening experience.

  • Page 4: Product Structure

    Product Structure Transmitter (BOYA mini-TX) ❶ ❹ ❷ ❺ ❸ ❶ In-built Condenser Microphone ❷ Indicator Status Indicator Unpaired Blinking blue Pairing Blinking blue quickly (5 minutes) Paired successfully Static blue Disconnected (beyond operating range) Blinking blue Re-connected (within operating range)
  • Page 5 Note: • The transmitter(s) will automatically power off after 10 minutes if unpaired. • If multiple functions are activated on the transmitter(s), its indicator will only illuminate for one feature. The indicator is prioritized as follows: pairing > low battery > re-connecting > noise reduction. ❸...
  • Page 6 Lightning Receiver (BOYA mini-RXD) ❶ ❷ ❸ ❶ MFi Certified Lightning Connector It can be connected to an iOS Lightning device. ❷ NR Button Operation Function Indicator Grade 1 (weak) Blinking green once Press to select a noise Grade 2 (medium)
  • Page 7 • Every time the receiver is turned on, the AI sound mode is turned off by default. • Noise reduction is disabled by default, and its default grade is 3 when turned on for the rst time. The noise reduction grade can only be adjusted after the transmitter's noise reduction is enabled.
  • Page 8 USB-C Receiver (BOYA mini-RXU) ❶ ❷ ❸ ❶ USB-C Connector It can be connected to iPhone 15 or newer, Android smartphones, tablets, computers and other USB-C devices. ❷ NR Button Operation Function Indicator Grade 1 (weak) Blinking green once Press to select a noise...
  • Page 9 recordings without the need to unplug the receiver. This function is turned on by default. • Every time the receiver is turned on, the AI sound mode is turned off by default. • Noise reduction is disabled by default, and its default grade is 3 when turned on for the rst time.
  • Page 10 3.5 mm TRS Receiver (BOYA mini-RX) ❶ ❽ ❷ ❺ ❸ ❻ ❾ ❹ ❼ ❶ Indicator 1 ❷ Indicator 2 Indicator 1 & Indicator 2 Information: Function Indicator 1 & Indicator 2 Unpaired Blinking blue Pairing Blinking blue quickly...
  • Page 11 Note: • The receiver will automatically power off after 10 minutes if unpaired with the transmitter. • After the receiver is successfully paired with only one transmitter, one of the receiver’s indicators 1 and 2 will glow static blue, while another indicator will automatically turn off...
  • Page 12 ❻ Volume Button Press to adjust the volume in levels 1 to 3, with each level increasing by 6 dB. Each time you press this button, the volume level cycles from level 1 > level 2 > level 3. ❼ Power Button Operation Function Indicator 1 &...
  • Page 13 CC Charging Case (BOYA mini-CC) ❶ ❷ ❸ ❹ ❷ ❶ ❺ ❶ Charging Contacts For charging transmitters. ❷ Slot for Transmitters ❸ Slot for Receiver ❹ Charging/Remaining Battery Level Indicator When the charging case is connected to power, this indicator will display the case’s charging status.
  • Page 14 • It takes about an hour and a half for the charging case to charge the transmitter from 0% to 100%. ❺ USB-C Charging Port For charging the charging case. CCC Charging Case (BOYA mini-CCC) ❶ ❷ ❸ ❹ ❷...
  • Page 15 ❶ Slot for Receiver ❷ Charging Contacts For charging the transmitters and receiver. ❸ Slot for Transmitters ❹ Charging/Remaining Battery Level Indicator When the charging case is connected to power, this indicator will display the case’s charging status. Status Battery level (case) Indicator Low battery 30% or lower...
  • Page 16 ❺ USB-C Charging Port For charging the charging case. Magnetic charger to USB-A cable Simply hold the charger near the charging contacts of the transmitter, where magnets cause it to snap into place automatically.

  • Page 17: How To Use

    4. Launch a video or audio recording app. 5. Some phones may default to using its built-in microphone, so you may need to switch to the external microphone (BOYA mini) on the recording app. 6. You are ready to record.
  • Page 18 5 seconds until its indicator blinks blue rapidly to enter pairing mode. receiver’s indicator 1 and transmitter 1's indicator both turn static blue. Similarly, the transmitter 2 and receiver are successfully paired when the receiver’s indicator 2 and transmitter 2’s indicator both turn static blue.
  • Page 19 If you are going to use the Lightning or USB-C receiver to output audio to a phone, please refer to the above instructions from "For BOYA mini- 12 package to BOYA mini-17 package, and BOYA mini-23 package". If you are going to use the 3.5 mm TRS receiver to output audio to a...

  • Page 20: Troubleshooting

    Note: Due to the 2.4 GHz wireless frequency, signals can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4 GHz signals, such as high-power Wi-Fi antennas, radios, etc. Troubleshooting If you encounter problems when using the unit, please refer to the following checklist rst.
  • Page 21 Specifications Transmitter Transmission Type 2.4 GHz digital frequency Modulation GFSK Polar Pattern Omnidirectional Antenna Operating Range Up to 100 m (without obstacles) RF Output Power Distortion ≤0.1% Frequency Response 20 Hz-20 kHz Sensitivity -36 dB Sampling Rate 48 kHz Bit Rate 16 bit Signal-to-Noise Ratio Audio Input...
  • Page 22 iOS Lightning Receiver/USB-C Receiver Transmission Type 2.4 GHz digital frequency Modulation GFSK Polar Pattern Omnidirectional Antenna Ceramic Antenna Operating Range Up to 100 m (without obstacle) RF Output Power Distortion ≤0.1% Frequency Response 20 Hz-20 kHz Sensitivity -36 dB Sampling Rate 48 kHz Bit Rate 16 bit...
  • Page 23 3.5 mm TRS Receiver Transmission Type 2.4GHz digital frequency Modulation GFSK Polar Pattern Omnidirectional Antenna Ceramic Antenna Operating Range Up to 100m (without obstacles) RF Output Power Distortion ≤0.1% Frequency Response 20 Hz-20 kHz Sensitivity -36 dB Sampling Rate 48 kHz Bit Rate 16 bit Signal-to-Noise Ratio...

  • Page 24: Packing List

    Operating Temperature 0°C to +50°C Storage Temperature -20°C to +50°C Packing List BOYA mini-12 (2TX+2RX+Charging Case) (Black) 2 × Transmitter 1 × Lightning Receiver 1 × USB-C Receiver 1 × CC Charging Case 1 × USB-C to USB-A Charging Cable...
  • Page 25 1 × USB-C Receiver 1 × CC Charging Case 1 × USB-C to USB-A Charging Cable 1 × Carrying Pouch BOYA mini-14 (2TX+1RX+Charging Case) for USB-C Device 2 × Transmitter 1 × USB-C Receiver 1 × CC Charging Case 1 × USB-C to USB-A Charging Cable...
  • Page 26 1 × CCC Charging Case 1 × USB-C to USB-A Charging Cable 1 × 3.5 mm TRS to TRS Audio Cable 1 × Carrying Pouch BOYA mini-19 (2TX+3RX+Charging Case) for Camera, USB-C and Lightning Device 2 × Transmitter 1 × USB-C Receiver 1 ×...
  • Page 27 support@boya-mic.com...
