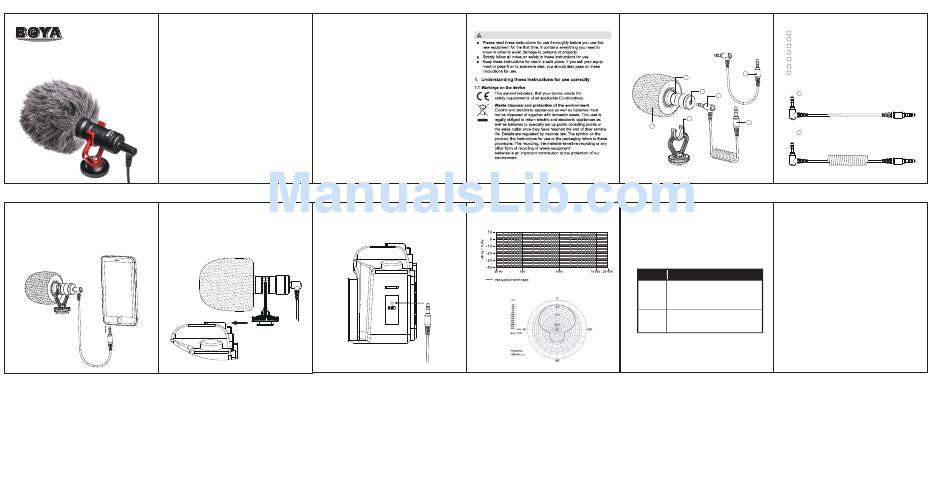

Boya BY-MM1 Instruction Manual

Instruction Manual
Thank you for purchasing BOYA BY-MM1!
BY-MM1

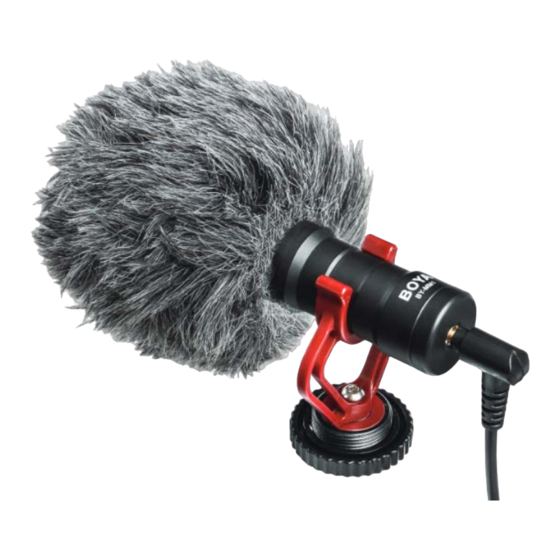

The BOYA BY-MM1 is a cardioid microphone, which
Universal Cardioid Microphone
specially design to improve the sound quality of videos
on the basis of build-in microphones.
With both TRS cable and TRRS output cable included,it
can be used on Smartphones, cameras, camcorders,
audio recorders, PCs, and other audio/video recording
devices.
BY-MM1 comes out in compact size and light weight
aluminium constructure , it will not be a heavy burden
while shooting. Plug and play design,no need to worry
the battery status. Included inside with a anti-shock
mount,which can effectively reduce unwanted vibration,
cable and handling noise. Also included a furry windproof
shield,which specially used for minimizing the wind and
environmental noise for outdoor recording , make sure
the sound crystal clear.
Using the microphone with a Smartphone, Using the microphone with cameras, camcorders,
tablet or Mac. audio recorders and other audio/video recording
devices.
1. Plug the 3.5 mm TRRS connector into the audio
jack of your smartphone, tablet or Mac.
1. Lcok the microphone on the camera hot shoe
2. Open the audio-only or video recording app and
begin recording.

Features

• Compact on-camera microphone
• Compatiable with smartphones, DSLR
cameras, Consumer Camcorders, PCs etc.
• Rugged metal construction
• No battery required
• Professional furry windshield included

Specifications

Transducer： Electret Condenser
Polar pattern： Cardioid
Frequency Response： 35-18KHz +/-3dB
Sensitivity： -42dB +/- 1dB / 0dB=1V/Pa，1kHz
Signal to Noise Ratio： 76dB SPL
Plug： 3.5mm TRS and TRRS connector
Dimensions： Φ22*81mm
Net Weight 86g
2. Plug the 3.5 mm TRS connector into the audio Specifications
input jack of your device (audio recorder, amplifier,
PC, laptop).
Furry windsheild
What's Included 1
2 Microphone
3 3.5mm audio jacket
Shock mount
4
5 3.5mm audio output cable
6 3.5mm to TRS audio output cable
3.5mm to TRRS audio output cable
7 7
2
What's difference?
3
3.5 mm TRRS connector
1
5
-For Smartphone, tablet or Mac
4
6
1
3.5 mm TRS connector
2
-For cameras, camcorders, audio recorders and
other audio/video recording devices.
www.boya-mic.com

Troubleshooting

If you have any problem using the BY-MM1
components, use the following checklist.
If any problem persist, please consult our local dealer,
or contact us directly at sales@boya-mic.com.
Problem Solution
Make sure that using the correct audio connector.
The
1) For smartphone, tablet or Mac, using 3.5mm
microphone
flexiable cable.
can't work
2) For others devices, using 3.5mm straight cable.
Too much Make sure that the microphone is as close as
ambience
possible to the subject.
