Instruction Manual

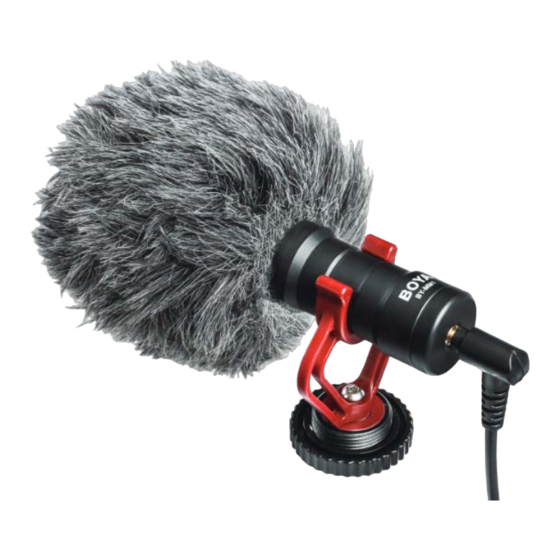

Thank you for purchasing BOYA BY-MM1!
The BOYA BY-MM1 is a cardioid microphone, which,specially design to improve
the sound quality of videos on the basis of build-in microphones.
With both TRS cable and TRRS output cable included,it can be used on Smartphones,
cameras, camcorders, .audio recorders, PCs, and other audio/video recording devices.
BY-MM1 comes out in compact size and light weight aluminium constructure ,it will
not be a heavy burden while shooting.Plug and play design,no need to worry the
battery status. Included inside with an anti-shock mount, which can effectively reduce
unwanted vibration,cable and handling noise. Also included a furry windproof
shield,which specially used for minimizing the wind and environmental noise for
outdoor recording , make sure the sound crystal clear.
Features
Compact on-camera microphone
Compatible with smartphones, DSLR cameras, Consumer Camcorders,PCs etc
Rugged metal construction
No battery required
Professional furry windshield included
Specifications
Advertisement
Table of Contents
Related Manuals for Boya BY-MM1
Summary of Contents for Boya BY-MM1
- Page 1 With both TRS cable and TRRS output cable included,it can be used on Smartphones, cameras, camcorders, .audio recorders, PCs, and other audio/video recording devices. BY-MM1 comes out in compact size and light weight aluminium constructure ,it will not be a heavy burden while shooting.Plug and play design,no need to worry the battery status.
- Page 2 Transducer: Electret Condenser Polar pattern: Cardioid Frequency Response: 35-18KHz +/-3dB Sensitivity: -42dB +/-1dB/0dB=1V/Pa,1kHz Signal to Noise Ratio: 76dB SPL Plug: 3.5mm TRS and TRRS connector Dimensions: Ф22* 81mm Net Weight: Please read these instructions for use thoroughly before you use this new equipment for the first time.
- Page 3 national law. The symbol on the product,the instructions for use or the packaging refers to these provisions. The recycling, the material-sensitive recycling or any other form of recycling of waste equipment/batteries is an important contribution to the protection of our environment. What’s included ①Furry windshield ②Microphone...
- Page 4 What's difference? ①3.5 mm TRRS connector -For Smartphone, tablet or Mac ②3.5 mm TRS connector -For cameras,camcorders,audio recorders and other audio/video recording devices. Using the microphone with a Smartphone,tablet or Mac. 1.Plug the 3.5 mm TRRS connector into the audio jack of your smartphone,tablet or Mac.
- Page 5 Using the microphone with cameras,camcorders,audio recorders and other audio/video recording devices. 1.Lock the microphone on the camera hot shoe 2.Plug the 3.5 mm TRS connector into the audio input jack of your device (audio recorder,amplifier,PC,laptop). Specifications...
- Page 6 Troubleshooting If you have any problem using the BY-MM1components,use the following checklist. If any problem persist, please consult our local dealer,or contact us directly at sales @boya-mic.com. Problem Solution The microphone can't Make sure that using the correct audio connector.
