  • Page 1 USB & XLR Microphone USB & XLR麦克风 BY-PM700 Pro Instruction Manual 使用说明...

  • Page 2: Package Contents

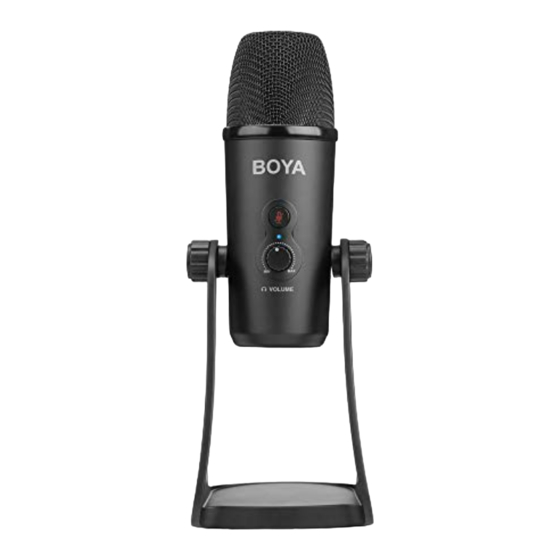

    Introduction Thanks for choosing BOYA! The BOYA BY-PM700 Pro is a desktop microphone with USB digital output and XLR analog output, compatible with Android devices, Windows/Mac computers, and analog audio devices. It provides a perfect audio solution for home studio recording, podcasting, voice over, video conference, and more.

  • Page 3: Product Structure

    Product Structure Bottom Front Rear...
  • Page 4 1. Tri-Capsule Array 2. Power Indicator 3. Mute Button - Press to mute/unmute the microphone. - When LED indicator is red, the microphone is muted. 4. Headphone Volume Control 5. Locking Knobs 6. Desk Stand 7. Gain Control 8. Pattern Selection Stereo Pattern Use the left and right channels to pick up sound, ideal for capturing a realistic sound image.
  • Page 5 9. USB-C Port 10. 5-Pin XLR Connector 11. 5/8’’ Threaded Hole 12. 3.5mm Headphone Output 13. USB-C to USB-C Cable 14. USB-A to USB-C Cable 15. 5-Pin XLR Female to Dual 3-Pin XLR Male Y-Cable Functions Angle Adjustment Loosen the knobs of both sides anticlockwise. Adjust the microphone at your desired angle, then tighten the knobs.
  • Page 6 Mounting the BY-PM700 Pro to a boom arm 1. Unscrew the locking knobs to remove the microphone from the desk stand. 2. Mount the microphone to the boom arm through its 5/8'' threaded hole. Note: the boom arm is not included.
  • Page 7 How to Use Using the USB digital output 1. Connect the microphone to your smartphone/computer USB-C devices Using the supplied USB-C to USB-C cable Mac/Windows Computer Using the supplied USB-A to USB-C cable...
  • Page 8 2. Connect headphones for audio monitoring. 3. Select the desired polar pattern and adjust the gain control and volume control knobs according to your needs. 4. You are ready to record.
  • Page 9 Speaker (BY-PM700 Pro) 2. Go to “Setting”, choose “Sound”. Some apps are using custom output settings. You can personalize 3. Select “Speaker BY-PM700 Pro” as these in app volume and device preferences below. the output device. Device properties 4.
  • Page 10 1. Connect the microphone to your computer using the supplied cable. 2. Go to “Control Panel”-->“Hardware and Sound”--> “Sound”. 3. Select “Speaker BY-PM700 Pro” as the default device in “Sound”, under the “Playback” menu. 4. Select “Microphone BY-PM700 Pro” as the default device in “Sound”, under the “Recording”...

  • Page 11: Setup For Mac

    Setup for Mac 1. Connect the microphone to your computer using the supplied cable. 2. Go to Apple Icon-->System Preferences-->Sound Icon. 3. Select “BY-PM700 Pro” under the “Input” tab. 4. Select “BY-PM700 Pro” under the “Output” tab. Sound Sound Output...
  • Page 12 2. When using the XLR analog ouput, the BY-PM700 Pro should be powered by 12-48V phantom power. Please turn on the phantom power supply on the external device.

  • Page 13: Speci Cations

    Features - Professional microphone with USB digital output and XLR analog output - Universal compatibility with Android devices, Windows/Mac computers, analog audio devices - Selectable Stereo, Omnidirectional, Cardioid and Bidirectional patterns for di erent scenarios - 3.5mm headphone jack for latency-free monitoring - Built-in controls for gain, headphone volume and muting - 24bit/48kHz audio resolution - Rugged metal construction...
  • Page 14 Polar Pattern Frequency Response 0° Cardioid 270° 90° 2000 20000 180° 0° Omnidirectional 270° 90° 2000 20000 180° 0° Stereo 270° 90° 2000 20000 180° 0° Bidirectional 270° 90° 2000 20000 180°...
