630DF

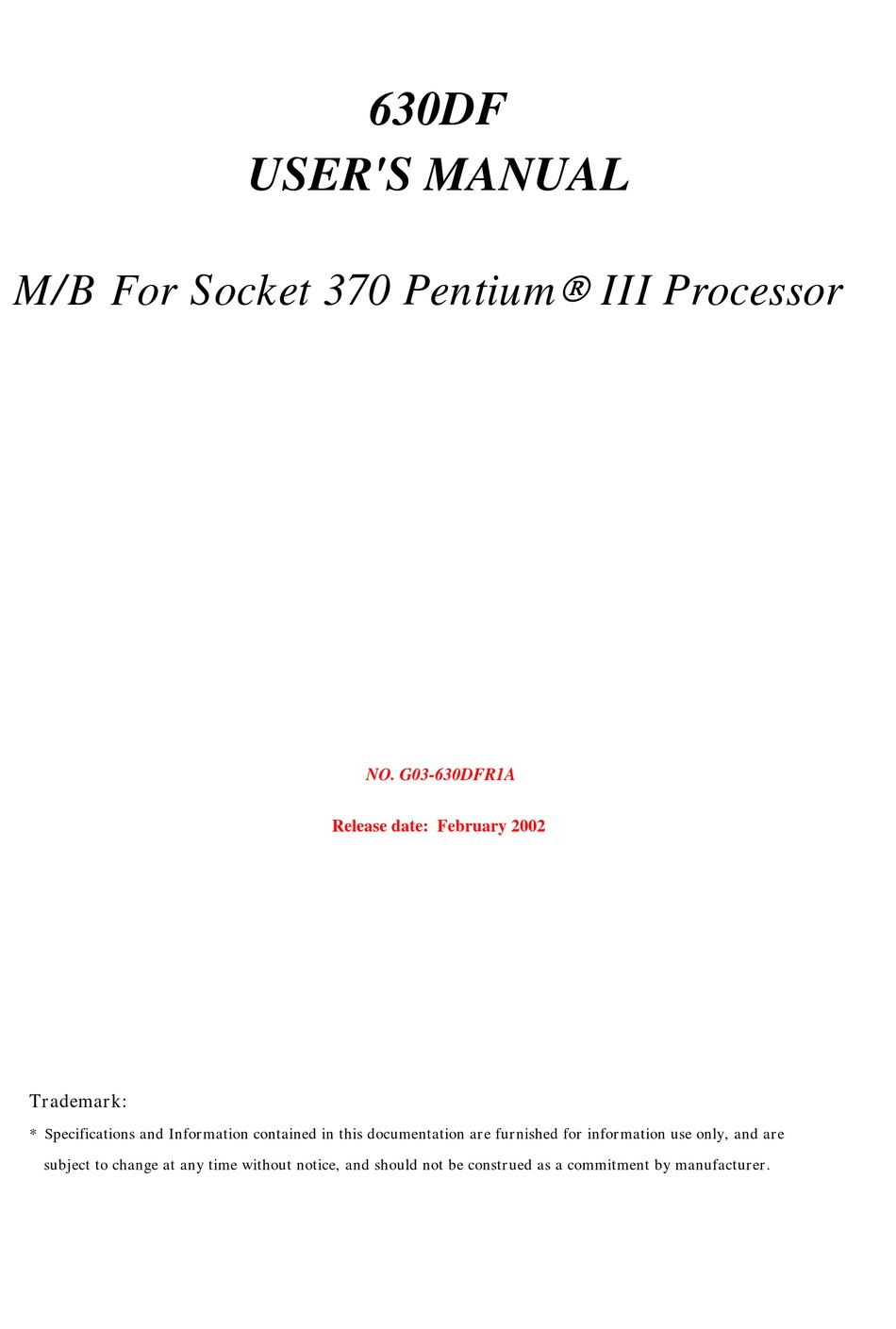

USER'S MANUAL
M/B For Socket 370 Pentium
III Processor
NO. G03-630DFR1A
Release date: February 2002
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY 630DFR1A
Summary of Contents for JETWAY 630DFR1A
- Page 1 USER'S MANUAL M/B For Socket 370 Pentium III Processor NO. G03-630DFR1A Release date: February 2002 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE ................1 MANUAL REVISION INFORMATION ..........2 THERMAL SOLUTIONS ..............2 CHAPTER 1 INTRODUCTION OF 630DF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD ..........3 1-2 SPECIFICATION ..............4 1-3 PERFORMANCE LIST............. 5 1-4 LAYOUT DIAGRAM & JUMPER SETTING ........ 6 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS ........ - Page 3 3-8 POWER MANAGEMENT SETUP..........36 3-8-1 PM WAKE UP EVENTS............37 3-9 PNP/PCI CONFIGURATION SETUP .......... 38 3-9-1 IRQ RESOURCES ..............39 3-10 PC HEALTH STATUS ............. 40 3-11 FREQUENCY/VOLTAGE CONTROL ........40 3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ......41 3-13 SET SUPERVISOR/USER PASSWORD ........42 CHAPTER 4 DRIVER &...
-
Page 4: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF MANUFACTURER. -
Page 5: Manual Revision Information
Manual Revision Information Reversion Revision History Date First Release February 2002 Item Checklist 630DF Motherboard Cable for IDE/Floppy CD for motherboard utilities ¡ ¼ Cable for USB Port 3/4 (Option) Cable for VGA 630DF User’s Manual Intel Processor Family Thermal Solutions As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. -
Page 6: Chapter 1 Introduction Of 630Df Motherboard
Chapter 1 Introduction of 630DF Motherboard 1-1 Feature of motherboard The 630DF motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 design supports Pentium III/Celeron FC-PGA/PPGA and VIA Cyrix C3 processors, and the memory size expandable to 1GB. This motherboard use the newest SiS 630E chipset provides a high performance/low cost solution for socket 370 series CPUs based system, by integrating a high performance North Bridge, advanced hardware 2D/3D GUI engine and Super-South... -
Page 7: Specification
1-2 Specification Spec Description ∗ Flex ATX form factor 4 layers PCB size: 22.8cmx19.0cm Design ∗ SiS 630E Chipset Chipset Clock Generator ∗ Support 66/100/133MHz system Bus Clock (CPU Bus Clock) Support 100/133 MHz system memory clock Support 33MHz PCI Bus clock ... -
Page 8: Performance List
1-3 Performance List The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) ... -
Page 9: Layout Diagram & Jumper Setting
DEMO1 22.0 22.1 22.2 DEMO2 21.3 21.6 21.6 1-4 Layout Diagram & Jumper Setting PRINT GAME/MIDI PORT PS/2 MOUSE PS/2 Keyboard LINE-IN COM1 COM2 LINE-OUT K/B Power ON Jumper (JP1) CPU FAN PS2 KB/Mouse Port ATX Power USB Port/ Connector LAN Connector CPU Socket PC133 DIMMX2... -
Page 10: Expansion Sockets
Jumpers Jumper Name Description Page CPU & SDRAM Frequency Setting 2x4-pin Block JP4, JP5 2x2-pin Block Keyboard Power ON Function Setting 3-pin Block JP14 CMOS RAM Clear 3-pin Block Connectors Connector Name Description Page ATXPOWER ATX Power Connector 20-pin Block P.16 PS2 KB/MOUSE PS/2 Mouse &... -
Page 11: Chapter 2 Hardware Installation
Chapter 2 Hardware installation 2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: 1. Check motherboard setting 2. Install CPU 3. Install Memory 4. Install Expansion cards 5. Connect Ribbon cables, Panel wires, and power supply 6. -
Page 12: Troubleshooting
JP4 JP5 JP4 JP5 JP4 JP5 JP4 JP5 AUTO 66/66 66/100 100/100 JP4 JP5 JP4 JP5 JP4 JP5 100/133 133/100 133/133 CPU/SDRAM Frequency 2. Keyboard Power On Function Setting (3-pin): JP1 This allows you to disable the keyboard power on function. Set the jumper to enabled or disabled if you wish to use your keyboard (by pressing <... -
Page 13: Install Cpu
2. Forget password 3. After over clocking system boot fail JP14 JP14 1-2 closed Clear CMOS 2-3 closed Normal (default) CMOS RAM Clear Setting 2-3 Install CPU 2-3-1 About Pentium III & Celeron™ 370-pin CPU This motherboard supports both Pentium III & Celeron 370 pins CPU. Glossary: Chipset (or core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards. - Page 14 BIOS (Basic Input/Output System) - the program logic used to boot up a computer and establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software. Processor - the "central processing unit"...
-
Page 15: Setting Cpu Bus Clock & Memory Clock Jumper
566/128/66/1.5V 566 : CPU internal frequency, where here is 566MHz 128 : the size of L2 cache, where here is 128K front side bus frequency, where here is 66MHz 1.5V : the voltage for the CPU 2-3-2 Setting CPU Bus Clock & Memory Clock Jumper Setting the Front Side Bus frequency and SDRAM frequency The motherboard uses jumper JP7 for the front side bus frequency and SDRAM frequency setting as shown from the table below, and JP4, JP5 are must open... -
Page 16: Overclock Running
upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown. -
Page 17: Install Memory
Auto Detect DIMM/PCI Clk Enabled CPU Host/DRAM Clock Spread Spectrum Disabled Menu Level > Default CPU Host/DRAM Clock Default 66/66MHz ..CPU Clock Ratio Jumpless x 3.0 66/100MHz ..75/75MHz ..83/83MHz ..95/95MHz ..96/96MHz ..97/97MHz ..100/100MHz .. -
Page 18: Expansion Card
Figure 2-4 NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides. WARNING! For the SDRAM CLOCK is set at 133MHz, use only PC133- compliant DIMMs. -
Page 19: Assigning Irqs For Expansion Card
2-5-2 Assigning IRQs For Expansion Card Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use. Standard Interrupt Assignments Priority Standard function... -
Page 20: Connectors, Headers
2-6 Connectors, Headers 2-6-1 Connectors Power Connector: ATXPOWER (20-pin block) ATX Power Supply connector. This is a new defined 20-pins connector that usually comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. - Page 21 Line-out : Audio output to speaker Line-in : Audio input to sound chip MIC : Microphone Connector Game/MIDI : For joystick or MIDI Device Serial Port COM1: COM1/COM2 COM1 is the 9-pin D-Subminiature mail connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP”...
-
Page 22: Headers
Pin 1 Primary IDE Connector (10) Secondary IDE Connector (40-pin block): IDE2 This connector connects to the next set of Master and Slave hard disks. Follow the same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector. - Page 23 VGA Headers USB Port Headers (9-pin block): USB2 These headers are used for connecting the additional USB port plug. attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel. USB2 +DATA +DATA DATA DATA...
- Page 24 PWR LED PWR BTN RESET SPEAKER HD LED Wake On-LAN/Wake On-Modem Headers (3-pin): WOL, WOM These headers connects to a LAN/Modem card with a WAKE ON-LAN / WAKE ON-MODEM output. This connector power up the system when a wake up signal is received through the LAN/ Modem card. NOTE: This feature requires that Wake On LAN or Ring In Wake up is enabled.
- Page 25 (10) IR infrared module Headers (5-pin): IR This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. Pin 1 Infrared Module Headers (11) CD Audio-In Headers (4-pin): CDIN1, CDIN2 CDIN1 and CDIN2 are the connectors for CD-Audio Input signal.
-
Page 26: Starting Up Your Computer
SYNC _ OUTPUT VIDEO _ OUTPUT Pin 1 Pin 1 SYNC_OUTPUT Headers VIDEO_OUTPUT Headers (14) SPEAKER/MIC Output Header: JP15, JP16, MIC1 (Option) MIC1 MIC Output Header JP15 SPEAKER-R Speaker R Header JP16 SPEAKER-L Speaker L Header 2-7 Starting Up Your Computer 1. -
Page 27: Chapter 3 Introducing Bios
c. Your system power. For ATX power supplies, you need to turn on the power supply and press the ATX power switch on the front side of the case. 5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. -
Page 28: Entering Setup
hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best. In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: •... -
Page 29: The Main Menu
3-3 The Main Menu Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter>... -
Page 30: Standard Cmos Features
This entry shows your PC health status. Frequency/Voltage Control Use this menu to specify your settings for frequency/voltage control. Load Optimized Defaults Use this menu to load the BIOS default values that are factory settings for optimal performances system operations. Load Standard Defaults Use this menu to load the BIOS default values for the minimal/stable performance system operation. -
Page 31: Advanced Bios Features
> IDE Primary Master Press Enter None Menu Level > > IDE Primary Slave Press Enter None > IDE Secondary Master Press Enter None Change the day, month, > IDE Secondary Slave Press Enter None year and century Drive A 1.44M, 3.25 in. - Page 32 CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Advanced BIOS Features Virus Warning Disabled Item Help CPU Internal Cache Enabled External Cache Enabled CPU L2 Cache ECC Checking Disabled Menu Level > Processor Number Feature Enabled Quick Power On Self Test Enabled Allows you to choose First Boot Device...
- Page 33 Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction). Processor Number Feature This option is for Pentium III processor. During Enabled, this will check the CPU Serial number. Disabled this option if you don’t want the system to know the Serial number. Quick Power On Self-Test This category speeds up Power On Self Test (POST) after you power on the computer.
-
Page 34: Advanced Chipset Features
Typematic Delay (Msec) Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. Security Option This category allows you to limit access to the system and Setup, or just to Setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. -
Page 35: Advanced Dram Control
System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled. Video RAM Cacheable Select Enabled allows caching of the video BIOS, resulting in better system performance. -
Page 36: Integrated Peripherals
3-7 Integrated Peripherals CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Integrated Peripherals > OnChip IDE Function Press Enter Item Help > OnChip Device Function Press Enter > Winbond SuperIO Device Press Enter Init Display First PCI Slot Menu Level > System Share Memory Size 8 MB ¡... -
Page 37: Onchip Ide Function
3-7-1 OnChip IDE Function CMOS Setup Utility – Copyright(C) 1984-2000 Award Software OnChip IDE Function Internal PCI/IDE Both Item Help Primary Master Auto Primary Slave Auto Secondary Master PIO Auto Menu Level >> Secondary Slave Auto Primary Master UDMA Auto Primary Slave UDMA Auto... -
Page 38: Onchip Device Function
3-7-2 OnChip Device Function CMOS Setup Utility – Copyright(C) 1984-2000 Award Software OnChip Device Function AC97 Sound Device Enabled Item Help Game Port Address Midi Port Address Midi Port IRQ Menu Level >> AMR Modem DEVICE Enabled ETHERNET Function Enabled ETHERNET Address ID Input Press Enter Current Mac address is 003018-000001... -
Page 39: Winbond Superio Device
3-7-3 Winbond SuperIO Device CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Winbond SuperIO Device Onboard FDD Controller Enabled Item Help Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART 2 Mode Normal Menu Level >> RxD,TxD Active Hi,Hi IR Transmission Delay Enabled... -
Page 40: Power Management Setup
SPP/EPP/ECP/ECP+EPP To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP”... -
Page 41: Pm Wake Up Events
Video Off Method This determines the manner in which the monitor is blanked. DPMS (default) Initial display power management signaling. Blank Screen This option only writes blanks to the video buffer. V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer. -
Page 42: Pnp/Pci Configuration Setup
PCIPME Power Up Control This will enable the system to wake up by PCI device Power Management function. The settings are: Enabled and Disabled. KB Power ON Password This item can setting Power On Password, if you Enabled keyboard Power On function then you can Power On system by key-in the password which you setting. -
Page 43: Irq Resources
Reset Configuration Data Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are: Enabled and Disabled. -
Page 44: Pc Health Status
3-10 PC Health Status This section shows the Status of you CPU, Fan, Warning for overall system status. This is only available if there is Hardware Monitor onboard. CMOS Setup Utility – Copyright(C) 1984-2000 Award Software PC Health Status CPU Warning Temperature Disabled Item Help Shutdown Temperature... -
Page 45: Load Standard/Optimized Defaults
Cyrix III Clock Ratio This item allows you to set Cyrix III Clock Ratio. The settings are Default, X3.5, X3, X4, X4.5, X5, X5.5, X6. Auto Detect DIMM/PCI Clk This item allows you to enable/disable auto detect DIMM/PCI Clock. The settings are: Enabled, Disabled. CPU Host/DRAM Clock This item allows you to set the CPU Host/DRAM Clock The choice are: Default, 66/66Mhz, 66/100Mhz, 75/75MHz, 83/83MHz, 95/95MHz,... -
Page 46: Set Supervisor/User Password
3-13 Set Supervisor/User Password You can set either supervisor or user password, or both of them. The differences are: Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the setup menus. -
Page 47: Chapter 4 Driver & Free Program Installation
Chapter 4 DRIVER & FREE PROGRAM INSTALLATION Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. -
Page 48: Vga Install Sis 630 Vga Driver
From MAGIC INSTALL MENU you may make 8 selections: 1. VGA Install SiS 630 On-chip VGA driver 2. PC-HEALTH Install Winbond Hardware Doctor Monitoring Software 3. LAN Install PCI Fast Ethernet driver 4. SOUND Install On-chip AC’97 Audio driver 5. PC-CILLIN Install PC-CILLIN2000 Anti-virus program 6. - Page 49 3. Multimedia Package support three types 4. System will add program icons to the of Setup: Typical, Compact, Custom Program Folder listed. Click Next to continue, and after “Start Copying Files” Please choice Typical and Click Next to window appears click Next continue step 5.
-
Page 50: Pc-Health
4-2 PC-HEALTH Winbond Hardware Doctor Monitoring Software The path of the file is X:\SIS630\HEALTH-W\SETUP.EXE (Only support WINDOWS 95/98/98SE/98ME) In Windows 95/98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup. -
Page 51: How To Utilize Pc-Health
4-2-1 How To Utilize PC-HEALTH 2. After executing Winbond Hardware 1. Click Program → Winbond Hardware Doctor it supports system voltage, Fan Doctor → Hardware Doctor the speed and CPU/SYSTEM Temperature. Winbond Hardware Doctor will appears Because this is a On-time Monitoring You can remove the Utility in Control program therefore the value will change Panel →... -
Page 52: Sound Install Sis 7018 Ac'97 Audio Driver And Application Software
3. Choice restart my computer now to finish 4. After restart computer you can check in setting up LAN Card, click Finish to control Panel\System Device Manager\ complete setup Network adapters to make sure LAN card Driver setup completely Click NEXT when SiS PCI LAN Driver Setup appears 4-4 SOUND Install SiS 7018 AC’97 Audio Driver and... - Page 53 3. Click Next to install the driver in Program 4. Select restart my computer now and click Files Folder Finish to complete setup 5. After restart computer the system will auto 6. Click Audio Rack when Magic Install Menu detect SiS 7018 Audio Driver and install it to appears system 7.
-
Page 54: Magic Bios Install Bios Live Update Utility
4-5 MAGIC BIOS Install BIOS Live Update Utility Click Magic BIOS when Magic Install Click Next to install the Magic BIOS in MENU appears Destination Folder After finish Setup you will have a Magic Double click the Magic BIOS icon you will BIOS icon in your screen have this picture, choose from internet you can upgrade BIOS On-line... -
Page 55: Pc-Cillin
Click Yes if you want to update the BIOS When System programming BIOS don’t turn otherwise choose No to exit off power, after finish update BIOS, the system will clear CMOS and automatically Restart When choose From Local Driver to update 10. - Page 56 3. Click NEXT and Enter User Information, 4. Click NEXT and Choose all Internet Click NEXT or choose BROWSE to change Protection the path For the file to be stored 5. Click OK and If You Have Proxy Server, 6. Click NEXT when Start Copy Files, Start to Enter Your Setting.
-
Page 57: How To Disable On-Board Sound
9. Enter Your name and E-mail address 10. After install PC-cillin 2000 complete we Register PC-cillin 2000 or Click Cancel recommend select update item to download Register Later newest virus code and setting Auto refresh virus code 4-7 How To Disable On Board Sound Function Please key in “DEL”...
