wtw Cond 3310 Operating Manual

Conductivity meter
Hide thumbs Also See for Cond 3310:

Advertisement

Quick Links

Download this manual
Operating manual
Cond 3310
Conductivity meter
ba75803e02
05/2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cond 3310 and is the answer not in the manual?

Questions and answers

Related Manuals for wtw Cond 3310

Summary of Contents for wtw Cond 3310

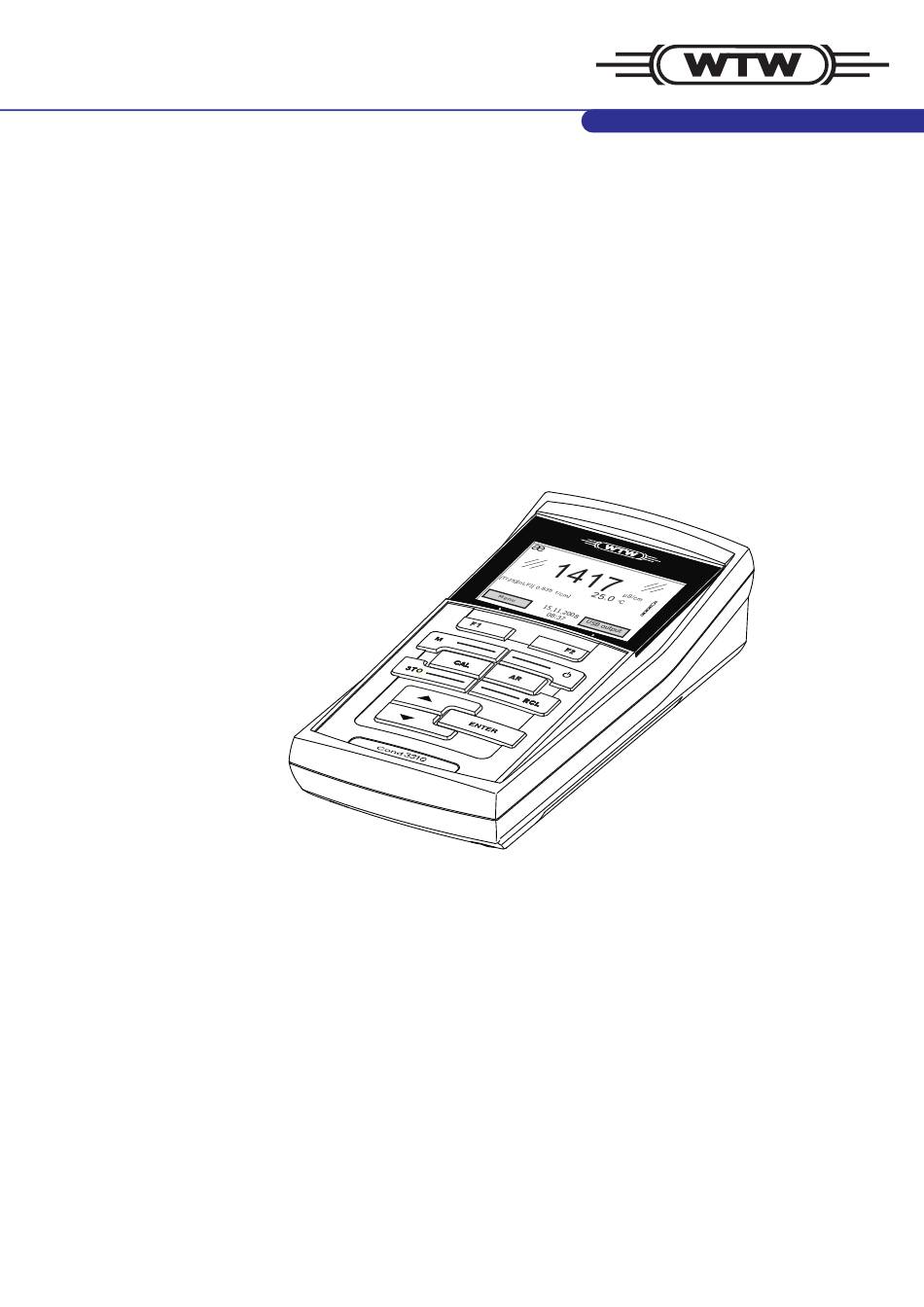

  • Page 1 Operating manual Cond 3310 Conductivity meter ba75803e02 05/2011...
  • Page 2 © Copyright Weilheim 2009, WTW GmbH Reproduction in whole - or even in part - is prohibited without the express written permission of WTW GmbH, Weilheim. Printed in Germany. ba75803e02 05/2011...
  • Page 3 Contents Cond 3310 - Contents Overview ........5 Keypad .
  • Page 4 Contents Cond 3310 4.5.3 Displaying and editing the measurement data storage ....... . 42 4.5.4...
  • Page 5 Cond 3310 Overview Overview The Cond 3310 compact precision conductivity meter enables you to perform conductivity measurements quickly and reliably. The Cond 3310 provides the maximum degree of operating comfort, reliability and measuring certainty for all applications. The proven procedures for determining or adjusting the cell constant support your work with the conductivity meter.
  • Page 6 Overview Cond 3310 Keypad ENTER Cond 3310 In this operating manual, keys are indicated by brackets <..> . The key symbol (e.g. <ENTER>) generally indicates a short keystroke (under 2 sec) in this operating manual. A long keystroke (approx. 2 sec) is indicated by the underscore behind the key symbol (e.g.
  • Page 7 Cond 3310 Overview <ENTER>: Opens the menu for measurement settings / confirms E N T E R <ENTER >: entries Opens the menu for system settings <AR> Freezes the measured value (HOLD function) Switches the AutoRead measurement on or off Display ӕ...
  • Page 8 Overview Cond 3310 Socket field Connectors: Conductivity measuring cell USB B (device) interface Service interface Caution Only connect measuring cells to the meter that cannot return any voltages or currents that are not allowed (> SELV and > current circuit with current limiting).
  • Page 9 Cond 3310 Safety Safety This operating manual contains basic instructions that you must follow during the commissioning, operation and maintenance of the meter. Consequently, all responsible personnel must read this operating manual before working with the meter. The operating manual must always be available within the vicinity of the meter.
  • Page 10 Safety Cond 3310 Authorized use Authorized use of the meter consists exclusively of the measurement of conductivity, resistivity, salinity, TDS (total dissolved solids) and temperature in a laboratory or field environment. The technical specifications as given in chapter 7 T...
  • Page 11  Safety datasheets of the chemical manufacturers. Caution In addition to the safety instructions mentioned here, also follow the safety instructions of the sensors used. The operating manuals of the sensors are available on the supplied CD and on the Internet under www.WTW.com. ba75803e02 05/2011...
  • Page 12 Safety Cond 3310 ba75803e02 05/2011...
  • Page 13 Cond 3310 Commissioning Commissioning Scope of delivery  Conductivity meter Cond 3310  4 batteries 1.5 V Mignon type AA  USB cable  Short instructions  CD-ROM with detailed operating manual Initial commissioning Perform the following activities:  Insert the supplied batteries ...
  • Page 14 Commissioning Cond 3310 Note Alternatively, you can also use Ni-MH rechargeable batteries (type Mignon AA). In order to charge the batteries, an external charging device is required. Caution Make sure that the poles of the batteries are positioned correctly. ±...
  • Page 15 Cond 3310 Operation Operation Switching on the meter Switching on Press the <On/Off> key. The meter performs a self-test. The display shows the manufacturer's logo while the self-test is being performed. The measured value display appears. ӕ 1417 µS/cm 25.0 °C...
  • Page 16 An overview of the operating elements and the display is given in display section 1.1 and section 1.2. Operating modes, An overview of the operating modes and navigation of the Cond 3310 navigation is given in section 4.2.1 and section 4.2.2. 4.2.1 Operating modes The meter has the following operating modes: ...
  • Page 17 Cond 3310 Operation 4.2.2 Navigation Measured value display In the measured value display, you can  Open the respective measuring menu with <F1> (short keystroke).  Open the Storage & config menu with the sensor-independent settings by pressing <F1 > (long keystroke, approx. 2 s).
  • Page 18 Operation Cond 3310  Functions Functions are designated by the name of the function. They are immediately carried out by confirming with <ENTER>. Example: Display the Calibration record function. ӕ Calibration record Calibration interval 150 d 22.09.2008 Back 08:00 Messages Information is marked by the symbol.
  • Page 19 Cond 3310 Operation 4.2.3 Example 1 on navigation: Setting the language Press the <On/Off> key. The measured value display appears. The instrument is in the measuring mode. ӕ 1417 µS/cm 25.0 °C [Tr25][nLF][ 0.835 1/cm] 22.09.2008 Menu USB output 08:00 Using <F1...
  • Page 20 Operation Cond 3310 System General Interface Clock Service information Reset 22.09.2008 Back 08:00 Select the General submenu with <▲><▼>. The current selection is displayed with a frame. Open the General submenu with <ENTER>. General Language: Deutsch Beep Illumination Contrast 48 %...
  • Page 21 Cond 3310 Operation Confirm the setting with <ENTER>. The meter switches to the measuring mode. The selected language is active. ba75803e02 05/2011...
  • Page 22 Operation Cond 3310 4.2.4 Example 2 on navigation: Setting the date and time The measuring instrument has a clock with a date function. The date and time are indicated in the status line of the measured value display. When storing measured values and calibrating, the current date and time are automatically stored as well.
  • Page 23 Cond 3310 Operation Change and confirm the setting with <▲><▼> and <ENTER>. The minutes are highlighted. Change and confirm the setting with <▲><▼> and <ENTER>. The seconds are highlighted. Change and confirm the setting with <▲><▼> and <ENTER>. The time is set.
  • Page 24 Operation Cond 3310 Sensor-independent settings The Storage & config menu comprises the following settings:  System (see section 4.3.1).  Data storage (see section 4.3.2) 4.3.1 System Overview The following sensor-independent meter characteristics can be adjusted in the Storage & config/System menu: ...
  • Page 25 For details, see section 4.7.2 4.3.2 Data storage This menu contains all functions to display, edit and erase stored measured values and calibration records. Note Detailed information on the storage functions of the Cond 3310 is given in section 4.5. ba75803e02 05/2011...
  • Page 26 Operation Cond 3310 4.3.3 Automatic Stability control The automatic Stability control (AutoRead) function continuously checks the stability of the measurement signal. You can activate or switch off the automatic Stability control function (see section 4.4.4). The measured parameter flashes on the display ...
  • Page 27 Cond 3310 Operation Conductivity 4.4.1 General information You can measure the following variables:  Conductivity  Specific resistance  Salinity  Total dissolved solids (TDS) The measuring instrument is supplied with the following functions:  AutoRange (automatic switchover of the measurement range). If a...
  • Page 28 Operation Cond 3310 4.4.2 Measuring You can carry out conductivity measurements as follows: Perform the preparatory activities according to section 4.4.1. Immerse the conductivity measuring cell in the test sample. ӕ 1417 µS/cm 25.0 °C [Tr25][nLF][ 0.835 1/cm] 22.09.2008 Menu...
  • Page 29 Cond 3310 Operation Stability control The stability control function (AutoRead) continually checks the stability (AutoRead ) of the measurement signal. The stability has a considerable impact on the reproducibility of measured values. The display of the measured parameter flashes until a stable measured value is available.
  • Page 30 Operation Cond 3310 4.4.3 Temperature compensation The calculation of the temperature compensation is based on the preset reference temperature, 20 °C or 25 °C. It appears on the display as Tr20 or Tr25. You can select one of the following temperature compensation methods: ...
  • Page 31 Cond 3310 Operation 4.4.4 Settings for conductivity measuring cells Overview The following settings are possible for conductivity measuring cells:  Calibration record (display)  Calibration interval  Measuring cell/cell constant  Reference temperature  Temperature compensation  TDS factor  Unit of the temperature ...
  • Page 32 Operation Cond 3310 Menu item Possible Description setting Measurement / Measuring cell used Measuring cell / Measuring cells the cell Type constant of which is determined by calibration in the KCL control standard solution. Calibration ranges: 0.450 to 0.500 cm 0.800 to 0.880 cm...
  • Page 33 Cond 3310 Operation Menu item Possible Description setting Measurement / 0.000 ... Coefficient of the linear Temp. comp. (TC) / 3.000 %/K temperature compensation. Linear coeff. This setting is only available when the linear temperature compensation is set. Measurement / 20 °C...
  • Page 34 Operation Cond 3310 4.4.5 Determining the cell constant (calibration in control standard) Why determine the cell Aging slightly changes the cell constant, e. g. by coatings. As a result, constant? an inexact measured value is displayed. The original characteristics of the cell can often be restored by cleaning the cell.
  • Page 35 Cond 3310 Operation Sample record: 31.10.2008 16:55:12 Cond 3310 Ser. no. 08502113 CALIBRATION Cond 31.10.2008 16:13:33 Cell constant 0.836 1/cm 25.0 °C Sensor Calibration evaluation After the calibration, the measuring instrument automatically evaluates the current status of the calibration. The evaluation appears on the display and in the calibration record.
  • Page 36 Operation Cond 3310 ӕ 0.839 1/cm 25.1 °C [Tr25][nLF][ 0.835 1/cm] 22.09.2008 USB output Menu 08:00 Immerse the conductivity measuring cell in the control standard solution, 0.01 mol/l KCI. Start the measurement with <ENTER>. The [AR] status indicator is displayed. The measured parameter flashes.
  • Page 37 Otherwise, the AR display is missing.  Calibration evaluation: +++, ++, +, -, or no evaluation Storage locations The Cond 3310 meter has two measurement data memories. The measured values recorded either manually or automatic are stored separately in individual measurement data memories.
  • Page 38 Operation Cond 3310 4.5.1 Manual storage You can transmit a measurement dataset to the data storage as follows. The dataset is at the same time output to the interface: Press the <STO> key shortly. The menu for manual storage appears.
  • Page 39 Cond 3310 Operation 4.5.2 Automatic storage at intervals The storage interval (Interval) determines the chronological interval between automatic storage processes. Each storage process transmits the current dataset to the interface at the same time. Configuring the Press the <STO_> key.
  • Page 40 Operation Cond 3310 Menu item Possible Description setting Duration 1 min ... x min Storage duration. Specifies after which time the automatic storage should be terminated. The lower limit of the storage duration is restricted by the storage interval. The upper limit is restricted by the number of free storage locations.
  • Page 41 Cond 3310 Operation Terminating the Proceed as follows to switch off the automatic storage function before automatic storage the adjusted storage duration has expired: function prematurely Press the <STO_> key. The following window appears. Warning Stop automatic storage? 22.09.2008 Back 08:00 Using <▲><▼>, select Yes and confirm with <ENTER>.
  • Page 42 Operation Cond 3310 4.5.3 Displaying and editing the measurement data storage The contents of the manual or automatic measurement data storage can be shown on the display. Each of the measurement data memories has a function to erase the entire contents.
  • Page 43 Cond 3310 Operation Display presentation Manual data storage (200) of a dataset Data record 3 of 64 30.10.2008 11:24:16 ID number:1 ӕ 1415 µS/cm 25.1 °C AR +++ C = 0.835 1/cm, Tref 25, nLF 22.09.2008 Back USB output 08:00 Sample printout 31.10.2008 09:56:20...
  • Page 44 Operation Cond 3310 4.5.5 Displaying the calibration data storage The data of the last 10 calibration procedures are automatically stored in the calibration data storage. You can view the calibration data in the Storage & config menu. To open the Storage & config menu, press the <F1 >[Menu] key in...
  • Page 45 Cond 3310 Operation Transmitting data (USB interface) 4.6.1 Options for data transmission Via the USB interface you can transmit data to a PC. The following table shows which data are transmitted to the interface in which way: Data Control Operation / description ...
  • Page 46 Operation Cond 3310 4.6.2 Connecting a PC Connect the Cond 3310 to the PC via the USB interface. Warning The USB interface is not galvanically isolated. When a grounded PC is connected, measurements cannot be performed in grounded media as incorrect values would result.
  • Page 47 Cond 3310 Operation Reset You can reset (initialize) all sensor settings and sensor-independent settings separately from each other. 4.7.1 Resetting the measurement settings Note The calibration data are reset to the default settings together with the measuring parameters. Recalibrate after performing a reset.
  • Page 48 Operation Cond 3310 4.7.2 Resetting the system settings The following system settings can be reset to the delivery status: Setting Default settings Language English Beep Baud rate 4800 Baud Output format ASCII Contrast 50 % Illumination Switchoff time The system settings are reset in the menu, Storage & config / System / Reset.
  • Page 49 Cond 3310 Maintenance, cleaning, disposal Maintenance, cleaning, disposal Maintenance The only maintenance activity required is replacing the batteries. Note See the relevant operating manuals of the measuring cells for instructions on maintenance. 5.1.1 Replacing the batteries Unscrew the two screws (1) on the underside of the meter.
  • Page 50 Maintenance, cleaning, disposal Cond 3310 Close the battery compartment (2) and tighten the screws (1). Cleaning Occasionally wipe the outside of the measuring instrument with a damp, lint-free cloth. Disinfect the housing with isopropanol as required. Caution The housing is made of synthetic material (ABS). Thus, avoid contact with acetone or similar detergents that contain solvents.
  • Page 51 Cond 3310 What to do if... What to do if... Error message, Cause Remedy – Measured value outside the – Use suitable measuring cell measuring range Error message, Cause Remedy Error – Measuring cell contaminated – Clean cell and replace it if necessary –...
  • Page 52 What to do if... Cond 3310 ba75803e02 05/2011...
  • Page 53 Cond 3310 Technical data Technical data General data Dimensions approx. 180 x 80 x 55 mm Weight approx. 0.4 kg Mechanical structure Type of protection IP 67 Electrical safety Protective class Test certificates CE, cETLus Ambient Storage - 25 °C ... + 65 °C...
  • Page 54 Technical data Cond 3310 Measuring ranges, resolution, accuracy Measuring ranges, Parameter Measuring range Resolution resolution ӕ [µS/cm] 0.000 ... 1.999* 0.001 0.00 ... 19.99** 0.01 0.0 ... 199.9 200 ... 1999 ӕ [mS/cm] 2.00 ... 19.99 0.01 20.0 ... 199.9 200 ...
  • Page 55 Cond 3310 Technical data Accuracy (± 1 digit) Parameter Accuracy Temperature of the test sample ρ ӕ and / temperature compensation None (Off) ± 0.5 % Nonlinear (nLF) ± 0.5 % 0 °C ... + 35 °C according to EN 27 888 ±...
  • Page 56 Technical data Cond 3310 FCC Class A Equipment Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 57 Cond 3310 Lists Lists This chapter provides additional information and orientation aids. Specialist terms The glossary briefly explains the meaning of the specialist terms. However, terms that should already be familiar to the target group are not described here. Index The index will help you to find the topics that you are looking for.
  • Page 58 Lists Cond 3310 Reference Fixed temperature value to compare temperature-dependent temperature measured values. For conductivity measurements, the measured value is converted to a conductivity value at a reference temperature of 20 °C or 25 °C. Reset Restoring the original condition of all settings of a measuring system.
  • Page 59 Cond 3310 Lists Index Storage locations ....37 Measurement dataset ....37 Authorized use .
  • Page 60 Lists Cond 3310 ba75803e02 05/2011...
  • Page 61  a free USB interface (virtual COM port) on the PC  the driver for the USB interface (on the enclosed CD-ROM)  the USB cable (included in the scope of delivery of the Cond 3310). Program installation Install the downloaded firmware update on a PC.
  • Page 62 Appendix: Firmware update Cond 3310 ba75803e02 05/2011...
  • Page 64 Wissenschaftlich-Technische Werkstätten GmbH Dr.-Karl-Slevogt-Straße 1 D-82362 Weilheim Germany Tel: +49 (0) 881 183-0 +49 (0) 881 183-100 Fax: +49 (0) 881 183-420 E-Mail: Info@WTW.com Internet: http://www.WTW.com...
