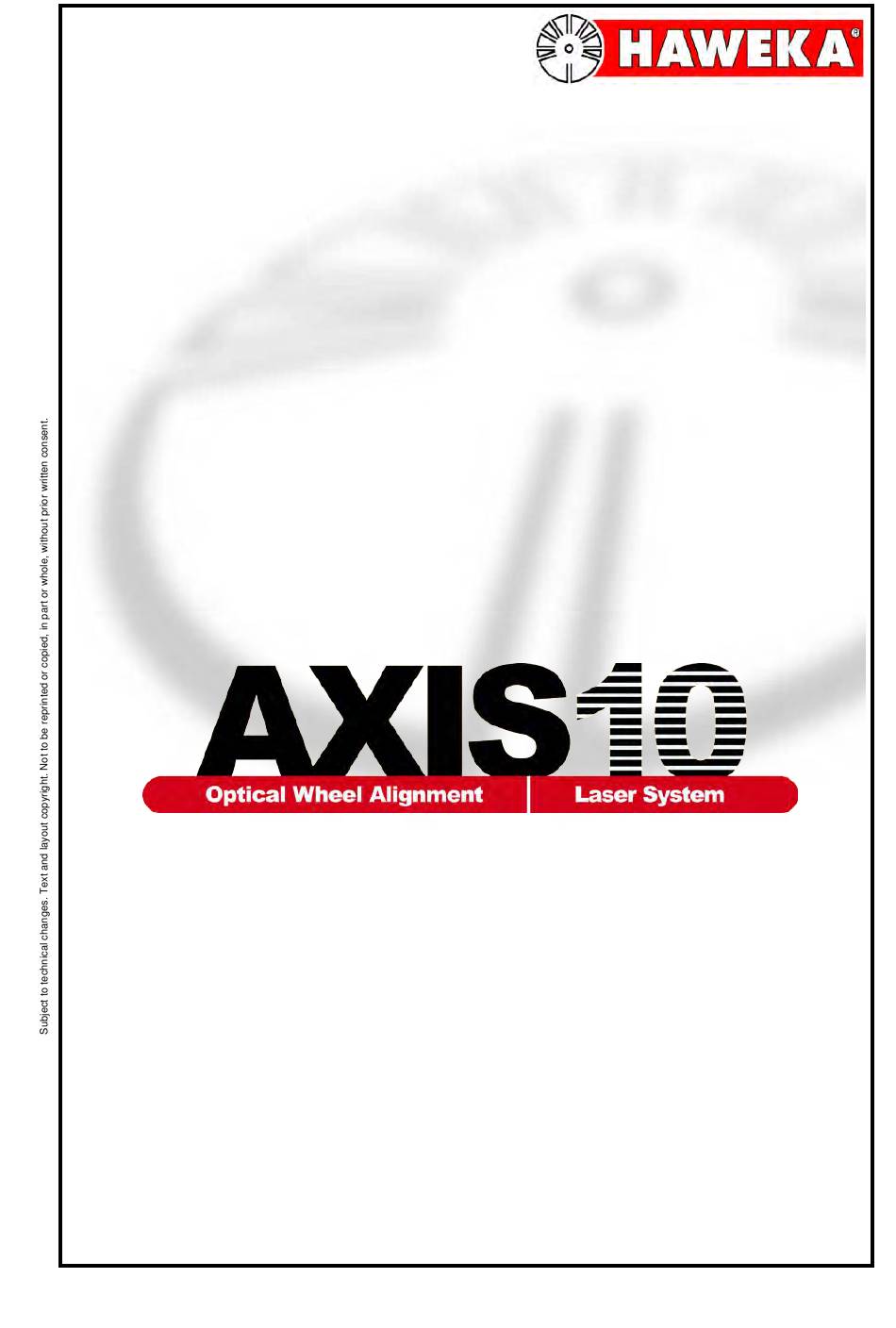

- Page 1 Instruction Manual Mobile Car Wheel Alignment System Kokenhorststraße 4 • D-30938 Burgwedel • Tel. +49/5139/8996-0 • Fax +49/5139/8996-222 www.haweka.com • info@haweka.com GEB 001 065...
- Page 3 AXIS10 Mobile Car Wheel Alignment System Contents GENERAL SAFETY INSTRUCTIONS ................3 ................3 WNER OPERATOR S DUTY OF CARE ................4 XPLANATION OF THE SYMBOLS USED .................... 5 ASIC SAFETY MEASURES TRANSPORT ........................6 .................... 6 IMENSIONS AND WEIGHT ............
- Page 4 AXIS10 Mobile Car Wheel Alignment System HAWEKA AG Kokenhorststraße 4 30938 Burgwedel Tel.: 05139 / 8996-0 Fax: 05139 / 8996-222 info@haweka.com www.haweka.com Burgwedel 26.09.17 Version notes Page 7 AXIS10 Manual Instructions...
- Page 5 AXIS10 Mobile Car Wheel Alignment System 1 General Safety Instructions Owner/operator's duty of care The AXIS10 car wheel alignment system has been designed and built following careful selection of the relevant harmonised standards. It therefore conforms to state of the art standards and offers maximum safety during operation.
- Page 6 AXIS10 Mobile Car Wheel Alignment System Explanation of the symbols used Specific safety instructions are given in this instruction manual. The following symbols are used in these This symbol indicates that, above all, dangers to equipment and materials are to be expected.
- Page 7 AXIS10 Mobile Car Wheel Alignment System Basic safety measures The AXIS10 car wheel alignment equipment may only be used by authorised persons trained for this purpose who are familiar with the instruction manual and are capable of working according to the manual! Before each use of the wheel alignment equipment it must be checked for visible damage;...
- Page 8 AXIS10 Mobile Car Wheel Alignment System 2 Transport Dimensions and weight Length x width x height 140 cm x 100 cm x 70 cm Transport weight: 145 kg Information on general handling and storage To prevent equipment damage and injuries during transport: •...
- Page 9 AXIS10 Mobile Car Wheel Alignment System 3 Product Description AXIS10 Mobile Car Wheel Alignment System Part No. 921 000 001 Subject to technical changes. issue 2017 Figures: HAWEKA AG / 30938 Burgwedel Reproduction in any form whatsoever is not allowed.
- Page 10 AXIS10 Mobile Car Wheel Alignment System Intended use • The AXIS10 mobile car wheel alignment system has been developed to enable wheel alignment measurements to be taken on passenger vehicles and light trucks. • It is used solely for fast measurement of single toe and total toe, camber, toe-out on turn, caster, max.
- Page 11 AXIS10 Mobile Car Wheel Alignment System Structure of the various wheel alignment clamps Wheel alignment clamp with scale and its most important individual parts: Wheel alignment clamp with laser head and its most important individual parts: The laser housing can be freely rotated. After fitting to the vehicle's wheel ensure that the laser beam aperture of the laser heads is directed towards the floor before switching on.
- Page 12 AXIS10 Mobile Car Wheel Alignment System The electronic inclinometer The electronic inclinometer is used to record angle values on the vehicle geometry. This device enables the camber, caster and included angle to be determined. Angles can be measured in the horizontal and vertical plane depending on the attachment face.
- Page 13 AXIS10 Mobile Car Wheel Alignment System Technical specifications Measuring accuracy: < 0.5 mm Camber 0 ... 10°: +/- 0° 03’ Caster 10 ... 45°: +/- 0° 12’ Steering angle inclination Toe-out on turn +/- 15 min. Axle offset from the centre of the vehicle...
- Page 14 AXIS10 Mobile Car Wheel Alignment System 4 Equipment Components AXIS10 standard version parts list 2 No. wheel alignment clamps with laser head 1 No. Part No. 922 001 006 2 No. Wheel alignment clamps for clip-on scale 1 No. Part No. 913 052 047 8 No.
- Page 15 AXIS10 Mobile Car Wheel Alignment System 2 No. Car toe scale (floor scale) 1 No. Part No. 913 015 024 1 No. Steering wheel locking device 1 No. Part No. HWK28751 1 No. Brake pedal locking device Type WA 15 S 1 No.
- Page 16 AXIS10 Mobile Car Wheel Alignment System 5 Front Wheel Alignment Preparations • Carry out the alignment of a flat, level floor. • Check the tyre pressure, correct to the specified value if necessary. Visual check of the vehicle: - Rim size...
- Page 17 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment • For the front wheel alignment it is necessary for the wheel alignment clamps with the laser measuring heads to be fitted onto the front wheels and for the wheel alignment clamps with...
- Page 18 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Set up toe scales • Both laser housings must be aligned with the help of the spirit level so that the laser beam aperture is pointed vertically onto the floor. • The calculated toe scale spacing must be drawn on the floor twice to define the measuring rectangle.
- Page 19 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Set up toe scales (continued) • Place the first toe scale on the floor marking parallel and in front of the front axle. • Move the toe scale so that the laser beam hits the value zero on both scales.
- Page 20 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Single toe The AXIS10 can also be used to determine the single toe for each side of the vehicle in vehicles with independent suspension. To determine the single toe, the displayed value for the total toe must be halved first.
- Page 21 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Continued: Single toe If the steering wheel has been horizontally 2 mm 2 mm aligned, the single toe for the left and right-hand side of the vehicle can now be read off.
- Page 22 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Check after toe adjustment After the toe adjustment has been completed, check whether the front wheels are in the "Drive straight ahead" position. To this end, both laser measuring heads are turned so that the laser beam hits the clip-on scale of the rear wheels.
- Page 23 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Camber measurement If the camber has to be adjusted at the vehicle, this step must be carried out BEFORE the toe adjustment as the toe changes when the camber is adjusted.
- Page 24 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Caster measurement and steering angle inclination • After the camber measurement the inclinometer stays on the measuring column of the wheel alignment clamp. • The unit is still switched on and displays the last determined camber value.
- Page 25 AXIS10 Mobile Car Wheel Alignment System Front Wheel Alignment Continued: Caster measurement and steering angle inclination After all measured values have been successfully recorded the screen display automatically changes and the absolute values for the caster and steering axis inclination are displayed in degrees and minutes.
- Page 26 AXIS10 Mobile Car Wheel Alignment System 6 Rear Wheel Alignment The front wheels have already been measured and adjusted. Before you can start the rear axle alignment it is necessary to ensure that the front wheels are in the "drive straight ahead"...
- Page 27 AXIS10 Mobile Car Wheel Alignment System Rear Wheel Alignment Set up toe scales The toe scales are set up with the same steps as described under Point 5.3 above for the front wheel alignment. (See also Page 17) • The length of the measuring rectangle must be defined and the dimensions drawn on the floor.
- Page 28 AXIS10 Mobile Car Wheel Alignment System Rear Wheel Alignment Adjusting the toe • This is done by moving the complete front toe scale to the side until the same value is displayed on both scales on the left and right.
- Page 29 AXIS10 Mobile Car Wheel Alignment System Rear Wheel Alignment Camber measurement The same steps as described under Item 5.7 above for the front wheel alignment are repeated to record the camber value. (See also Page 22) If the camber has to be adjusted at the vehicle, this step must be carried out BEFORE the toe adjustment as the toe changes when the camber is adjusted.
- Page 30 AXIS10 Mobile Car Wheel Alignment System 7 Maintenance Care and maintenance Please note that the laser measuring heads and their accessories are precision components. Always ensure that these components are used and maintained with the greatest possible care. The laser's lens as well as the inclinometer generally requires no maintenance.
- Page 31 AXIS10 Mobile Car Wheel Alignment System Replacing the batteries in the inclinometer If the battery symbol appears in the display the batteries in the unit must be replaced. (Figure 33) Four standard Mignon Type AA batteries 1.5 volt are required to replace the batteries.
- Page 32 AXIS10 Mobile Car Wheel Alignment System 8 Appendix Table for converting toe in millimetres into degrees Toe in Wheel size 13“ 14“ 15“ 16“ 17“ 19“ 20“ 0° 05' 0° 05' 0° 05' 0° 04' 0° 04' 0° 03' 0° 03' 0°...
- Page 33 AXIS10 Mobile Car Wheel Alignment System Appendix Measuring sheet for wheel alignment measurement AXIS10 Instruction Manual...
- Page 34 AXIS10 Mobile Car Wheel Alignment System 9 EC Declaration of Conformity HAWEKA AG The manufacturer: Kokenhorststraße 4 D-30938 Burgwedel Germany herewith declares, that following described device Laser Wheel Aligner AXIS10 complies with safety and health requirements of following EC guidelines EMC – Directive 2004/108/EC RoHS –...
- Page 36 HAWEKA AG Kokenhorststr. 4 30938 Burgwedel +49 5139-8996- 0 +49 5139-8996-222 www.haweka.com Info@haweka.com...
