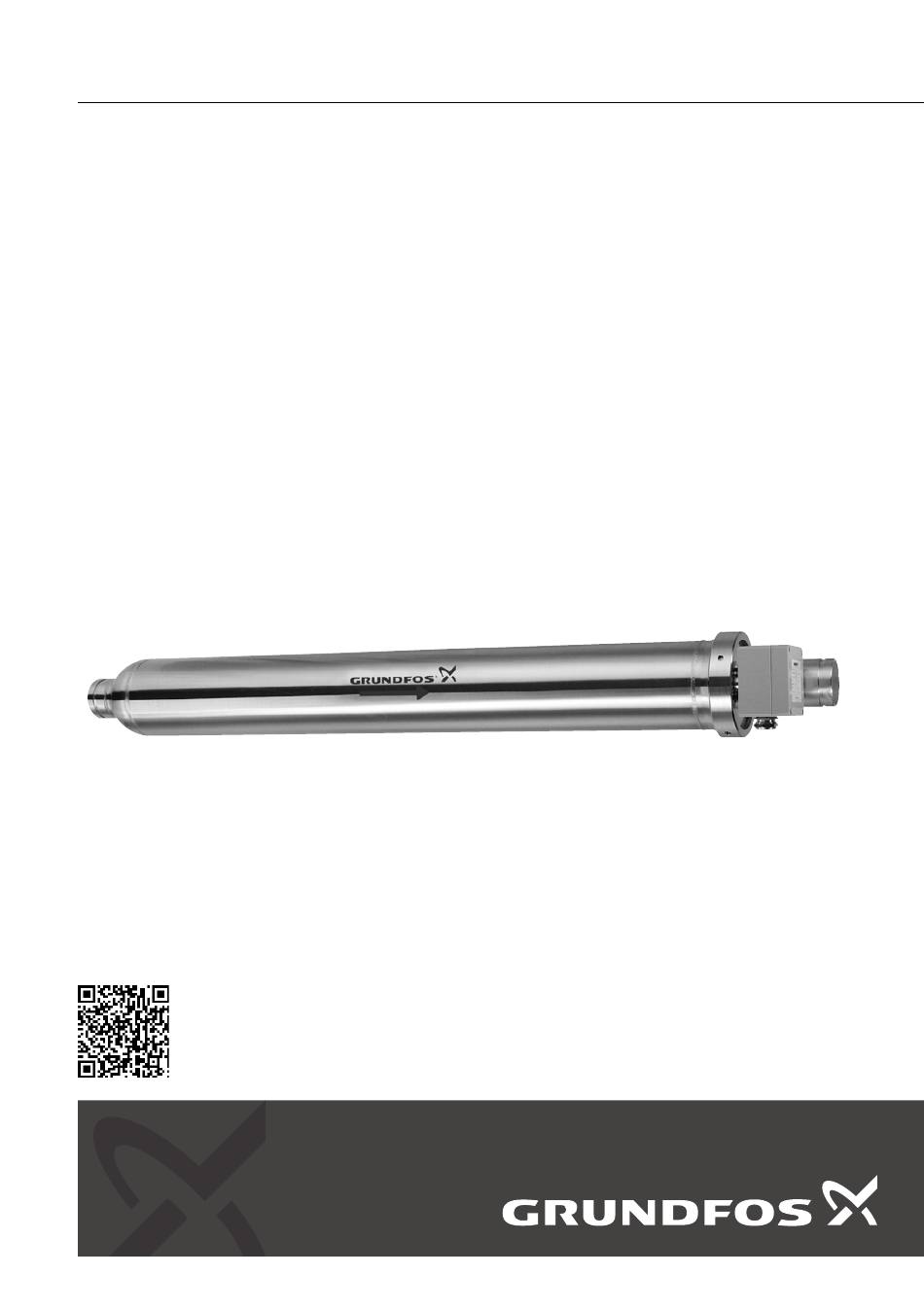

GRUNDFOS INSTRUCTIONS
BM, BM hp
Installation and operating instructions
BM, BM hp
Installation and operating instructions
Other languages
http://net.grundfos.com/qr/i/150095

Advertisement

loading
Need help?

Need help?

Do you have a question about the BM and is the answer not in the manual?

Questions and answers

Related Manuals for Grundfos BM

Summary of Contents for Grundfos BM

  • Page 1 GRUNDFOS INSTRUCTIONS BM, BM hp Installation and operating instructions BM, BM hp Installation and operating instructions Other languages http://net.grundfos.com/qr/i/150095...
  • Page 3 BM, BM hp English (GB) Installation and operating instructions ........4 Appendix A .
  • Page 4 BM 4", BM/BM hp 6" MS 4000 ..12 BM/BM hp 6" MS 6000 ... . 12 BM/BM hp 8" MMS 8000 ... 13 Frequency converter operation .
  • Page 5 Installation and operation must comply with local regulations and accepted codes of good practice. 1.1 Hazard statements The symbols and hazard statements below may appear in Grundfos installation and operating instructions, safety instructions and service instructions. DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious personal injury.
  • Page 6 The booster modules are supplied from the factory in proper packing in which they should remain until they are to be installed. The modules are ready for installation. For BM hp 8", two mounting brackets are supplied with the pump. 3.2 Transporting the product CAUTION...
  • Page 7 However, the outlet port must never fall below the horizontal plane. BM, BM hp 6" BM, BM hp 6" are only available in a straight version. BM, BM hp 8" BM, BM hp 8" are only available in a straight version.
  • Page 8 Related information 4. Installation requirements 5.1 Booster modules connected in series and in parallel 5.1 Booster modules connected in series and in parallel Symbols used in the figures below: Air escape valve Isolating valve Fastening by means of clamps Non-return valve Pressure switch WARNING Falling objects Death or serious personal injury...
  • Page 9 Size Type coupling [mm] connect the pipes as shown in the figure below. ∅42 BM 4" BM 3A - BM 9 1/4" BM, BM hp ∅89 BM 18 - BM 60 3" 6" ∅89 BM 8"...
  • Page 10 ‐ Connect the pump to an external main switch placed close to the pump and to a motor-protective circuit breaker or a BM, BM hp with a terminal box frequency converter. ‐ It must be possible to lock the main switch in OFF position (isolated).
  • Page 11 In power supply systems where undervoltage and Grundfos offers two types of output filter as variations in phase symmetry may occur, a phase accessories for CUE: failure relay must also be fitted.
  • Page 12 Red: must be protected against EMC. CUE is the right choice of frequency converter in BM Yellow: installations as it meets all basic issues. CUE has a pre-installed startup guide that takes the installer through all the necessary settings.
  • Page 13 We recommend Grundfos CUE. CUE is a series of frequency converters designed for speed control of a wide range of Grundfos products, for example BM and BM hp. If a Grundfos MS motor with a temperature...
  • Page 14 1 to approximately 1/3 of the maximum in parallel. If other intervals are required, contact flow rate. Grundfos. 2. Start module 1 and record the outlet pressure and Module 1 is always the first module on the inlet side.
  • Page 15 4.8 - 11 17-48 21-48 BM, BM hp 8-22 10-26 35-176 44-115 Contact Grundfos if higher pressures are required. If the maximum inlet or outlet pressure is exceeded, install BM, BM hp a safety valve. 15-38 19-45 66-167 84-198 7.2.1.1 Cooling...
  • Page 16 At a pressure lower than 0.5 bar for BM 4" and BM, BM hp 6", and 1 bar for BM, BM hp 8", an alarm is given and the module must be stopped without delay.
  • Page 17 7.5 Checking of motor and cable 1. Supply voltage Measure the voltage between The voltage must be within -10 % / +6 % of the the phases by means of a rated voltage when the motor is loaded. In case of voltmeter.
  • Page 18 3. Winding resistance Remove the phase leads from The highest value must not exceed the lowest the terminal box. value by more than 10 %. If the deviation is higher, pull the pump out of the sleeve. Measure Measure the winding resistance motor and cable separately, and replace or repair as shown on the drawing.
  • Page 19 For further information on maintenance and service, 1. Stop the feed pump. refer to the separate documents supplied for each component and to Grundfos Product Center: http:// 2. Start the fresh-water flush pump and flush the product-selection.grundfos.com/. system with fresh water, minimum 2 bar for If you have any questions, contact the nearest flushing.
  • Page 20 Motors of standard modules are factory-filled with a Grundfos motor liquid, SML-3, which is frost-proof down to -20 °C. Motors of modules in special versions may be filled with demineralised water, that is not frost-proof.
  • Page 21 Check that the inlet pressure during operation is at modules or air in the system. least 0.5 bar for BM 4" and BM, BM hp 6", and 1 bar for BM, BM hp 8". If this is the case, the water supply is okay.
  • Page 22 Related information 7.2 Operation 12.4 The booster system runs at reduced capacity (flow rate and pressure) Cause Remedy Wrong direction of rotation. See the section on before starting the booster modules. The valves on the outlet side are partly closed or Check the valves.
  • Page 23 13. Technical data 13.1 Product range BM, 50 Hz Max. liquid Max. inlet pressure Min. temperature Power Speed Max. outlet [bar (psi)] liquid Pump Motor [°C (°F)] range range pressure temp. type type [kW (hp)] [rpm] [bar (psi)] Corrosive Non- Standard, [°C (°F)]...
  • Page 24 [kW (hp)] [rpm] [bar (psi)] Corrosive Non- Standard, [°C (°F)] R ver. corrosive N ver. BM 95-6 - MS 6000 2850-2880 0 (32) 25 (77) 40 (104) 25 (362) 60 (870) 82.7 (1200) BM 95-12 (35) BM 95-8 - 37-92...
  • Page 25 MS 6000 3440-3490 0 (32) 25 (77) 40 (104) 50 (725) 60 (870) 82.7 (1200) (10-40) 32-23 BM 46-2 MS 4000 3440-3490 0 (32) 25 (77) 40 (104) 50 (725) 60 (870) 82.7 (1200) (7.5) BM 46-3 7.5 - 30...
  • Page 26 37-75 MMS 8000 3480-3500 0 (32) 25 (77) 40 (104) 25 (362) 60 (870) 82.7 (1200) (50-100) 77-13 BM 95-4 MS 6000 3440-3480 0 (32) 25 (77) 40 (104) 25 (362) 60 (870) 82.7 (1200) (35) BM 95-5 37-92 MMS 8000...
  • Page 27 2850-2890 0 (32) 25 (77) 40 (104) 80 (1160) 82.7 (1200) (17.5 - 40) 15-30 BM hp MS 6000 2850-2890 0 (32) 25 (77) 40 (104) 80 (1160) 82.7 (1200) (20-40) BM hp is only available in the R version.
  • Page 28 MS 6000 3450-3480 0 (32) 25 (77) 40 (104) 80 (1160) 82.7 (1200) (20-35) 22-30 BM hp MS 6000 3440-3480 0 (32) 25 (77) 40 (104) 80 (1160) 82.7 (1200) (30-40) BM hp is only available in the R version.
  • Page 29 1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste.
  • Page 30 Appendix A A.1. 中国 RoHS 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴联苯醚 (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) 泵壳 印刷电路板 紧固件 管件 定子 转子 本表格依据 SJ/T 11364 的规定编制 O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 X： 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 该规定的限量要求。 该产品环保使用期限为 10 年，标识如左图所示。 此环保期限只适用于产品在安装与使用说明书中所规定的条件下工作...
  • Page 31 HU: EU megfelelőségi nyilatkozat Mi, Grundfos, izjavljujemo s punom odgovornošću Mi, a Grundfos vállalat, teljes felelősséggel da su proizvodi BM, BM hp na koja se izjava odnosi kijelentjük, hogy a(z) BM, BM hp termékek, amelyre u nastavku, u skladu s direktivama Vijeća dolje az alábbi nyilatkozat vonatkozik, megfelelnek...
  • Page 32 Firma Grundfos oświadcza z pełną A Grundfos declara sob sua única responsabilidade odpowiedzialnością, że jej produkty BM, BM que os produtos BM, BM hp, aos quais diz respeito hp, których dotyczy niniejsza deklaracja, są a declaração abaixo, estão em conformidade com zgodne z następującymi dyrektywami Rady w...
  • Page 33 Jimm Feldborg Head of PD IND Grundfos Holding A/S Poul Due Jensens Vej 7 8850 Bjerringbro, Denmark www.grundfos.com Person authorised to compile technical file and empowered to sign the EU declaration of conformity.
  • Page 34 Declaration of conformity UK declaration of conformity We, Grundfos, declare under our sole responsibility that the products to which the declaration below relates, are in conformity with UK regulations, standards and specifications to which conformity is declared, as listed below:...
  • Page 35 Declaration of conformity GB: Ukrainian declaration of conformity We, Grundfos, declare under our sole responsibility that the products to which the declaration below relates, are in conformity with Ukrainian resolutions, standards and specifications to which conformity is declared, as listed...
  • Page 36 UA: Українська декларація відповідності Ми, Grundfos, заявляємо про свою виключну відповідальність за те, що продукція, до якої відноситься ця декларація, відповідає вимогам українським постановам, стандартам та технічним умовам, щодо яких заявлена відповідність, як зазначено нижче: Дійсно для продуктів Grundfos: BM, BM hp Постанова...
  • Page 37 Declaration of conformity GB: Moroccan declaration of conformity FR : Déclaration de conformité marocaine We, Grundfos, declare under our sole responsibility Nous, Grundfos, déclarons sous notre seule that the products to which the declaration below responsabilité que les produits auxquels se relates, are in conformity with Moroccan laws, réfère la déclaration ci-après sont conformes aux...
  • Page 38 Bjerringbro, 19 August 2020 Erik Andersen Senior Manager Grundfos Holding A/S Poul Due Jensens Vej 7 8850 Bjerringbro, Denmark www.grundfos.com GB: Manufacturer and person empowered to sign the Moroccan declaration of conformity. FR : Fabricant et personne habilitée à signer la Déclaration de conformité...
  • Page 39 3 бөлім: өнімнің фирмалық тақташасында орналасқан шығарылған уақыты жөніндегі мәлімет Сертификаттау туралы ақпарат: BM, BMh типті сорғылары «Төмен вольтты жабдықтардың қауіпсіздігі туралы» (ТР ТС 004/2011), «Машиналар және жабдықтар қауіпсіздігі туралы» (ТР ТС 010/2011) «Техникалық заттардың электрлі магниттік сәйкестілігі» (ТР ТС 020/2011) Кеден Одағының техникалық регламенттерінің талаптарына сәйкес сертификатталды.
  • Page 40 3-Бөлүк: жабдуунун фирмалык тактасында жайгашкан даярдоо мөөнөтү тууралуу маалымат. Шайкештик жөнүндө декларация BM, BMh түрүндөгү соргучтар Бажы Биримдиктин Техникалык регламенттин талаптарына ылайыктуу тастыкталган: ТР ТБ 004/2011 «Төмөн вольттук жабдуунун коопсуздугу жөнүндө»; ТР ТБ 010/2011 «Жабдуу жана машиналардын коопсуздугу жөнүндө»; ТР ТБ 020/2011 «Техникалык каражаттардын электрмагниттик...
  • Page 41 Argentina Colombia Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Colombia S.A.S. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500industin Km 1.5 vía Siberia-Cota Conj. Potrero Unit 1, Ground floor, Siu Wai industrial 1619 - Garín Pcia. de B.A.
  • Page 42 Lithuania Serbia Turkey GRUNDFOS Pumps UAB Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. Smolensko g. 6 Omladinskih brigada 90b Sti. LT-03201 Vilnius 11070 Novi Beograd Gebze Organize Sanayi Bölgesi Tel.: + 370 52 395 430 Tel.: +381 11 2258 740...
  • Page 43 150095 05.2024 ECM: 1423435 www.grundfos.com...
