DeDietrich AMC PRO EVO 35 Product Information

DeDietrich AMC PRO EVO 35 Product Information

High-efficiency wall-hung gas boiler
Hide thumbs

Advertisement

Quick Links

Download this manual
en

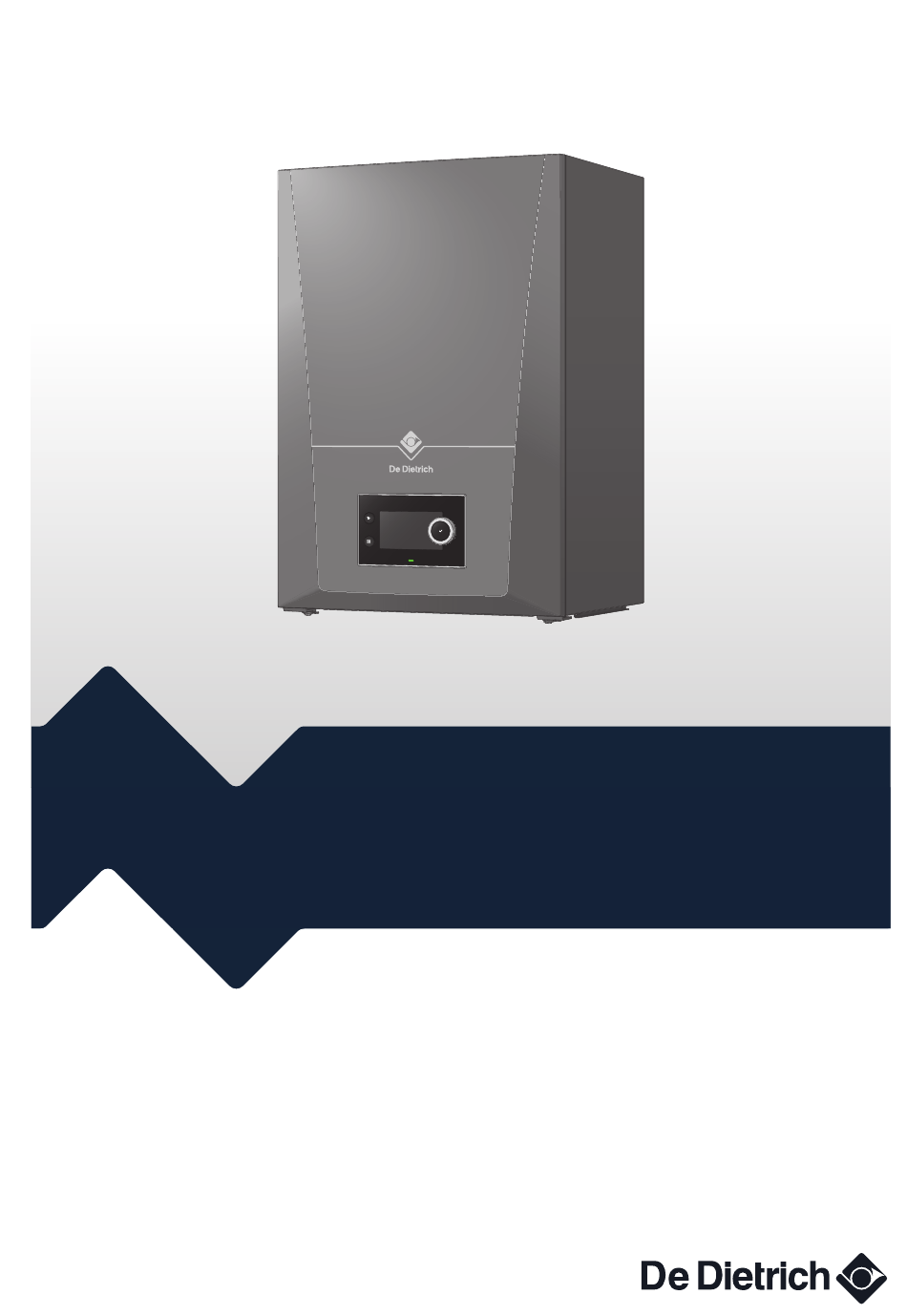

Product information
High-efficiency wall-hung gas boiler
AMC PRO EVO
35
45
65
90
115

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMC PRO EVO 35 and is the answer not in the manual?

Questions and answers

Related Manuals for DeDietrich AMC PRO EVO 35

Summary of Contents for DeDietrich AMC PRO EVO 35

  • Page 1 Product information High-efficiency wall-hung gas boiler AMC PRO EVO...
  • Page 2 Contents Contents About this manual ................. . . 3 Additional documentation .
  • Page 3 1 About this manual About this manual Additional documentation The following documentation is available in addition to this manual: Installation and user manual Service manual Symbols used in the manual This manual contains special instructions, marked with specific symbols. Please pay extra attention when these symbols are used.
  • Page 4 (1) Nominal output 50/30 °C. (2) Nominal output 80/60 °C. (3) This boiler type is a AMC PRO EVO 45 configured at 35 kW. Use the AMC PRO EVO 35 information given in this manual. Main components Fig.1 General AD-3002806-01...
  • Page 5 2 Description of the product Fig.2 Internal 1 Heat exchanger 2 Burner 3 Interior light 4 Ignition / ionisation electrode 5 Flame inspection glass 6 Non-return valve 7 Ignition / ionisation transformer 8 Automatic air vent AD-3002807-01 Fig.3 Gas - air unit 1 Front plate with mixing tube 2 Fan 3 Venturi...
  • Page 6 2 Description of the product Fig.4 Sensors and boxes 1 Flow temperature sensor 2 Flue gas temperature sensor 3 Water pressure sensor 4 Heat exchanger temperature sensor 5 Return temperature sensor 6 Control box 7 Expansion box AD-3002809-01 Introduction to the controls platform The AMC PRO EVO boiler is equipped with the controls platform.
  • Page 7 2 Description of the product Item Description Function S-bus System Bus: Connection between appliances The system bus provides communication between appliances. R-bus Room unit Bus: Connection to a room unit The room unit bus provides communication to a room unit. Device A device is a PCB, control panel or a room unit.
  • Page 8 2 Description of the product Item Description Function Gateway GTW-08 Modbus The GTW-08 provides functionality to connect to a building management system via Modbus. AD-3001452-01 Gateway GTW-21 BACNet The GTW-21 BACNet provides functionality to connect to a building management system via BACnet. AD-3001453-01 Thermostat Smart TC°...
  • Page 9 3 Technical specifications Technical specifications Homologations 3.1.1 Certifications Tab.5 Certifications CE identification number PIN 0063DP3280 Class NOx Type of flue gas connection 13(X) 33(X) 63(X) 93(X) (1) EN 15502–1 (2) When installing a boiler with connection type B , the IP rating of the boiler is lowered to IP20. 3.1.2 Unit categories Tab.6...
  • Page 10 3 Technical specifications Country Category Gas type Connection pressure (mbar) Russia G20 (H gas) 2H3B/P G30/G31 (butane/propane) 30-50 Slovakia G20 (H gas) 2H3B/P G30/G31 (butane/propane) 30-50 Ukraine G20 (H gas) (1) This appliance is suitable for category I and I and I containing up to 20% Hydrogen gas (H 2Esi...
  • Page 11 3 Technical specifications Dimensions and connections Fig.7 Dimensions AD-3002812-01 Tab.7 Connections AMC PRO EVO Flue gas outlet connection Ø 80 mm Ø 100 mm Air inlet connection Ø 125 mm Ø 150 mm Condensate connection 22.5 mm 22.5 mm Flow connection 1 ¼"...
  • Page 12 3 Technical specifications Electrical diagram Fig.8 Electrical diagram 230 V CU-GH22 PE-2 PE-1 PE-4 X115 X102 X103 X104 X1151 X32' X105 X114 X106 X1061 X111 BUS1 BUS2 BUS3 BUS4 XC02 XC01 XQ01 Status LIN-Bus 0-10 CB-23 AD-3002915-02 A Control unit - CU-GH22 9 Interior light B Connection board - CB-23 10 Flue gas temperature sensor...
  • Page 13 3 Technical specifications Technical data Tab.8 General AMC PRO EVO Nominal output 80/60 °C 12.0 14.1 18.9 33.2 40.0 60.9 84.2 103.9 Nominal output 50/30 °C 13.5 15.8 21.2 35.0 42.4 65.0 89.5 109.7 Nominal input 12.2 14.6 19.6 34.0 41.2 62.0 86.0...
  • Page 14 3 Technical specifications AMC PRO EVO NOx annual emissions mg/kWh (EN15502) mg/kWh NOx annual emissions (EN15502) NOx annual emissions mg/kWh NOx annual emissions mg/kWh NOx annual emissions mg/kWh mg/kWh CO annual emissions (EN15502) CO annual emissions mg/kWh mg/kWh CO annual emissions Flue gas amount kg/h Flue gas temperature...
  • Page 15 3 Technical specifications AMC PRO EVO Fuse – CU-GH22 (AT) Fuse – CB (AT) (1) Without pump. (2) For a room-sealed system. Tab.12 Other data AMC PRO EVO Total weight with packaging Minimum mounting weight Without front panel Average acoustic level at a dB(A) 42.0 45.1...
  • Page 16 AD-3002814-01 Q Water flow (m 2 AMC PRO EVO 65 3 AMC PRO EVO 90 - 115 H Hydraulic resistance (mbar) 1 AMC PRO EVO 35 - 45 Tab.14 Nominal flow data Unit Q at ΔT = 10 °C 2.90 3.50...
  • Page 17 4 Installation requirements Installation requirements Installation regulations Warning Hazardous appliance Chance of injury. Installation of the appliance must only be carried out by a qualified installer in accordance with regulations and the information given in the manual. Location requirements Danger Combustible element Chance of fire Never store, even temporarily, combustible products or substances in or near the appliance.
  • Page 18 4 Installation requirements Fig.10 Location requirements AD-3002836-02 A 500 mm F ≥ 15 mm B ≥ 400 mm G ≥ 15 mm C 750 mm H ≥ 1000 mm D 350 mm I 500 mm E ≥ 250 mm Requirements for water connections Before installation, check that the connections meet the set requirements.
  • Page 19 4 Installation requirements Requirements for the flue gas discharge system 4.6.1 Classification Important The installer is responsible for choosing the correct type, diameter, and length of the flue system. Always use connection materials, roof terminal and/or horizontal flue terminal supplied by the same manufacturer. Consult the manufacturer for compatibility details.
  • Page 20 4 Installation requirements Tab.17 Type of flue system: C 13(X) Principle Description Recommended manufactur­ Room-sealed version. Horizontal flue terminal and connection material: Flue gas discharge in the outside wall. The air inlet is in the same pressure zone as the flue (for ex­ Cox Geelen ample a horizontal flue terminal).
  • Page 21 4 Installation requirements Tab.20 Type of flue system: C Principle Description Recommended manufactur­ Connection in different pressure zones. Connection material and roof terminal: Closed unit. Separate air inlet and flue. Cox Geelen Discharging into various pressure areas. Poujoulat The air inlet and flue must not be placed on opposite walls. Ubbink AD-3003420-01 (1) The material must also satisfy the material property requirements from the relevant chapter.
  • Page 22 4 Installation requirements Fig.11 Minimum dimensions of shaft or Important duct C 93(X) The shaft must comply with the airtightness requirements of the local regulations. Important □ Ø Always clean shafts thoroughly when using flue liners and/or an air inlet connection. It must be possible to inspect the flue liner.
  • Page 23 Calculation: L = L AD-3002009-01 Tab.27 Maximum length (L) Diameter 80 mm 80 mm 100 mm 100 mm AMC PRO EVO 35 29 m 40 m 40 m 40 m AMC PRO EVO 45 39 m 40 m 40 m...
  • Page 24 Calculation: L = L AD-3002010-01 Tab.28 Maximum length (L) Diameter 80 mm 80 mm 100 mm 100 mm AMC PRO EVO 35 24 m 40 m 40 m 40 m AMC PRO EVO 45 34 m 40 m 40 m...
  • Page 25 Calculation: L = L AD-3002012-01 Tab.30 Maximum length (L) Diameter 80/125 mm 80/125 mm AMC PRO EVO 35 13 m 20 m AMC PRO EVO 45 20 m 20 m AMC PRO EVO 65 13 m...
  • Page 26 4 Installation requirements Tab.33 Pipe reduction for each bend - radius ½D (concentric) Diameter 80/125 mm 100/150 mm 1,0 m 1,0 m R=½D 45° 2,0 m 2,0 m R=½D 90° 4.6.5 Additional guidelines Installation For installing the flue gas outlet and air supply materials, refer to the instructions of the manufacturer of the material. After installation, check at least all flue gas outlet and air supply parts for tightness.
  • Page 27 5 Installation examples Water quality and water treatment Notice Water quality Damage to the product. Warranty void. Make sure the water quality requirements are fulfilled. For this appliance, the quality of the heating water must comply with all requirements as listed in VDI 2035. If water quality requirements for other components in the system are stated, the most stringent requirements apply.
  • Page 28 5 Installation examples Tab.37 Configurable inputs and outputs - Fixed combinations Connector Status Boiler room ventilation: Extractor fan (F Extractor fan signal (F (1) The letter F indicates a fixed combination of two connectors for each configuration. Tab.38 Configurable inputs and outputs - Extend options Connector (1)(2) Status...
  • Page 29 5 Installation examples Fig.20 Connection PCB CB-23 Status LIN-Bus 0-10 AD-3002741-03 1 Pump connector, page 29 Boiler relief signal, page 31 Connect a boiler pump. Blocking input, page 31 2 Status connector, page 29 Release input, page 31 Connect a: Gas pressure switch, page 31 5 Pump PWM connector, page 31 Extractor fan, page 30...
  • Page 30 5 Installation examples Extractor fan Fig.23 Extractor fan You can connect an extractor fan for boiler room ventilation to the connector. When the appliance is active, the fan ventilates the room. Status AD-3002781-01 Hydraulic valve Fig.24 Hydraulic valve You can connect a hydraulic valve to the connector. This valve isolates the appliance from the system.
  • Page 31 5 Installation examples Heat demand signal Fig.30 Heat demand signal You can connect an on/off contact for central heating to the connector. This will generate a heat demand for central heating to the system. AD-3002780-01 Boiler relief signal Fig.31 Boiler relief signal You can connect a BMS to the connector.
  • Page 32 5 Installation examples 0-10 V connector You can connect a 0-10 V heat demand to the connector. The 0-10 V signal has two modes: Control based on temperature setpoint. Control based on power setpoint. Fig.36 0-10 V connector Connect the 0-10 V signal as follows: - Minus 0-10 + Plus...
  • Page 33 5 Installation examples Fig.40 SCB-10 with AD249 Status 0-10V Tout R-Bus R-Bus R-Bus +TA- Tsyst Tsyst Tdhw Tflow Tflow Tflow 11 12 13 14 15 16 17 AD-3002665-01 A SCB-10 14 Flow temperature sensor - circuit C B AD249 (optional) 15 Flow temperature sensor - circuit B 1 Outdoor temperature sensor 16 Flow temperature sensor - circuit A...
  • Page 34 5 Installation examples Connecting the pump with a protection thermostat Connecting a pump with a protection thermostat, for example underfloor heating. The maximum pump power consumption is 300 VA. Fig.43 Pump with protection thermostat Connect the pump and the protection thermostat as follows: connector Earth N Neutral...
  • Page 35 5 Installation examples Connecting the domestic hot water (DHW) sensor Fig.49 DHW sensor Connecting the domestic hot water (DHW) sensor (NTC 10k Ohm/25°C). Tdhw AD-4000009-03 Connecting contact temperature sensors Fig.50 Contact temperature sensor Connecting contact temperature sensors (NTC 10k Ohm/25°C) for system connectors flow, DHW temperatures or zones (groups).
  • Page 36 5 Installation examples Fig.55 Domestic hot water 1 Domestic hot water cylinder with single coil 2 Domestic hot water cylinder with double coil 3 Domestic hot water cylinder with hygienic coil 4 Shower 5 Internal control sensor (S) 6 Immersion heater (B) 7 Sacrificial anode (D) AD-6000166-01 Fig.56...
  • Page 37 5 Installation examples Aux Auxiliary circuit (Domestic hot water loop) S1 Outdoor temperature sensor A1 Boiler with SCB-10 and AD249 S11 Circuit B safety temperature limiter P8 Circuit A pump S12 Circuit B flow temperature sensor P10 Circuit B pump S17 DHW cylinder top temperature sensor P13 DHW charge pump S18 DHW cylinder bottom temperature sensor...
  • Page 38 5 Installation examples Fig.63 Electrical connections - Boiler A1 Status AD249 0-10V Tout R-Bus R-Bus R-Bus SCB-10 Tsyst Tsyst Tdhw Tflow Tflow Tflow +TA- AD-6000109-01 Tab.41 Parameter list Display text Set on device Set to Code CP020 Zone Function SCB-10 5 = Fan Convector CP021 Zone Function...
  • Page 39 6 Appendix Fig.65 Electrical connections - Lead boiler A1 Status LIN-Bus 0-10 CB-23 AD-6000073-01 Status AD249 0-10V Tout R-Bus R-Bus R-Bus SCB-10 Tsyst Tsyst Tdhw Tflow Tflow Tflow +TA- S3 S17 AD-6000259-01 Fig.66 Electrical connections - Lag boiler A2 Status LIN-Bus 0-10 CB-23...
  • Page 40 6 Appendix De Dietrich – AMC PRO EVO Annual energy consumption Sound power level L indoors AMC PRO EVO 7868634 - v.02 - 05032025...
  • Page 41 6 Appendix 6.1.2 Package fiche Fig.68 Package fiche for boilers indicating the space heating energy efficiency of the package Seasonal space heating energy effi ciency of boiler ‘I’ Temperature control Class I = 1%, Class II = 2%, Class III = 1.5%, Class IV = 2%, Class V = 3%, Class VI = 4%, from fi...
  • Page 42 6 Appendix The value of the mathematical expression: 294/(11 · Prated), whereby ‘Prated’ is related to the preferential space heater. The value of the mathematical expression 115/(11 · Prated), whereby ‘Prated’ is related to the preferential space heater. Tab.44 Weighting of boilers II, package without hot water storage tank II, package with hot water storage tank Psup / (Prated + Psup)
  • Page 43 Original instructions - © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
  • Page 44 DE DIETRICH SERVICE BDR THERMEA (SLOVAKIA) s.r.o 0800 / 201608 Hroznová 2318, 91105 TrenČín +421 907 790 221 www.dedietrich-heiztechnik.com info@baxi.sk www.dedietrichsk.sk BDR THERMEA (Czech Republic) s.r.o BDR THERMEA ROMANIA SRL Jeseniova 2770/56 Bd. Dimitrie Pompeiu nr. 5-7, Metroffice A2, 130 00 Praha 3 Parter, 13a, Sector 2, 020335 București,...
