A037M
— Bluetooth Connection. The A037M provides a Bluetooth connection (BLE 5.3). This
connection can be used for configuration via the Android app or an internet-based web service
(Web Bluetooth protocol). It can also be used to monitor real-time engine data through the
Android app.
Power & Status LED
The A037M operates on 12V power source from the NMEA 2000 network. It features a single
LED that remains solid green when the device is powered and flashes to indicate data
transmission to the NMEA 2000 bus.

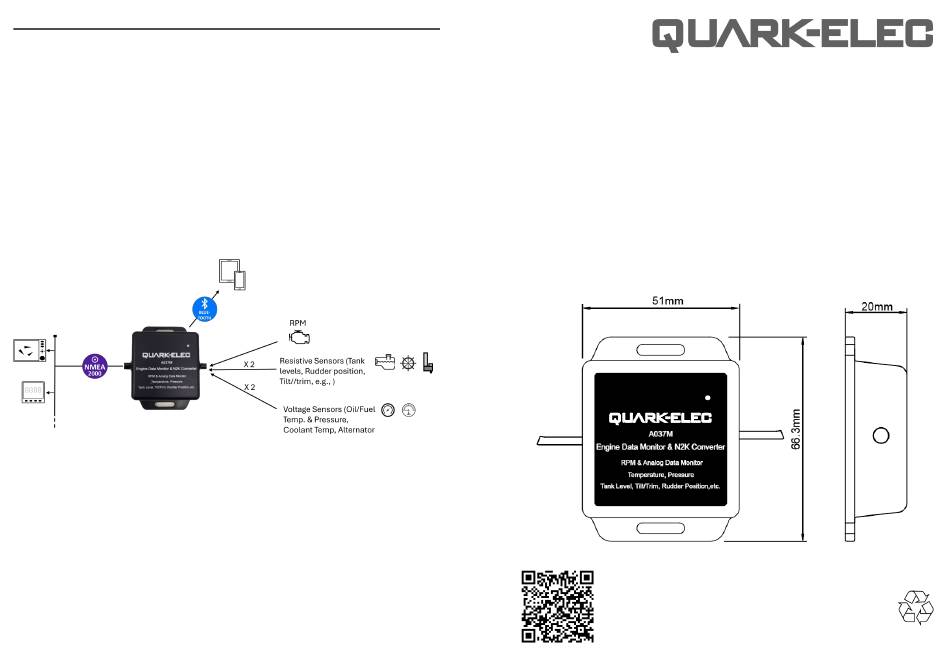

Connection Overview
The following is an example of a typical A037M setup. It illustrates the connections required for
proper installation. These connections should be carefully considered when selecting a suitable
mounting location for the A037M. All sensor inputs operate independently and do not interfere
with each other. Any unused wires should be securely connected to the boat's battery
ground to prevent floating voltages or potential interference.
Configuration & Calibration
The Configuration & Calibration process is essential for optimal A037M performance. The A037M
can be configured via Bluetooth using the Android app or web interface, allowing adjustment of
settings like sensor inputs and performance parameters. Calibration ensures accurate data
readings, particularly for sensors and engine monitoring. For complete steps on configuration
and calibration, please consult the A037M manual via the QR code on the first page.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.0 (05/25)
Mini Engine Data Monitor & NMEA 2000 Converter
Enable Analogue Signal Conversion to NMEA 2000 Messages
Tank Level, Tilt/Trim and Rudder Position Observation
Scan here for this Device's User Manual.
Set-Up guide
A037M
Pressure, Temperature Monitoring
RPM Tracking for Engine Speed
Please recycle your packaging
All products are CE, RoHS certified
More information at www.quark-elec.com
