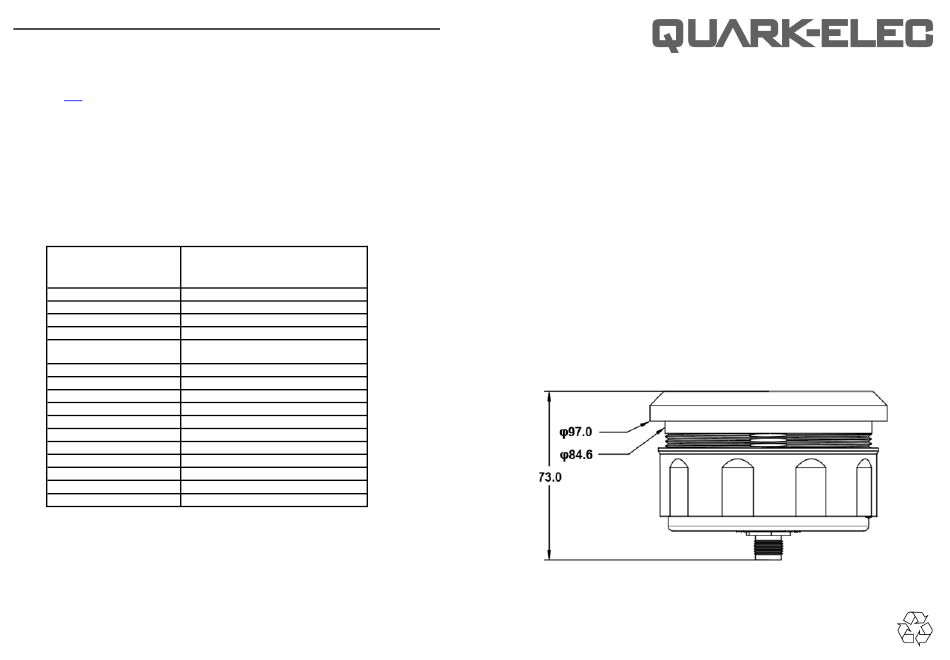

Quark-Elec IS10 Setup Manual

IS10
NMEA 2000 connectors —- The IS10 features a standard male NMEA 2000 connector, enabling
data sources to provide real-time data to the IS10. This connector also supplies power to the
IS10. The device comes with a standard 1-meter NMEA 2000 drop cable
Unlike the IS20, the IS10 cannot select a preferred data source if multiple devices of the same
type are on the N2K backbone (outputting the same type PGN data). Customers can either re-
move the additional devices, keeping only one on the backbone, or opt for our IS20, Networked
Multifunction Instrument, which supports multiple data sources.
NMEA 2000 PGNS
The following NMEA 2000 PGNs are supported by the IS10's current firmware. Quark-
elec remains dedicated to ongoing development and improvement of the IS10,
consistently delivering firmware updates to enhance functionality, supporting more
PGNs.
NMEA 2000 PGN
127245 Rudder
127250 Vessel Heading
127488 Eng. Rapid Param. - Engine RPM
127489 Eng. Param. Dynamic - Engine oil pressure
127489 Eng. Param. Dynamic - Engine Oil Temper-
ature
127489 Eng. Param. Dynamic – Engine Hours
127505 Fluid Level - Fuel Level
127508 Battery Status - Battery Voltage
128259 Speed Through Water
128267 Water Depth
129026 COG & SOG, Rapid Update
129033 Time & Date
129284 Bearing Data
129540 GPS Position
130306 Wind Data; AWA, TWA, AWS, TWS
130310 Environmental Parameters
UI AND FIRMWARE UPGRADING
The IS10 is sold with the latest customized firmware, and in most cases, firmware upgrades are
not necessary. If you have been advised to update the firmware by us or our distributor, or if you
have purchased a customized firmware version, please contact us at info@quark-elec.com. We
will provide the necessary program and instructions.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational procedures
and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor their distributors or
dealers accept responsibility or liability either to the product user or their estate for any accident, loss, injury or
damage whatsoever arising out of the use or of liability to use this product.
V1.0(10/24)
.
Function
IS10 NMEA 2000 DIGITAL TOUCH
SET-UP GUIDE
SCREEN GAUGE
