Quark-Elec IS10 Manual

Nmea 2000 digital touch screen gauge
Hide thumbs Also See for IS10:
Table of Contents

Advertisement

Quick Links

Download this manual

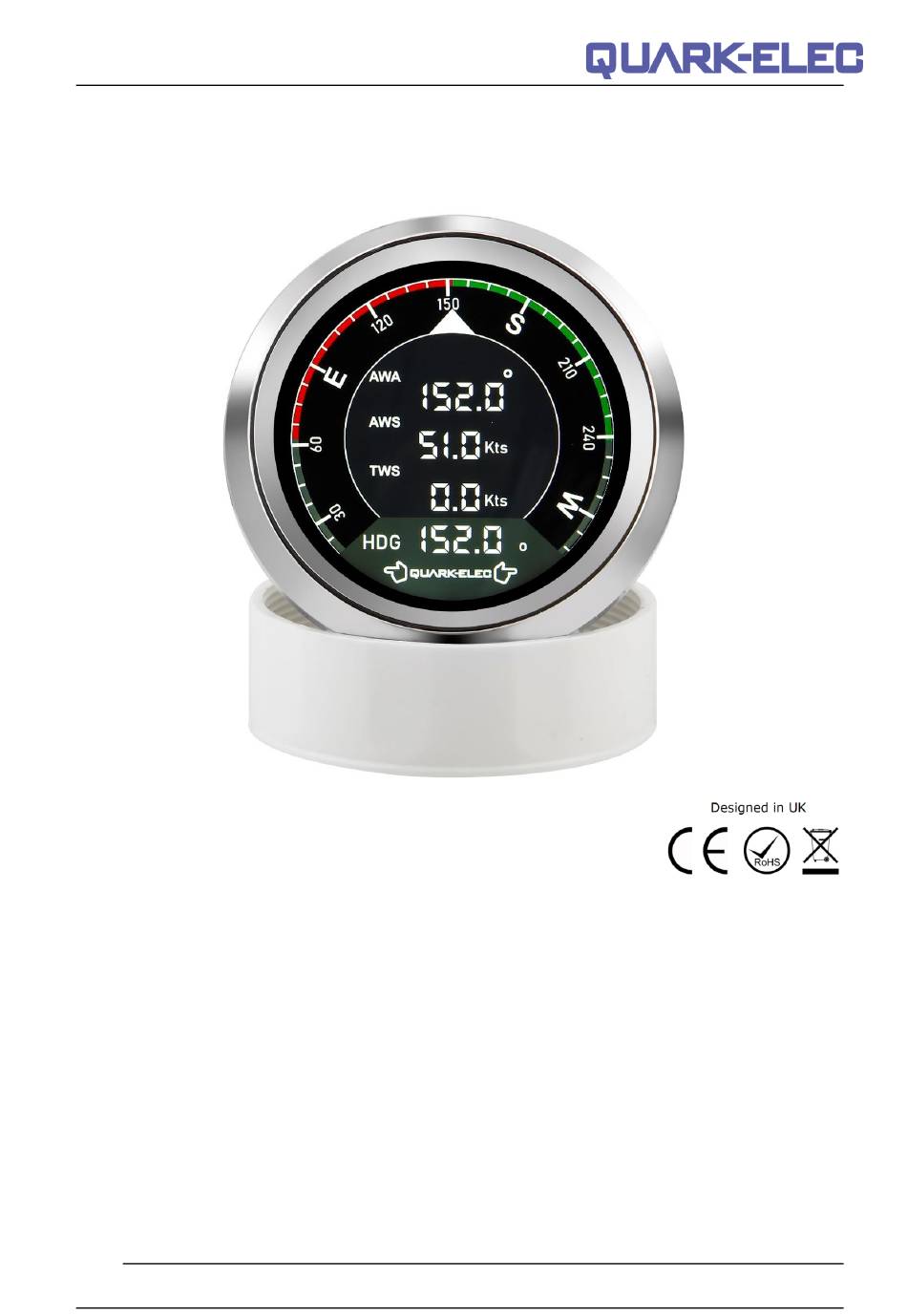

IS10 Manual
NMEA 2000 DIGITAL TOUCH SCREEN GAUGE
Features
2.8" LCD touch screen
◼
Intuitive graphical user interface that allows for comprehensive customization
◼
Day & Night mode for improved visibility
◼
Data views include Engine RPM, engine temperature, working hours, fuel level, oil pressure,
◼
heading, bearing, depth, wind speed and direction, battery voltage, SOG, COG, rudder angle,
speed through water(STW), time, position, water temperature, and more
◼
Plug and play NMEA 2000 connection, no configuration needed
IP67 waterproof rating for reliable performance in marine environments
◼
Efficient power consumption
◼
Straightforward dash mounting for a flush fit
◼
Ability to alter units and which screens are shown
◼
V 1.0
1 of 17
IS10 Manual
2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS10 and is the answer not in the manual?

Questions and answers

Related Manuals for Quark-Elec IS10

Summary of Contents for Quark-Elec IS10

  • Page 1 IS10 Manual IS10 Manual NMEA 2000 DIGITAL TOUCH SCREEN GAUGE Features 2.8” LCD touch screen ◼ Intuitive graphical user interface that allows for comprehensive customization ◼ Day & Night mode for improved visibility ◼ Data views include Engine RPM, engine temperature, working hours, fuel level, oil pressure, ◼...

  • Page 2: Table Of Contents

    IS10 Manual Contents Introduction ............................3 Mounting ............................. 3 2.1. Flush mounting ........................4 Front Panel and buttons........................4 Connecting the display ........................5 4.1. SD Card Connector ......................6 4.2. USB connector ........................6 4.3. NMEA 2000 connector ......................6 Getting Started ............................

  • Page 3: Introduction

    IS10 Manual 1. Introduction The IS10 is a cutting-edge digital touch screen gauge engineered to provide essential marine data via the NMEA 2000 bus. This innovative instrument seamlessly integrates multiple functions into a single, streamlined display, significantly enhancing your on-board experience.

  • Page 4: Flush Mounting

    Figure 2: Dimensions(mm) for Flush Mounting 3. Front Panel and buttons The IS10 features a highly responsive touch screen that is the primary interface for navigating menus and display screens. The touch screen allows users to navigate, adjust data parameters, and switch between day and night modes.

  • Page 5: Connecting The Display

    QUARK-ELEC: Press and hold for 5 seconds to reach the menu for screen settings. RIGHT ARROW: Used to navigate through the display screens. 4. Connecting the display The IS10 has the following connection ports used for data input and firmware updates. • Micro SD slot •...

  • Page 6: Sd Card Connector

    4.3. NMEA 2000 connector The IS10 features a standard male NMEA 2000 connector, enabling data sources to provide real-time data to the IS10. This connector also supplies power to the IS10. The device comes with a standard 1- meter NMEA 2000 drop cable.

  • Page 7: Getting Started

    5.1. Turning the unit on and off Powering the IS10 is as simple as connecting the included drop cable onto a NMEA 2000 backbone. It is best practice to connect the drop cable to the IS10 when the backbone is not powered.

  • Page 8: Display Options

    • Favourites Menu 6.1. Table Figure 8 IS10 Table The first screen on the IS10 is the table screen. This displays a wide range of parameters which have been chosen carefully to work together. V 1.0 8 of 17 2024...

  • Page 9: Bars

    ‘Hrs’ area on the screen. Data can either be sourced from the N2K bus if PGN 127489 is present, or the IS10 can monitor RPM data and count the time when RPM exceeds 1500 as working hours. These hours are saved and will not reset, even when the IS10 is powered off and back on.

  • Page 10: Heading

    IS10 Manual 6.3. Heading Figure 11 IS10 Heading Display This screen will provide a clear heading indicator around the perimeter of the display, it also features the heading value and wind speed and direction fields. In this page, there is the choice between Heading and SOG being displayed at the bottom of the screen.

  • Page 11: Sog

    6.5. Rudder Angle Figure 14 IS10 Rudder Angle Display The main feature of this screen is its rudder angle display, this will clearly show the rudder angle between ±45° , the colour of the value will also reflect the standard red and green for port and starboard respectively.

  • Page 12: 2X2 Grid

    This screen is designed for pure and simple data display. By pressing the parameter name, a drop-down list will appear. This list contains all of the possible parameters which can be displayed in this section. Figure 16 IS10 Parameter List V 1.0 12 of 17...

  • Page 13: 2X2 Grid With Fixed Position Or Time

    IS10 Manual 6.7. 2x2 Grid with fixed position or time Figure 17 IS10 2x2 with Position or Time This screen is designed for pure and simple data display. By pressing the parameter name, a drop-down list will appear. This list contains all of the possible parameters which can be displayed in this section..

  • Page 14: Menu

    Figure 20 IS10 Favourites Menu This screen allows for the hiding or showing of certain displays, creating a more personalized experience. From this screen, the IS10 display can also be switched between day and night mode for the applicable screens.

  • Page 15: Upgrading Ui File And Firmware

    4. MAKE SURE THE IS10 IS REMOVED FROM ITS POWER SOURCE BEFORE THIS NEXT STEP. 5. With the IS10 disconnected from the N2K backbone, insert the Micro SD card into the slot on the back of the device until it clicks into place.

  • Page 16: Upgrade Firmware Via Usb

    Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.

  • Page 17: Document History

    Quark-elec products may be upgraded from time to time and future versions may therefore not correspond exactly with this manual. The manufacturer of this product disclaims any liability for consequences arising from omissions or inaccuracies in this manual and any other documentation provided with this product.
