Quark-Elec QK-A016 Manual

Battery monitor with nmea 0183 message output
Hide thumbs Also See for QK-A016:
Table of Contents

Advertisement

Quick Links

Download this manual

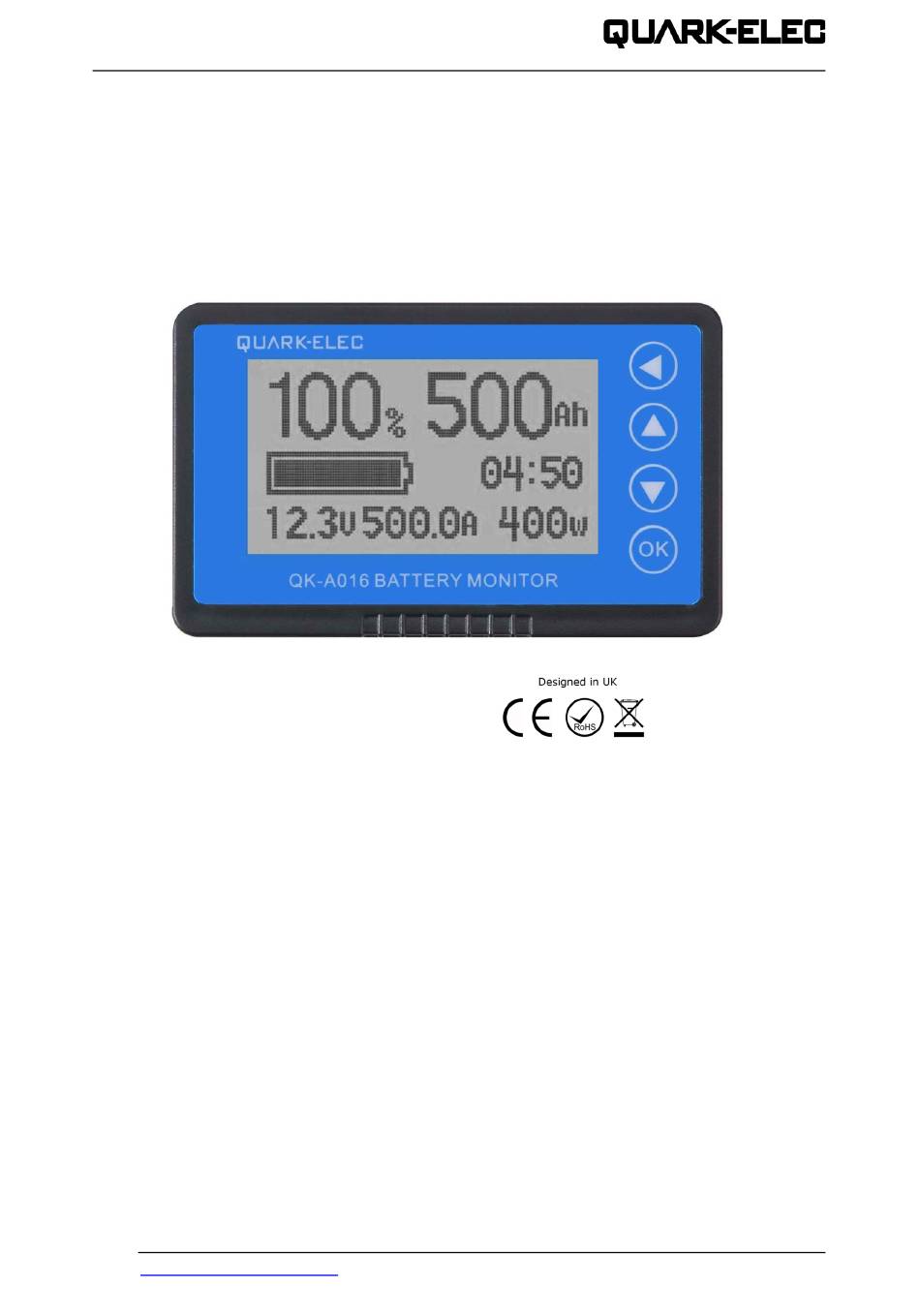

QK-A016 Manual
Features
•
High precision battery monitor, measure voltage, current and capacity
•
Display the remaining time at the current rate of discharge and charge status
•
NMEA 0183 format messages output
•
Wide input voltage range: 10.5V - 100V
•
Suitable for most types of batteries including lithium battery, lead-acid battery
•
High current measurement resolution,0.01Amp, with current shunt
•
User programmable alarm function
Contents
Contents .................................................................................................................................................. 1
1.
Introduction ...................................................................................................................................... 3
2.
Why a battery should be monitored? ............................................................................................... 3
3.
Connections and Installation ............................................................................................................ 3
https://www.quark-elec.com
V1.0
With NMEA 0183 message output
1 of 10
QK-A016
Battery Monitor
2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QK-A016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quark-Elec QK-A016

Summary of Contents for Quark-Elec QK-A016

  • Page 1 QK-A016 Manual QK-A016 Battery Monitor With NMEA 0183 message output Features • High precision battery monitor, measure voltage, current and capacity • Display the remaining time at the current rate of discharge and charge status • NMEA 0183 format messages output •...

  • Page 2: Table Of Contents

    QK-A016 Manual Display and Control panel ........................ 4 Setting up ............................5 5.1. Setup battery monitor parameters ..................5 5.2. Setup process ........................6 5.3. Backlight ..........................6 5.4. Sleep mode in low power ....................6 NMEA 0183 output ........................... 6 Specifications ...........................
  • Page 3 QK-A016 Manual 1. Introduction The QK-A016 is a high precision battery monitor and can be used for boats, campers, caravans and other devices using a battery. The A016 measures the voltage, current, ampere-hours consumed and the remaining time at the current rate of discharge. It provides wide range of battery information. The programmable alarm allows user to setup the capacity/voltage warning buzzer.

  • Page 4: Display And Control Panel

    QK-A016 Manual 1. Determine a mounting location and mount the shunt. The shunt should be installed in a dry and clean place. 2. Remove all loads and charging sources from the battery before any other steps are taken. This is often accomplished by turning off a battery switch. If there are loads or chargers directly attached to the battery, they should be disconnected as well.

  • Page 5: Setting Up

    Quark-elec recommend starting at full (after the battery has been fully charged) unless you are unsure of the capacity of the battery. In this case the capacity (CAP) and High voltage (HIGH V) need to be setup.

  • Page 6: Setup Process

    QK-A016 Manual You can also setup the alarm level to receive audible alerts. When the state-of-charge capacity has fallen below the set value, the percentage and battery symbol will flash, and the buzzer will be begin beeping every 10 seconds.
  • Page 7 QK-A016 Manual $IIXDR,a,x.x,b,c--c,*hh<CR><LF> 1: Prefixer(Talker ID), fixed as IIXDR. 2: Measurement type. Where U is for voltage, I is for current, G is for capacity; 3: Measurement data. 4: Units of measurement. 5: Name of device, fixed as A016. 6: Checksum.

  • Page 8: Specifications

    8. Limited Warranty and Disclaimer Quark-elec warrants this product to be free from defects in materials and manufacture for two years from the date of purchase. Quark-elec will, at its sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.
  • Page 9 QK-A016 Manual Quark-elec (UK) Unit 7, the Quadrant Newark close Royston, UK SG8 5HL Some helpful information: Rating of Commonly used 12V DC Appliances (directly battery powered, typical value) Appliance Current Autopilot 2.0A Bilge Pump 4.0-5.0 A Blender 7-9 A Chart Plotter 1.0-3.0 A...
  • Page 10 QK-A016 Manual Typical value of Flooded, AGM, SLA and GEL Battery SOC table Voltage Battery State of Charge (SoC) 12.80V - 13.00V 100% 12.70V - 12.80V 12.40V - 12.50V 12.20V - 12.30V 12.10V - 12.15V 12.00V - 12.05V 11.90V - 11.95V 11.80V - 11.85V...
