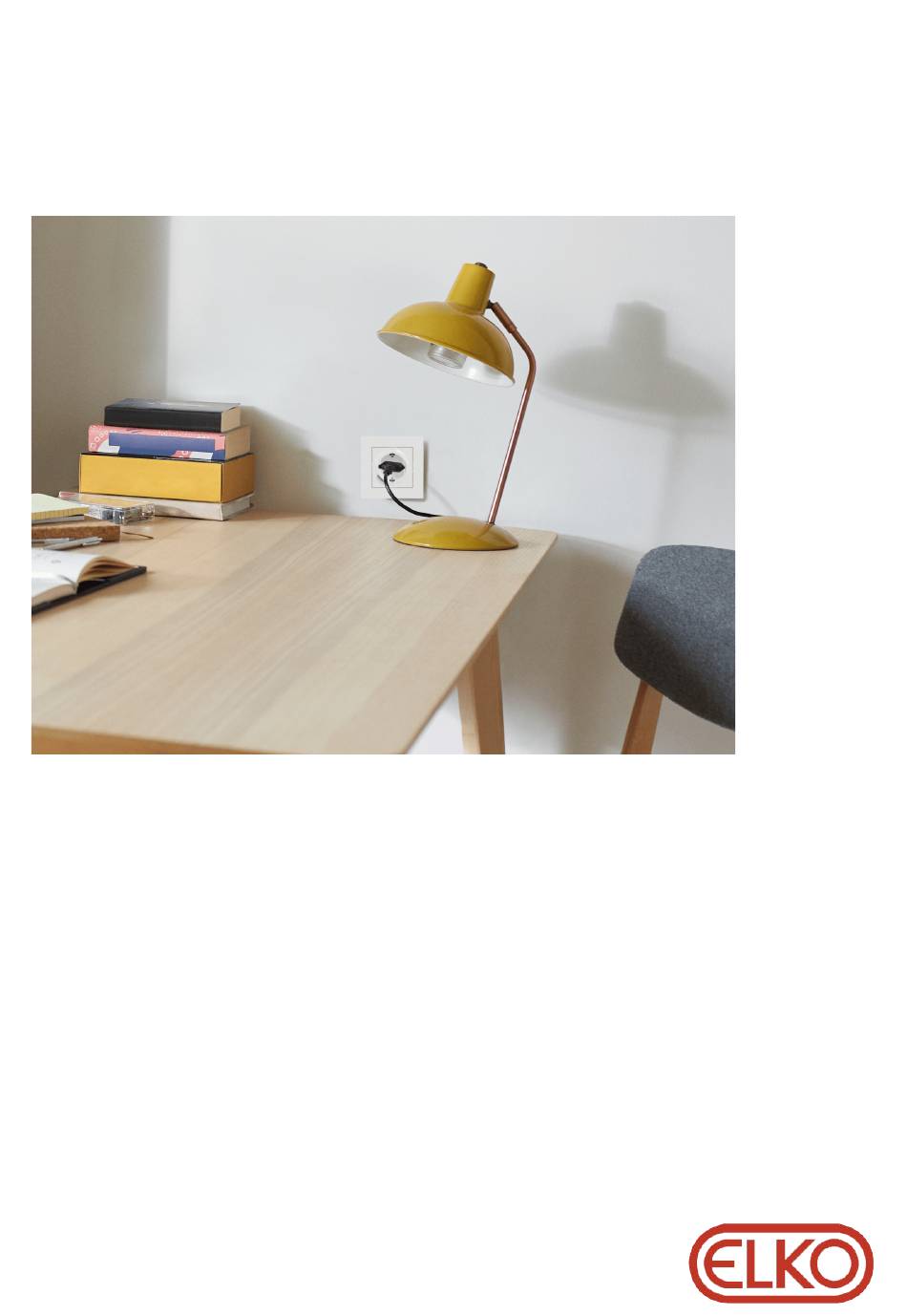

- Page 1 ELKO Smart Socket Single 16A Device User Guide Information about features and functionality of the devices 01/2025 www.elko.no...
-
Page 2: Legal Information
ELKO. ELKO does not grant any right or license for commercial use of the document or its content, except for a non-exclusive and personal license to consult it on an "as is"... -
Page 3: Table Of Contents
Resetting the device in Smart Light Control..........8 LED Indications in Smart Light Control............8 Troubleshooting in Smart Light Control ...........9 Pairing the device with the ELKO Smart Hub ..........9 Pairing device manually.................9 Pairing device with auto scan............... 11 Configuring the device ................13 Changing the device icon ..............13... -
Page 5: Safety Information
Safety Information Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. -
Page 6: Elko Smart Socket Single 16A
Failure to follow these instructions will result in death or serious injury. About the device The ELKO Smart Socket Single 16A (hereinafter referred to as Socket Outlet) is a connected electrical outlet designed to manage and control electrical devices in a convenient and efficient manner. -
Page 7: Installing The Device
ELKO Smart Socket Single 16A Installing the device Refer to the installation instruction supplied with this product. ELKO Smart Socket Single 16A Smart Light Control The Smart Light Control is a wireless connectivity solution for Zigbee devices without the need for a SmartHub or smartphone application. Smart Light Control is your starting point for wireless home automation. -
Page 8: Operating A Socket Outlet
Resetting the Socket outlet • Integrating into ELKO System ◦ If you wish to integrate the devices into ELKO System, reset all the devices in Smart Light Control and refer to pairing the device with SmartHub. LED Indications in Smart Light Control... -
Page 9: Troubleshooting In Smart Light Control
Wireless switch with another device. Pairing the device with the ELKO Smart Hub Using the ELKO Smart app, first pair your device with the ELKO SmartHub to access and control the device. You can either add the device manually or do an auto-scan to pair it. - Page 10 ELKO Smart Socket Single 16A 3. Select an option to add the device (A): – Add Device with Install Code – Add Device without Install Code TIP: It is highly recommended to add the device with install code. 4. To pair the device with install code, tap Add Device with Install Code to display the slide-up menu.
-
Page 11: Pairing Device With Auto Scan
2. Tap Auto scan and tap Confirm. 3. If you have multiple gateways, do Step 4 or proceed to Step 5. 4. Tap Select hub and select the ELKO SmartHUB from the slide-up menu. 5. Short press the push button 3 times (< 0,5 s). - Page 12 ELKO Smart Socket Single 16A 6. Tap Next (A) and select Single Socket Outlet (SSO). Auto Scan Next 7. Once the device is added successfully, tap Done. DUG_Smart Socket Single 16A_ELKO-00...
-
Page 13: Configuring The Device
Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3. -
Page 14: Changing The Device Location
4. Tap Name, enter the new name (A) and then tap Confirm. Icon Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. -
Page 15: Removing The Device
ELKO Smart Socket Single 16A Removing the device Using the ELKO Smart app, you can remove a device from the device list. To remove the device: 1. On the Home page, tap All devices > Single Socket Outlet (SSO). 2. Tap to display more details. -
Page 16: Resetting The Device
ELKO Smart Socket Single 16A Resetting the device You can reset the device to factory default manually. 1. Short-press the push button three times (<0.5 s) and then long-press the push button once (>10 s). The LED blinks red after 10 s, and then release the push button. -
Page 17: Switching On/Off The Device Manually
< 0.5 s Switching On/Off the device using app By using the ELKO Smartapp, you can switch On/Off the device. To switch the device On/Off: 1. On the Home page, tap the power button (A) to switch On/Off the Socket Outlet. -
Page 18: Creating A Schedule
8. Tap Save. Checking the energy consumption Using the ELKO Smart app, you can monitor the energy consumption of the load connected to the device by accessing the consumption feature. TIP: You can see the daily real-time energy consumption value of the load... -
Page 19: Selecting Led Indicator Mode
Year Months Selecting LED indicator mode Using the ELKO Smartapp, you can select the LED indicator mode for easy identification of the device status. To set the LED indicator modes: 1. On the Home page, tap All devices > Single Socket Outlet (SSO) . -
Page 20: Creating A Moment
ELKO Smart Socket Single 16A Creating a moment A Moment allows you to group multiple actions that are usually done together. Using the ELKO Smart app, you can create moments based on your needs (such as movie night). To create a moment: 1. - Page 21 ELKO Smart Socket Single 16A 6. Tap Run the device > Single Socket Outlet (SSO) > Status to select either or all of the functions to add in the moment: – On - Switch On the Socket Outlet (D) – Off - Switch Off the Socket Outlet (E) –...
-
Page 22: Creating An Automation
Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smartapp, you can create automations based on your needs. To create an automation: 1. - Page 23 ELKO Smart Socket Single 16A 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes - Select the various weather settings – Schedule - Set the time and day –...
- Page 24 ELKO Smart Socket Single 16A 9. In the Add task menu, you can do either or all of the following options (H): – Run the device - Select the devices that you want to be triggered – Moment or Automation - Select the moment which you want to trigger or select the automation that you want to enable or disable –...
- Page 25 ELKO Smart Socket Single 16A 3. Tap Add Condition > When device status changes > Single Socket Outlet (SSO). 4. Tap Daily Consumption, select the total energy consumption value (A) and tap Next. TIP: You can set the energy consumption value as 50 kWh.
- Page 26 ELKO Smart Socket Single 16A Editing an automation To edit an automation: 1. On the Automation tab, locate the automation you want to edit and tap 2. On the Edit page, you can tap each item (such as dimmer, shutter, delay, temperature, etc.) to change the settings.
-
Page 27: Led Indication
ELKO Smart Socket Single 16A LED Indication Pairing User Action LED Indication Status Press the push-button 3 times LED blinks amber per second. Pairing mode is active for 30 seconds. When pairing is completed, LED glows green for some time before turning off. -
Page 28: Technical Data
ELKO Smart Socket Single 16A Technical Data Nominal voltage AC 230 V ~, 50 Hz Nominal power Load type Load name Load value 100 W, 125 μF Motor 1600 VA, max. 7 A Iron core transformer 1500 VA Incandescent lamp... -
Page 29: Eu Declaration Of Conformity
ELKO Smart Socket Single 16A EU Declaration of Conformity Hereby, ELKO, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on ELKO.no. Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners. - Page 30 ELKO AS Sandstuveien 68, 0680 Oslo Pb 6598 Etterstad, 0607 Oslo Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication.
