TQ TQMa8MPxS User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TQMa8MPxS
Preliminary User's Manual
TQMa8MPxS UM 0001
08.07.2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the TQMa8MPxS and is the answer not in the manual?

Questions and answers

Related Manuals for TQ TQMa8MPxS

Summary of Contents for TQ TQMa8MPxS

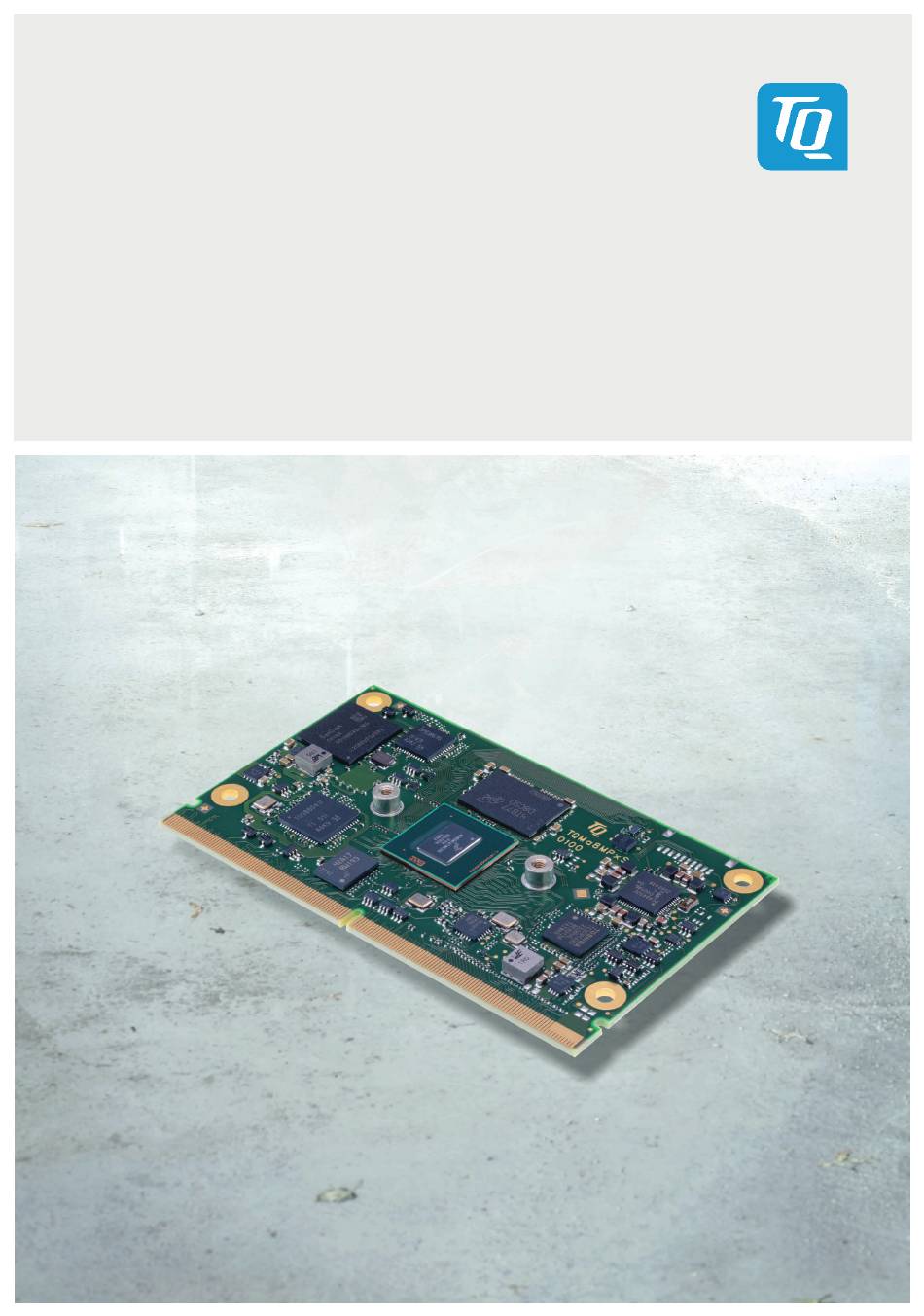

  • Page 1 TQMa8MPxS Preliminary User's Manual TQMa8MPxS UM 0001 08.07.2025...
  • Page 2 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page i TABLE OF CONTENTS ABOUT THIS MANUAL ....................................6 Copyright and license expenses ................................6 Registered trademarks ....................................6 Disclaimer ........................................6 Intended Use ........................................ 6 Imprint ..........................................7 Tips on safety ........................................
  • Page 3 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page ii MECHANICS ........................................ 32 Dimensions ........................................ 32 Component placement ..................................33 Adaptation to the environment ................................34 Protection against external effects ..............................34 Thermal management .................................... 34 Structural requirements ..................................
  • Page 4 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page iii TABLE DIRECTORY Table 1: Terms and conventions ..................................... 7 Table 2: Pinout TQMa8MPxS ....................................13 Table 3: i.MX 8M Plus derivatives ..................................17 Table 4: Boot sources of the TQMa8MPxS according to SMARC standard ..................... 17 Table 5: Boot configuration ....................................
  • Page 5 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page iv FIGURE DIRECTORY Figure 1: Block diagram i.MX 8M Plus ..................................9 Figure 2: Block diagram TQMa8MPxS (simplified) ............................10 Figure 3: SMARC interface with i.MX 8M Plus ..............................11 Figure 4: Boot mode circuitry ....................................
  • Page 6 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page v REVISION HISTORY Rev. Date Name Pos. Modification 0001 08.07.2025 Kreuzer First issue...
  • Page 7 PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE. (COLLECTIVELY, "HIGH RISK APPLICATIONS") You understand and agree that your use of TQ products or devices as a component in your applications are solely at your own risk. To minimize the risks associated with your products, devices and applications, you should take appropriate operational and design related protective measures.
  • Page 8 Handling and ESD tips General handling of your TQ-products The TQ-product may only be used and serviced by certified personnel who have taken note of the information, the safety regulations in this document and all related rules and regulations. A general rule is not to touch the TQ-product during operation. This is especially important when switching on, changing jumper settings or connecting other devices without ensuring beforehand that the power supply of the system has been switched off.
  • Page 9 The electronic components of your TQ-product are sensitive to electrostatic discharge (ESD). Always wear antistatic clothing, use ESD-safe tools, packing materials etc., and operate your TQ- product in an ESD-safe environment. Especially when you switch modules on, change jumper settings, or connect other devices.
  • Page 10 The TQMa8MPxS extends the TQ-Systems GmbH product range and offers an outstanding computing performance. All essential i.MX 8M Plus signals are routed to the TQMa8MPxS SMARC pin strip. There are therefore no restrictions for customers using the TQMa8MPxS with respect to an integrated customised design. All essential components like CPU, LPDDR4, eMMC and PMIC are already integrated on the TQMa8MPxS.
  • Page 11 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 10 ELECTRONICS The information provided in this Preliminary User's Manual is only valid in connection with the tailored boot loader, which is preinstalled on the TQMa8MPxS, and the BSP provided by TQ-Systems GmbH, see also chapter 4.
  • Page 12 Interfaces to other systems and devices The TQMa8MPxS has a SMARC pin strip with a total of 314 pins, divided between the top and bottom side of the board, via which it is connected to the baseboard. Furthermore, the module has four holes with which it can be fixed to the carrier board by means of screws.
  • Page 13 The multiple pin configurations by different i.MX 8M Plus-internal function units must be taken note of. The pin assignment in Table 2 refers to a TQMa8MPxS with i.MX 8M Plus Quad 8 ML/AI CPU in combination with the carrier board MB-SMARC-2.
  • Page 14 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 13 3.1.1.1 Pinout TQMa8MPxS The TQMa8MPxS has a total of 314 SMARC pins. The following table shows the TQMa8MPxS pinout: Table 2: Pinout TQMa8MPxS i.MX 8M Plus i.MX 8M Plus...
  • Page 15 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 14 SD2_DATA3 1.8 / 3.3 V SDIO SDIO_D3 ESPI_ALERT0# eSPI 1.8 V GPIO1_IO09 ECSPI1_SS0 1.8 V SPI0 SPI0_CS0# ESPI_ALERT1# eSPI 1.8 V ECSPI1_SCLK 1.8 V SPI0 SPI0_CK...
  • Page 16 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 15 PCIE_TXN_N 1.0 V PCIE1 PCIE_A_TX- PCIE_B_TX- Power Power HDMI_D2+ / HDMI_TX2_P 1.8 V HDMI DP0_LANE0+ DP1_LANE0+ HDMI_D2- / HDMI_TX2_N 1.8 V HDMI DP0_LANE0- DP1_LANE0- Power DP0_AUX_SEL...
  • Page 17 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 16 LVDS0_1- / eDP0_TX1- / ONOFF 1.8 V CONFIG POWER_BTN# P128 S129 LVDS0 1.8 V LVDS0_D1_N DSI0_D1- UART1_TXD 1.8 V SER0_TX P129 S130 Power LVDS0_2+ / eDP0_TX2+ / UART1_RXD 1.8 V...
  • Page 18 ROM and then loads the program image from the selected boot device. For example, the integrated eMMC or the optional QSPI NOR Flash can be selected as the default boot device. The following boot sources are supported by TQMa8MPxS:...
  • Page 19 The memory interface of the i.MX 8M Plus supports DDR4 and LPDDR4 memory (32 bit bus) with a maximum clock rate of 2.0 GHz, which meets JEDEC LPDDR4-4000 standard. The TQMa8MPxS exclusively uses LPDDR4. A maximum of 8 Gbyte of LPDDR4 SDRAM is supported.
  • Page 20 3.2.3 Trust Secure Element The NXP Trust Secure Element SE050 (alternatively SE051) is available on the TQMa8MPxS as an assembly option and connected to the I2C1-bus. As the SMARC standard does not provide any pins for the smartcard interfaces, the signals for these interfaces in accordance with ISO14443 and ISO7816 are routed to the unused SMARC pins of the PCIe_D interface but are disconnected by default using 0R resistors.
  • Page 21 Discrete RTC PCF85063A In addition to the i.MX 8M Plus internal RTC the TQMa8MPxS provides a discrete RTC PCF85063A as an assembly option, which is controlled by the I2C1 bus. The quartz used to clock the RTC has a standard frequency tolerance of ±20 ppm @ +25 °C.
  • Page 22 JTAG The JTAG interface of the i.MX 8M Plus is made available on a connector (JST SM10B-SRSS-TB) on the TQMa8MPxS that is not fitted as standard. Its position uses an area on the upper side of the board specified in the SMARC standard. The pin assignment of the connector and the model are defined in the SMARC standard.
  • Page 23 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 22 Table 9: JTAG signals Name CPU signal VDD_JTAG_IO V_1V8 JTAG_TRST# n.c. JTAG_TMS JTAG_TMS JTAG_TDO JTAG_TDO JTAG_TDI JTAG_TDI JTAG_TCK JTAG_TCK JTAG_RTCK n.c. JTAG_RESET_IN POR# via buffer; NP MFG_MODE# n.c.
  • Page 24 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 23 3.2.6.7 Camera Interfaces (CSI) The i.MX 8M Plus provides two CSI camera interfaces. The CSI0 pins of the SMARC connector are connected to CSI2 of the i.MX 8M Plus.
  • Page 25 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 24 3.2.6.9 DisplayPort In addition to LVDS, the SMARC standard also specifies HDMI and DisplayPort as display interfaces. To enable practical use of the DSI signals from the CPU, a DisplayPort bridge is used to convert the MIPI DSI signals. It should be noted that the bridge only allows two-channel DisplayPort.
  • Page 26 8M Plus and the PCIe interface. As SMARC defines the clock pins as outputs, the clock driver cannot be provided on the mainboard but can be implemented on the TQMa8MPxS. To reduce costs in sensitive designs, 0R resistors are provided to bypass the clock generator.
  • Page 27 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 26 3.2.6.13 The SPI0 interface connects to ECSPI1 of the i.MX 8M Plus. The second chip select signal is provided as a GPIO. i.MX 8M Plus SMARC pins...
  • Page 28 The i.MX 8M Plus provides up to four UART interfaces, which are all routed directly to the SMARC pins SER3…0 of the TQMa8MPxS. Due to the different signal scopes with two or four signals, part of the SD1 interface is also used in the multiplexing.
  • Page 29 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 28 3.2.7 Gyroscope The TQMa8MPxS has an optional gyroscope with an I2C and SPI interface. This enables the TQMa8MPxS's position to be determined. The connection is made via I2C1. 3.2.8 Management signals...
  • Page 30 Power supply In accordance with the SMARC specification, the TQMa8MPxS supports an input voltage range of 3.0 V to 5.25 V. As the supply of the module is defined in the SMARC standard with a fixed pin assignment, no measures are provided with regard to reverse polarity protection or inrush currents.
  • Page 31 By default, all single-ended signals have a nominal impedance of 50 Ω ±10 %. However, some interfaces on the TQMa8MPxS are routed with different impedances, depending on the signal requirements. The following table is taken from the Hardware Developer's Guide (3) and shows the respective interfaces:...
  • Page 32 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 31 SOFTWARE The TQMa8MPxS is delivered with a preinstalled boot loader U-Boot. BSP provided by TQ-Systems GmbH is configured for the combination of TQMa8MPxS and MB-SMARC-2. The boot loader U-Boot provides TQMa8MPxS-specific as well as board-specific settings, e.g.: •...
  • Page 33 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 32 MECHANICS Dimensions Figure 24: TQMa8MPxS dimensions, side view Table 14: TQMa8MPxS heights Dim. Value Tolerance Remark 1.55 mm ±0.15 mm Board to TQMa8MPxS distance 1.172 mm ±0.117 mm...
  • Page 34 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 33 Component placement Figure 26: TQMa8MPxS, component placement top The label AK1 on the TQMa8MPxS has the following information: MAC address, TQMa95xxSA version and revision, serial number Figure 27: TQMa8MPxS, bottom view...
  • Page 35 Adequate protection has to be guaranteed by the surrounding system. Thermal management To cool the TQMa8MPxS, note Table 12. The power dissipation originates primarily in the i.MX 8M Plus, the LPDDR4 SDRAM and the PMIC. The power dissipation also depends on the software used and can vary according to the application.
  • Page 36 Protection components, e.g., suppressor diode arrays Climate and operational conditions The TQMa8MPxS is available in two different variants (Standard and Extended) with different temperature ranges. The operating temperature range for the TQMa8MPxS strongly depends on the installation situation (heat dissipation by heat conduction and convection);...
  • Page 37 TQ. TQ is not liable for any delivery delays due to national or international export restrictions or for the inability to make a delivery as a result of those restrictions.
  • Page 38 By environmentally friendly processes, production equipment and products, we contribute to the protection of our environment. To be able to reuse the TQMa8MPxS, it is produced in such a way (a modular construction) that it can be easily repaired and disassembled. The energy consumption of the TQMa8MPxS is minimised by suitable measures.
  • Page 39 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 38 • Regulation with respect to the utilization and proof of removal as at 1.9.96 (Source of information: BGBl I 1996, 1382, (1997, 2860)) • Regulation with respect to the avoidance and utilization of packaging waste as at 21.8.98 (Source of information: BGBl I 1998, 2379) •...
  • Page 40 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 39 APPENDIX Acronyms and definitions The following acronyms and abbreviations are used in this document: Table 16: Acronyms Acronym Meaning ® Advanced RISC Machine Ball Grid Array...
  • Page 41 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 40 Acronyms and definitions (continued) Table 16: Acronyms (continued) Acronym Meaning NAND Not-And Not-Or Output Open Drain Output with Open Drain On-The-Go Power Printed Circuit Board PCIe...
  • Page 42 Preliminary User's Manual l TQMa8MPxS UM 0001 l © 2025, TQ-Systems GmbH Page 41 References Table 17: Further applicable documents Name Rev., Date Company i.MX 8M Plus Applications Processor Reference Manual Rev. 3, Aug 2024 i.MX 8M Plus Applications Processors Data Sheet for Industrial Products Rev.
  • Page 43 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld Info@TQ-Group TQ-Group...
