8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time.
Page 3

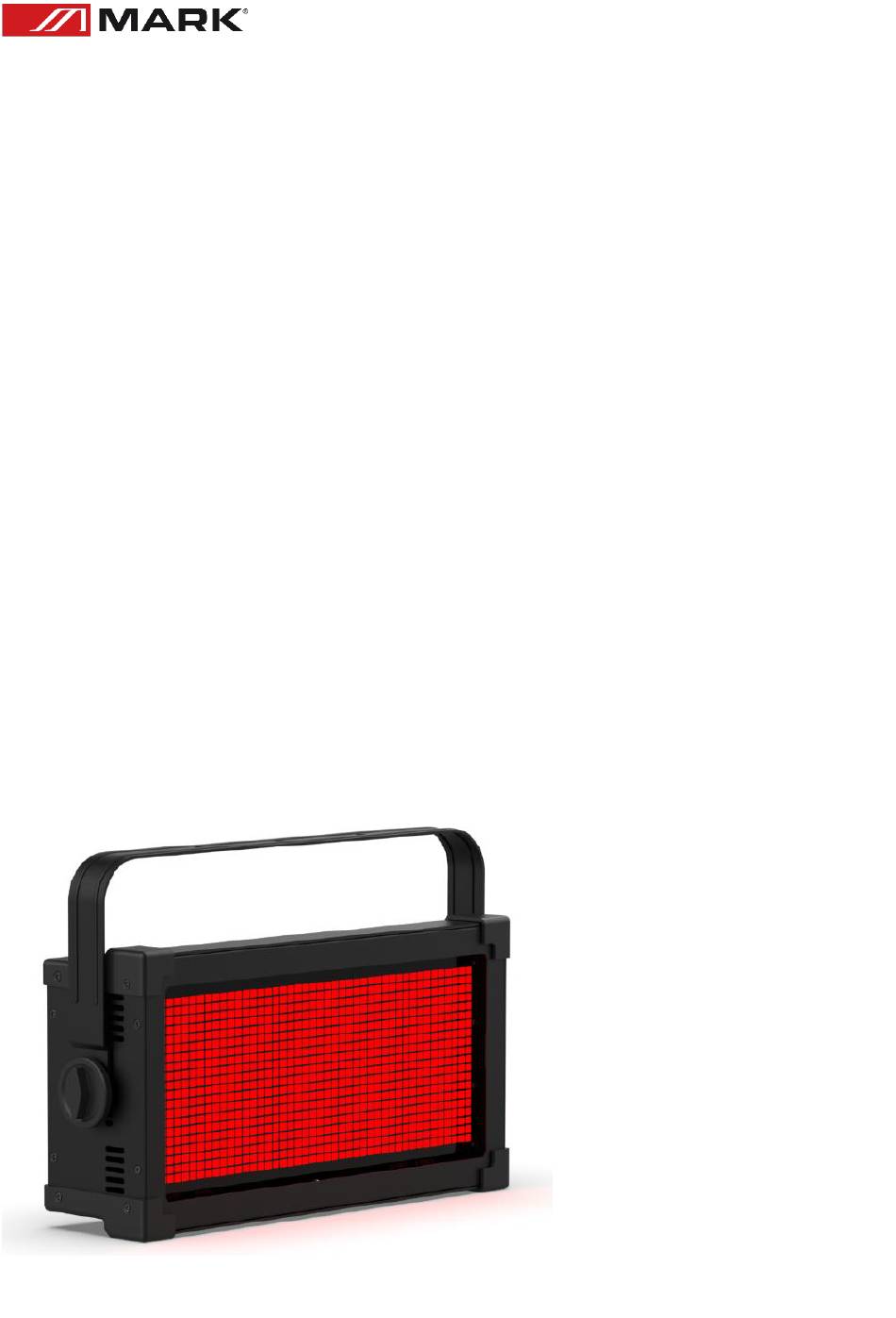

OVERVIEW FLM 400 RGB W is a lighting strobe effect which includes 8 segments separate controlling (R, G, B and W). These brilliant LEDs allow to obtain a rich colour spectrum, adding strobe effects and colour variation. The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as: dimmer level, strobe or inner effects.
FLM 400 RGB W can be placed in a stable surface or stand but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation.
ADVANCED USE CONTROL PANEL FLM 400 RGB W can be configured in different ways thanks to its panel and selection buttons. Press the MODE button (once or several times) until you get to the desired function (according to the following chart), and press ENTER to confirm your selection.
Page 6
In the following table are shown all the options displayed in the menu interface to set the FLM 400 RGB MENU SUB MENU VALUE FUNCTION 001-512 SELECT STARTING CHANNEL Address MODE 13 CH 13 CHANNELS MODE 32 CH 32 CHANNELS MODE AUTO 00-20 MACRO SELECTOR...
Page 7
DMX CONTROL MODE The following tables show the DMX channel functions: 13 channels mode: 13 CHANNELS MODE FUNCTION VALUE DESCRIPTION DIMMER 0-255 MASTER DIMMER 0-255 RED DIMMER GREEN 0-255 GREEN DIMMER BLUE 0-255 BLUE DIMMER WHITE 0-255 WHITE DIMMER MACRO OPEN 8-15 MACRO 1...
Page 8
9-255 STROBE (S>F) BACK RED 0-255 BACKGROUND RED DIMMER CH10 BACK GREEN 0-255 BACKGROUND GREEN DIMMER CH11 BACK BLUE 0-255 BACKGROUND BLUE DIMMER CH12 BACK WHITE 0-255 BACKGROUND WHITE DIMMER CH13 MACRO DIRECTION 0-127 NORMAL MACRO DIRECTION 128-255 REVERSED MACRO DIRECTION 32 channels mode: ORDER OF THE LED SEGMENTS IN 32-CHANNEL MODE 32 CHANNELS MODE...
Page 9
The electrical connection must only be carried out by qualified personal. Before installing, make sure you use the same power voltage marked in the FLM 400 RGB W (AC 100/240V – 50/60Hz). Each device must be properly grounded and installed in accordance with the relevant standards. Don’t use the device in a lightning storm or wet environment.
This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your MARK dealer. If a problem occurs, carry out the following steps in sequence until find the problem solved. If the light effect does not operate properly, refer servicing to a technician.
8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo.
VISTA GENERAL FLM 400 RGB W es un efecto estroboscópico de iluminación que incluye 8 segmentos que se controlan por separado (R, G, B y W). Estos brillantes LEDs permiten obtener un rico espectro de colores, añadiendo efectos estroboscópicos y variación de color.
FLM 400 RGB W se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las siguientes...
Page 14
USO AVANZADO PANEL DE CONTROL FLM 400 RGB W permite ser configurado de diferentes maneras, gracias a su panel y botones de selección. Presione el botón MODE (una o varias veces) hasta llegar a la función deseada (según el siguiente cuadro), y presione ENTER para confirmar su selección.
Page 15
En la siguiente tabla se muestran todas las opciones para configurar el FLM 400 RGB W en la interfaz del menú: MENÚ SUB MENÚ VALOR FUNCIÓN 001-512 SELECCIÓN DEL NÚMERO DE Address CANAL DE INICIO MODE 13 CH MODO DE 13 CANALES...
Page 16
MODOS DE CONTROL DMX Las siguientes tablas muestran las funciones de los canales DMX: Modo 13 canalaes: MODO 13 CANALES FUNCIÓN VALOR DESCRIPCIÓN DIMMER 0-255 DIMMER MASTER 0-255 DIMMER ROJO GREEN 0-255 DIMMER VERDE BLUE 0-255 DIMMER AZUL WHITE 0-255 DIMMER BLANCO MACRO ABIERTO...
Page 17
9-255 ESTROBO (S>F) BACK RED 0-255 DIMMER BACKGROUND ROJO CH10 BACK GREEN 0-255 DIMMER BACKGROUND VERDE CH11 BACK BLUE 0-255 DIMMER BACKGROUND AZUL CH12 BACK WHITE 0-255 DIMMER BACKGROUND WHITE CH13 MACRO DIRECTION 0-127 DIRECCIÓN NORMAL DE MACRO 128-255 DIRECCIÓN INVERSADE MACRO Modo 32 canales: ORDEN DE LOS SEGMENTOS LED EN EL MODO DE 32 CANALES MODO 32 CANALES...
Page 18
MARK. Desempaquetado Nota: Antes de desembalar compruebe si ha habido daños y se han debido al transporte o no. Si encuentra algún daño, no utilice este dispositivo y póngase en contacto con el distribuidor de MARK.
Page 19
Si el dispositivo tiene un problema, siga los siguientes puntos hasta que lo encuentre y pueda solucionarlo. Si la iluminación no funciona correctamente, envíe el dispositivo al servicio técnico MARK. Si el dispositivo no enciende: Posibles problemas: Fuente de alimentación.
