Summary of Contents for Mark BLINDER 200

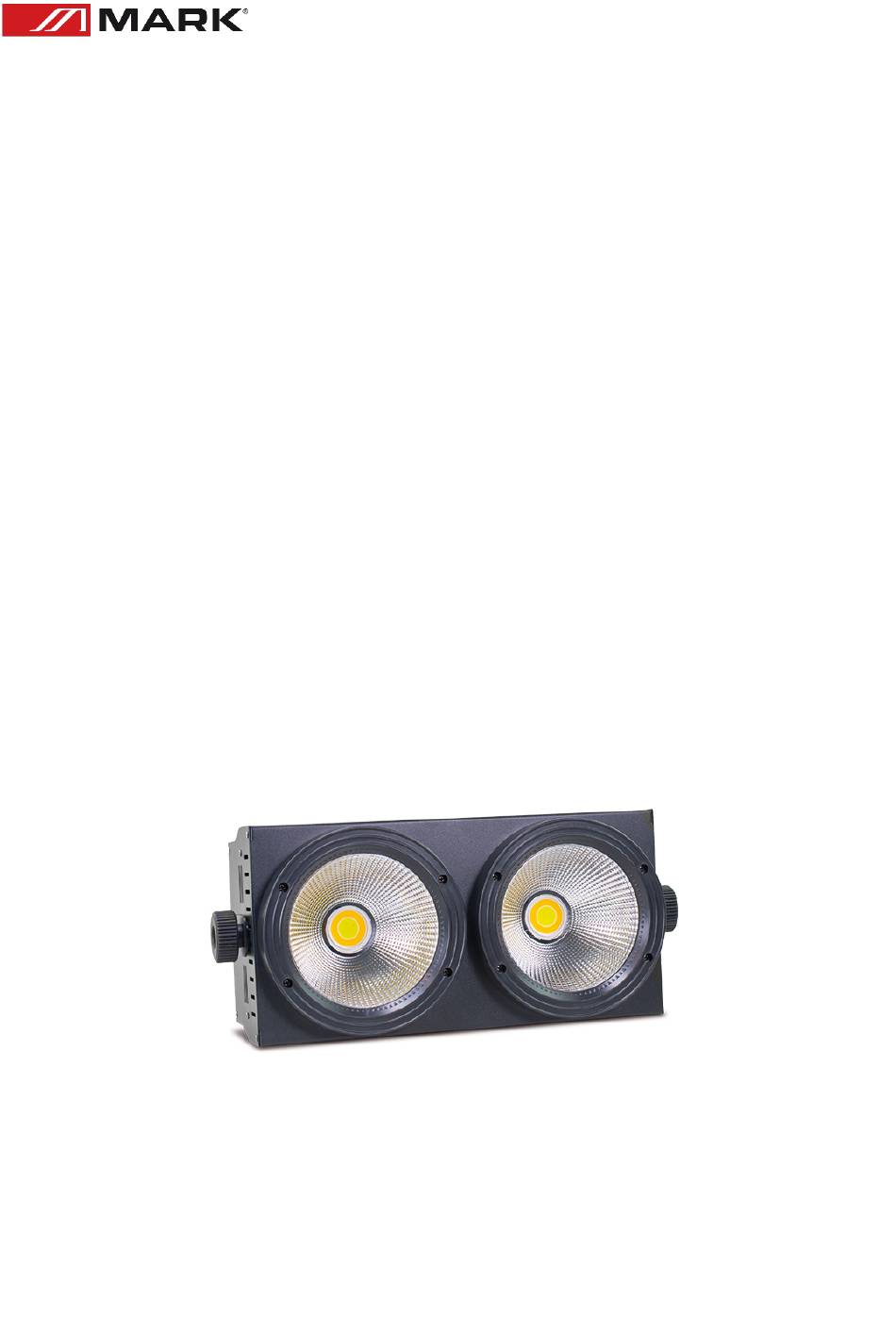

- Page 1 BLINDER 200 User Manual – Version 1.0...
-
Page 2: Safety Instructions
8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time. - Page 3 OVERVIEW BLINDER 200 is a blinder effect that includes 2 white + warm white colour COB LEDs up to 100W. These brilliant LEDs allow to obtain a high light power, very adequate in live spectacles, touring, etc. The configuration interface has a display with all information and buttons to navigate through menus, selecting parameters such as: strobe speed operating in auto mode, internal programs or audio sensitivity.
-
Page 4: Installation
Ensure that the unit does not come into contact with water or any other liquid. BLINDER 200 can be placed in a stable surface or stand, but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for a safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation. -
Page 5: Advanced Use
DMX input of the signal, this way it is possible to send the signal to all the devices in the chain. Master/Slave operation. BLINDER 200 allows to link up to 16 fixtures together and operate without controller using this mode. ADVANCED USE CONTROL PANEL BLINDER 200 can be configured in different ways thanks to its panel and selection buttons. - Page 6 In the following table are shown all the options displayed in the menu interface to set the BLINDER 200: MENU VALUE FUNCTION A001-512 DMX MODE 8 CHANNEL (SELECT STARTING CHANNEL) D001-512 DMX MODE 4 CHANNEL (SELECT STARTING CHANNEL) U000-255 WARM WHITE LED 1 DIMMER C000-255 COOL WHITE LED 1 DIMMER U000-255...
- Page 7 DMX CONTROL MODES The following table shows the DMX channel functions: FUNCTION VALUE DESCRIPCION W WHITE L1 0-255 WARM WHITE LED 1 DIMMER C WHITE L1 0-255 COLD WHITE LED 1 DIMMER W WHITE L2 0-255 WARM WHITE LED 2 DIMMER C WHITE L2 0-255 COLD WHITE LED 2 DIMMER...
-
Page 8: Indicaciones De Seguridad
8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo. -
Page 9: Vista General
VISTA GENERAL BLINDER 200 es un efecto tipo cegadora que incluye 2 LEDs COB de color blanco + blanco cálido de hasta 100W cada uno. Estos brillantes LEDs permiten obtener una gran potencia lumínica, muy adecuada en espectáculos en vivo, aplicaciones de touring, etc. -
Page 10: Instalación
BLINDER 200 se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las siguientes... - Page 11 Modo Master/Slave. BLINDER 200 permite unir hasta 16 unidades en la misma cadena y operar sin controlador utilizando este modo. USO AVANZADO PANEL DE CONTROL BLINDER 200 permite ser configurado de diferentes maneras, gracias a su panel y botones de selección.
- Page 12 En la siguiente tabla se muestran todas las opciones para configurar el BLINDER 200 en la interfaz del menú: MENÚ VALOR FUNCIÓN A001- MODO DMX 8 CANALES (SELECCIONA CANAL DE INICIO) D001- MODO DMX 4 CANALES (SELECCIONA CANAL DE INICIO) U000- DIMER LED 1 BLANCO CÁLIDO...
- Page 13 MODOS DE CONTROL DMX La siguiente tabla muestra las funciones de los canales DMX: FUNCIÓN VALOR DESCRIPCION DIMER LED 1 BLANCO CÁLIDO W WHITE L1 0-255 DIMER LED 1 BLANCO FRÍO C WHITE L1 0-255 DIMER LED 2 BLANCO CÁLIDO W WHITE L2 0-255 C WHITE L2...
