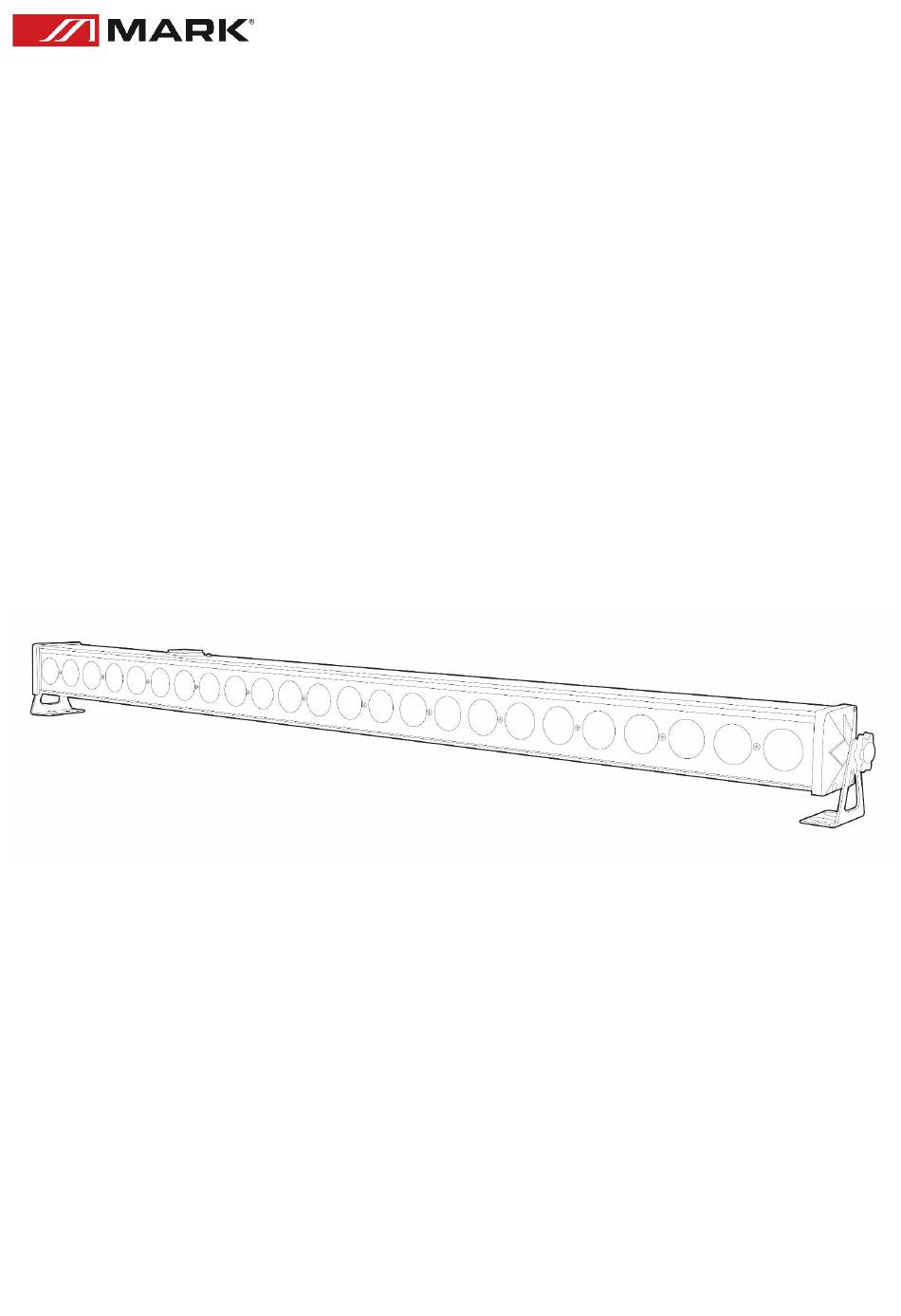

- Page 1 MBAR 4 72 BAT User Manual – Version 1.2...
-
Page 2: Safety Instructions

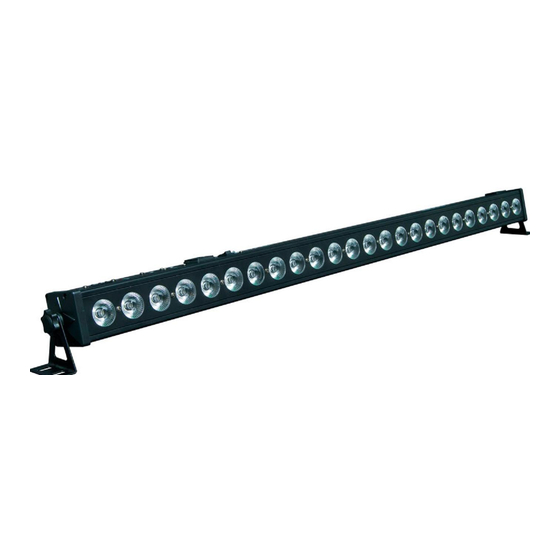

8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time. - Page 3 OVERVIEW MBAR 4 72 BAT is a lighting bar which includes 24x 3W RGB (3 in 1) LEDs. These brilliant LEDs allow to obtain a rich colour spectrum mixing the red, green and blue colours. The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as: manual level of each colour, strobe or inner effects.
-
Page 4: Installation
MBAR 4 72 BAT can be placed in a stable surface or stand but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation. -
Page 5: Advanced Use
CONTROL PANEL MBAR 4 72 BAT can be configured in different ways thanks to its panel and selection buttons. Press the MENU button (once or several times) until you get to the desired function (according to the following chart), and press ENTER to confirm your selection. -
Page 6: Dmx Control Mode
DMX CONTROL MODE The following tables show the DMX channel functions: 5 channels mode Function Description Value R dimming Red dimming from minimum to maximum 0 - 255 G dimming Green dimming from minimum to maximum 0 - 255 B dimming Blue dimming from minimum to maximum 0 - 255 Color chase... - Page 7 14 channels mode (2 groups of 12 LEDs) Function Description Value Master dimmer 1 General dimmer 0 - 255 Strobe 1 From slow to fast 0 - 255 R dimming 1 Red dimming from minimum to maximum 0 - 255 G dimming 1 Green dimming from minimum to maximum 0 - 255...
- Page 8 50 channels mode (8 groups of 3 LEDs) Function Description Value Master dimmer 1 General dimmer 0 - 255 Strobe 1 From slow to fast 0 - 255 R dimming 1 Red dimming from minimum to maximum 0 - 255 G dimming 1 Green dimming from minimum to maximum 0 - 255...
- Page 9 The electrical connection must only be carried out by qualified personal. Before installing, make sure you use the same power voltage marked in the MBAR 4 72 BAT (AC 100-240V/50-60Hz). Each device must be properly grounded and installed in accordance with the relevant standards. Don’t use the device in a lightning storm or wet environment.
-
Page 10: Troubleshooting
This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your MARK dealer. If a problem occurs, carry out the following steps in sequence until find the problem solved. If the light effect does not operate properly, refer servicing to a technician. -
Page 11: Indicaciones De Seguridad
8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo. -
Page 12: Vista General
MBAR 4 72 BAT integra una batería recargable de ión de litio para operar de manera autónoma. El dispositivo incluye varios modos DMX (5, 8, 14, 26 y 50 canales) con dimmerización de color individual, efectos incorporados y función estrobo. -
Page 13: Instalación
MBAR 4 72 BAT se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las siguientes... -
Page 14: Panel De Control
LEDs junto al display. PANEL DE CONTROL MBAR 4 72 BAT permite ser configurado de diferentes maneras, gracias a su panel y botones de selección. Presione el botón MENU (una o varias veces) hasta llegar a la función deseada (según el siguiente cuadro), y presione ENTER para... - Page 15 MODO DE CONTROL DMX Las siguientes tablas muestra las funciones de los canales DMX: Modo 5 canales Función Descripción Valor Dimmer R Dimmer rojo de mínimo a máximo 0 - 255 Dimmer G Dimmer verde de mínimo a máximo 0 - 255 Dimmer B Dimmer azul de mínimo a máximo 0 - 255...
- Page 16 Modo 14 canales (2 grupos 12 LEDs) Función Descripción Valor Master dimmer 1 Dimmer general 0 - 255 Strobo 1 De lento a rápido 0 - 255 Dimmer R 1 Dimmer rojo de mínimo a máximo 0 - 255 Dimmer G 1 Dimmer verde de mínimo a máximo 0 - 255 Dimmer B 1...
- Page 17 Modo 50 canales (8 grupos de 3 LEDs) Función Descripción Valor Master dimmer 1 Dimmer general 0 - 255 Strobo 1 De lento a rápido 0 - 255 Dimmer R 1 Dimmer rojo de mínimo a máximo 0 - 255 Dimmer G 1 Dimmer verde de mínimo a máximo 0 - 255...
- Page 18 MARK. Desempaquetado Nota: Antes de desembalar compruebe si ha habido daños y se han debido al transporte o no. Si encuentra algún daño, no utilice este dispositivo y póngase en contacto con el distribuidor de MARK.
- Page 19 4- Si usted no puede determinar la causa de los problemas que presenta la unidad, no la desmonte o intente reparar por sí mismo ya que perderá la garantía. 5- Devuelva la unidad a servicio técnico de MARK. Si no responde el protocolo DMX: Posibles problemas: Verifique que el cable de conexión DMX está...
