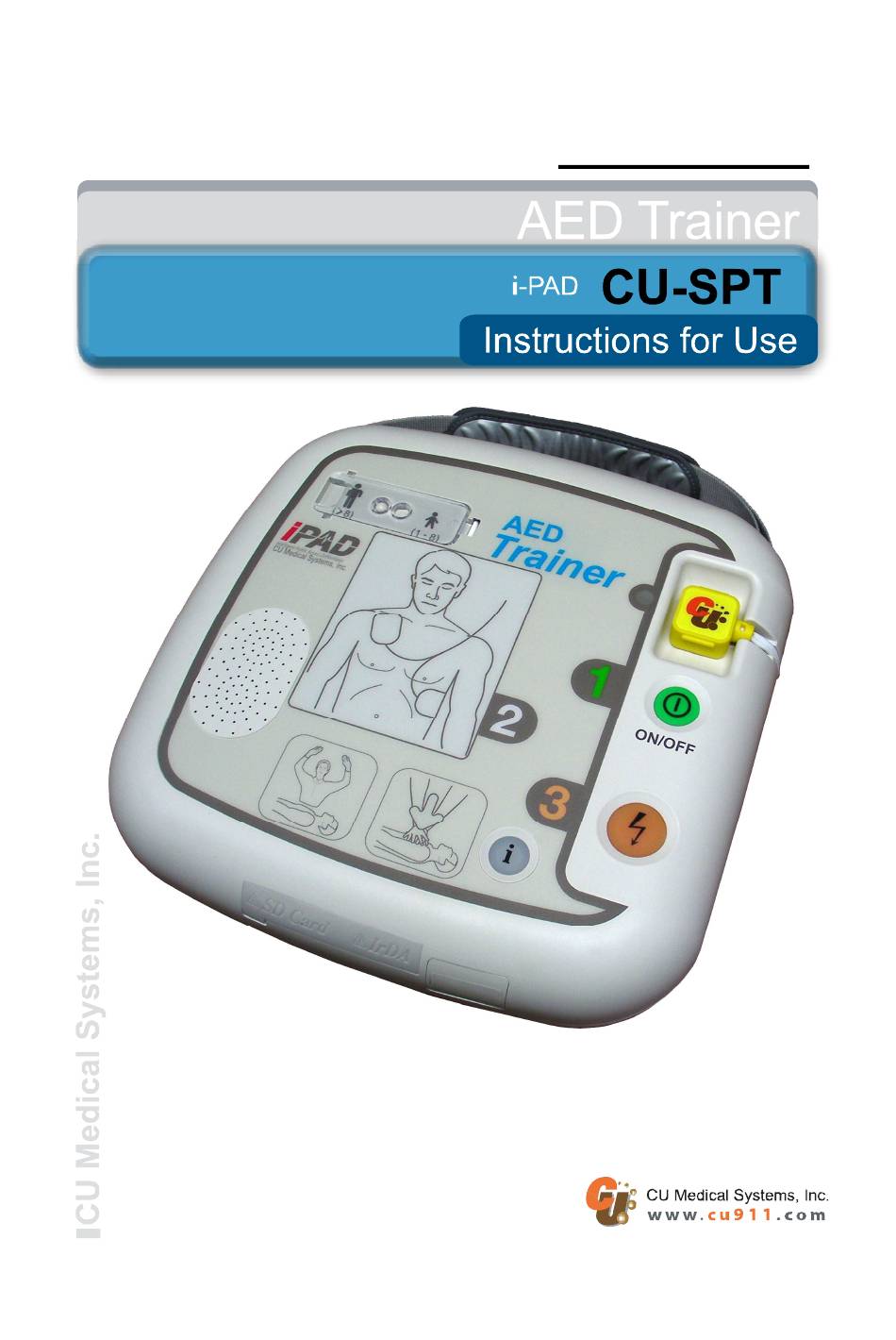

- Page 1 CU-SPT Version 1.00E...
-
Page 4: Table Of Contents
Device Features ......................... 5 Preparation for Use ........................7 Standard Package Contents ........................7 Setting up the i-PAD CU-SPT ........................9 Device Storage ............................10 How to Use the i-PAD CU-SPT ....................11 Scenario Setting ............................11 4.1.1 Scenario Selection ..........................11 4.1.2 Scenario .............................. -
Page 5: Overview
Instructions for Use Version 1.00E Overview Thank you for purchasing the i-PAD CU-SPT. i-PAD CU-SPT is a training product designed to provide training on a semi-automated external defibrillator. The device is intended to provide education and training on the defibrillator and must not be used for emergency measures in case of emergency. -
Page 6: Introduction
The device is powered by six AA batteries (disposable or rechargeable), and easy to carry. Users can set the scenarios of the device with the remote controller. 1.3 Additional Information Please contact CU Medical Systems, Inc. or its local distributors for any additional information on the i-PAD CU-SPT. CU Medical Systems, Inc. -
Page 7: Device Features
Instructions for Use Version 1.00E 2. Device Features Adult/Pediatric Selection Switch Pads Connector Battery Compartment i-Button Do-Not-Touch-Patient Indicator CPR Indicator Pad Connector Status Indicator Pad Position Indicators Power Button Adult/Pediatric Selection Shock Button Switch Cover... - Page 8 Indicator Indicates the pads position on the patient. Pads Position Indicators Warns when not to touch the patient. Do-Not-Touch-Patient Indicator Indicates performance of CPR on the patient. CPR Indicator Supplies power to the device. Battery Compartment CU Medical Systems, Inc.
-
Page 9: Preparation For Use
3. Preparation for Use 3.1 Standard Package Contents i-PAD CU-SPT Training pad for i-PAD CU-SPT Do not use the pads for i-PAD CU-SPT, an actual defibrillator. The pads cannot apply electric shock. Training Pads i-PAD CU-SPT Instructions for Use Instructions for Use... - Page 10 • Power OFF, PADS ON/OFF, Low battery error, Scenarios, Volume control Do not use the controller farther than 5m from the device. Infrared Do not place any objects that infrared cannot penetrate Remote Controller between the device and controller. CU Medical Systems, Inc.
-
Page 11: Setting Up The I-Pad Cu-Spt
Instructions for Use Version 1.00E 3.2 Setting up the i-PAD CU-SPT Do the following to set up the i-PAD CU-SPT ① Open the package and verify that it contains all the items listed in the packing list. ② Familiarize yourself with the device features by referring to [Chapter 2: Device Features] of these Instructions for Use. -
Page 12: Device Storage
Do not operate or store the device in areas with high concentration of dust. Only personnel authorized by the manufacturer may open the device for servicing. There are no user serviceable components inside the device. CU Medical Systems, Inc. -
Page 13: How To Use The I-Pad Cu-Spt
Instructions for Use Version 1.00E 4. How to Use the i-PAD CU-SPT 4.1 Scenario Setting 4.1.1 Scenario Selection ① When the device is turned on by pressing the power button, it reproduces scenario 6 by default. ② If you want to change the scenario, use the remote controller. -
Page 14: Scenario
③ Reproduce normal rhythm, CPR ④ Apply third shock, CPR ⑤ Reproduce normal rhythm, CPR ① Apply first shock, CPR Scenario 8 (S8) ② Apply second shock, CPR ③ Apply third shock, CPR ④ Reproduce normal rhythm, CPR CU Medical Systems, Inc. -
Page 15: Infrared Remote Controlle
Instructions for Use Version 1.00E 4.2 Infrared Remote Controller 4.2.1 Infrared Remote Controller Control With the remote controller, you can reproduce various emergency situations such as Power OFF, PADS ON/OFF, Low battery, and other scenarios as well as controlling the volume. Infrared Remote Controller Please be careful to not lose the remote controller. -
Page 16: Infrared Remote Controller Button Functions
0 to 10 with the remote controller. As the volume increases, the battery life may shorten. The "S1 ~ S8" buttons reproduces emergency scenarios Training programmed in the device. Please refer to [Section 4.1.2: Scenario] Scenario for details. CU Medical Systems, Inc. -
Page 17: Procedures Using The I-Pad Cu-Spt
Instructions for Use Version 1.00E 4.3 Procedures using the i-PAD CU-SPT ① Set the Adult/Pediatric Selection Switch to match the victim. Adult victim Ensure that the Adult/Pediatric Selection Switch is set to Adult Mode. If the switch has not been set yet, move it to Adult Mode as shown in the figures below. - Page 18 ③ Open the pads and take out the training pads package. ④ Refer to the pictures on both pads. ⑤ Place pads on the mannequin. Remove pad 1 from the single liner and stick the pad to the mannequin’s upper chest as shown below. CU Medical Systems, Inc.
- Page 19 Instructions for Use Version 1.00E Remove pad 2 from the single liner, and stick the pad to the mannequin’s side torso as shown below. ⑥ Connect the pad connector to the Pads Connector insert on the device. ⑦ When the pad connector is connected, the device operates according to the selected scenario as follows: When it is charged, the device activates the following indicators in sequence: The device announces that a defibrillation shock is needed, and...
- Page 20 • Voice instruction for CPR starts. ⑧ Perform CPR. Perform CPR when the i-PAD CU-SPT instructs you to do so. By default, the CU-SPT gives voice instruction for CPR during pause for CPR after a shock delivery. When voice instruction for CPR is needed outside of the default setting, press the flashing blue i-Button for at least 15 seconds.
-
Page 21: After Using The I-Pad Cu-Spt
Instructions for Use Version 1.00E 5. After Using the i-PAD CU-SPT 5.1 Device Setting 5.1.1 CPR Guide Setting The default CPR setting on CU-SPT is 5 cycles with 30 chest compressions and 2 breaths in accordance with the American Heart Association (AHA) 2010 CPR Guidelines. However, you may customize these. - Page 22 If the Detailed Guide Selection is OFF and the Number of ventilation is set to 0, the CU-SPT provides only chest compression guidance for 2 minutes. After 2 minutes, the CU-SPT automatically proceeds to the next sequence. CU Medical Systems, Inc.
-
Page 23: Safety Precautions
Instructions for Use Version 1.00E 6. Safety Precautions These Instructions for Use emphasizes the safety procedures and precautions for the device use by using the terms below. Please acquaint yourself with the warnings, cautions and references stated in these Instructions for Use in order to safely use the device. The company or its authorized distributor is not responsible for any injury incurred by the user or patient due to any apparent negligence or improper use by the user. -
Page 24: Device Service
This warranty does not apply if the device has been damaged by accident or misuse or as the result of service or modification by entities other than CU Medical Systems, Inc. or its authorized representatives. IN NO EVENT SHALL CU MEDICAL SYSTEMS BE LIABLE FOR CONSEQUENTIAL DAMAGES. - Page 25 Service The i-PAD CU-SPT must be serviced only by authorized personnel. The i-PAD CU-SPT will be serviced free of charge during the warranty period. After the warranty period, the cost of material and service shall be shouldered by the user.
- Page 27 [Head Office/Plant] Dongwha Medical Instrument Complex 130-1 Dongwhagongdan-ro, Munmak-eup, Wonju-si, Gangwon-do, 220-801 Republic of Korea. Tel: +82 33 747 7657 Fax:+82 33 747 7659 Website: www.cu911.com [Sales Office] 5F, Cheonggye Building, 221, Anyangpangyo-ro Uiwang-si, Gyenggi-do, Korea Tel: +82 31 421 9700 Fax:+82 31 421 9911...
