Emerson White Rodgers 36G22 Installation Instructions Manual

Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
The 36G/J22, 36G/J23, 36G/J24 and 36G/J52 combina-
tion gas valves are designed for direct spark ignition (DSI)
and hot surface ignition (HSI) system applications. These
valves are equipped with redundant and main solenoid
valves that control gas flow to the main burners, a pressure
regulator and a two-position on/off switch for regulation
and electrical shut-off of the solenoid valves. The 36G/
J23, 36G/J24 and 36G/J52 are also equipped with a slow-
opening pressure regulator for softer lighting characteris-
tics.
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Setting:
Nat. Gas – 2.5 to 5.0" W.C.
LP Gas – 7.0 to 12.0"W.C.
Ambient Temperature: -40° to 175°F
Pressure Rating: 14" W.C. (
Voltage: 24 VAC
Frequency: 50/60 Hz
Current: .360 amps
CONTENTS
Description ......................................................... 1
Specifications .................................................... 1
Precautions ....................................................... 2
Installation ......................................................... 3
System Wiring
Adjustment ........................................................ 4
Pressure Regulator Adjustment
Lighting Instructions ........................................... 5
Notes ............................................................. 6
DSI and HSI Single Stage Combination Gas Valve
1
¦ PSI) max.
2
White-Rodgers is a division
of Emerson Electric Co.
www.white-rodgers.com

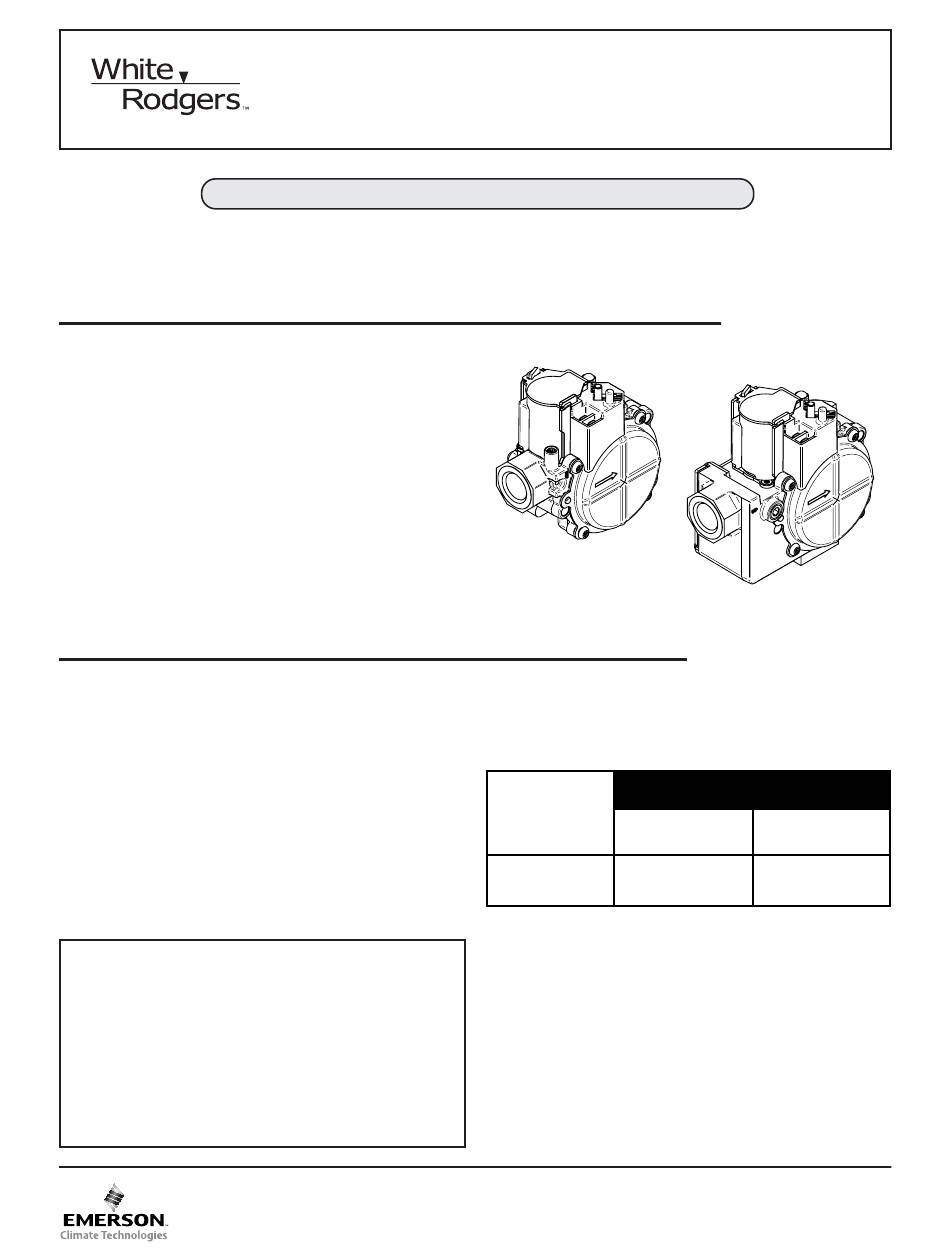

36G22, 36G23, 36G24 & 36G52
36J22, 36J23, 36J24 & 36J52
INSTALLATION INSTRUCTIONS
36G
Mounting Positions:
Multipoise – Control may be mounted in any position.
PIPE SIZES/CAPACITIES
Pipe Sizes
Available
AGA Std. Nat. Gas
(inches)
(1,000 BTU/cu. ft.)
1 2 1 2
" x " NPT
any combination
DESCRIPTION
36J
SPECIFICATIONS
Capacity (BTU/hr) at
1" pressure drop across valve
LP Gas
(2,500 BTU/cu. ft.)
140,000 226,800
PART NO. 37-6159F
Replaces 37-6159E
0814
