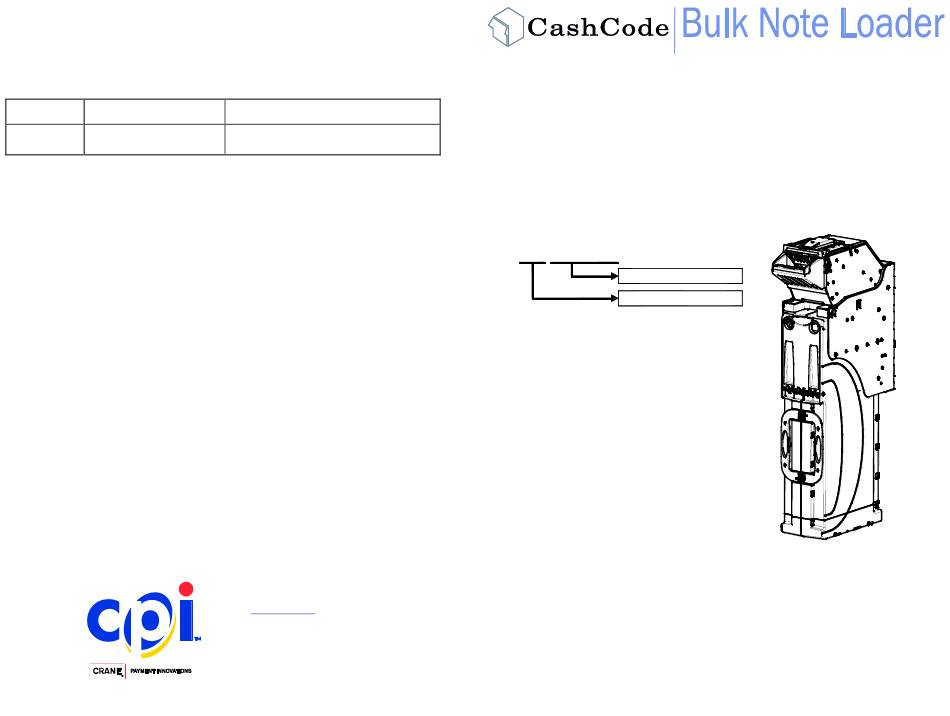

5. General Specifications:
CURRENCY AND INTERFACES
ELECTRICAL SPECIFICATION:
Operating
Maximum Operating
Voltage
Current
Idle: 300 mA
12 V DC
Bill processing: 1.3 A
Use only current limiting CSA or UL recognized Power Supply.
OPERATING TEMPERATURE:
TOTAL WEIGHT:
FEATURES:
Single Width Loading Validator Head, Tract width 78 mm
Optics Type A
Cassette 3000 notes
ENCLOSURE: BNL Bill Validator
User's Guide
Software description
2016 Crane Payment Innovations
See Software Description document
Maximum Current
4.0 A
-0 to +50 degrees Celsius
8.6 Kg (19 lb)
Crane Payment Innovations
www.CranePI.com
PT# UG-BNL-3020_G1 05/16
BNL-3020
Hardware part #
The Part Number on the Label includes Hardware
Part Number and Software Part Number.
Example
BNL-3020 AAXX-XXXX
Software Part Number
Hardware Part Number
BNL Bill Validator
User's Guide
Advertisement
Related Manuals for CPI CashCode BNL-3020
Summary of Contents for CPI CashCode BNL-3020
- Page 1 5. General Specifications: CURRENCY AND INTERFACES See Software Description document BNL Bill Validator ELECTRICAL SPECIFICATION: User’s Guide Operating Maximum Operating Maximum Current Voltage Current Idle: 300 mA 12 V DC 4.0 A Bill processing: 1.3 A BNL-3020 Use only current limiting CSA or UL recognized Power Supply. Hardware part # The Part Number on the Label includes Hardware Part Number and Software Part Number.
- Page 2 1. Typical DIP Switches Setting 3. Power connections To access switches open the back lid. Switches are located on the right side of +12 V lines must be connected together directly at the connector. the lid, as observed from the bezel. The “up” state is defined as the switch position closer to the top cover of the lid.
