Operating instructions
CookTop V2000 I804
Induction hob

Advertisement

loading
Need help?

Need help?

Do you have a question about the CookTop V2000 I804 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG CookTop V2000 I804

Summary of Contents for V-ZUG CookTop V2000 I804

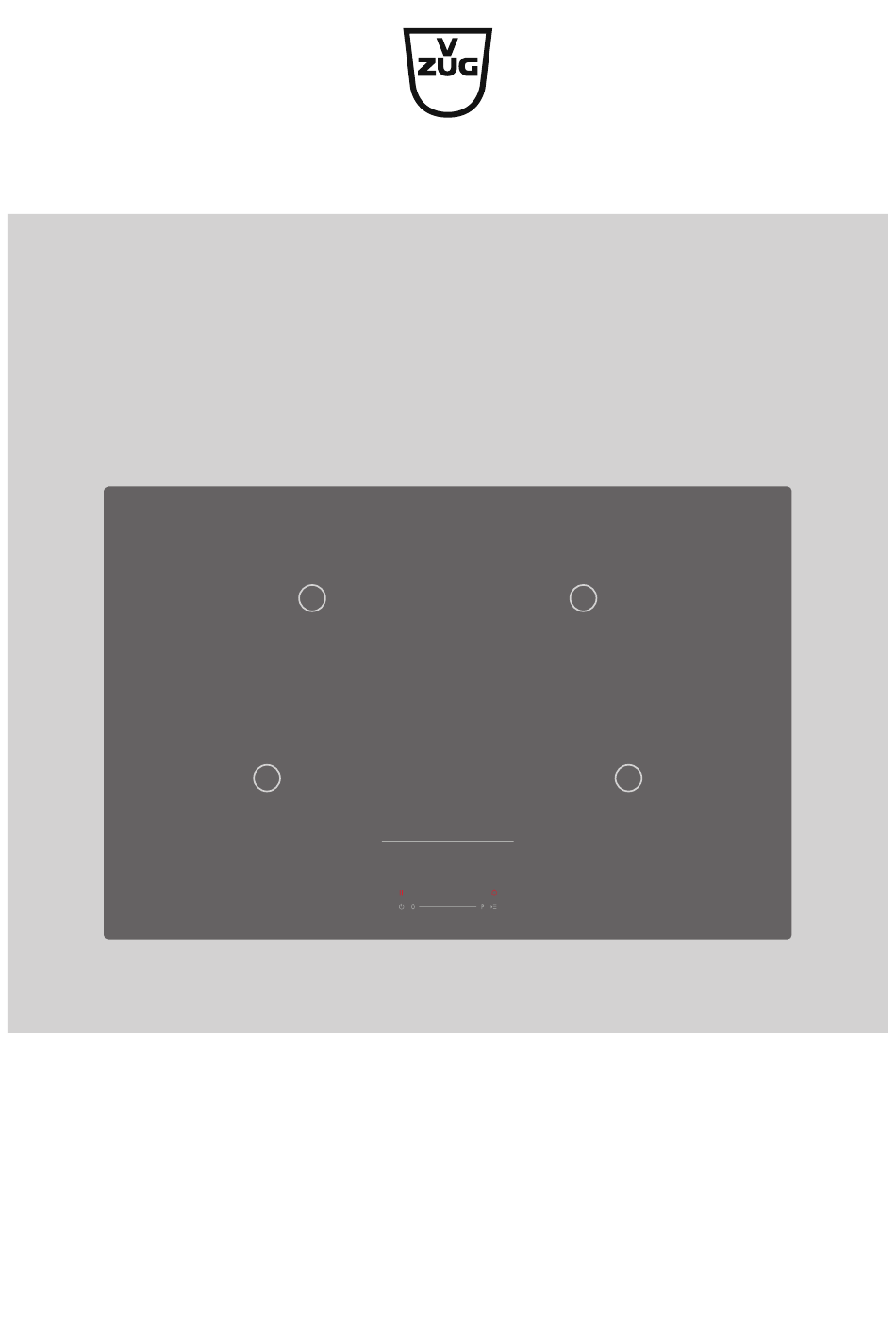

  • Page 1 Operating instructions CookTop V2000 I804 Induction hob...
  • Page 2 Validity These operating instructions apply to: Model designation Type CookTop V2000 I804 CTI2T-31146 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2025...
  • Page 3 Contents Factory settings ...........  23 Safety precautions  4 Care and maintenance  24 Symbols used ............ 4 General safety precautions ........ 4 Cleaning agent ............  25 Appliance-specific safety precautions.... 4 Trouble-shooting  25 Instructions for use .......... 5 Error messages ...........  25 Using for the first time  8 Other possible problems........
  • Page 4 Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 5 1 Safety precautions disconnect it from the mains ▪ Do not operate the appliance to avoid possible electric using an external time switch shock. or a separate remote control ▪ WARNING: The appliance system. and its accessible parts get Instructions for use hot during use.
  • Page 6 1 Safety precautions ▪ Retain these operating instructions for Caution: Risk of injury future reference. If you sell the appli- ▪ Keep pets away from the appliance. ance or pass it on to a third party, ▪ The appliance is designed for use by please ensure these operating instruc- adults who are familiar with the content tions accompany the appliance, to-...
  • Page 7 1 Safety precautions ▪ Pots with pure copper or aluminium bases should not be used for cooking as they can leave behind traces that can be difficult to clean. If the traces are not removed immediately after cooking with a suitable cleaning agent, they can be permanently burned on and therefore permanently ruin the visual appearance of the appliance.
  • Page 8 Using for the first time The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances.
  • Page 9 3 Your appliance How induction hobs function Induction hobs work very differently from conventional hobs or hot plates. The induction coils under the glass ceramic plate produce a rapidly changing magnetic field which dir- ectly heats up the magnetic base of the cookware. The glass ceramic plate is only warmed by the hot cookware.
  • Page 10 3 Your appliance Sandwich base Capsule base Multi-layer material Pressed base Cast iron Enamelled cast iron Enamelled steel Key: Heat distribution Steel Reaction speed Aluminium Noise level Enamel Care Good Weight Satisfactory Unfavourable General notes on cookware ▸ As far as possible ensure that the dia- meter of the base of the cookware is the same size as the upper diameter of the cookware.
  • Page 11 Noise depends on the cookware used. If the noise causes considerable disturb- ance, it can help to change the cookware. OptiGlass Applies to CookTop V2000 I804 (CTI2T84MESOD) Hobs with OptiGlass have an additional coating on the glass surface. This coating makes the surface harder, tougher and more scratch resistant than non- coated glass surfaces.
  • Page 12 4 Operating the appliance Operating the appliance Switching the appliance on and off All the appliances are operated in the same way. ▸ To switch the appliance on: Hold the button depressed for 1 second. – «0» illuminates in all the power level displays. –...
  • Page 13 4 Operating the appliance Power level Cooking method Continue cooking, braising Pasta, soup, braised meat Gentle frying Rösti, omelettes, breaded fried foods, sausages Frying, deep frying Meat, chips Flash frying Steak Fast heating Boiling water Bridging function The bridging function allows the two right cooking zones or the two left cooking zones to be switched on together and to be regulated together.
  • Page 14 4 Operating the appliance Switching melting, keeping warm and simmering on ▸ Use the slider to select the desired cooking zone. ▸ Touch the button. – The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout. ▸...
  • Page 15 4 Operating the appliance Power management PowerPlus cannot be used with both cooking zones of a group (A or B) at the same time. If PowerPlus is activated with both cooking zones of a group, then the power output is reduced for the cooking zone that was first selected.
  • Page 16 4 Operating the appliance ▸ Use the slider to select – illuminates brightly and appears. AutoCook ▸ Touch the slider below – is displayed alternately with the power level set in the power level display. – When the Automatic boost duration finishes, the appliance automatically switches back to the previously set power level.
  • Page 17 4 Operating the appliance ▸ Touch or swipe the slider to set the operating time. To increase or decrease the operating time faster, long press the slider. To clear the operating time, press and hold «0» on the slider. ▸ Touch the slider below –...
  • Page 18 4 Operating the appliance 4.11 Timer The timer functions like an egg timer (1 min. – 9 hrs. 59 mins.). It can be used at any time and independently of all other functions. Setting the timer In order to set the timer, no cooking zone may be selected. ▸...
  • Page 19 4 Operating the appliance Changing the duration remaining of the timer In order to change the duration remaining, no cooking zone may be selected. ▸ Touch the button. – The «Cooking zone dependent functions» menu appears. The duration remaining of the timer is displayed above function selection.
  • Page 20 5 User settings Switching pause cooking off ▸ Briefly press the button. – All cooking zones switch back to the previous setting. – Operating times continue to run again. – All the buttons and the slider are active again. 4.13 Wipe protection This function prevents the power level from being changed accidentally, for instance when wiping the control panel with a cloth.
  • Page 21 5 User settings Accessing the user settings To change the user settings, the cooking zones may be active. However no cooking zone may be selected. ▸ Touch the button. – The «Cooking zone independent functions» menu appears. ▸ Use the slider to select ▸...
  • Page 22 5 User settings Brightness The preferred brightness level for the display can be set in the user settings. Changing the brightness settings ▸ Access the user settings (see page 21). ▸ Use the slider to select – illuminates brightly and appears.
  • Page 23 5 User settings ▸ Press the slider below – The hob is set to the new level of loudness. Button signal The button signal (single acoustic signal when a button/slider is pressed) can be switched on or off in the user settings. Switching the button signal on/off (see page 21) Recommended value for the timer The recommended value for the timer can be set in the user settings.
  • Page 24 6 Care and maintenance Care and maintenance Ideally, clean the appliance when it has completely cooled down. Burns hazard! Always clean the hob after use. This prevents food residue from burning on. Dried-on or burned-on food residue is harder to clean off. Use of improper cleaning techniques can result in damage to the markings or surface.
  • Page 25 7 Trouble-shooting ▸ Wipe off with a wet cloth and then polish with a dry cloth or the soft side of a suitable cleaning sponge. Cleaning agent Glass ceramic with OptiGlass Unsuitable cleaning agents may attack and damage the coating. ▸...
  • Page 26 7 Trouble-shooting Display Possible cause Solution After being switched ▪ The childproof lock is activ- ▸ For operating the appli- on, a prompt to enter a ated. ance with the childproof code appears. lock activated, see the «User settings» section. ▸...
  • Page 27 7 Trouble-shooting Display Possible cause Solution «E» or «Er» and a num- ▪ Internal error occurred. ▸ Note down the error number. ber flash or illuminate ▸ Note down the serial number alternately. (SN) of the appliance. See the identification plate for this.
  • Page 28 8 Technical data Technical data Product information In accordance with EU Regulation No.: 66/2014 Brand V-ZUG Type of appliance Built-in hob Model number 31146 Type designation CTI2T-31146 Number of cooking zones Heating technology Induction cooking zone Dimensions of cooking zone 18×20 18×20 18×20...
  • Page 29 9 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 30 989 Siam Piwat Tower, 12 A Floor, London W1U 1PN TT25, GREAT BRITAIN Rama1 Road, Pathumwan Pathumwan, Bangkok 10330 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A...
  • Page 31 Index Addresses of the importers ......30 Malfunctions............25 Appliance Melting, keeping warm and simmering ..13 Switching off .......... 14 Disposal............ 29 Switching on .......... 14 Appliance overview ..........8 Appliance-specific safety precautions Model designation ..........2 ................ 4 AutoCook Switching off before time ......
  • Page 32 Technical data ..........28 Technical questions......... 35 Timer ..............18 Calling up duration remaining.... 18 Changing the duration remaining.....  19 Finished ............ 19 Setting............ 18 Switching off before time ...... 19 Type............... 2 User settings............. 20 Accessing............ 21 Using for the first time........8 Validity..............
  • Page 33 Notes...
  • Page 35 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 36 ▸ Touch or swipe the slider to set the power level while the cooking zone is illuminated. – The cooking zone selected illuminates red. To switch the appliance off ▸ Hold the button depressed for 2 seconds. 1097702-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
