Summary of Contents for V-ZUG V2000 A604

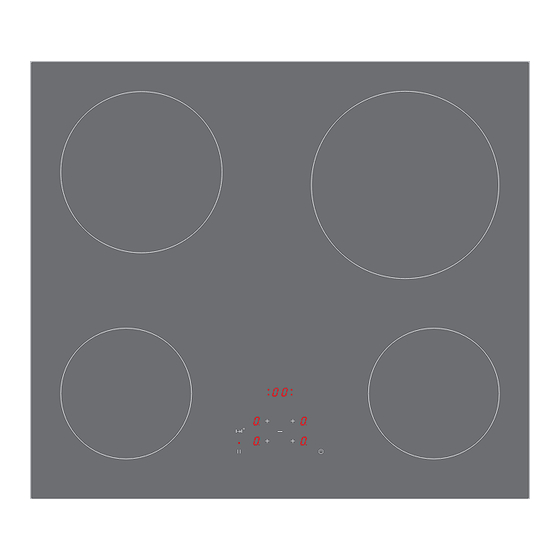

- Page 1 Operating instructions CookTop V2000 A604 Toptronic hob...
- Page 2 Validity These operating instructions apply to: Type Product family CookTop V2000 A604 CT2T-31150 Variations depending on the model are noted in the text. © V-ZUG AG, CH-6302 Zug, 2021...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Using for the first time 7 Your appliance 7 Appliance overview .......... 7 Operating and display elements...... 7 Cookware .............. 8 Operating the appliance 8 Switching the appliance on and off.... -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ WARNING: The appliance Instructions for use and its accessible parts get Before using for the first time hot during use. Be careful not ▪ The appliance must be installed and to touch the heating ele- connected to the electricity supply in accordance with the separate installa- ments. - Page 6 1 Safety precautions ▪ Pots with pure copper or aluminium Note on use bases should not be used for cooking ▪ Tests have shown that under normal cir- as they can leave behind traces that cumstances there is no risk to cardiac can be difficult to clean.
-
Page 7: Using For The First Time
Using for the first time The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. -
Page 8: Cookware
4 Operating the appliance Cookware Suitable cookware Cookware should have a stable bottom. When heated, the base of the cookware must lie flat on the surface of the cooking zone. Cookware made of metal is more suitable than that made of glass or ceramic as with metal the heat is distributed evenly quicker. -
Page 9: Residual Heat Indicator
4 Operating the appliance Residual heat indicator After a cooking zone is switched off, remains illuminated as long as there is a risk of burns. Overview of power levels Power level Cooking method Melting, gentle warming Butter, chocolate, gelatine, sauces Swelling Rice Continue cooking, reducing,... -
Page 10: Operating Time
4 Operating the appliance Operating time Do not leave the hob unattended during use. Risk of boiling over, burning on and igniting! With the operating time function, a Cooking zone switches off automatically after a set time 1 – 99 mins. Setting the operating time ▸... -
Page 11: Timer
4 Operating the appliance Timer The timer functions like an egg timer (1 – 99 mins.). Setting the timer ▸ Switch the appliance on. ▸ Touch the button. – flashes in the display. ▸ Use the button to set the required duration of the timer. –... -
Page 12: Restore Function
4 Operating the appliance 4.10 Restore function If the appliance has been inadvertently switched off with the button, the settings can be restored within 6 seconds. ▸ Switch the appliance on. – The indicator light for the button flashes. ▸ Touch the button. -
Page 13: Care And Maintenance
5 Care and maintenance Care and maintenance Ideally, clean the appliance when it has completely cooled down. Burns hazard! Always clean the hob after use. This prevents food residue from burning on. Dried-on or burned-on food residue is harder to clean off. Use of improper cleaning techniques can result in damage to the markings or surface. -
Page 14: Cleaning Agent
6 Trouble-shooting ▸ Wipe off with a wet cloth and then polish with a dry cloth or the soft side of a suitable cleaning sponge. Cleaning agent Glass ceramic with standard glass ▸ Only use the cleaning agents and methods for glass ceramic that we recommend. - Page 15 6 Trouble-shooting Display Possible cause Solution flashes ▪ An interruption in the power ▸ Touch any button to ac- supply. knowledge the display. ▸ The appliance can be used again as normal. and a num- ▪ Internal error occurred. ▸ Note down the error num- ber illuminate ber.
-
Page 16: Other Possible Problems
7 Technical data Other possible problems Problem Possible cause Solution The appliance is not ▪ The fuse or circuit breaker for ▸ Change the fuse. working and all the dis- electrical installations in the ▸ Reset the circuit breaker. plays are dark. home is defective. - Page 17 8 Disposal Disposal The «crossed‐out wheeled bin» symbol requires the separate collection of waste ▪ electrical and electronic equipment (WEEE). Such equipment can contain hazardous, environmentally harmful materials. ▪ These appliances are to be handed over to a designated collection point for the recyc- ling of electrical and electronic equipment and must not be disposed of with unsorted household waste.
-
Page 18: Index
Index Appliance Pause cooking..........12 Problems ............14 Switching on and off ........ 8 Product fiche............. 16 Appliance disposal .......... 17 Appliance overview ..........7 Appliance-specific safety precautions ................ 4 Queries .............. 19 Automatic boost ..........9 Switching off before time ...... 9 Switching on ............ 9 Residual heat indicator ........ -
Page 19: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements. - Page 20 To switch appliance off ▸ Touch the button. 1097867-01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
