Summary of Contents for V-ZUG CookTop V4000 I704

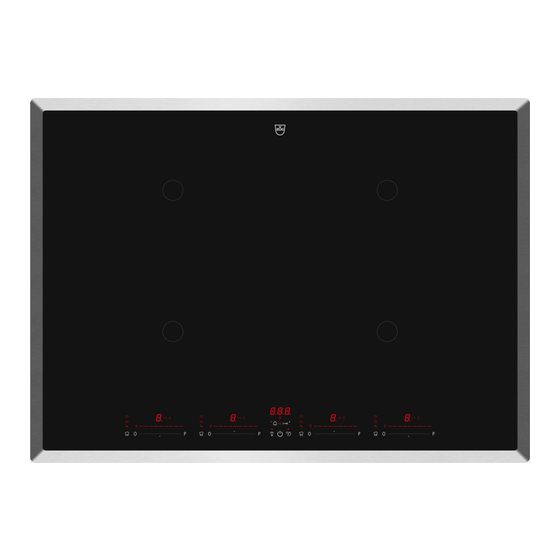

- Page 1 Operating instructions CookTop V4000 I604 | I704 Induction hob...
- Page 2 Validity These operating instructions apply to: Model designation Model number Type CookTop V4000 I604 31115 CTI4T64MMSLD, CTI4T64MMSOLD CookTop V4000 I704 31116 CTI4T74MMSLD, CTI4T74MMSOLD Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...
-
Page 3: Table Of Contents
Contents Changing user settings ........ 20 Safety precautions 4 Care and maintenance 21 Symbols used............ 4 General safety precautions........ 4 Cleaning agent ............ 22 Appliance-specific safety precautions .... 4 Trouble-shooting 22 Instructions for use.......... 5 Error messages............. 22 Using for the first time 8 Other possible problems........ -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ WARNING: The appliance ▪ Do not operate the appliance and its accessible parts get using an external time switch hot during use. Be careful not or a separate remote control to touch the heating ele- system. ments. - Page 6 1 Safety precautions ▪ The appliance corresponds to recog- Caution: Risk to life nized technology standards and the rel- ▪ Packaging material, e.g. plastic film and evant safety regulations. Proper use of polystyrene, can be dangerous for chil- the appliance is essential to avoid dam- dren and animals.
- Page 7 1 Safety precautions ▪ The hob is designed to be used – signs of use, such as scratches or the wear and tear from pans and cookware, are normal. The more intensively it is used, the greater the signs of use; however, the appliance remains in perfect work- ing order and therefore does not give a right of complaint.
-
Page 8: Using For The First Time
During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that the room is well ventilated. Your appliance Appliance overview CookTop V4000 I604 ▪ 4 adjustable cooking zones 18 × 20 cm CookTop V4000 I704 ▪ 4 adjustable cooking zones 18 × 20 cm... -
Page 9: Operating And Display Elements
3 Your appliance Operating and display elements Never rest objects on the operating elements! This can cause damage to the appli- ance and unintended operating errors. Buttons Multi-function button Appliance ON/OFF Slider (for setting the power level) Wipe protection / pause cooking ON/OFF PowerPlus Timer/function as minus button... -
Page 10: Pan Detection
3 Your appliance Pan detection Each cooking zone is equipped with pan detection. This detects suitable induction com- patible cookware with a magnetic base. ▪ If cookware is placed on a cooking zone before it is turned on, illuminates in the corresponding display. - Page 11 3 Your appliance Key: Heat distribution Steel Reaction speed Aluminium Noise level Enamel Care Good Weight Satisfactory Unfavourable General notes on cookware ▸ As far as possible ensure that the dia- meter of the base of the cookware is the same size as the upper diameter of the cookware.
-
Page 12: Optiglass
4 Operation Noise during cooking Cookware can make noise during cooking. This does not indicate any malfunction, nor does it affect the functioning of the appliance in any way. Noise depends on the cookware used. If the noise causes considerable disturb- ance, it can help to change the cookware. -
Page 13: Overview Of Power Levels
4 Operation – alternate in the display if cookware is standing on a cooking zone that has residual heat. – illuminates if no cookware is standing on a cooking zone with residual heat. Overview of power levels Power Cooking method level Melting Butter, chocolate, gelatine, sauces, approx. -
Page 14: Powerplus
4 Operation The precision of the simmer function depends on the cookware used. Water can start to boil. If this is the case, we recommend the pan lid be left off when using the simmer function. For locations over 1,500 meters above sea level, it is generally recommended the pan lid be left off when using the simmer function. -
Page 15: Bridging Function
4 Operation 4.10 Bridging function The bridging function allows two individual cooking zones lying one behind the other to be switched on together and to be adjusted together. Switching the bridging function on ▸ Touch both sliders at the same time. –... - Page 16 4 Operation Setting the operating time ▸ Set the desired power level on the cooking zone. ▸ Touch the button. – flashes in the display. ▸ Touch the slider for the required cooking zone. – The symbol for the cooking zone selected illuminates. –...
-
Page 17: Timer
4 Operation ▸ Touch the slider for the required cooking zone. – The operating time is displayed and can be changed. 4.13 Timer The timer functions like an egg timer (1 min. – 9 hrs. 59 mins.). It can be used at any time and independently of all other functions. Setting the timer ▸... -
Page 18: Restore Function
4 Operation Operating the appliance with the childproof lock activated ▸ Switch the appliance on. ▸ Touch the buttons at the same time. – An acoustic signal is emitted. – The childproof lock is overridden. The appliance can now be used as normal. The childproof lock is automatically reactivated 1 minute after switching off the hob. -
Page 19: Optilink
5 OptiLink OptiLink Connecting the hob to the range hood The hob can only be connected to a range hood with the OptiLink function. To activate the connecting mode on the hob: ▸ Switch the hob off. ▸ Access the user setting (see page 20). ▸... -
Page 20: Changing User Settings
6 User settings User setting Setting value Factory setting Automatic boost Automatic boost off Automatic boost on Default operating time / Default duration 0 minutes timer duration Adjustable in steps from 10–90 minutes Acoustic signal when Acoustic signal off buttons are pressed Acoustic signal on Cancel wipe protection To switch wipe protection off: Touch the... -
Page 21: Care And Maintenance
7 Care and maintenance Care and maintenance Ideally, clean the appliance when it has completely cooled down. Burns hazard! Always clean the hob after use. This prevents food residue from burning on. Dried-on or burned-on food residue is harder to clean off. Use of improper cleaning techniques can result in damage to the markings or surface. -
Page 22: Cleaning Agent
8 Trouble-shooting ▸ Wipe off with a wet cloth and then polish with a dry cloth or the soft side of a suitable cleaning sponge. Cleaning agent Glass ceramic with OptiGlass Unsuitable cleaning agents may attack and damage the coating. ▸... - Page 23 8 Trouble-shooting Display Possible cause Solution flashes ▪ The excess temperature pro- ▸ Allow the cooking zone to tection of a cooking zone cool down. was triggered. ▸ Continue cooking on a dif- ferent cooking zone. ▸ Check cookware. flashes ▪...
-
Page 24: Other Possible Problems
8 Trouble-shooting Other possible problems Problem Possible cause Solution The appliance is not ▪ The fuse or circuit breaker for ▸ Change the fuse. working and all the dis- electrical installations in the ▸ Reset the circuit breaker. plays are dark. home is defective. -
Page 25: Technical Data
9 Technical data Technical data Product fiche In accordance with EU Regulation No. 66/2014 Model number GK 31115 Type designation GK CTI4T64MMS... Number of cooking zones Heating technology Induction cooking zone Dimensions of cooking 18 × 20 18 × 20 18 ×... - Page 26 One Pancras Square 6 Scotts Road Gridiron Building Scotts Square #03-11/12/13 N1C 4G London 228209 Singapore GREAT BRITAIN SINGAPORE V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise "Stirion"...
- Page 27 Index Addresses of the importers ......26 Noise during cooking........12 Appliance Notes ..............29 Disposal............ 26 Switching on and off ........ 12 Appliance overview ..........8 Operating and display elements...... 9 Appliance-specific safety precautions Buttons.............. 9 ................ 4 Displays ............ 9 Automatic boost ..........
- Page 28 Ending before time ........ 17 Finished ............ 17 Setting............ 17 Type............... 2 User settings............. 19 Changing............ 20 Switching off before time ...... 20 Using for the first time........8 Validity..............2 Warranty extensions ........31 Wipe protection ..........18...
- Page 29 Notes...
- Page 31 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 32 ▸ Touch « » on the slider to heat a large quantity of water quickly. To switch cooking zone off ▸ Touch « » on the slider. To switch appliance off ▸ Touch the button. 1078207-06 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
