SPECIFICATIONS
DISPLAY
Size
Resolution
Touchscreen
ELECTRICAL
Supply Voltage
Max Supply Current @ 12 VDC Input
Max Supply Current @ 24 VDC Input
MECHANICAL
Dimensions
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Humidity
COMMUNICATIONS
Connectivity Range
WiFi Bandwidth
COMPATIBLE:
3.2"
320x240
Capacitive
7.5 to 76 VDC
400 mA
200 mA
4.77" x 2.84" x 0.69"
-4 to +122 °F / -20 to +50 °C
-22 to +158 °F / -30 to +70 °C
5-95 % RH, non-condensing
164 Feet / 50 meters (unobstructed)
2.4 Ghz
GP-PT-DIS-3

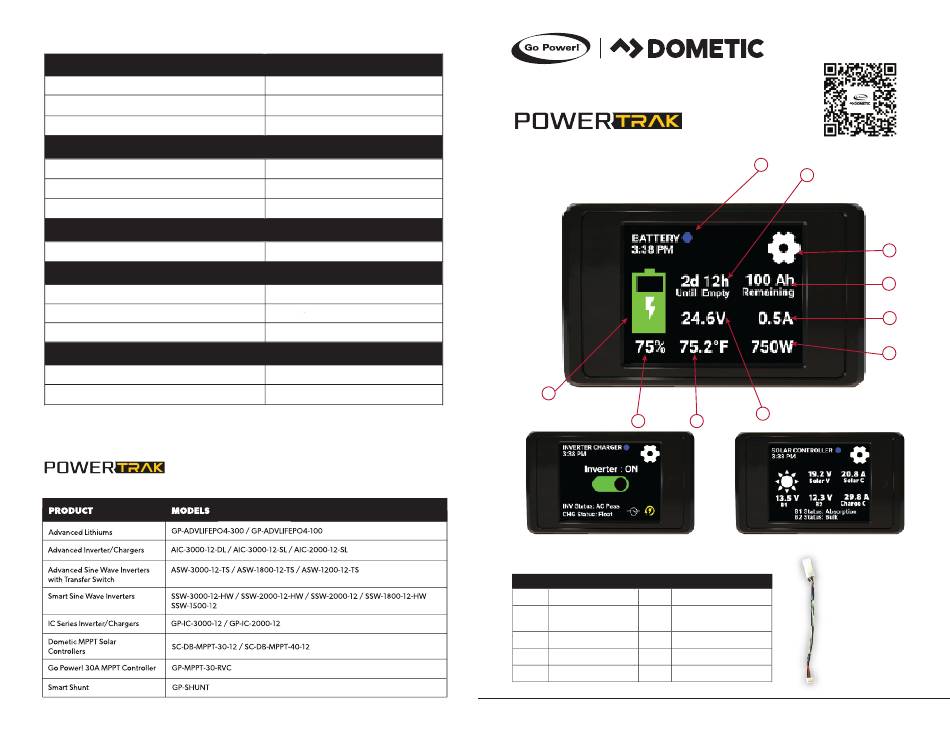

QUICK START GUIDE
BATTERY INFORMATION SCREEN
1
2
INVERTER CHARGER SCREEN
NO.
DESCRIPTION
NO.
1
Battery Image Indicator
6
Input/Output Current (+/-)
Battery Percentage
2
7
Ah Remaining
Remaining
3
Battery Temperature
8
Settings
4
Battery Voltage
9
Time Remaining
5
Input/Output Power (+/-)
10
Connectivity Icon
Find tech tips, manuals and support at gopowersolar.com/products/powertrak-screen/
SCAN FOR FULL MANUAL
DISPLAY
10
9
4
3
MPPT SOLAR CONTROLLER SCREEN
DESCRIPTION
INCLUDED WITH
DISPLAY IN BOX:
1x RV-C Adapter Cable
8
7
6
5
