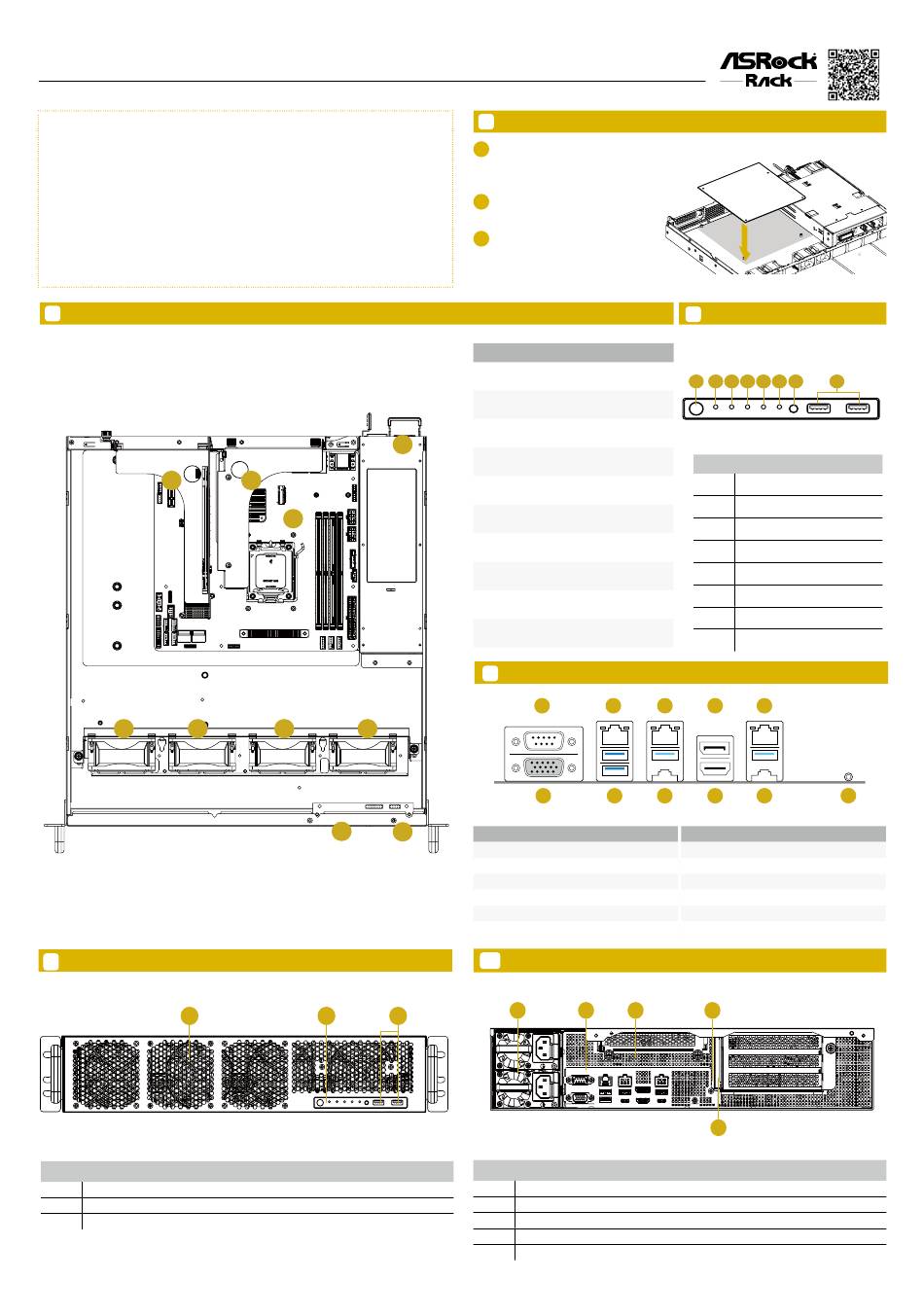

ASROCK Rack 2U1G-B650/EVAC Quick Installation Manual

*15G065331000AR*
P/N: 15G065331000AR V1.0
Quick Installation Guide
2U1G-B650/EVAC
The User's Manual is available for download from the ASRock Rack's official website at http://
www.asrockrack.com.
Take note of the following precautions before installing the components or change any settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the components due to static electricity, NEVER place the components
directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety
grounded object before installation.
3. Hold components by the edges and do not touch the ICs.
4. Whenever uninstalling any components, place them on a grounded anti-static pad or in the bag
that comes with the components.
5. When placing screws into the screw holes to secure any components to the barebone, please
do not over-tighten the screws! Doing so may damage both components and barebone.
2 Top View
2
8 7
5 Front Panel
1
No. Description
1 Front Vent
2 Control Panel (depends on the specification of the server board)
3 2 x USB Ports
4
3
1
6 5
9 10
2 3
1 Replace Server Board
Carefully unplug all cables and release
1
thumbscrews on the ser ver board to
remove them from the barebone.
Align the replaced server board with the
2
mounting holes
A f f i x t he screws clock w ise into t he
3
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No. From
1 Server Board
2 Riser card (RB2UX16L_G5_RDV)
Riser cable (PCIe x4 GF to PCIe x16 slot
3
Gen4 cable)
4 2 x Power Supply Units
5 System Fan (FAN1)
6 System Fan (FAN2)
7 System Fan (FAN3)
8 System Fan (FAN4)
Control Panel Buttons and LED
9
Indicators
10 2 x USB Port
I/O Panel
4
2 4
1 3
No. Description
1 VGA Port (VGA1)
2 Serial Port (COM1)
3 USB 3.2 Gen1 Ports (USB3_1_2)
4 LAN RJ-45 Port (IPMI_LAN1)
5 USB 3.2 Gen1 Port (USB3_4)
6 1G LAN RJ-45 Port (LAN1)
6 Rear Panel
1 2 3
No. Description
1 2 x Power Supply Units (PSU)
2 I/O Shield (depends on the specification of the server board)
3 Rear Vent
4 Riser cable (PCIe x4 GF to PCIe x16 slot Gen4 cable)
5 Riser card (RB2UX16L_G5_RDV)
www.asrockrack.com
Control Panel
3
1 2 3 4 5 6 7 8
No. Description
1 Power Button
2 Power Status LED
3 Hard Drive Status LED
4 LAN1 Activity LED
5 LAN2 Activity LED
6 System Status LED
7 System Reset Button
8 2 x USB Port
6 8 10
5 7 9
No. Description
7 HDMI Port (HDMI1)
8 DisplayPort (DP1)
9 USB 3.2 Gen1 Port (USB3_6)
10 1G LAN RJ-45 Port (LAN2)
11 UID Switch (UID1)
4
5
11
