Quick start guide
Before using this baby monitor, please read the Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at
What does HD Video Monitor do?
VTech 5" Smart Wi-Fi 1080p Video Monitor allows you to stay close to your baby when you
are on the move or away. This monitor is Wi-Fi enabled, using your home wireless network
to stream live video and audio through the 1080p baby unit and 5-inch color screen
parent unit. It allows you to maintain a constant connection to your baby.
You can also monitor from your smartphone or mobile tablet.
VTech 5" Smart Wi-Fi 1080p Video Monitor uses MyVTech Baby Pro app to let you
instantly see and hear what's happening with your baby from anywhere in the world. The
app can be downloaded from the App Store or the Google Play
Congratulations
on purchasing your new VTech product.
www.vtechphones.com. In Canada, visit www.vtechcanada.com.

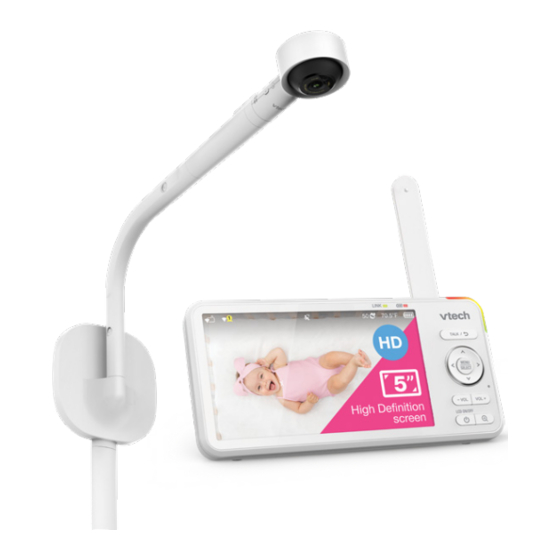

5" Smart Wi-Fi 1080p
Over-the-Crib Monitor
For more support information
Store.
TM
RM5887HD
RM5887HD
Advertisement
Table of Contents
Related Manuals for VTech RM5887HD
Summary of Contents for VTech RM5887HD
- Page 1 In Canada, visit www.vtechcanada.com. What does HD Video Monitor do? VTech 5” Smart Wi-Fi 1080p Video Monitor allows you to stay close to your baby when you are on the move or away. This monitor is Wi-Fi enabled, using your home wireless network to stream live video and audio through the 1080p baby unit and 5-inch color screen parent unit.
-
Page 2: Important Safety Instructions
Electromagnetic fields (EMF) them from overheating, these openings must not be blocked This VTech product complies with all standards regarding by placing the product on a soft surface such as a bed, sofa electromagnetic fields (EMF). If handled properly and according or rug. -
Page 3: What's In The Box
What’s in the box Your baby monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Parent Unit Extension cable Baby Unit Parent Unit adapter (Output: 5V 2A) Baby Unit adapter Mounting template (Output: 5V 1.5A) Quick start guide... - Page 4 Extension cover Mounting: second extension Mounting cover Mounting bracket (attach to wall part) Cable cover Cable cover screws Wall mount screws End cable cover and anchors (wall plugs) and anchors (wall plugs) (inside bag with label) (inside bag with label)
- Page 5 Connect, charge and power on the paren Connect, charge and power on the parent unit Connect the baby monitor Connect the baby monitor Charge the The parent the parent u • The rechargeable battery in the parent unit is built-in. •...
- Page 6 Charge the parent unit battery before use The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid •...
- Page 7 mount the baby unit : There is floor stand available to purchase. Cautions: • Wall mount should be 1m above the bed sheet level or baby, and 1.7m above the floor. You can use the mounting template (a paper ruler) for measurement.
- Page 8 4. Connect the cable jack with the DC socket, then secure the cable with the Extension cover (C). 5. Use Mounting template to measure the 6. Insert 3 plastic screw anchors (H) into the location of the wall mount, and to mark the 3 pre-drilled holes, then insert the screws holes for the screws.
- Page 9 8. Install the Cable covers (F) to prevent baby 7. Place the Mounting cover (D) on the Mounting from touching the cable. bracket (E), and then slide it downward until it Utilize the adhesive tape on the back of locks into place. the cable cover to stick the covers onto the wall, or alternatively screw (I) the covers onto the wall.
- Page 10 Install and power on the baby unit Install the Baby Unit onto the First extension, and connect the adapter to the end of the cable and the power supply to power up the Baby Unit. Slide the switch to ON to power your Baby Unit on.
- Page 11 Parent unit icons Main Status icons Options Menu Direct mode Night light The parent unit and baby unit connect to each other directly. • Turn on or turn off night light. Red bars indicate no connection. • Select a night light color. •...
- Page 12 Overview Baby unit overview Light sensor Camera lens Microphone Infrared LEDs • Allow you to see clearly in a dark environment. Speaker LED indicator • Steadily on, then off, when the Baby Unit is connected to the Parent Unit. • Flashes when the Baby Unit is connecting with the Parent Unit, or the link to the Parent Unit has lost.
-
Page 13: Parent Unit Overview
Parent unit overview LINK LED light Arrow keys • On when the parent unit is linked to the • Press to navigate left, right, up and baby unit. down within the main and sub-menus. • Flashes when the link to the baby unit •... - Page 14 Download app for mobile access Download the free MyVTech Baby Pro mobile app and install it to a mobile device, then use your mobile device and the mobile app to monitor your baby remotely. 1. Press MENU/SELECT when the parent unit is idle. 2.
-
Page 15: How The System Works
How the system works For better security and more stable connectivity, this baby monitor requires connecting to a Wi-Fi network and operating in Router mode connection. Direct mode Your baby monitor parent unit and baby unit connect to each other in Direct mode by default, which allows you to immediately stream video out of the box. ... -
Page 16: Basic Operation
Basic operation After powering up your baby monitor, the parent unit streams live video in direct mode. We recommend you follow the instructions on-screen to set up home Wi-Fi network with your monitor for functionality enhancements and mobile access. See Auto software and firmware update Download app for mobile access... - Page 17 Talk to your baby via the baby unit 1. Press and hold the TALK key. 2. When the icon displays on screen, speak to your parent unit. Your voice is transmitted to the baby unit. Press and hold 3. When finished talking, release the TALK key to hear your baby again.
-
Page 18: Cable Management
Protect your privacy and online security VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry- recommended best practices to help keep your wireless connection private and your devices protected when online. We recommend you carefully review and consider complying with the following tips. -
Page 19: Need Help
If you would like to contact us, visit https:/ /help.vtechphones.com/cs You can also call our Customer Support at 1-844-848- 8324 (1-844-84-VTECH) [in US] or 1-888-211-2005 [in Canada] for help. Auto software and firmware update To ensure that your HD video monitor is always at its best performance, the Parent Unit will prompt a message and ask you to update its software and the Baby Unit’s firmware... -
Page 20: General Product Care
General product care • To keep this product working well and looking good, follow these guidelines: • Avoid placing it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 21: Fcc And Ic Regulations
United States and Canada. The program provides a convenient alternative to placing used lithium-ion batteries into the trash or municipal waste, which may be illegal in your area. VTech’s participation makes it easy for you to drop off the spent product at local retailers participating in the program ®... -
Page 22: Limited Warranty
Consumer for Products purchased and used in the United States of America and Canada. What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period (“Materially Defective Product”)? During the limited warranty period, VTech’s authorized service... - Page 23 Product(s) to the service location. VTech will return replaced Product under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. What must you return with the Product to get warranty service? 1.
-
Page 24: Technical Specifications
VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss resulting from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this product.
