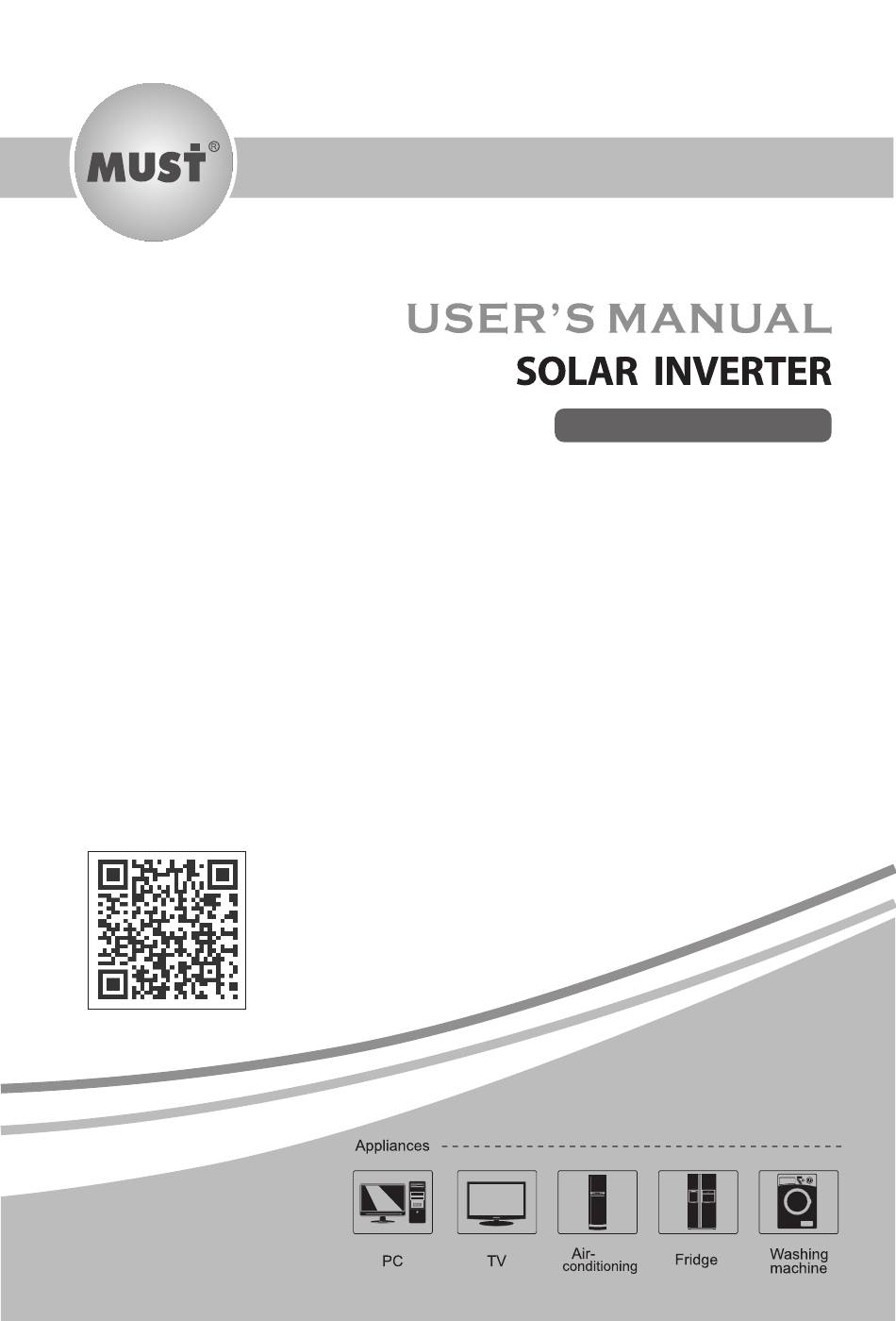

- Page 1 100% PURE SINE WAVE SOLAR INVERTER PV3000 (1KW~6KW) ThesoftwaresupportsinstallationonWindowssystems. ScantheQRcodefordownloadorvisitthewebsitefor downloading:https://sw.mustpower.com 4200-030024-04A1...
- Page 2 TABLE OF CONTENTS General Precautions.....................1 Personnel Precautions..................1 Introduction.......................2 ......................2 Features ..................2 LCD Panel Description ................ 3 AC terminal panel printing description Installation......................3 ..................3 Unpacking and inspection ...................... 3 Preparation ....................4 Mounting the Unit ....................4 DC Wiring Suggestion ..................
- Page 3 TABLE OF CONTENTS General Precautions.....................1 Personnel Precautions..................1 Introduction.......................2 ......................2 Features ..................2 LCD Panel Description ................ 3 AC terminal panel printing description Installation......................3 ..................3 Unpacking and inspection ...................... 3 Preparation ....................4 Mounting the Unit ....................4 DC Wiring Suggestion ..................
- Page 4 To reduce risk of injury, charge only lead-acid rechargeable batteries. If customer use flooded batteries, batteries must be maintained regularly. Other battery types may cause damage and injury. Do not expose it to rain, snow or any type liquids. Inverters are designed for indoor use.
- Page 5 Introduction It is series is very economical pure sine wave inverter, AC charger inbuilt, from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances.
- Page 6 AC terminal panel printing description. Battery Voltage Battery Voltage 12VDC 12VDC 24VDC 24VDC AC INPUT AC INPUT 48VDC 48VDC PROTECT PROTECT AC INPUT AC OUTPUT PV INPUT AC INPUT AC OUTPUT PV INPUT WI-FI REMOTE BAT-CAN REMOTE BAT-CAN WI-FI PORT PORT Battery Battery...
- Page 7 Mounting the Unit Consider the following points before selecting where to install: Do not mount the inverter on flammable construction materials. Mount on a solid surface. Install this inverter at eye level in order to read the LCD display clearly. For proper air circulation to dissipate heat, require a clearance about 50 cm to the side and 80 cm above and below the unit.
- Page 8 CAUTION!! Do not apply antioxidant substance on the terminals before terminals are connected tightly. CAUTION!! Before making the final DC connection or closing DC breaker/ dis-connector, be sure positive (+) must be connected to positive(+) and negative(-) must be connected to negative(-). AC Input/Output Connection CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between inverter and AC input power source.
- Page 9 Please follow below steps to implement Load/Grid connection: Before making Load/Grid connection, be sure to open DC protector or disconnector first. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3mm. Insert grid wires according to polarities indicated on terminal block and tighten the terminal screws. Be Sure to connect PE protective conductor( )first.
- Page 10 Operation Operation key instructions: Switch button to control the machine On and off. There are four buttons: MENU, UP, DOWN, ENTER. Via UP and DOWN can check the various parameters display. Long press MENU to enter the setting menu page, MENU and ENTER turn over the menu page, UP and DOWN to set the parameters.
- Page 11 vdE: Wide(default) If set Wide, the AC range 70-140V. 110 Utility power range setting NRU: Narrow If set NRU, the AC range 90-140V. vdE: Wide(default) If set Wide, the AC range 140-270V. 220 Utility power range setting NRU: Narrow If set NRU, the AC range 180-270V. 110/115/120V 110V(default) 110V Mode Inverter...
- Page 12 Range of adjustment: 10A - Rated current. Rated current(default) Regulation step 5A AC charging setting acid (default) Select the battery type (Lead acid or Lithium) Lithium Battery type If “User-Defined” LI is selected,battery charge voltage and low DC cut-offvoltage can be set up in program 17,18 and 19. Range of adjustment 12V-14.5V(12Vmodel) 14.1V(default) 24-29V(24Vmodel)
- Page 13 Percentage 1%-50 51%-100% (default) (default) (default) Page up key Page down key DOWN Confirm the exit key ENTER -10-...
- Page 14 LCD display: The software material No. & version No.002-02 shall be The Battery voltage and rated power shall be displayed on the LCD screen when switch on. displayed on LCD Screen when switch on. As this shown in Screen:3024 Output Voltage and Output Frequency. Input Voltage and Input Frequency.
- Page 15 Note: The generator must have dry contact function. If you connect AC grid and Generator to Inverter input at the same time, the interlock device should be installed between generator output and inverter input. (To ensure the utility and generator will not provide power to inverter at the same time.
- Page 16 Lithium battery Inverter BAT- CAN Communication Computer Monitoring directions · use the monitoring software: SolarPowerMonitor for communication. This software supports the communication function for various models of our company. · The software will send the COM Port and inverter model automatically. The operation steps are as follows ·...
- Page 17 The SolarPowerMonitor will auto scan communication port. Ep3000 Data Primary AppParamters Themes Ports Ep3000 primary setting Info COM7:Notworking Grid voltage Battery voltage 13.2 V COM3:ReadWrite Scan for Device Grid frequency 0 Hz Battery current -12.1 A Local COM3 EP3300 External Output voltage 230.4 V Battery temperature...
- Page 18 AC Mode Specification AC parameter Input waveform Pure sine wave 120/230Vac （ ±3%） Nominal input voltage Max input voltage 140/270Vac MAX Input frequency 50HZ/60HZ (auto sensing) Output waveform Same as input waveform Overload protection Breaker + software protection Output short circuit Breaker+ software protection Efficiency(AC mode) >95%®...
- Page 19 30-230V 45-230V 60-230V 15.5V/30.0V/45.0V/60.0V 14.5V/29.5V/44.5V/59.0V 10.0V/17.0V/25.5V/34.0V Charge mode: Charge current adjustable Charge cureent adjustable: 10A min (adjust by every 5A) Battery voltage 10-14.5Vdc/20-29Vdc/40-58Vdc Short circuit protection breaker ≥ Over charge protection Bat V charge voltage+1V/battery,1s 1 time for 30s then alarm 03 rule Boost CC Boost CV...
- Page 20 Fault Mode LED instruction LED state information No AC input LED AC(green) AC normal Blink AC over range LED Inv(yellow) Inverter mode normal LED Fault(red) fault Blink caution BUZZER instruction Buzzer state information Buzzer off normal Buzzer beep caution Buzzer on fault -17-...
- Page 21 LCD display instruction When inverter alarm, even it back to recovery mode. We must restart inverter to clear fault. Fault instruction Fault code Fault Fan stop run Fan fault BTS over temperture: >65 C 1s 1 time for 1min then fault alarm 02; T <60 C recovery...
- Page 22 Trouble shooting If machine enters into fault mode, please remove input power. And according to the table, deal with the following problems. Explanation / Possible cause LED/Buzzer What to do Fault code 01 Fan stop run Check the fan. Buzzer beeps continuously Temperature of machine is too high.
