Television
Téléviseur
Televisor digital a color con
pantalla de cristal líquido
Reference Guide
Manuel de référence / Guía de referencia
KD-85X77L / 85X77CL / 75X77L
KD-75X77CL / 65X77L / 65X77CL
KD-55X77L / 55X77CL / 50X77L
KD-43X77L
Read this manual before using this product
Sony Customer Support
U.S.A.:
https://www.sony.com/tvsupport
Canada:
https://www.sony.ca/support
United States
Canada
1.800.222.SONY
1.877.899.SONY
Call the telephone number that appears
on your warranty card/policy.
Please do not return the product to the
store.
© 2023 Sony Corporation
Lisez ce manuel avant d'utiliser le produit
Service à la clientèle Sony
Canada :
https://www.sony.ca/support
États-Unis :
https://www.sony.com/tvsupport
Canada
1.877.899.SONY
Appelez le numéro de téléphone qui
apparaît sur votre carte/police de
garantie.
Ne retournez pas le produit au magasin.
Printed in Mexico
Lea este manual antes de usar el producto
Centro de Asistencia de
Sony
https://esupport.sony.com/ES/LA/
Llame al número de teléfono que aparece
en su tarjeta/póliza de garantía.
Por favor no devuelva el producto a la
États-Unis
tienda donde adquirió el producto.
1.800.222.SONY
5-049-956-12(1)
https://rd1.sony.net/help/tv/
kusltnr1/h_usltn/
Advertisement
Related Manuals for Sony KD-85X77L
Summary of Contents for Sony KD-85X77L

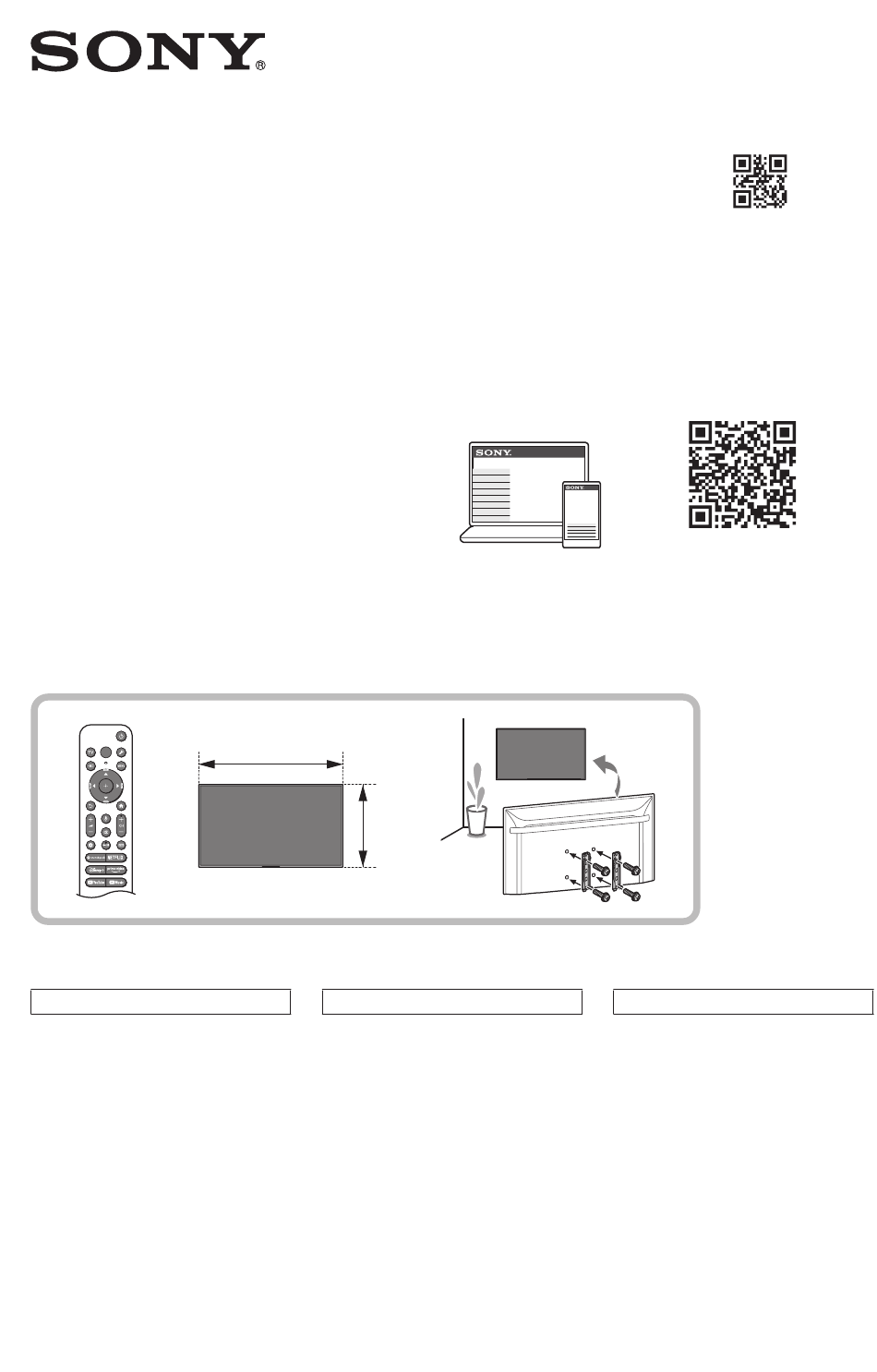

- Page 1 Téléviseur Televisor digital a color con pantalla de cristal líquido Reference Guide Manuel de référence / Guía de referencia https://rd1.sony.net/help/tv/ KD-85X77L / 85X77CL / 75X77L kusltnr1/h_usltn/ KD-75X77CL / 65X77L / 65X77CL KD-55X77L / 55X77CL / 50X77L KD-43X77L Read this manual before using this product Lisez ce manuel avant d’utiliser le produit Lea este manual antes de usar el producto Sony Customer Support Service à la clientèle Sony Centro de Asistencia de Sony U.S.A.: Canada : https://www.sony.com/tvsupport https://www.sony.ca/support https://esupport.sony.com/ES/LA/ Canada: États-Unis : Llame al número de teléfono que aparece https://www.sony.ca/support https://www.sony.com/tvsupport en su tarjeta/póliza de garantía. Por favor no devuelva el producto a la United States...
- Page 2 Dimensions and weight (without Table-Top Stand) / Dimensions et poids (sans support de table) / Dimensiones y peso (sin soporte de sobremesa) (mm)/(inches/pouces/pulgadas) (kg)/(lb.) 1901 / 1090 / 73 / 45.8 / KD-85X77L / 100.9 85X77CL 1 901 / 1 090 / 73 / 45,8 / 100,9 1686 / 969 / 72 / 30.4 / KD-75X77L / 75X77CL 1 686 / 969 / 72 / 30,4 / 1462 / 842 / 71 / 20.4 / KD-65X77L / 65X77CL 1 462 / 842 / 71 / 20,4 / 1243 /...
- Page 3 The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings.* (Power) Display TV channel list or switch to input. (Quick settings): Display Quick Settings. (Input): Display and select the input source, etc. (Control menu): Display the Control menu. / / / / ...
-
Page 4: Important Notice
Wall” are included within this TV’s instruction manual. • Read the supplied safety documentation for additional safety information. • Images and illustrations used in the supplied manuals are for reference and may differ from the actual product. • Setting menus are subject to change without notice due to software updates. For latest information, visit Sony support website. IMPORTANT - Read the End User Software License Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software License Agreement. The software license agreement between you and Sony is available online at Sony website (https:// www.sony.net/tv-software-licenses2/) or on your product screen. Press (Quick Settings) on the remote control and select [Settings] t [System] t [About] t [Legal information] t [End user license agreement]. Location of the identification label Labels for the TV Model No. and Power Supply... - Page 5 * To see the model name of the remote control, open the remote control cover and see the label on the remote control. Safety Information Notice for customers in the United States of America Supplier’s Declaration of Conformity Trade Name: SONY Model: KD-85X77L / KD-85X77CL / KD-75X77L / KD-75X77CL / KD-65X77L / KD-65X77CL / KD-55X77L / KD-55X77CL / KD-50X77L / KD-43X77L Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 Compatible Wall-Mount Bracket Information Use the following Sony Wall-Mount Bracket with your TV model. Sony TV Model No. KD-75X77L / 75X77CL / 65X77L / 65X77CL / 55X77L / 55X77CL Sony Wall-Mount SU-WL855* Bracket Model No.
- Page 6 KD-85X77L / 85X77CL KD-75X77L / 75X77CL / 65X77L / 65X77CL / 55X77L / 55X77CL / 50X77L / 43X77L Securing the TV Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death. Preventing the TV from Toppling • Secure the TV to a wall and/or Stand. • Do not allow children to play or climb on furniture and TV sets. • Avoid placing or hanging items on the TV. • Never install the TV on: — slippery, unstable and/or uneven surfaces. — furniture that can easily be used as steps, such as a chest of drawers.
- Page 7 Secure the TV to the Stand. Use the optional hardware listed as follows (not supplied): • M6 machine screws (screwed into the TV’s rear cover). • A screw or similar (attach it to the Stand). • Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain. Screw hole on the rear cover (supplied) M6 machine screw (not supplied) Rope or chain (not supplied) 1.5 N·m Screw {15 kgf·cm} (not supplied) The length of the M6 machine screw differs depending on the rope or chain diameter. Please refer to below illustration. 10 − 12 (mm) Screw (M6) Rope or chain Anchor the TV to the wall by using bolts, wall anchor and chain (or rope). Wall-mount holes (supplied) Rope or chain (not supplied) M6 eye bolts (not supplied) Wall-anchor (not supplied) Please refer to below illustration for M6 eye bolt length. 10 − 12 (mm) M6 eye bolt TV’s rear cover...
- Page 8 Installing the TV to the Wall Using the optional Wall-Mount Bracket (SU-WL855 only)* (not supplied) To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Wall-Mount Bracket Installation Information For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the Sony Customer Support website for your TV model at the following address.
- Page 9 Your TV can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see “Detaching the Table-Top Stand from the TV”. Prepare the TV for the Wall-Mount Bracket before making cable connections. For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself. • Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.
- Page 10 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall). 1.5 N·m {15 kgf·cm} Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). Wall-Mount Bracket (not supplied) Screw (not supplied) Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. • Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV. Detaching the Table-Top Stand from the TV Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.
- Page 11 Select [Restart] and TV will restart. If the TV does not recover, try unplugging the AC power cord then press the power button on the TV and release it. Wait for two minutes, and plug in the AC power cord. Or, press the power button on the TV for about 40 seconds until the TV turns off. Refer to the Help menu shown below. Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements. Visit Sony support website (information provided at the end of each language). Perform the factory data reset. When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.
- Page 12 Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio) 1, USB port 1 and 2 supports High Speed USB (USB 2.0) LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.) Home Network supported files and formats* Power and others Power requirements 110 V - 240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz) Power consumption In use (W) KD-85X77L / 85X77CL: 342 KD-75X77L / 75X77CL: 315 KD-65X77L / 65X77CL: 226 KD-55X77L / 55X77CL: 191 KD-50X77L: 146 KD-43X77L: 125 In standby* Less than 0.5 W with 120 V AC and less than 0.5 W with 240 V AC Screen size (measured diagonally) (Approx.) (cm/inches) KD-85X77L / 85X77CL: 214.8 / 84.6 (85" class) KD-75X77L / 75X77CL: 189.3 / 74.5 (75" class) KD-65X77L / 65X77CL: 163.9 / 64.5 (65" class) KD-55X77L / 55X77CL: 138.8 / 54.6 (55" class) KD-50X77L: 125.7 / 49.5 (50" class) KD-43X77L: 108.0 / 42.5 (43" class)
- Page 13 Display resolution (horizontal × vertical) (pixels) 3840 × 2160 Output rating 500 mA (for USB 1/2) Others Optional accessories Wall-Mount Bracket: SU-WL855 (except KD-85X77L / 85X77CL / 50X77L / 43X77L) Operating temperature 0 ºC – 40 ºC / 32 ºF – 104 ºF *1 Refer to the on screen menu to set [HDMI signal format]. *2 Refer to the online Help Guide for details. *3 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. *4 Specified standby power is reached after the TV finishes necessary internal processes. *5 Standby power consumption will increase when your TV is connected to the network. Note • Optional accessories availability depends on countries/region/TV model/stock. • Design and specifications are subject to change without notice. • Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant. • Visit Sony website for more information on product specifications. Licensing Information • Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. For Your...
