Fifine K025 User Manual

Hide thumbs Also See for K025:

Advertisement

Table of Contents

K025
Version:20-I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K025 and is the answer not in the manual?

Questions and answers

Related Manuals for Fifine K025

Summary of Contents for Fifine K025

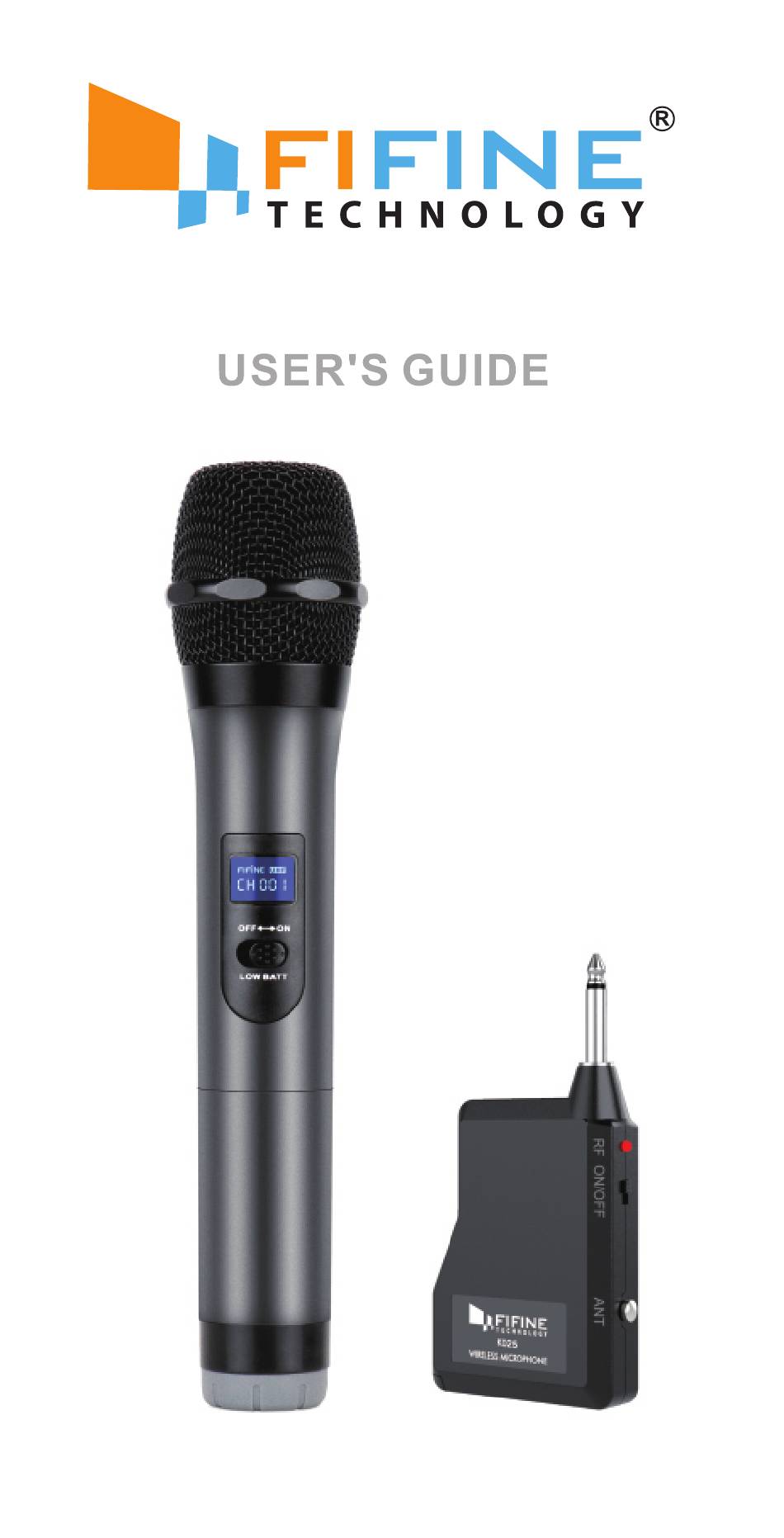

  • Page 1 K025 Version:20-I...

  • Page 2: Table Of Contents

    1 x User manual 1 x Microphone Anti-rolling Protection Ring CONTACT US Get Social: Facebook page : http://bit.ly/FifinePage Contact Info: E-mail : web@fifine.cc Please take a few minutes to watch the video before you start using the microphone. Operation video: http://bit.ly/k025problemsolving More product FAQs can be found on the website.

  • Page 3: Warranty

    WARRANTY Easily get a 2-year extended warranty with online registration within 90 days of purchase. 1. Input the link: https://fifinemicrophone.com/ 2. Please roll down to the bottom of the page, fill in E-mail address and submit it. 3. Check your inbox or spam to confirm subscription email.
  • Page 4 1.Microphone LED Screen( when frequency changed, the screen is only blinking and remain CH001) Slide on-off button Battery Compartment Channel Button(Every short press the channel button brings 1MHz frequency variation.) Microphone Anti-rolling Protection Ring 2.Receiver Signal Indicator(The indicator is green when pairing with transmitter.It turns RED when paired successfully)

  • Page 5: Quick Start

    On-off Button Antenna (Pull it out to extend the range of signal transmission and get better connection with transmitter.) Quarter Inch Jack-plug(6.35mm) Battery Compartment QUICK START 1. Insert batteries confirming to “+” and “-”. Incorrect installation will result in not working or damaging the microphone set.
  • Page 6 2. Make sure to turn down the volume of your speaker before you plugging the receiver into the 1/4’’ (6.35mm) mic input of it. BASS MIDDLE TREBLE VOLUME INPUT Note : We do not recommend to use with portable bluetooth speakers lower than 15 watt, such as JBL charge, Doss touch.

  • Page 7: Warning Of Low Battery Power

    4.Slowly adjust the mic volume of the speaker from zero to the desired loudness to avoid feedback noise (howling). The best distance between microphone and speaker should be at least 10’. Now your voice would be heard through the speaker when you talk to the microphone.
  • Page 8 Blinking 3.Operation time is limited relative to battery life; To save power, please turn off mic and receiver after use and take the batteries out in time. Not used for a long time will cause battery leaked acid, destroyed microphone equipment. 4.Sometimes a battery gets poor contact with the connector inside microphone/ receiver and results in the same...

  • Page 9: Mulitiple Microphones Uesd

    MULTIPLE MICROPHONES USED SIMULTANEOUSLY You will need 2 transmitters and 2 receivers if you want to use 2 mic sets. When using multiple microphones simultaneously and there is interference (the mic/s cutting in and out or the range is short), please try other available channels by the below procedure: 1.

  • Page 10: Restore To Factory Settings

    WIRELESS FREQUENCY AND CHANNEL GUIDE The are 20 frequency of k025 for your choice ,you can one click channel button to change. But the alteration would not display on the led screen. 565.000 566.000 567.000 5 68.000 569.000 570.000 571.000 572.000 573.000 574.000 575.000 576.000...
  • Page 11 3. If you have multiple K025 and some of microphone set don’t work. Please follow the below steps to reset the mic set exactly: 1. Turn OFF the mic and the receiver before the process. 2. Turn the microphone on,unscrew the microphone battery cover, long press channel button for three seconds to enter reset mode.
  • Page 12 3. Turn the receiver on while the screen is flashing. The receiver indicator will flash green and red alternately and then turn green again. switch on  turns green flashing red and green 4. Pick up microphone again and then one click on it’s channel button to confirm. (The Led screen stops flashing after you one click the channel button).

  • Page 13: Troubleshooting

    Turn up the speaker volume. Turn off the bluetooth function of speaker. No sound Receiver light is red Provide the speaker info to FIFINE cs for more suggestion. Using the mic closer to receiver. Mic is on, receiver light is No sound Reset the mic set.
  • Page 14 Receiver light is green sound as transmitter dropoutspersist. mark”dead” spots and when the sound cuts out. is moved around avoid them during performance. performing area. Note: If the above troubleshootings don’t help, please contact FIFINE customer service team (web@fifine.cc) for further assistance.

  • Page 15: Important Notice

    IMPORTANT NOTICE 1. The transmitter and receiver need to be in direct line of 'sight' for them to work. Wireless mic easily gets interference and blocked by object like a person walking in front of it antenna, make sure to put its receiver as high as possible and keep away from any large piece metal object.
  • Page 16 S/N Ratio: More than 58dB Frequency Response: 50~18KHz Power Supply: 2*AAA Batteries Microphone Type: Dynamic Model number: K025 Standard impedance: 600 ±30% Sensitivity: -50.60±1db (At 1KHz) Frequency response: 50~18KHz Direction: Uni-direction Operating temperature range: -29 ~43 Construction: Suspension type Power Supply: 2*AA Batteries...
