Eterna KCIRMW3 Installation Instructions

CLEANING:
Clean this fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
BATTERY REPLACEMENT:
If after routine operation check, the lamp does not
remain lit for the three hour period, a new battery
pack may be required.
01. Switch off the electricity at the mains (both
permanent live and switch live) and allow
batteries to fully discharge then reconnect to
supply and allow charging for 24 hours.
02. Test again for 3 hours, if light does not remain lit,
then change the battery pack as follows:
03. Remove the diffuser and remove the gear tray.
04. Remove the battery case from the gear tray and
remove the battery.
05. Write current date on the new battery pack and fit
a new battery by reversing the above procedure.
06. Plug battery pack into circuit board.
07. Refit gear tray and diffuser.
08. Restore power and allow charging for 24 hours.
09. Perform full operation check and update test
record.
REPLACEMENT BATTERY TYPE:
3.2V 1500mAh LiFePO4.
MICROWAVE SENSOR SPECIFICATIONS:
PRODUCT MICROWAVE
TYPE MOTION SENSOR
Operating Voltage 220-240VAC 50/60Hz
HF System 5.8GHz
Transmission Power 1mW Max
Detection Angle 150 Degree
Power Consumption <0.5W
Detection Range Max. 6m adjustable
Time Setting 5s-30m
Mounting Indoors, ceiling and wall
Light Control 2-50lux, disable
Working Temp -20 to +60 degree
400W (Inductive load)
Rated Load 800W (Resistive load)
270W (LED)
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1021
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European "WEEE
Directive" effective August 2005—UK WEEE Regulations
effective 2nd January 2007). Environment Agency
Registered Producer: WEE/GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF ITS
LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE RECYCLE
IT WHERE FACILITIES EXIST - DO NOT DISPOSE WITH
HOUSEHOLD WASTE.
INDUSTRIAL BATTERIES:
Within certain products Eterna Lighting Ltd places lead
acid, lithium ion, nickel cadmium & nickel metal hydride
batteries on the market. Industrial batteries are subject
to waste regulation under the Waste Batteries and
Accumulators Regulations 2009 and should be disposed
of responsibly. Purchasers may be able to dispose of
their waste industrial batteries locally via legitimate
licensed trade waste contractors. Eterna is obliged
to take back, free of charge and within a reasonable
time, waste industrial batteries of the same chemistry
supplied to a Purchaser, for treatment and recycling
and is required to do this in any calendar year new
industrial batteries are placed on the market. In certain
circumstances, this may include batteries not originally
supplied by Eterna. If any Purchaser requires Eterna
to take back Industrial batteries, they should write to
the Operations Director, Eterna Lighting Ltd, Huxley
Close, NN8 6AB, who will then advise on the necessary
arrangements for the receipt, proper treatment and
recycling of, the waste industrial batteries.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return it
to the place where you bought it. Our Technical Team
will gladly advise on any Eterna Lighting product, but
may not be able to give specific instructions regarding
individual installations.
LAMP REPLACEMENT:
The light source is designed to last the lifetime of the
luminaire.
The light source contained in this luminaire
shall only be replaced by the manufacturer,
service agent or a similar qualified person.
CAUTION, RISK OF ELECTRIC SHOCK.
Made in China

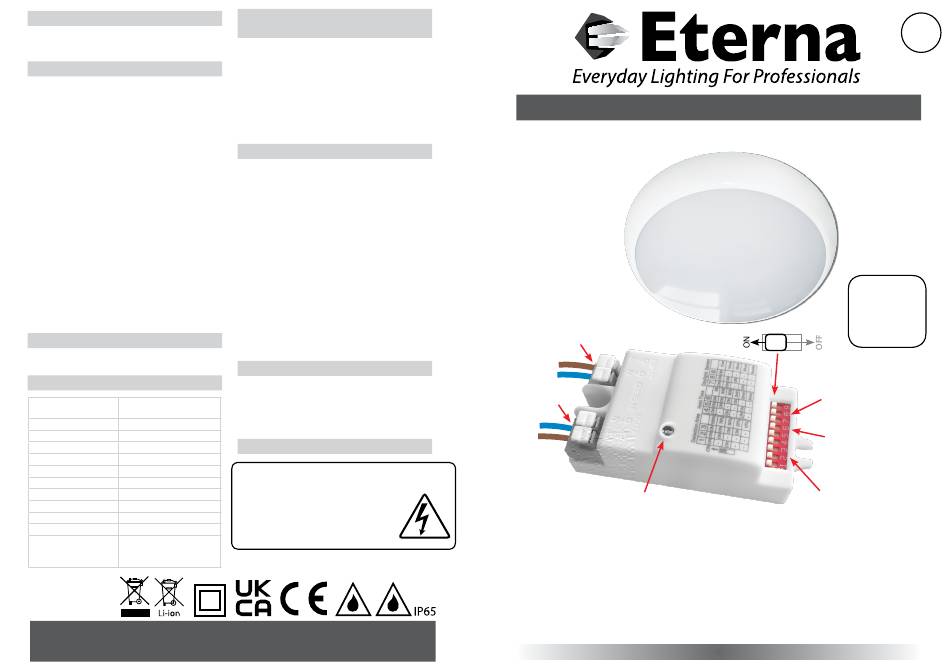

INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Power
Supply
Input
220-240V
Output
Control
Daylight
Model:
Sensor
KCIRMW3
Emergency Colour Temperature Selectable Circular LED
Ceiling/Wall Light With Microwave Sensor
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
V2
Pack contents:
1 x LED ceiling
fitting
1 x Maintenance
check record
7-8-9
Daylight
Threshold
4-5-6
Hold Time
1-2-3
Detection
Area
