SPECIFICATIONS:
Power Source:
220-240Vac~ 50-60Hz with 9V
battery back-up.
Battery Back-Up:
9Vdc Alkaline or Carbon Zinc
battery:EVER READY PP3S
DURACELL MN1604 9V.
Battery Back-Up Life:
In the event of a break in the
mains supply the battery will
give detector operation for 1
year minimum.
Operating Current:
<20mA operation (in alarm),
15μA in standby mode.
Alarm Sound Level:
85 Decibels at 3 metres.
Hush Facility:
Mutes alarm for 10 minutes, if
heat increases during this time
the alarm will be
re-triggered.
Sensitivity:
58°C fixed temperature only.
Maximum ambient:
45°C
Interconnect Facility:
40 x smoke / heat detectors -
over 150 metre maximum.
Recommended coverage:
200m
2
Recommended spacing:
13.5M
Maximum distance from wall:
7.5M
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website:
Issue 0616
PAGE 6
BATTERY REPLACEMENT:
1. Switch off the electricity at the mains.
2. Remove the locking tabs from the side of the alarm,
twist the alarm anti clockwise and pull away from the
base.
3. Remove the power connector.
4. Remove and replace the battery.
5. Replace the power connector.
6. Fit the alarm back onto the base and twist clockwise,
refit the locking tabs.
7. Restore the power at the mains.
8. Check the alarm is functioning by pushing the test
button.
CLEANING:
Clean this alarm only with a soft dry cloth.
Periodically vacuum around the alarm to dislodge and
remove dust particles that may have gathered.
Do not use any chemical or abrasive cleaners
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European "WEEE
Directive" effective August 2005—UK WEEE Regulations
effective 2nd January 2007). Environment Agency
Registered Producer: WEE/GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF ITS
LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE RECYCLE
IT WHERE FACILITIES EXIST - DO NOT DISPOSE WITH
HOUSEHOLD WASTE.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return it
to the place where you bought it. Our Technical Team
will gladly advise on any Eterna Lighting product, but
may not be able to give specific instructions regarding
individual installations.
www.eterna-lighting.co.uk
Mains Heat Detector With Battery Back-Up
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
MHDB
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack Contents
Heat Detector
x 1
Mounting Plate
x 1
Mains Connector
x 1
9V Battery
x 1
Fixing Kit
x 1
PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eterna MHDB
Summary of Contents for Eterna MHDB
- Page 1 If you believe your product is defective, please return it Heat Detector to the place where you bought it. Our Technical Team Model: will gladly advise on any Eterna Lighting product, but Mounting Plate may not be able to give specific instructions regarding Mains Connector individual installations.
- Page 2 READ THIS FIRST: POSITIONING THE HEAT ALARM: INSTALLATION: This interconnect feature allows up to 40 heat alarms and/ or smoke alarms to be connected together using the single Check the pack and make sure you have all of the parts listed As heat rises its advisable to mount the alarm on a ceiling in a 01) Remove the mounting plate from the alarm by turning it yellow wire and thus allowing all alarms to sound when only...
- Page 3 FITTING TAMPERPROOF TABS: TESTING YOUR HEAT ALARM: IMPORTANT SAFE GUARDS: To use the locking tab, remove one of them from the mounting plate and insert into the assembled housing as shown below: After installation and after reoccupation of the dwelling after a Installation of your heat alarm is only one step in your safety vacation etc;...
Need help?
Do you have a question about the MHDB and is the answer not in the manual?
Questions and answers

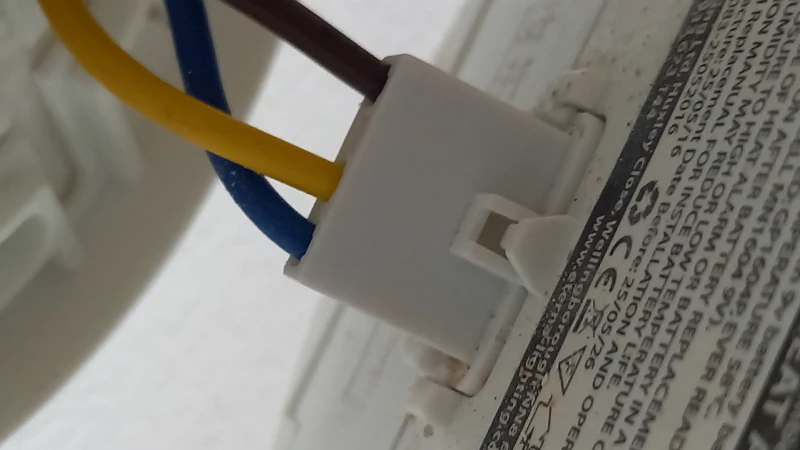

Trying to unclip the wires to change battery. Cannot unclip. Not shown in manual.. just says unclip
To change the battery on an Eterna MHDB, follow these steps:
1. Switch off the electricity at the mains.
2. Remove the locking tabs from the side of the alarm.
3. Twist the alarm anti-clockwise and pull it away from the base.
4. Remove the power connector.
5. Replace the battery.
6. Reconnect the power connector.
7. Fit the alarm back onto the base and twist it clockwise.
8. Refit the locking tabs.
9. Restore power at the mains and test the alarm by pressing the test button.
This answer is automatically generated
