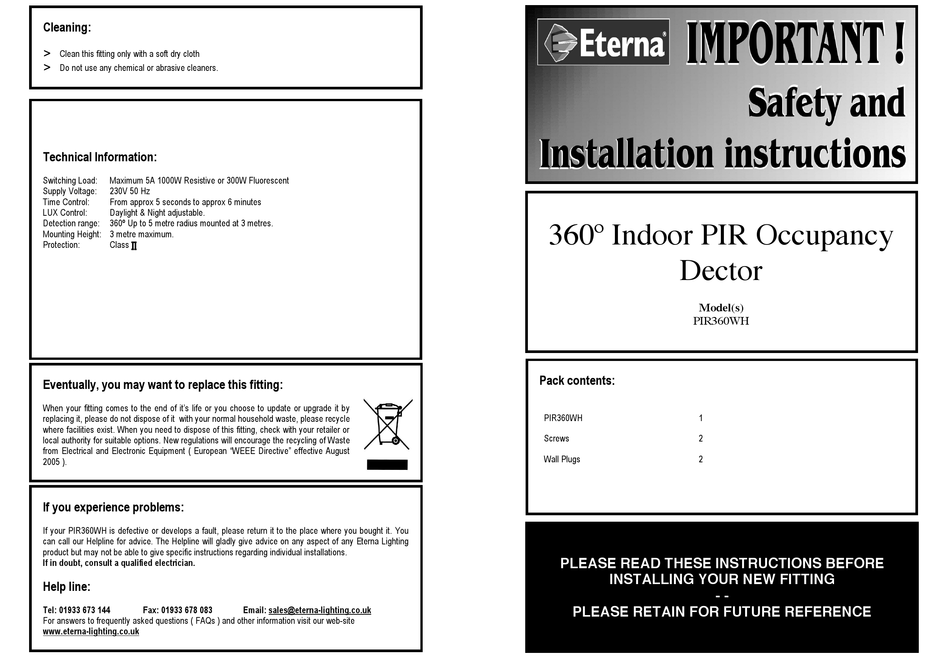

Cleaning:
>
Clean this fitting only with a soft dry cloth
>
Do not use any chemical or abrasive cleaners.
Technical Information:
Switching Load:
Maximum 5A 1000W Resistive or 300W Fluorescent
Supply Voltage:
230V 50 Hz
Time Control:
From approx 5 seconds to approx 6 minutes
LUX Control:
Daylight & Night adjustable.
Detection range:
360º Up to 5 metre radius mounted at 3 metres.
Mounting Height: 3 metre maximum.
Protection:
Class
!
Eventually, you may want to replace this fitting:
When your fitting comes to the end of it's life or you choose to update or upgrade it by
replacing it, please do not dispose of it with your normal household waste, please recycle
where facilities exist. When you need to dispose of this fitting, check with your retailer or
local authority for suitable options. New regulations will encourage the recycling of Waste
from Electrical and Electronic Equipment ( European "WEEE Directive" effective August
2005 ).
If you experience problems:
If your PIR360WH is defective or develops a fault, please return it to the place where you bought it. You
can call our Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting
product but may not be able to give specific instructions regarding individual installations.
If in doubt, consult a qualified electrician.
Help line:
Tel: 01933 673 144
Fax: 01933 678 083
For answers to frequently asked questions ( FAQs ) and other information visit our web-site
www.eterna-lighting.co.uk
Email: sales@eterna-lighting.co.uk
360º Indoor PIR Occupancy
Dector
Model(s)
PIR360WH
Pack contents:
PIR360WH
1
Screws
2
Wall Plugs
2
PLEASE READ THESE INSTRUCTIONS BEFORE
INSTALLING YOUR NEW FITTING
- -
PLEASE RETAIN FOR FUTURE REFERENCE
Advertisement
Related Manuals for Eterna PIR360WH
Summary of Contents for Eterna PIR360WH
- Page 1 If you experience problems: If your PIR360WH is defective or develops a fault, please return it to the place where you bought it. You can call our Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting product but may not be able to give specific instructions regarding individual installations.
- Page 2 Walk Testing: Read this first: Before commencing the walk test The LUX dial should be set to the day position (toward the > This fitting must be installed in accordance with the Building Regulations. These may be symbol) and the time control to the minimum position (toward the — symbol). obtained from HMSO or viewed and downloaded from www.odpm.gov.uk following the link for Walk slowly during the walk testing in order to gain the desired detection area, Building Regulations.
