TFA DESIGN Instruction Manual

Instruction Manual
Cat.-No. 60.3521
A
B
E

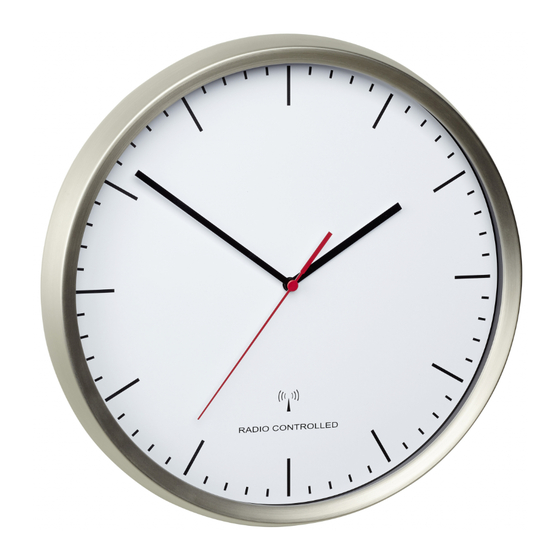

DESIGN – Radio-controlled wall clock
Thank you for choosing this instrument from TFA.
1. Before you use this product
• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will pre-
vent damage to your instrument and loss of your statutory rights
arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-
following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.
2. For your safety
• This product should only be used as described within these instruc-
tions.
• Unauthorized repairs, modifications or changes to the product are pro-
hibited.
Caution!
Risk of injury:
• Keep this instrument and the battery out of the reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If
a battery is swallowed, this can lead to serious internal burns and
death within two hours. If you suspect a battery could have been swal-
lowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or
recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent dam-
age caused by leaking.
• Wear chemical-resistant protective gloves and safety glasses when
handling leaking batteries.
Important information on product safety!
• Do not place your device near extreme temperatures, vibrations or
shocks.
• Protect it from moisture.

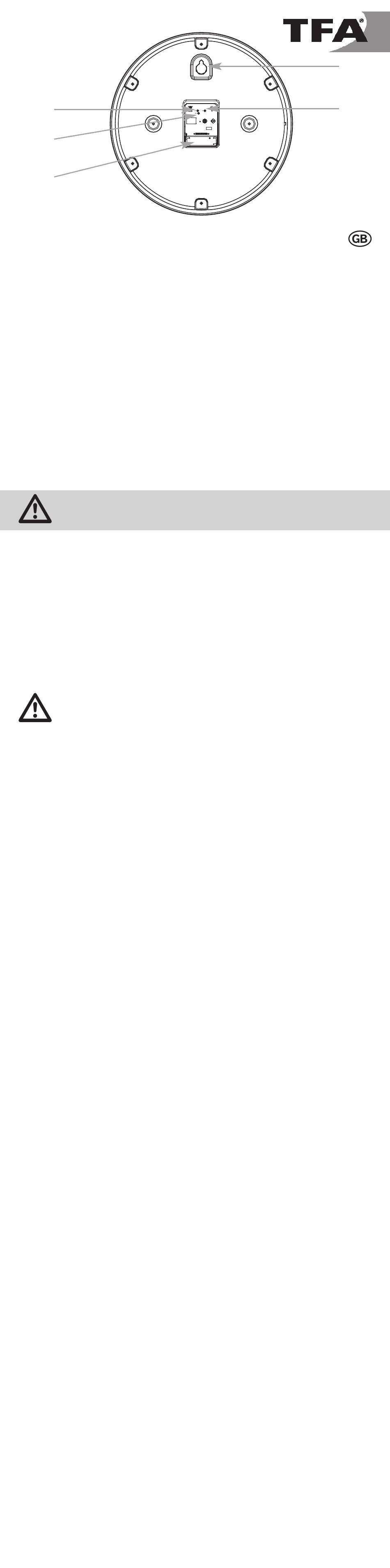

3. Elements
Buttons
A: MSET button
C: REC button
Housing
D: Wall mounting hole
4. Getting started
• Insert a new battery 1,5 V AA, ensure that the battery polarity is correct.
• The device is ready for use.
4.1 Reception of the DCF frequency signal
• The clock's hands move to 12 o'clock.
• The clock will now scan the DCF frequency signal
• When the time code is received successfully after 3-12 minutes, the
radio-controlled time is displayed steadily on the display.
• The DCF reception always takes place daily at 1:00 and 3:00 o'clock in
the morning.
Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic clock
operated by the Physikalisch Technische Bundesanstalt Braunschweig. It
has a time deviation of less than one second in one million years. The
time is coded and transmitted from Mainflingen near Frankfurt via fre-
quency signal DCF-77 (77.5 kHz) and has a transmitting range of approx-
imately 1,500 km. Your radio-controlled clock receives this signal and
converts it to show the precise time. Changeover from summer time or
winter time is automatic. The quality of the reception depends mainly on
the geographic location. Normally there should be no reception problems
within a 1,500 km radius around Frankfurt.
Please take note of the following:
• The recommended distance to any interfering sources like computer
monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the
received signal is naturally weakened. In extreme cases, please place
the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe
and reception is possible in most cases. A single daily reception is
adequate to keep the accuracy deviation under 1 second.
4.2 MSET button - Manual setting of the clock
• If the clock cannot detect the DCF-signal (for example due to distur-
bances, transmitting distance, etc.), the time can be set manually. The
clock will then work as a normal quartz clock.
• Press and hold the MSET button for three seconds.
• Press and hold the MSET button until the desired time is indicated.
• Press the button briefly the clock's hands will move minute by minute.
• The clock's second hand stops at 12 o'clock.
• After 15 seconds, the clock's second hand will move forward again.
• The manually set time will be overwritten by the DCF time when the
signal is successfully received.
4.3 REC button
• Manual initialization can be helpful.
• Press and hold the REC button for three seconds.
B: RESET button
E: Battery compartment
D
C
